Armature Wire Winding Machine With Two Flyer
This armature winder is a high seed flyer winding machine for hook type commutator armature, like Mixer,Vacuum cleaners, Hammers,Power tool.
(1) Specification
| Power supply | AC380V±10% 50/60HZ |
| Air resource | 4~6kg/cm2 |
| Weight | about 1250kg |
| Dimension | 2000mm×1000mm×1800mm |
| Total power | 4KW |
| Armature OD | 20~85 mm |
| Commutator OD | 8~40mm |
| Shaft OD | 3~15 mm |
| Shaft length | Max 250mm |
| Wire diameter | 0.16~1.2 mm |
| Slot number | Even number |
| Turn No. | 0~9999 |
| Stack length | 10~70 mm |
| Winding speed | 0~2500rpm |
| Winding motor power | 1.5KWX2 |
| Angle detecting speed | 0~3000rpm |
| Angle detecting motor power | 0.75KWX1 |
(2)Feature
For hook type commutator
High quality level of winding
Manual loading and unloading
For medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
All winding parameter programmed on touch screen
(3) Application

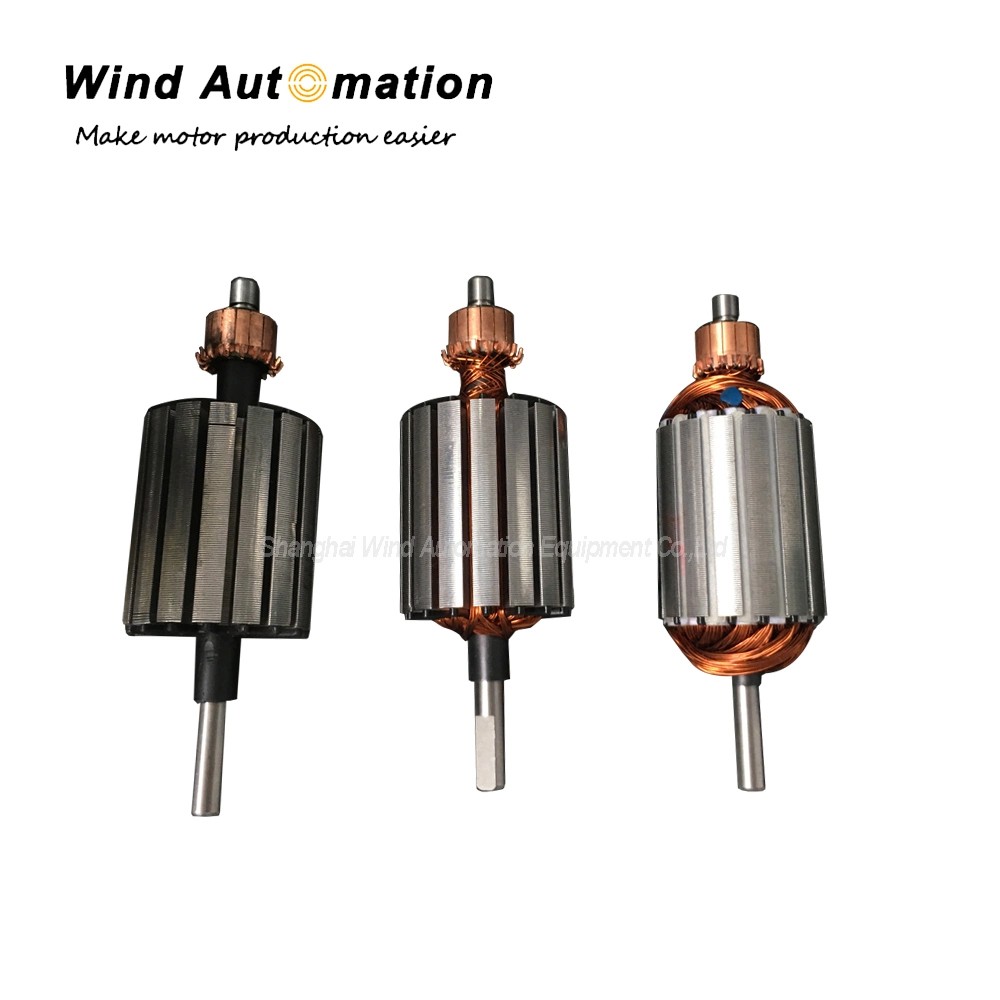

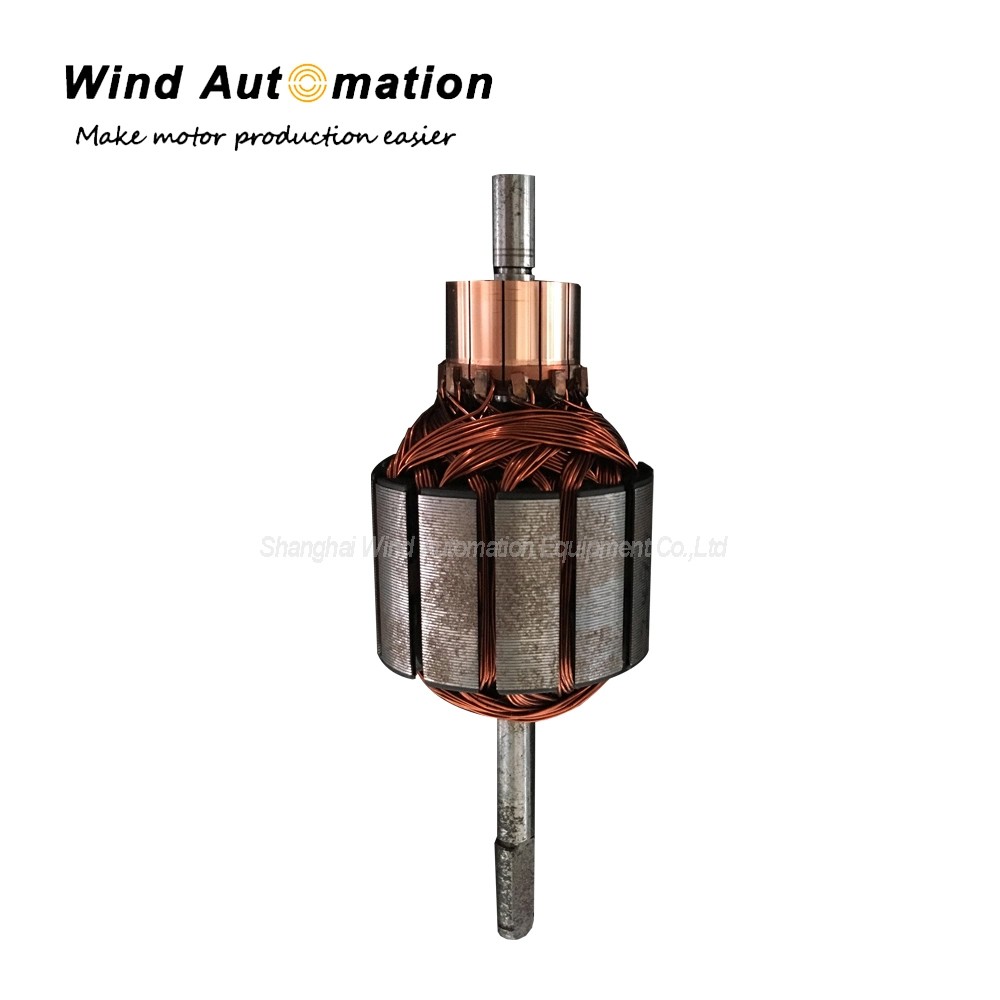

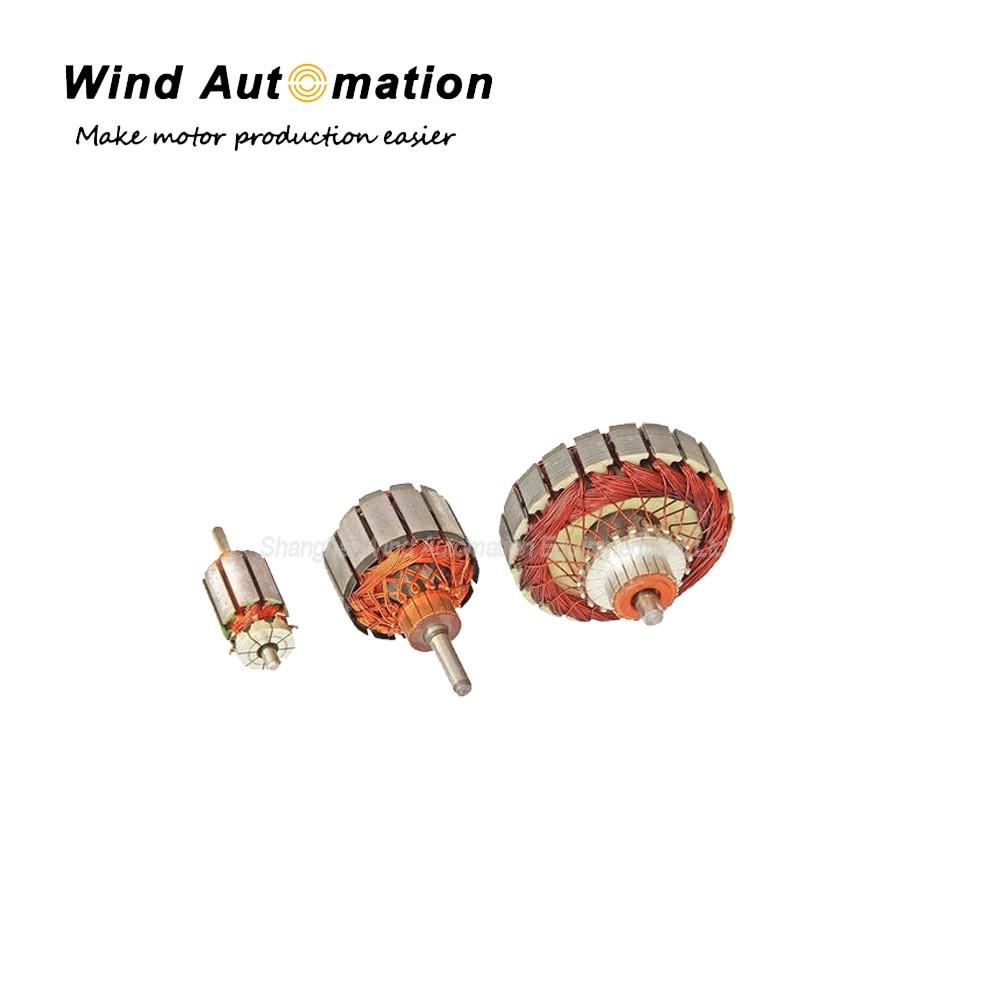

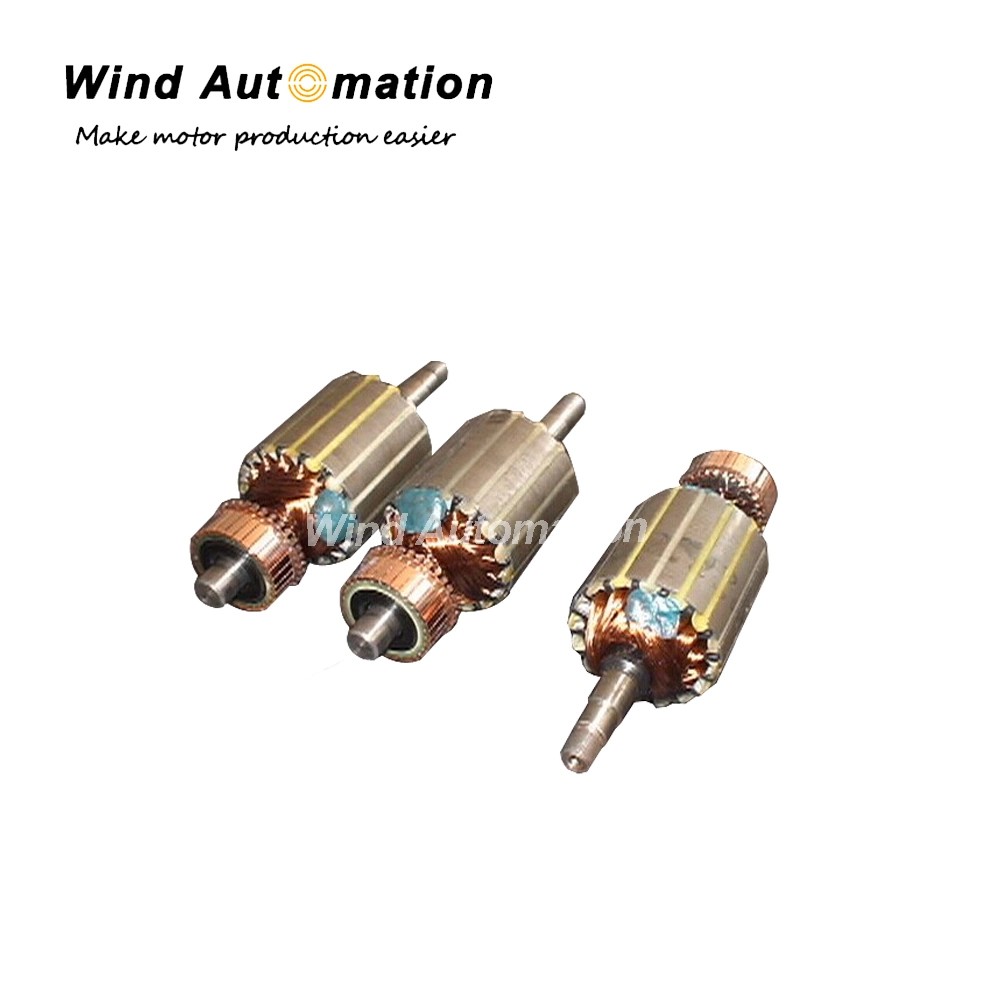

Suitable for mixer,vacuum cleaners, hammers,power tool.
(4)Machine configuration
Mitsubishi PLC
Mitsubishi or Panasonic servo motor control system
5.7'' colorful touch screen system
SMC Cylinder
