Product Description

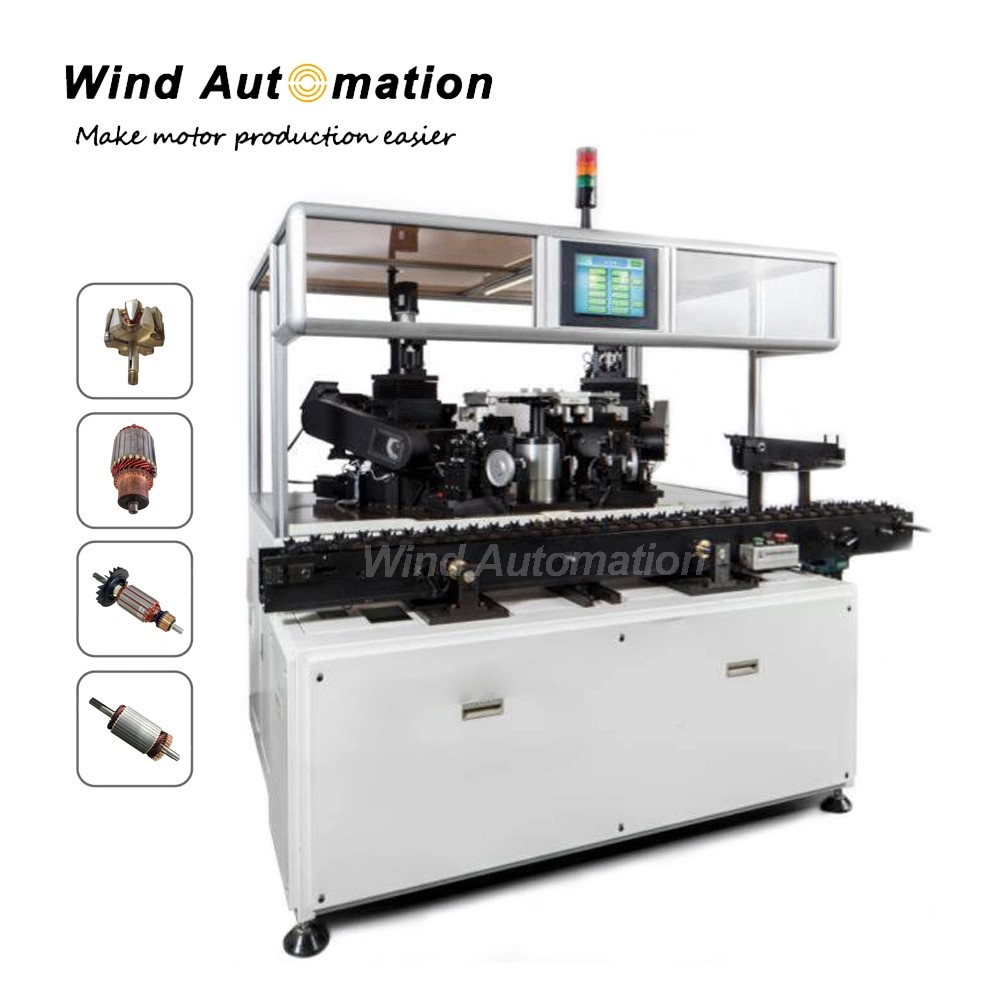

Weight Correction Machine Armature Balancing Machine With 5 Stations

This 5 stations fully automatic armature balancing machine is a high production output machine for armature weight removing. Armatures are loaded manually into the feeding conveyor, which in turn automatically leads to the working position and then continues to the outgoing conveyor. It is suitable for the majority of armatures.


(1)Feature
5 working stations, 1 for loading and unloading, 2 for balancing, 2 for testing
High efficiency, automation and productivity
High quality level of the balancing process
Gravity feeding conveyor
Conveyor for outgoing rotors
Twice testing guarantees balancing accuracy
Servo drive systems providing high positioning accuracy while cutting
Suitable for the majority of armatures
Compact design which allows easy and safe handling

(2)Operation process
Power on machine.
Put the armature on the conveyor, make sure the commutator side should touch the conveyor side.
Press Test&Process on touch screen.
Press RUN on the touch screen or START button.
Machine will automatically do balancing.
Unload armature.

(3)Specification

(4)Application
The 5 stations fully automatic armature balancing machine is suitable for majority of armatures, like DC motor, universal motor used for home appliance, car and power tool motor armature.
