Armature-Winding-Solution-for-Riser-Type-Commutator-Rotor-Incline-Slot

Basic Info.

Model NO.

WIND-ST-TD2B

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

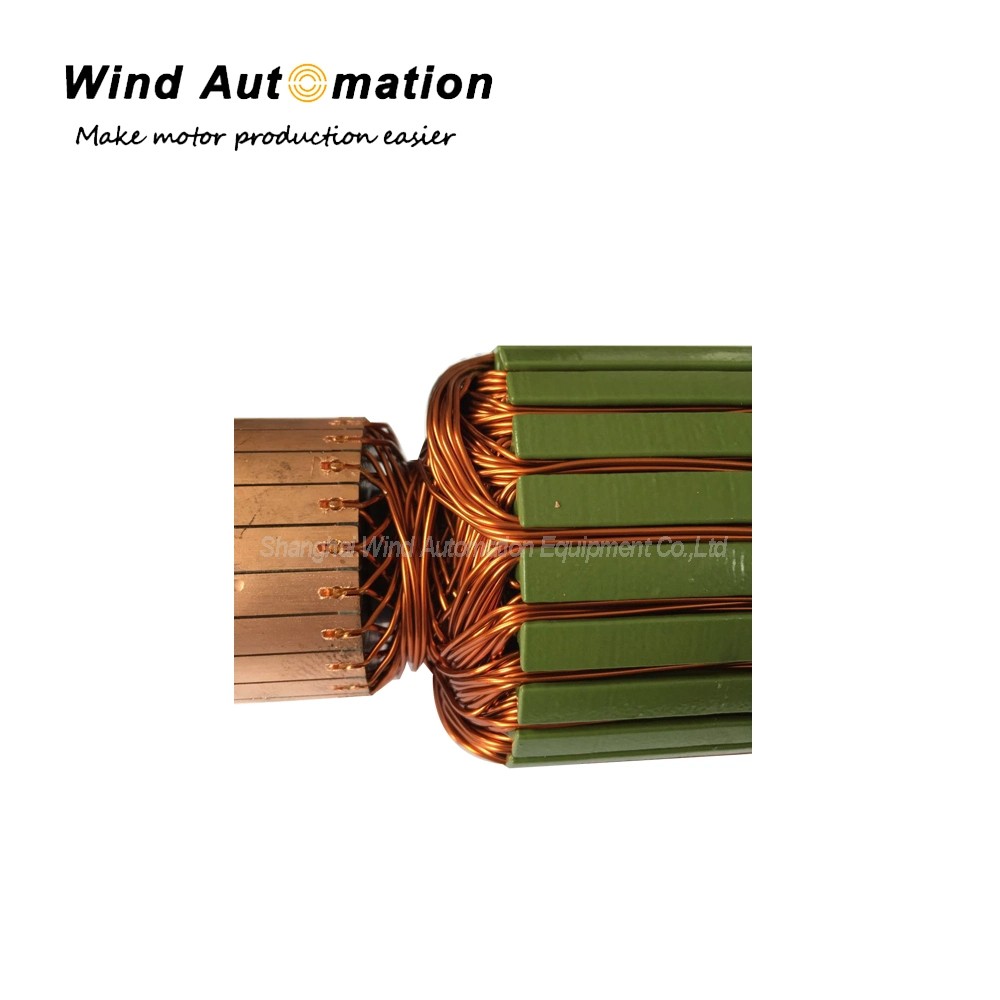

Winding Solution for Riser-type Commutator Rotor

Wind Automation proivide customer with various winding solutions, for armature winding, for coil winding, for stator winding, for needle winding, for hairpin winding.

(1)Specification

(2)Feature
For riser type commutator
With medium and big wire diameter
Manual loading and unloading

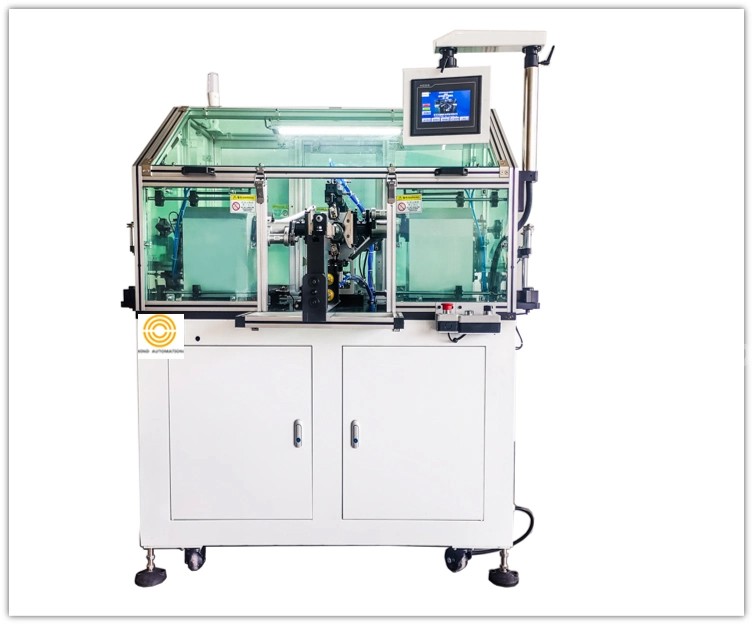

Can work as a stand-alone machine or integrated into a production line
All winding parameter programmed on touch screen

(3)Application

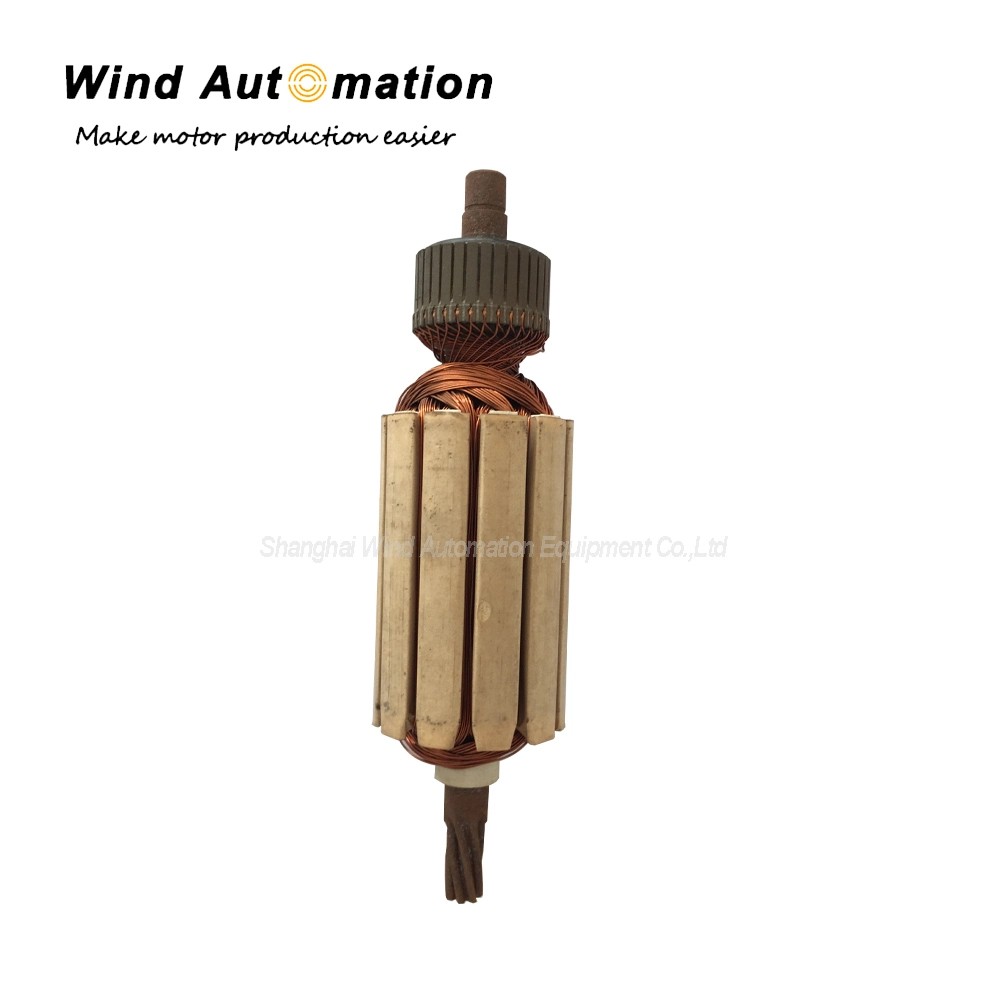

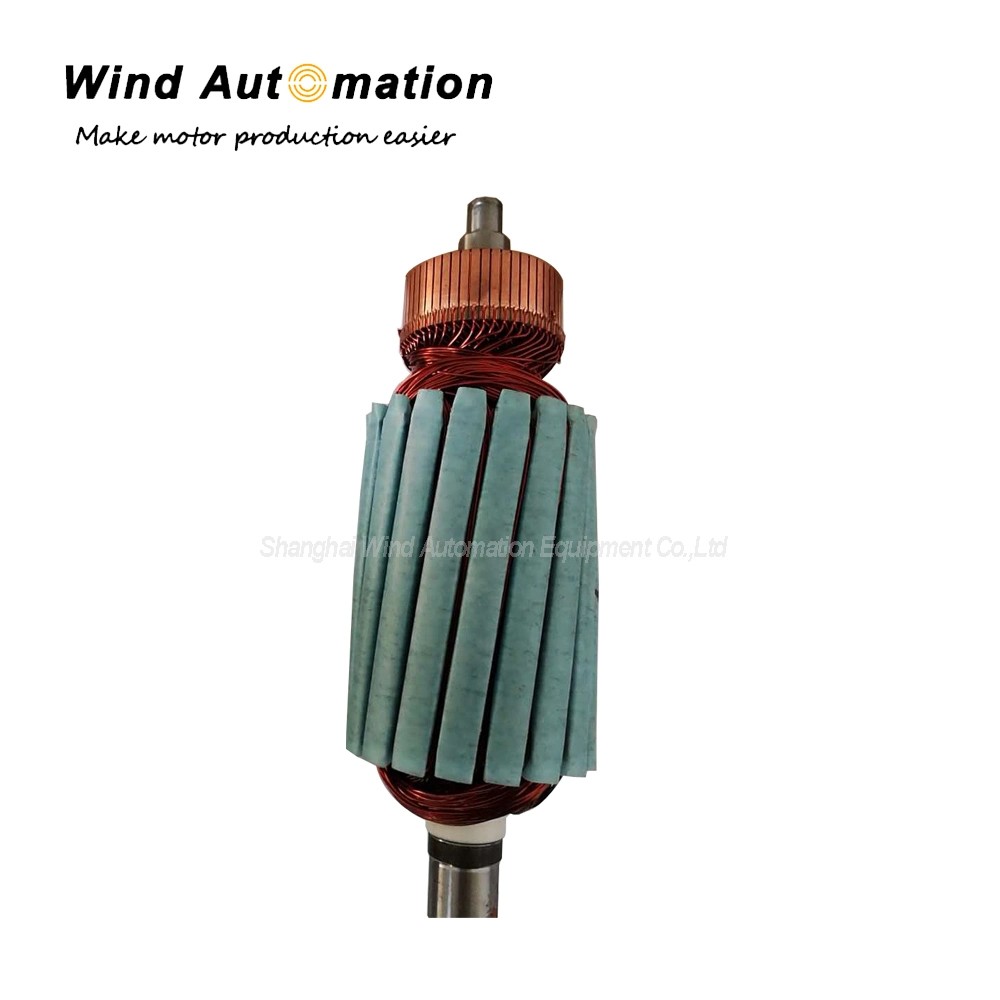

This machine is suitable for slotted type armature with riser type commutator.

(4)Machine Operation

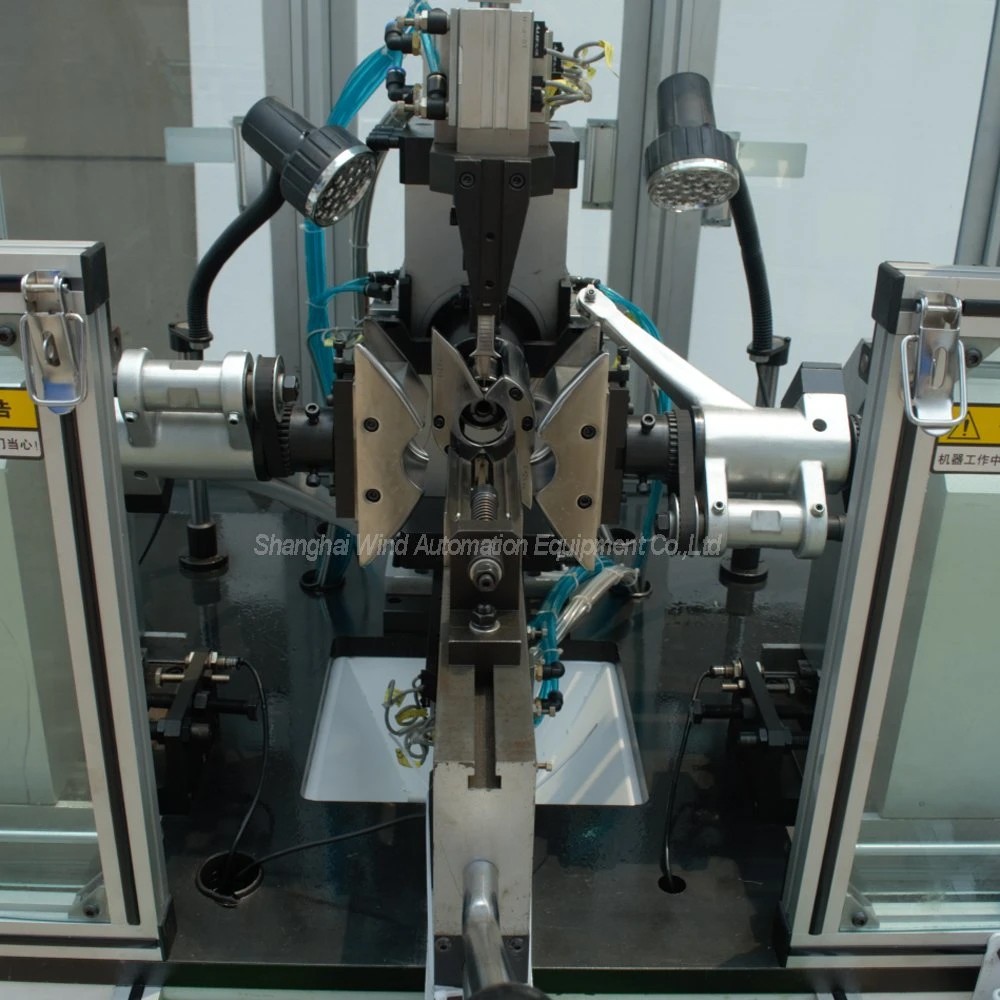

1)Put the armature on the tooling
2)Then press the start button.
3)Machine will wind the armature automatically
4)Unload wound armature
