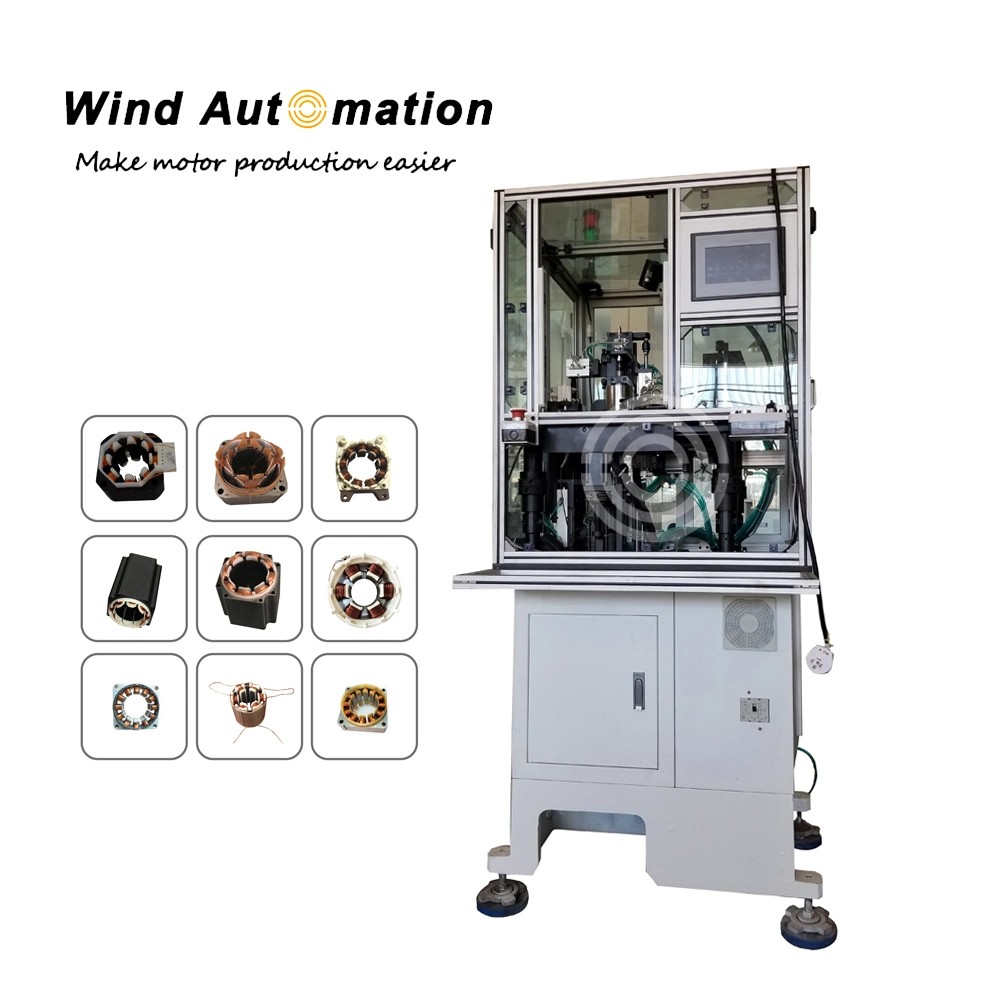

Outer Slot Stator 3 Needles Inslot Coil Winding Machine

Outer Slot Stator 3 Needles Inslot Coil Winding Machine
This coil winding machine is special designed for outer slot stator to do coil winding.  Customized service is also provided, if stator parameter does not meet the specification listed blow.

(1)Application

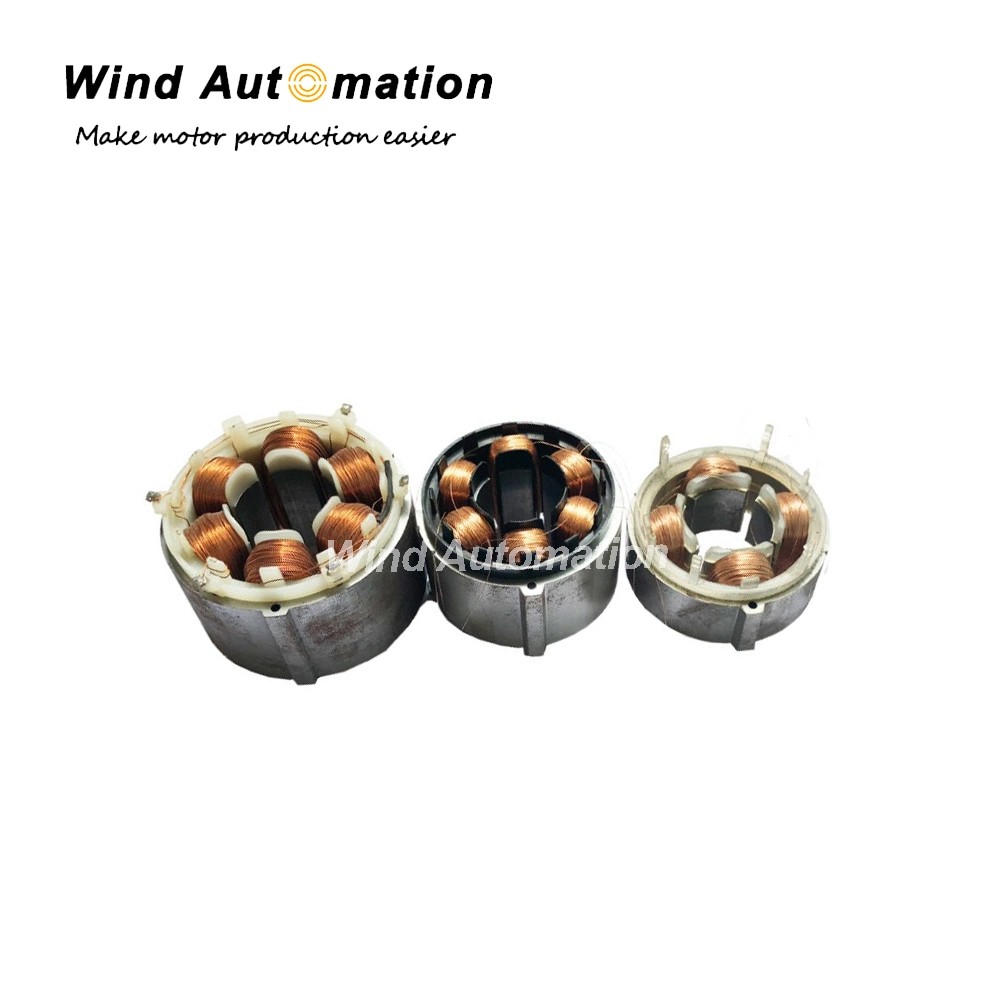

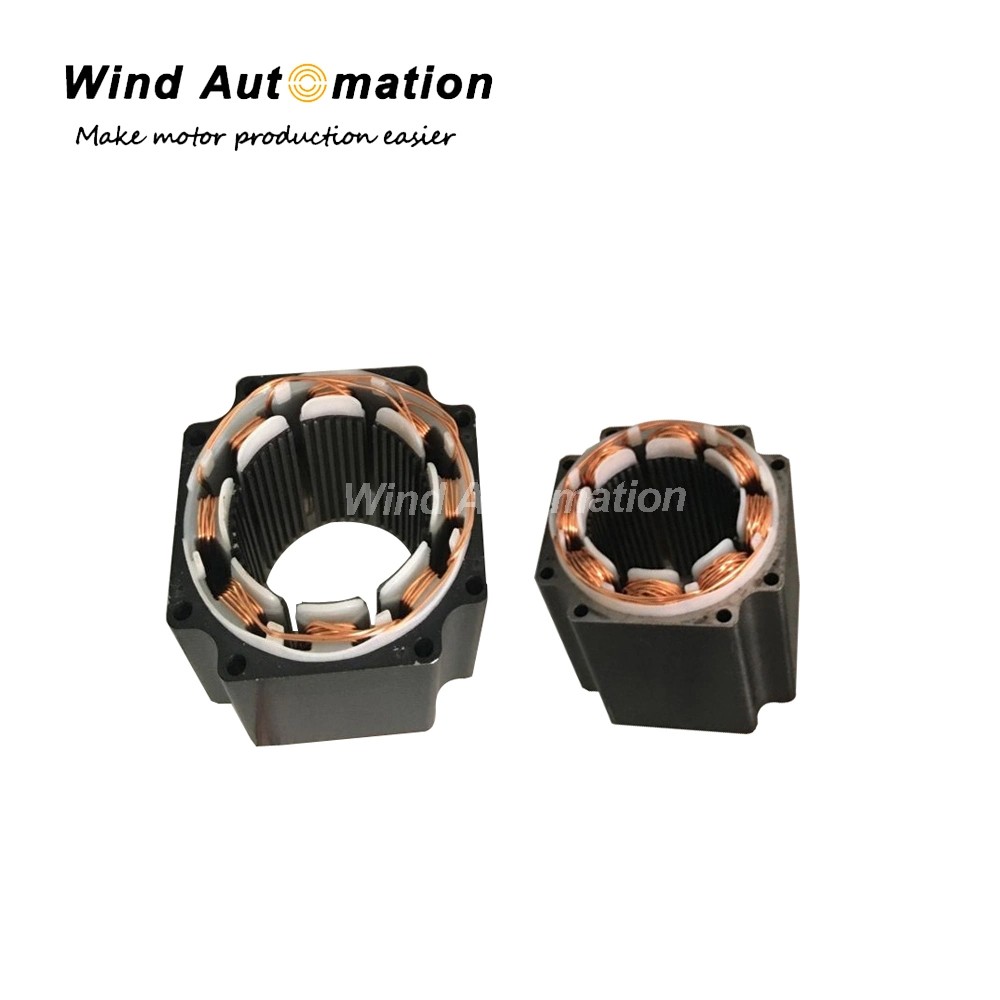

Suitable for various types stators with narrow slot width but high slot filling rate.


(2)Specification

Wire diameter0.08~1.2mm
Stator ID19~65mm
Stack length7~110mm
Turn No.0~9999
MovementStepping/Auto
Slot number6,9,12,18(customized)
Air source5~7kg/cm3
Power2KW
Power supplyAC 220 V, 50/60HZ
Weight750KG
Dimension1600x1100x1400mm


(3)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

(4)Features
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Winding parameter adjustable according to different stators

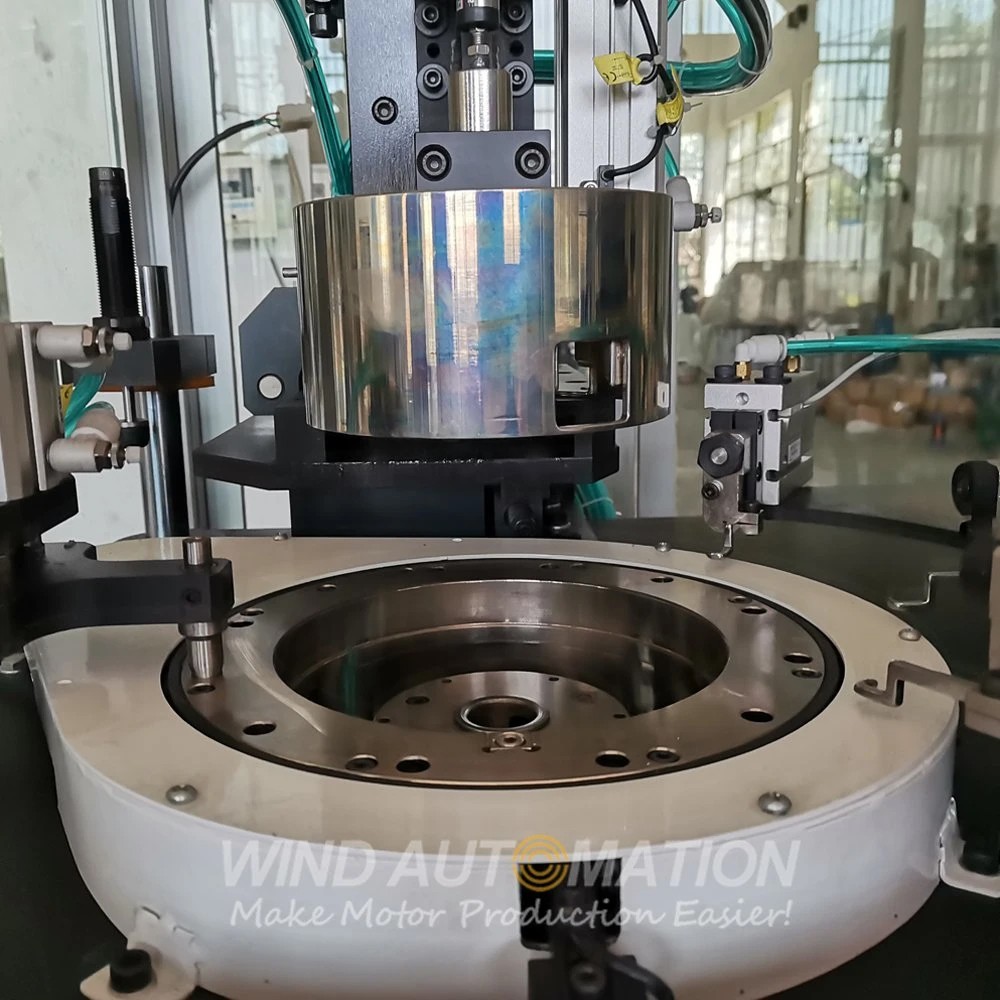

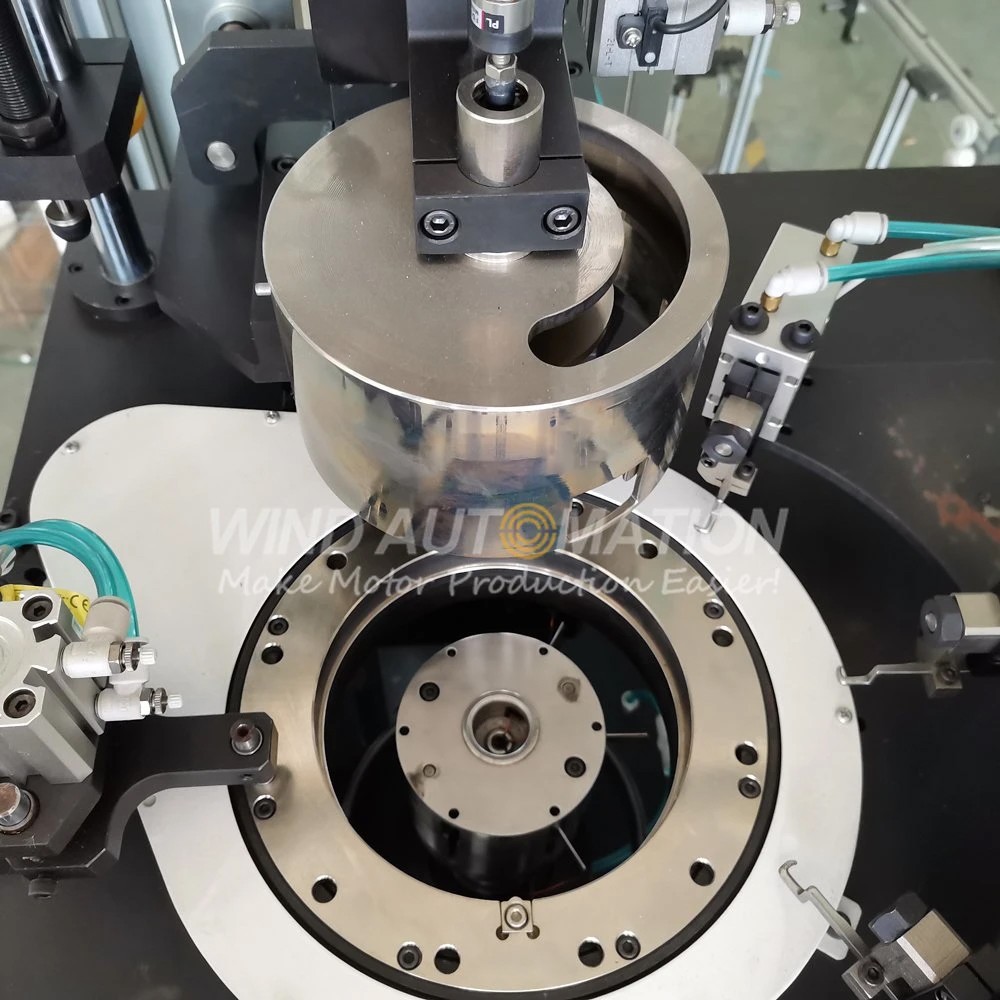

(5) Machine working station
Outer Slot Stator 3 Needles Inslot Coil Winding Machine
Outer Slot Stator 3 Needles Inslot Coil Winding Machine

Outer Slot Stator 3 Needles Inslot Coil Winding Machine
Outer Slot Stator 3 Needles Inslot Coil Winding Machine
Outer Slot Stator 3 Needles Inslot Coil Winding Machine
