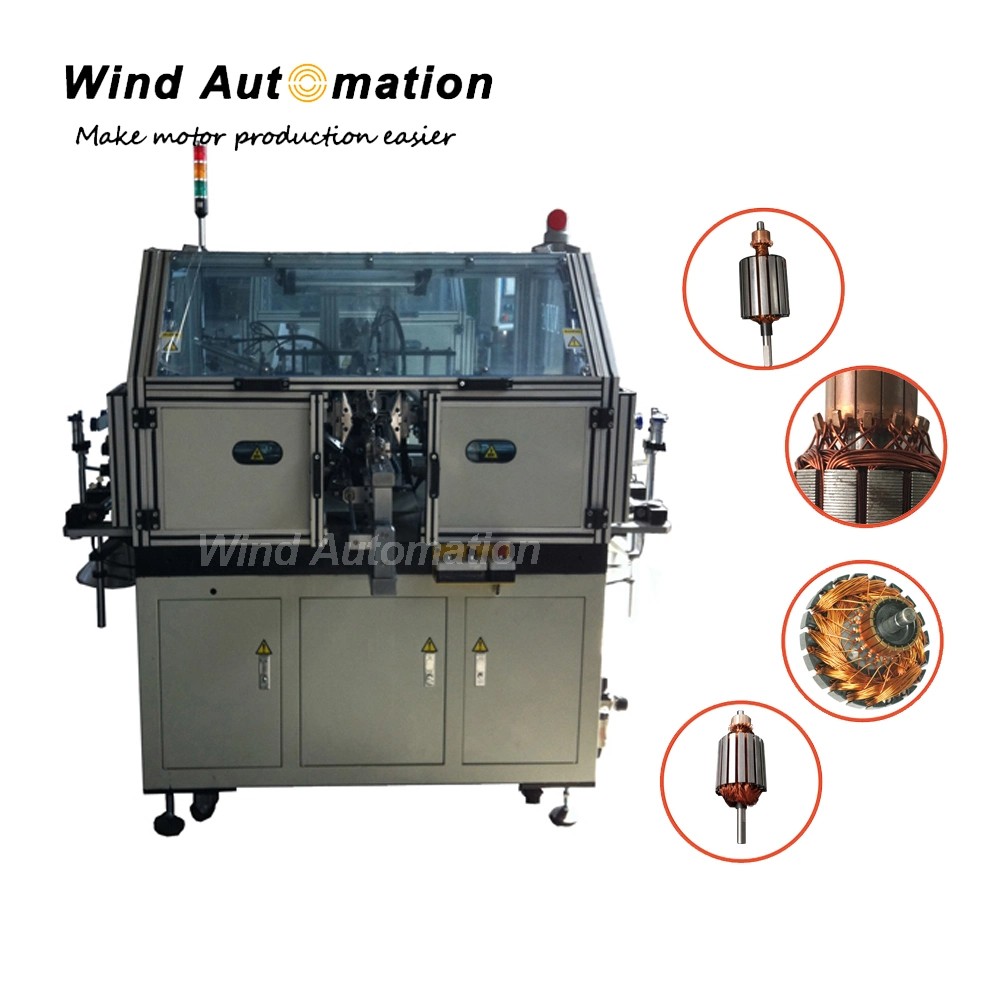

Rotor Coil Winding Machine Automatic Mixer Motor Winding Equipment
The frame of this machine is made of imported alloy metal.The hooking part is sleeve protected which is quick and reliable. The flier is made of alloy aluminum with high strength.The tooling balance and the load adopt star-shape structure, so it is much more stable than before.
Application

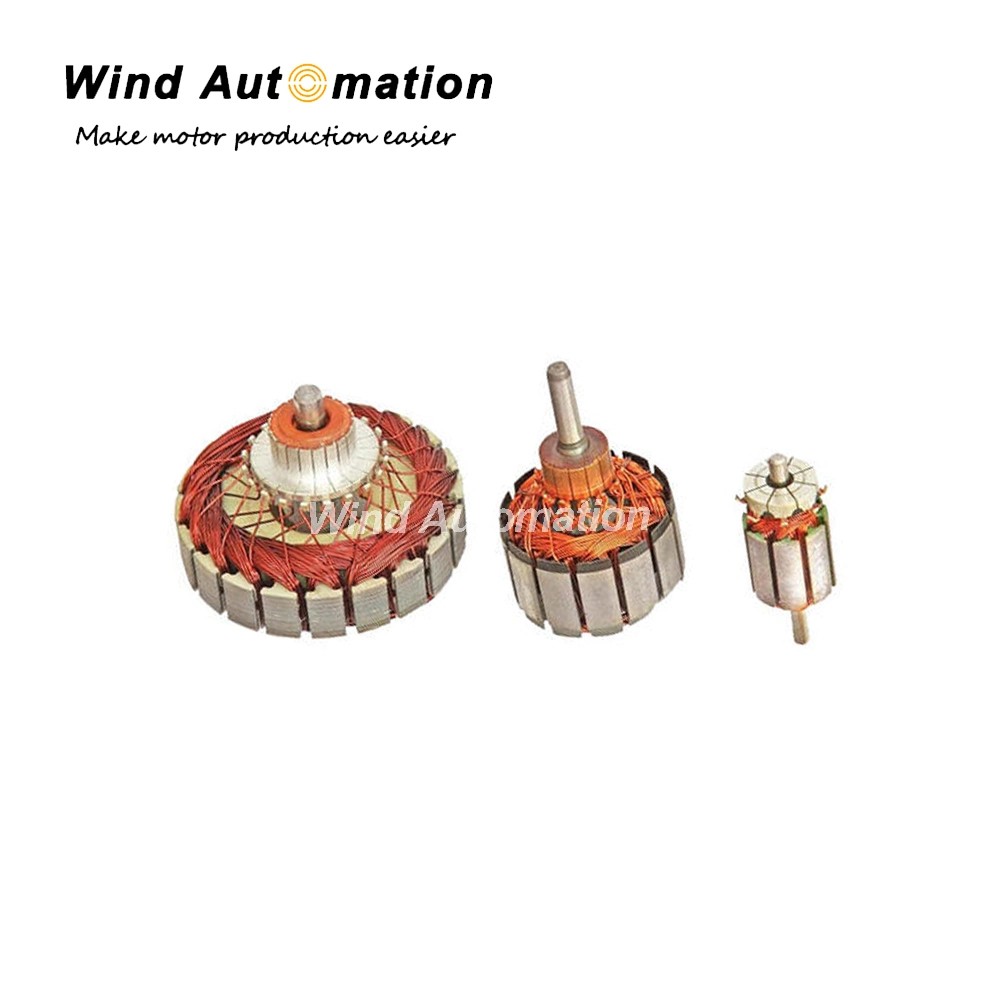

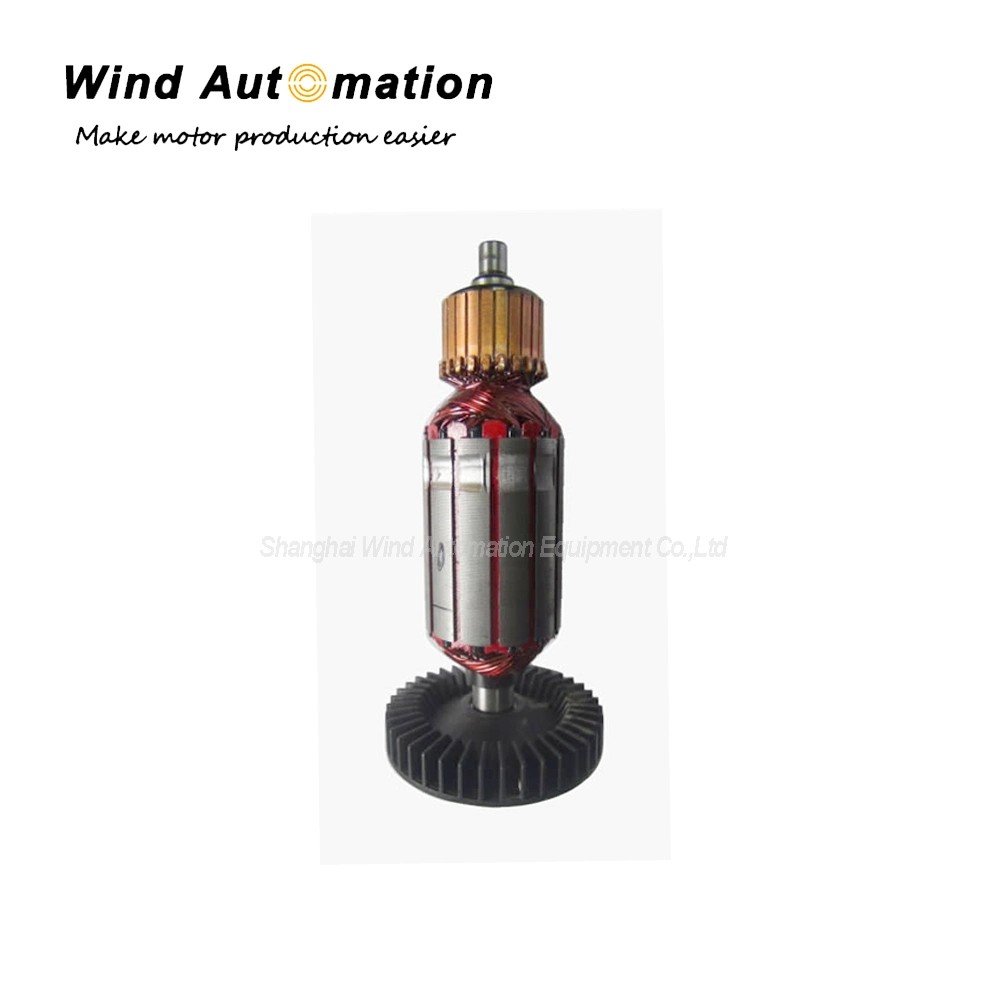

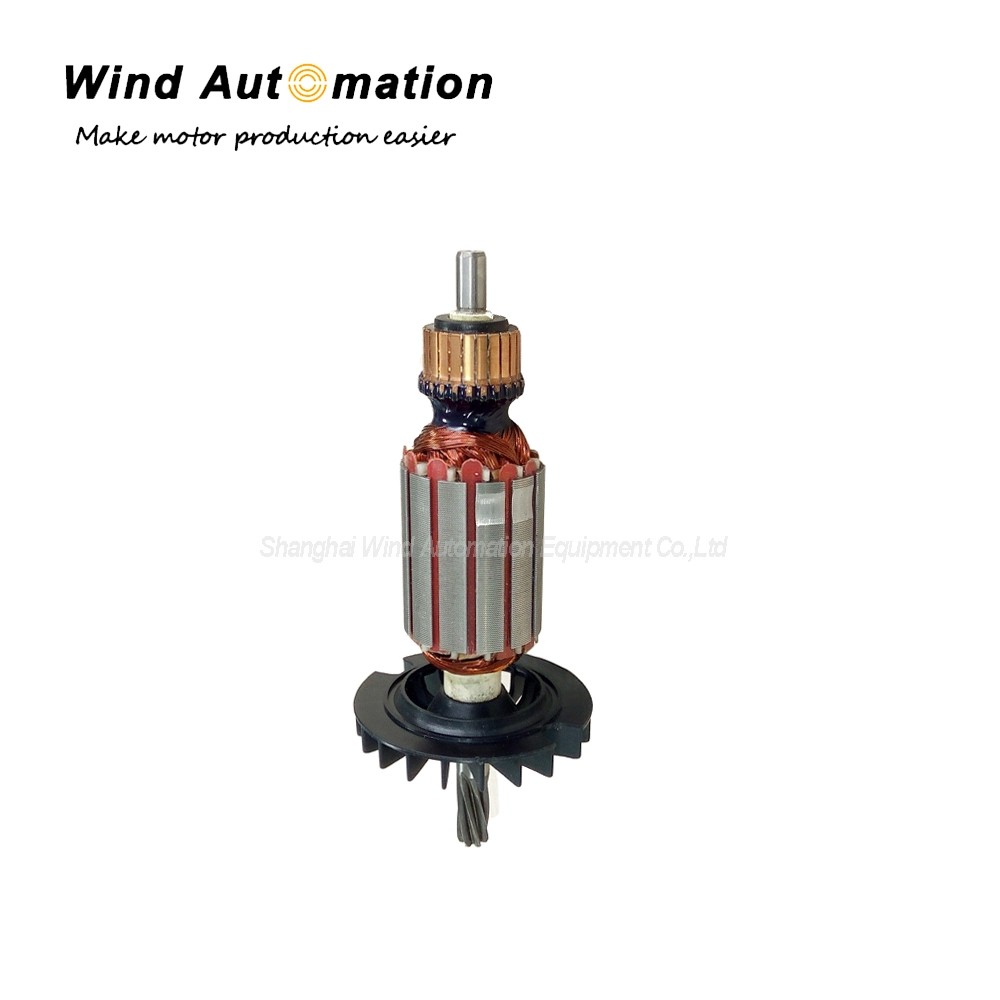

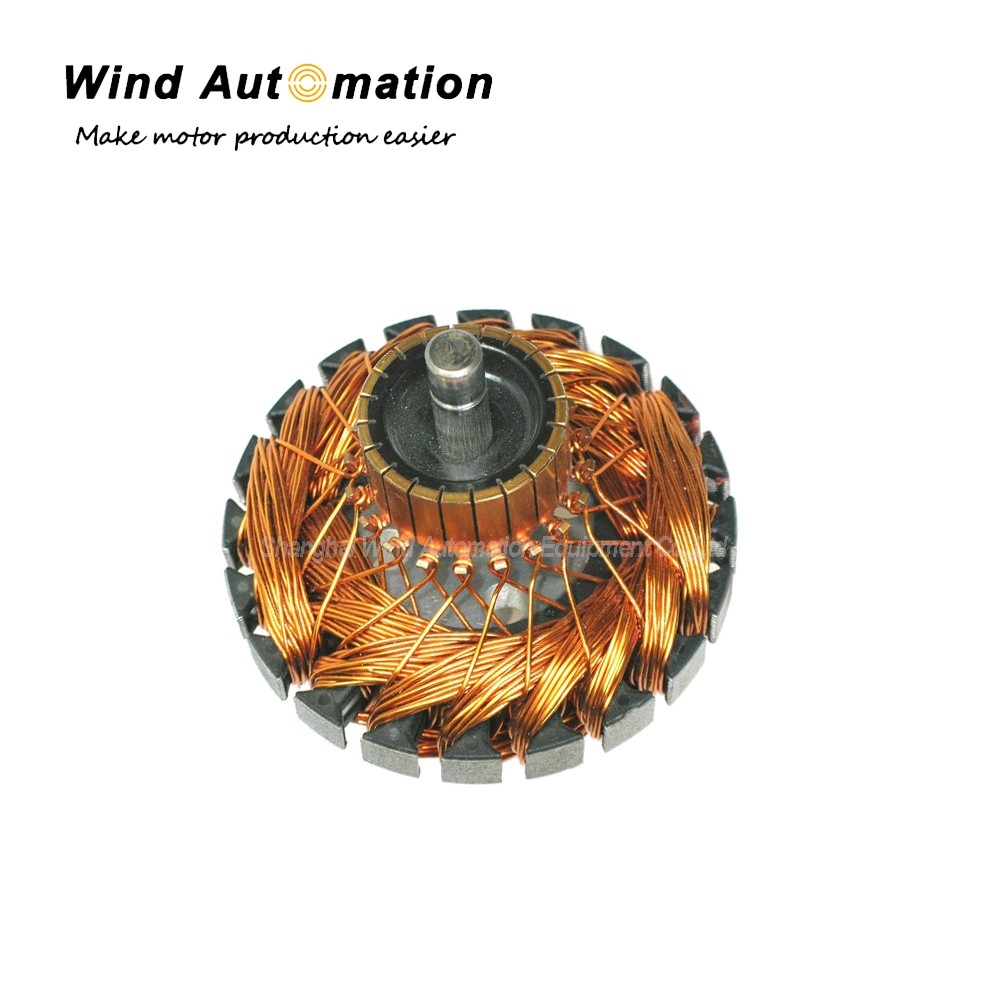

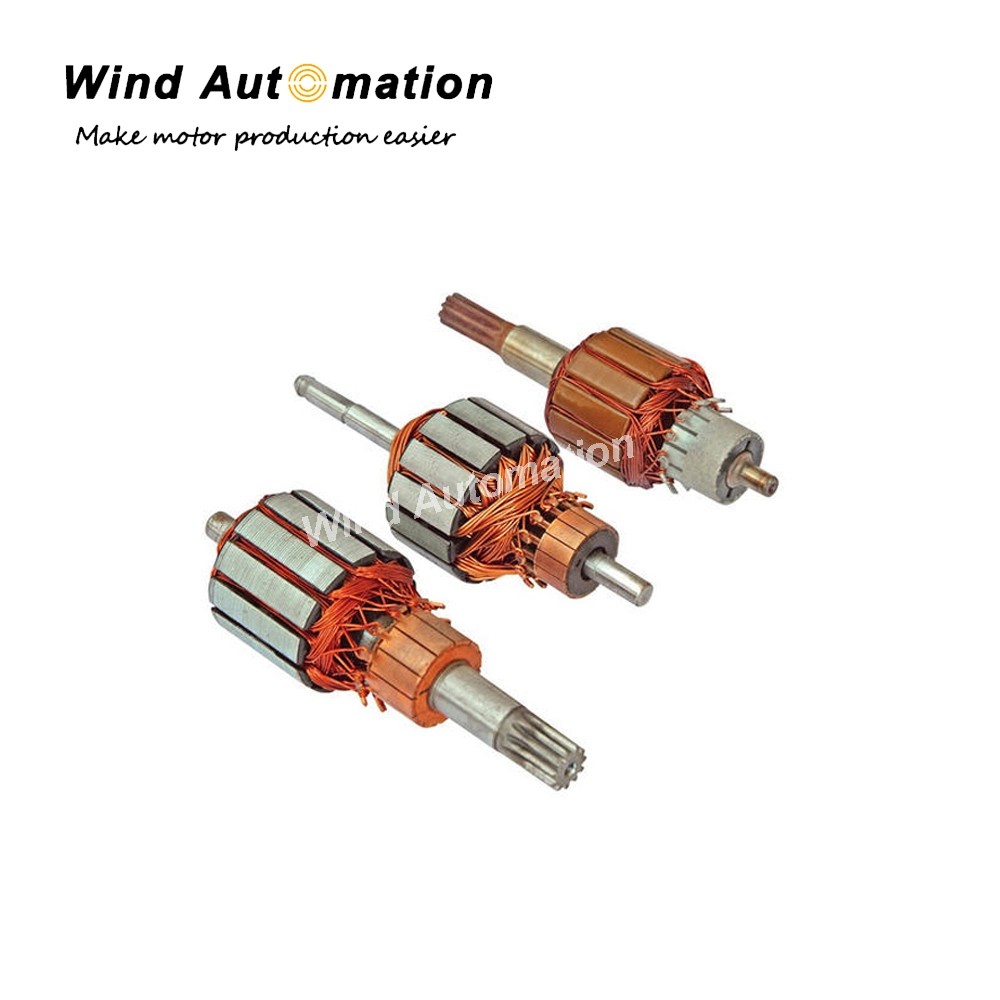

It is suitable for hook type home appliance, car and power tool motor armature.
Specification
| Power supply | AC 380V±10% 50/60HZ |
| Air resource | 5~7kg/cm2 |
| Weight | about 1180kg |
| Dimension | 2560mm×1300mm×1800mm |
| Armature OD | Φ20~Φ60mm |
| Commutator OD | Φ18~Φ40mm |
| Wire diameter | Φ0.2~Φ0.6mm |
| Slot number | Even number |
| Turn No. | 0~99 |
| Stack length | 10~60mm |
| Winding speed | 0~2000rpm |
| Indexing speed | 0~2000rpm |
Feature
For even slot armature
For hook type commutator
With medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
Manual loading and unloading
Three winding method optional
Can work as a stand-alone machine or integrated into a production line
All winding parameter programmed on touch screen
Machine Operation
1)Put the armature on the tooling
2)Then press the start button.
3)Machine will wind the armature automatically
4)Unload wound armature
