Automatic-Armature-Commutator-Undercauting-Machine

Basic Info.

Model NO.

WIND-N072

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

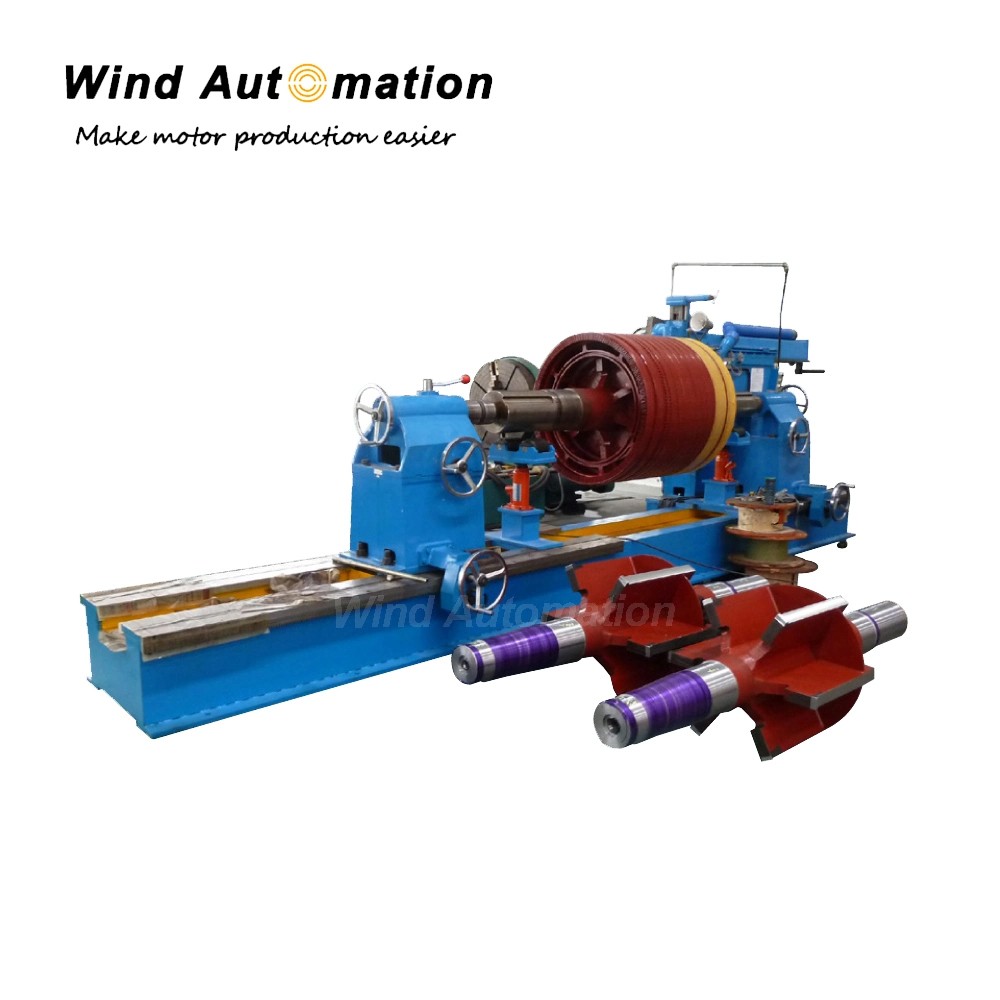

Automatic Armature Commutator Undercauting Machine

Wind Automation is devoted to provide turn-key service to motor manufacturing suppliers. We supply a whole range of supply chain, including automatic motor production line, stand-alone as well as customized machines. We also provide our customers with customized service. They only need to tell us their requirements, then we will do the whole design.

Specification

1, Max. iron core dia. of workpiece:φ1250mm (thimble center height 600mm);

2, Commutator dia. of workpiece:φ250mm, max. φ710mm ;

3, Turning axis length of workpiece: 4200mm;

4, Max. commutator length: 760mm ;

5, Milling cutter dia.:φ23mm;

6, Milling cutter speed: 2800r/min, power: 3kW ;

7, System pressure of hydraulic pump station: 6.3MPa;

8, Max. rotor weight of workpiece: 5T (also has ZCN072-10T).
