Skewed-Rotor-Winder-Armature-Winding-Machine-with-Flier

Basic Info.

Model NO.

WIND-2B-TD

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

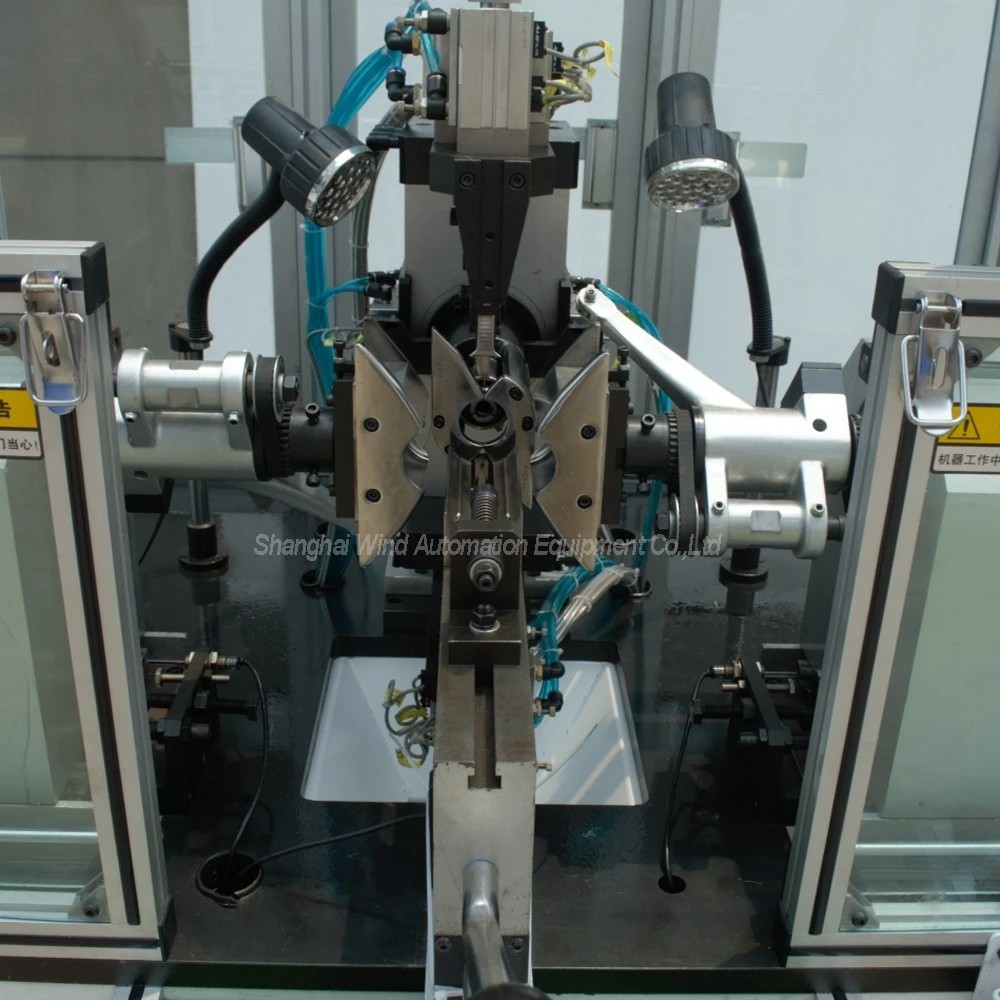

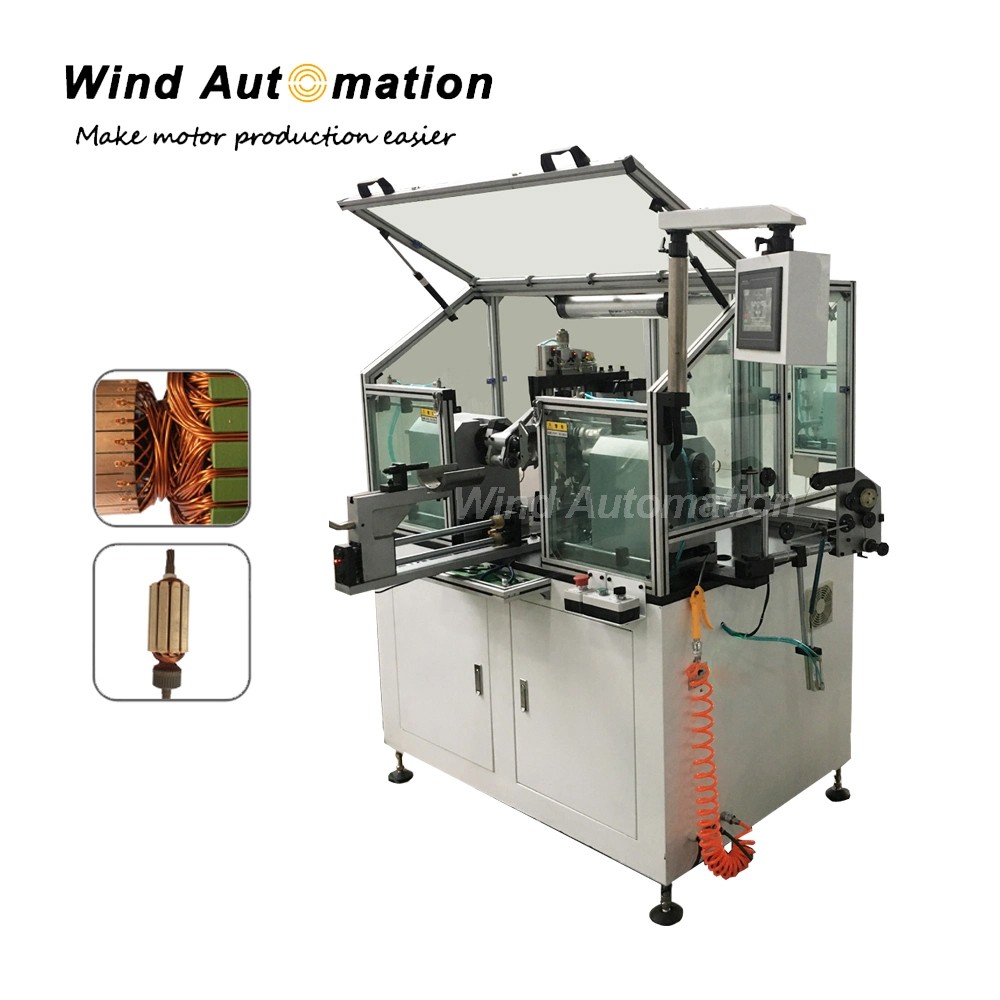

Skewed Armature Winding Machine With Flier

Skewed Rotor Winder Armature Winding Machine with Flier

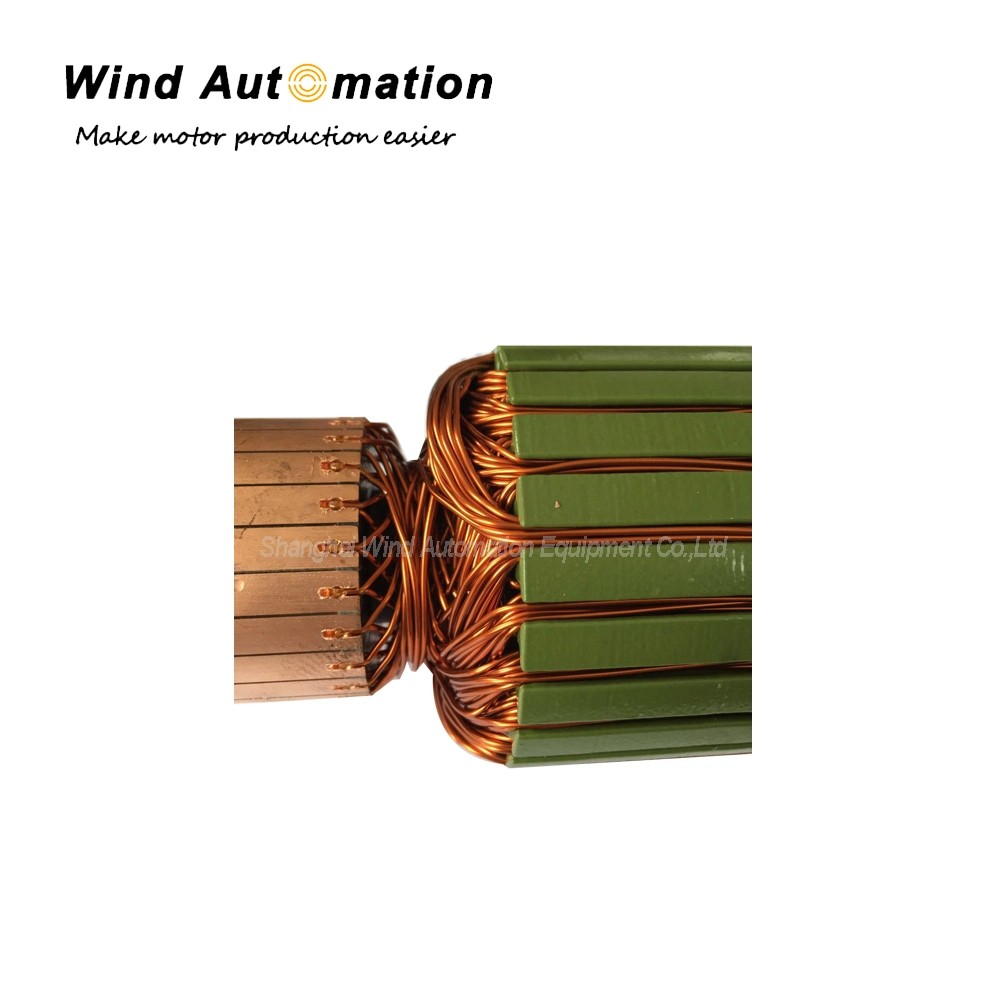

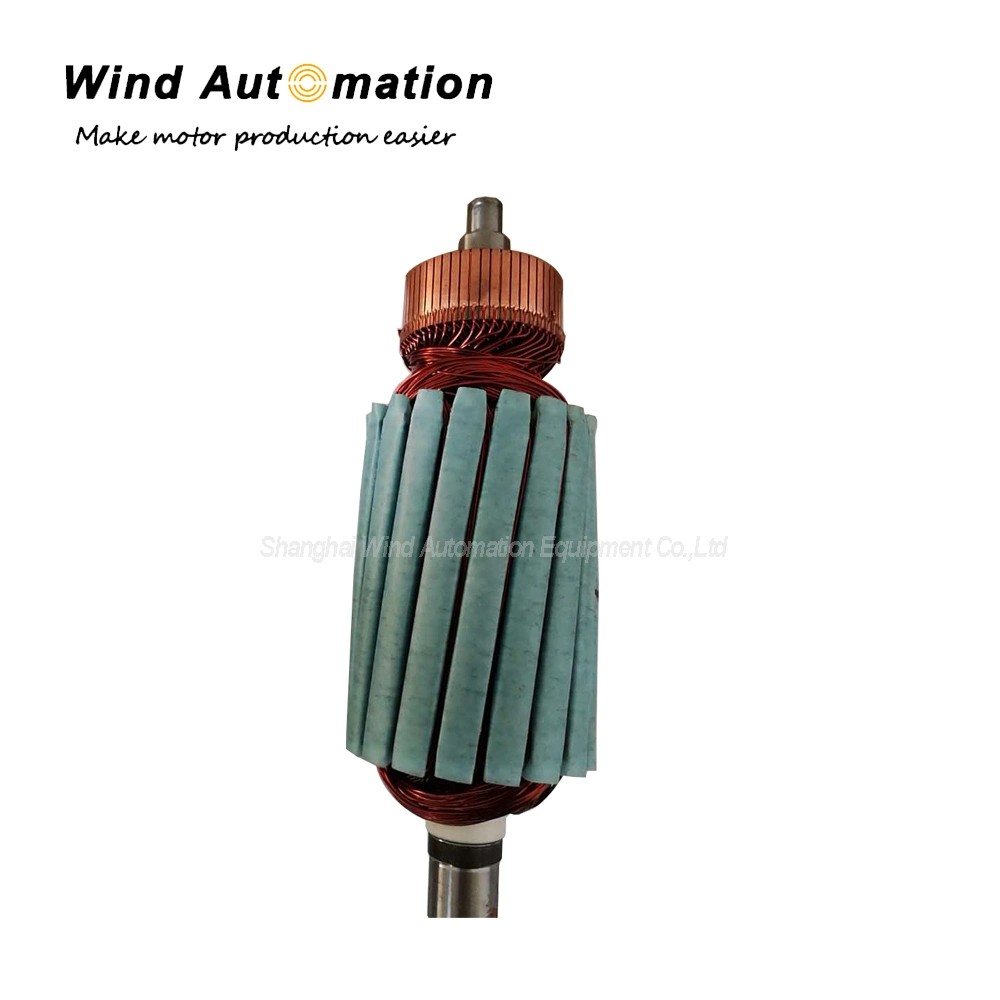

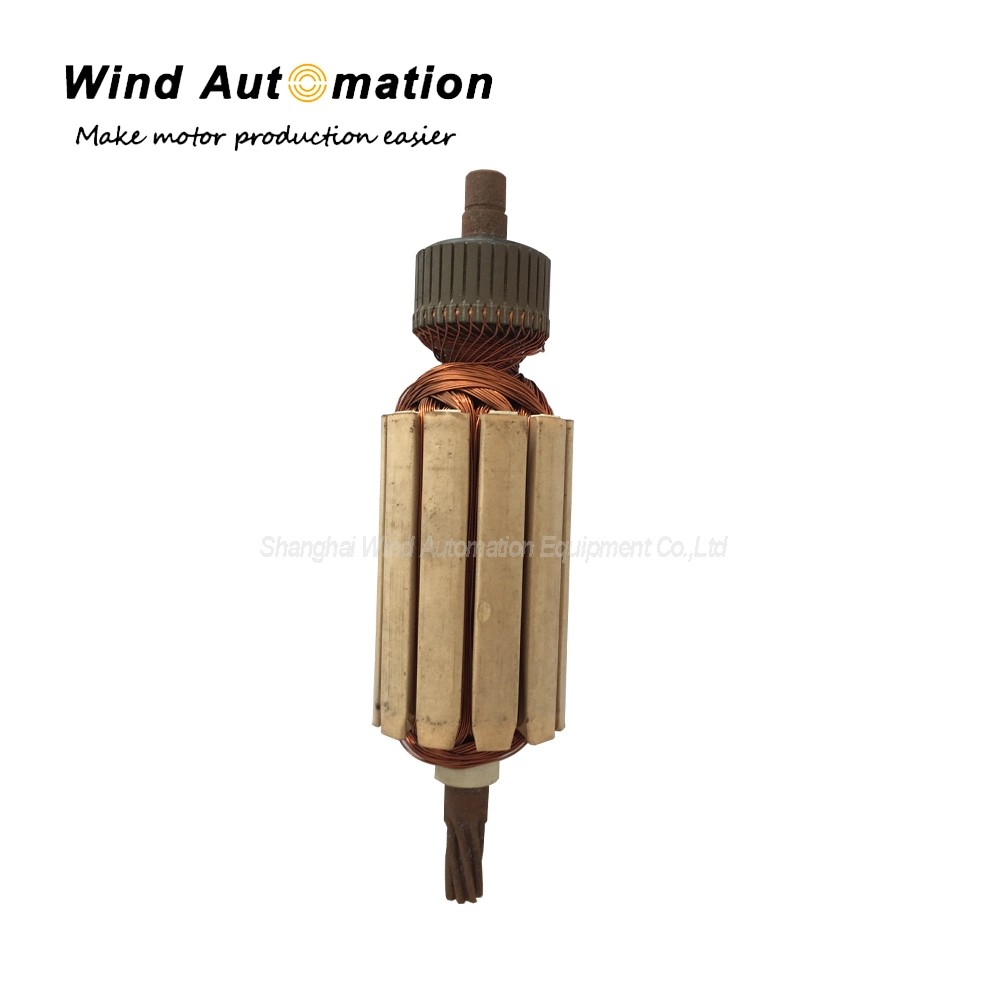

This machine is suitable for skewed type armature with riser type commutator. This machine will do clamping, hooking ,winding, indexing automatically. The yield rate can reach 98%.


(1)Application
This machine is suitable for slotted type armature with riser type commutator.


(2)Specification

Wire range0.2~1.2mm
Armature OD20~90mm
Stack height10~130mm
Commutator OD8~60mm
MovementJog/auto
Slot No.Odd/Even
Turn No.0~9999
Flyer speed0~2000rpm
Power supplyAC 220V  50/60HZ
Air source5~7kg/cm3
Power3.5KW
Weight830KG
Dimension1530x1280x1650mm


(3)Feature
For riser type commutator
With medium and big wire diameter
Manual loading and unloading
Can work as a stand-alone machine or integrated into a production line
All winding parameter programmed on touch screen

(4)Machine Operation
1)Put the armature on the tooling
2)Then press the start button.
3)Machine will wind the armature automatically
4)Unload wound armature


Skewed Rotor Winder Armature Winding Machine with FlierSkewed Rotor Winder Armature Winding Machine with Flier
Skewed Rotor Winder Armature Winding Machine with Flier
