Double-Stations-Horizontal-Structure-Stator-Coil-Winding-Machine

Basic Info.

Model NO.

WIND-WR-100

Automatic

Semi-Automatic

Transport Package

Wooden Case

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

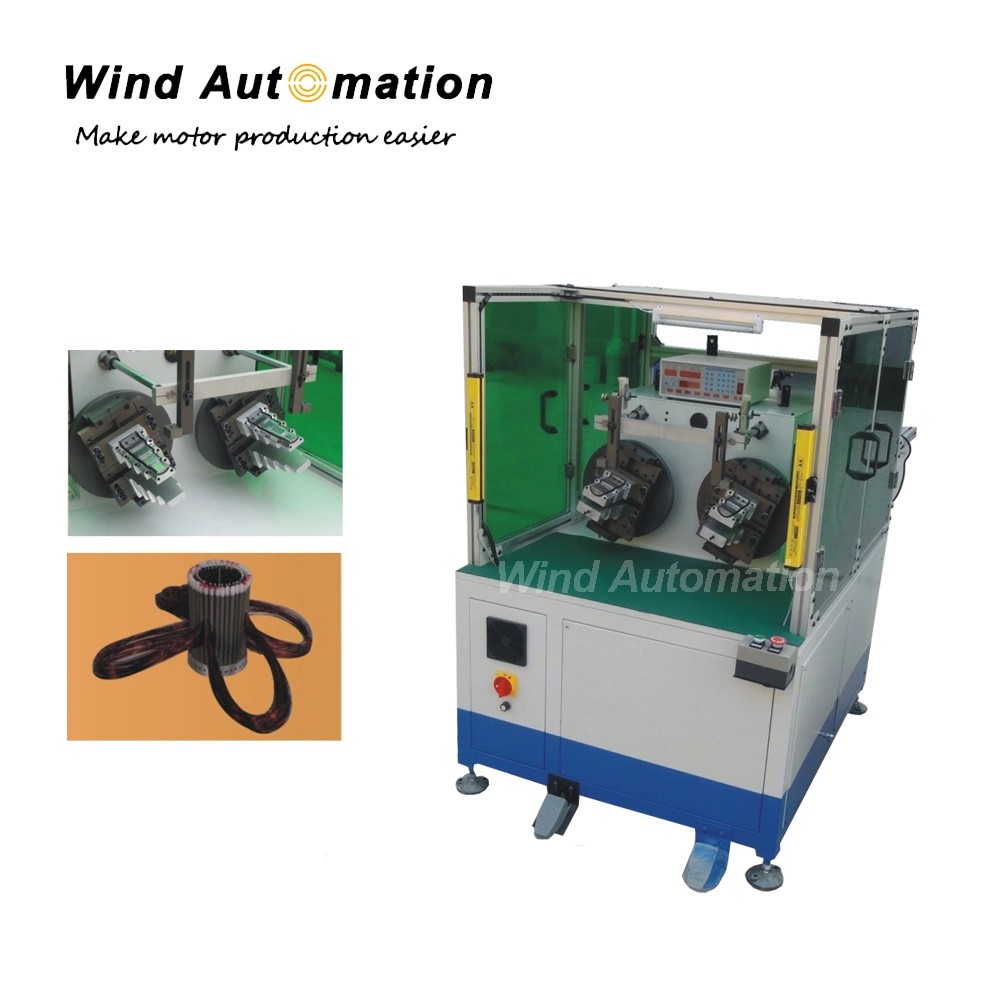

Double Stations Horizontal Structure Stator Coil Winding Machine

This machine is applied to make winding coils before running the automatic winding inserting machine. It enables the copper wires to be wound to the segment tooling. The finished winding coils could be transferred to the winding inserting machine for the operation via the special fixture directly. It does not require the operator to do the winding coils shifting from present machine to the former 1st, remove the winding coils to the winding inserting machine afterwards. It is much suitable for the stators winding coils making of three phases motor and two poles motor.


Specification
