Slot-Paper-Insertion-Machine-with-Horizontal-Type

Basic Info.

Model NO.

WIND-300-SI

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

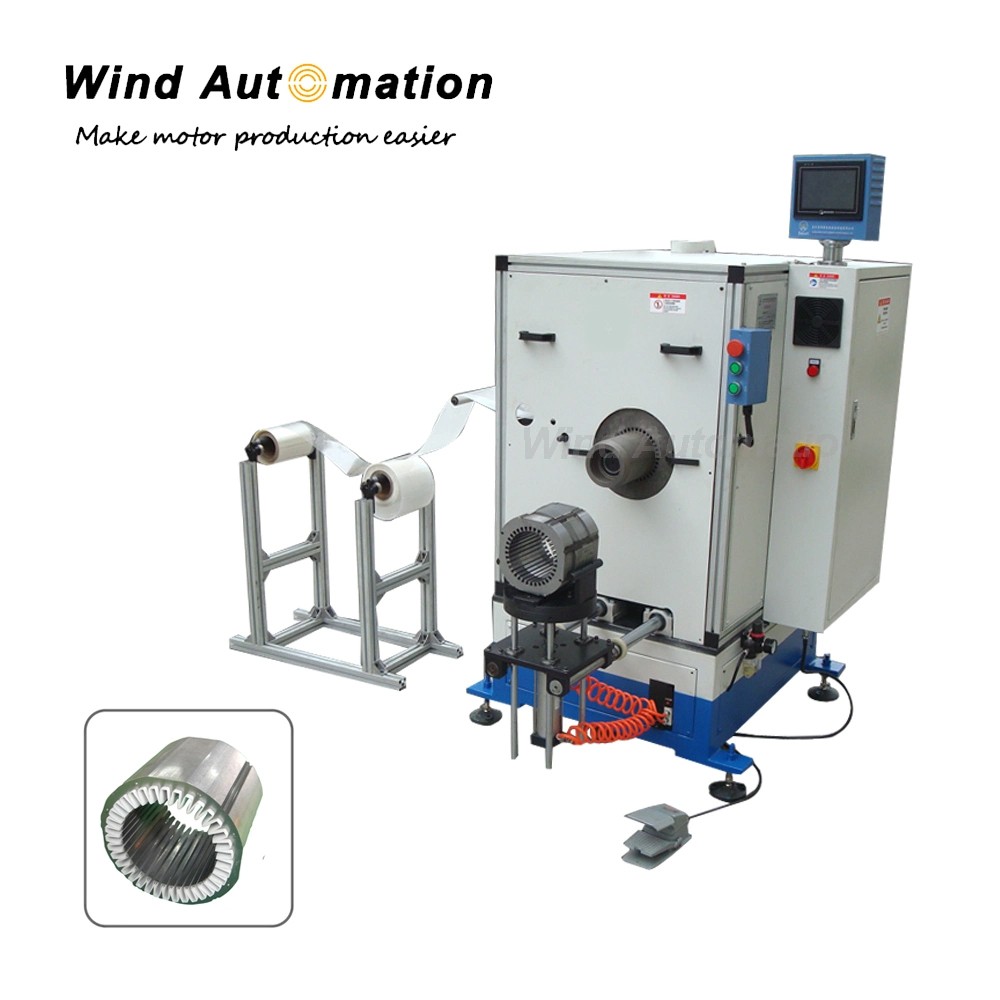

Slot Paper Insertion Machine With Horizontal Type

Slot Paper Insertion Machine with Horizontal Type

(1) Specification

Stack length40~300mm
IDΦ50~Φ300mm
OD≤Φ300mm
Folding height3~5mm
thickness≤0.35mm
efficiency≈1.2s/slot
Power380V/50Hz/60Hz   0.75kW
weight≈500KG
dimension1680×1065×1550mm


(2) Feature
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required
Low noise, high efficiency

Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process


(3) Application

This type of stator paper inserter is suitable for large and medium-sized motor stators with a low volume but a high mix of production .
Slot Paper Insertion Machine with Horizontal Type
Slot Paper Insertion Machine with Horizontal Type
Slot Paper Insertion Machine with Horizontal Type


Slot Paper Insertion Machine with Horizontal Type
