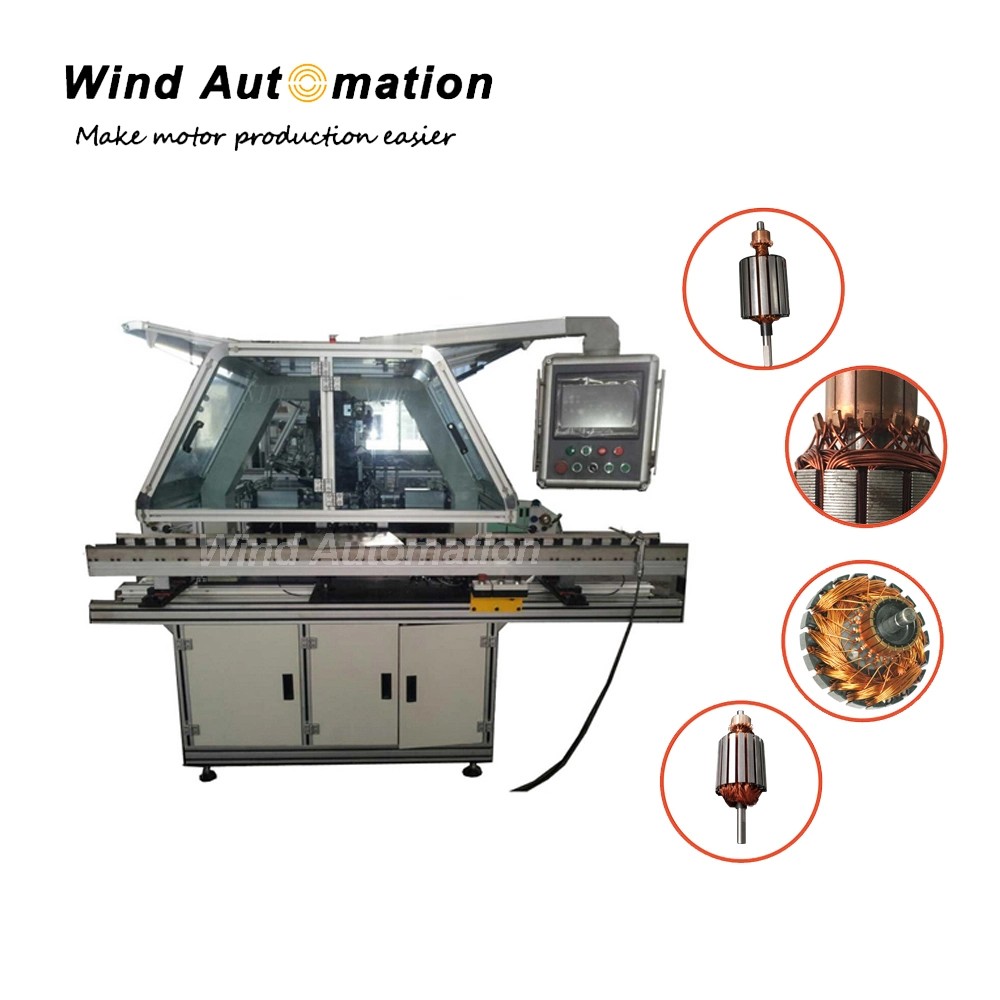

Fully Automatic Hook Type Commutator Rotor Winding Machine
This winding machine is suitable for mass production of armature winding. It can only wind hook type commutator.
(1)Feature
For hook type commutator
High Automation
Automatic loading and unloading
For medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
All winding parameter programmed on touch screen
(2) Specification
| Wire range | 0.15~1.2mm |
| Armature OD | 20~80mm |
| Stack height | 10~90mm |
| Commutator OD | 8~60mm |
| Movement | Jog/auto |
| Slot No. | Odd/Even |
| Turn No. | 0~9999 |
| Flyer speed | 0~2000rpm |
| Power supply | AC 380V 50/60HZ |
| Air source | 5~7kg/cm3 |
| Power | 4KW |
| Weight | 1000KG |
| Dimension | 2000x1650x1950mm |
(3) Application

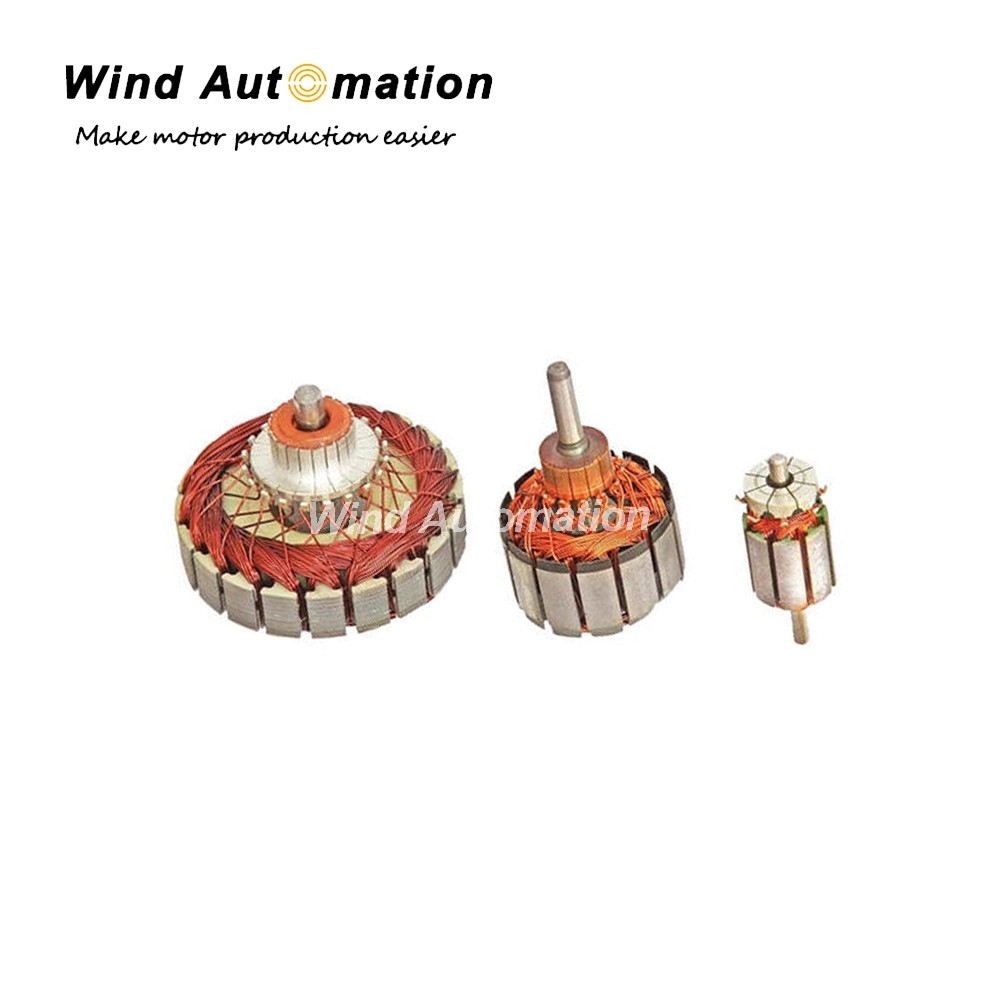

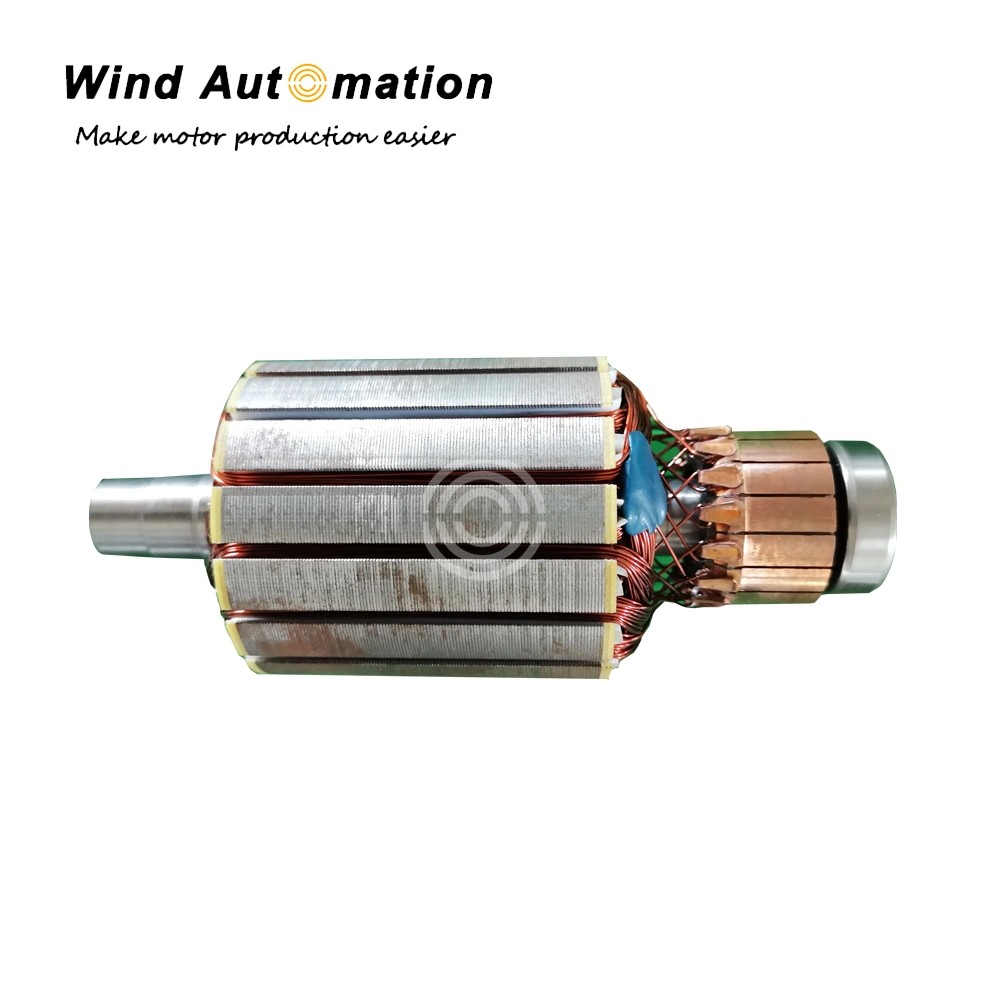

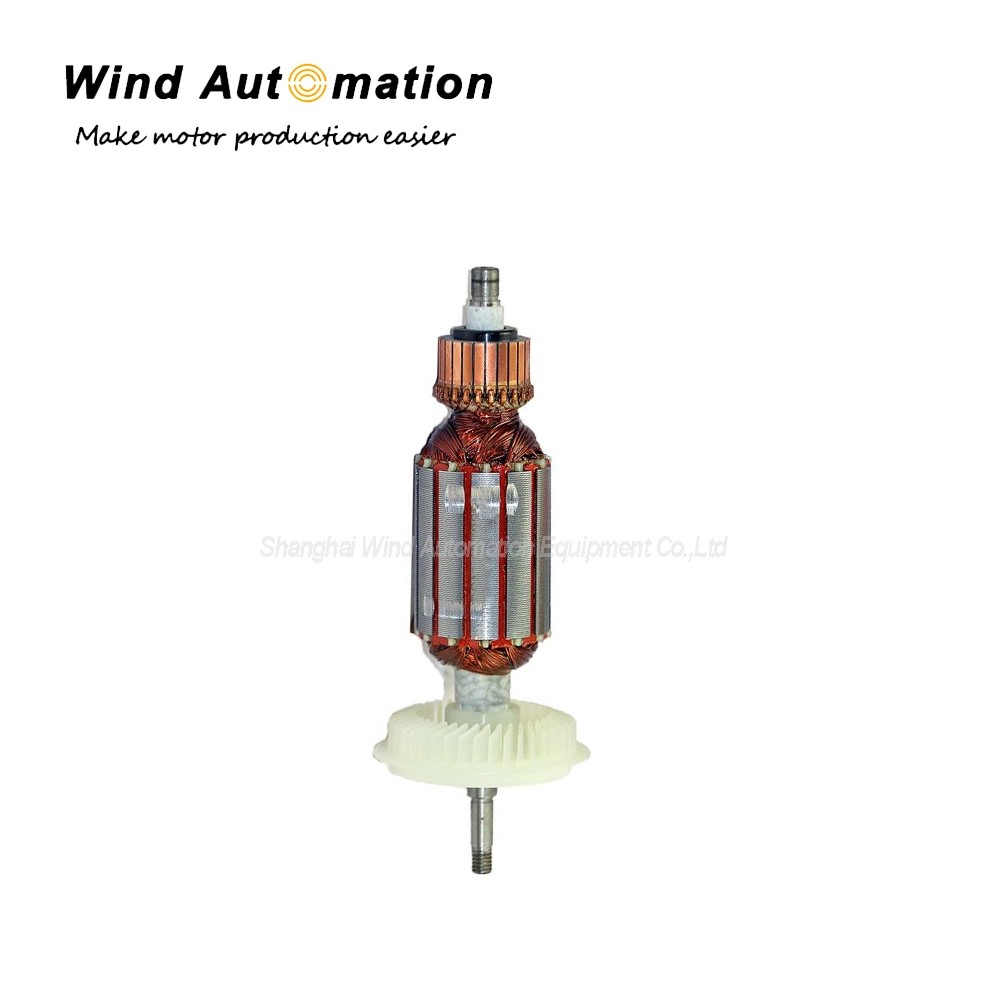

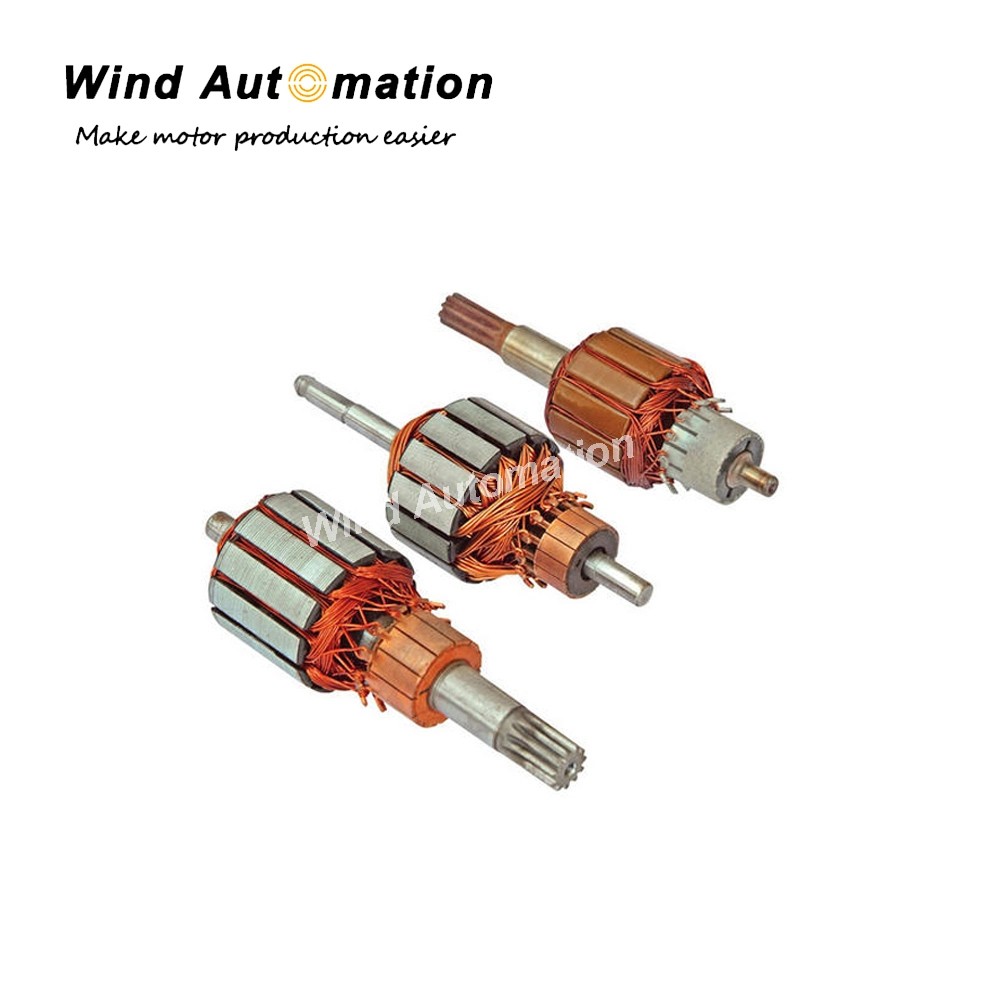

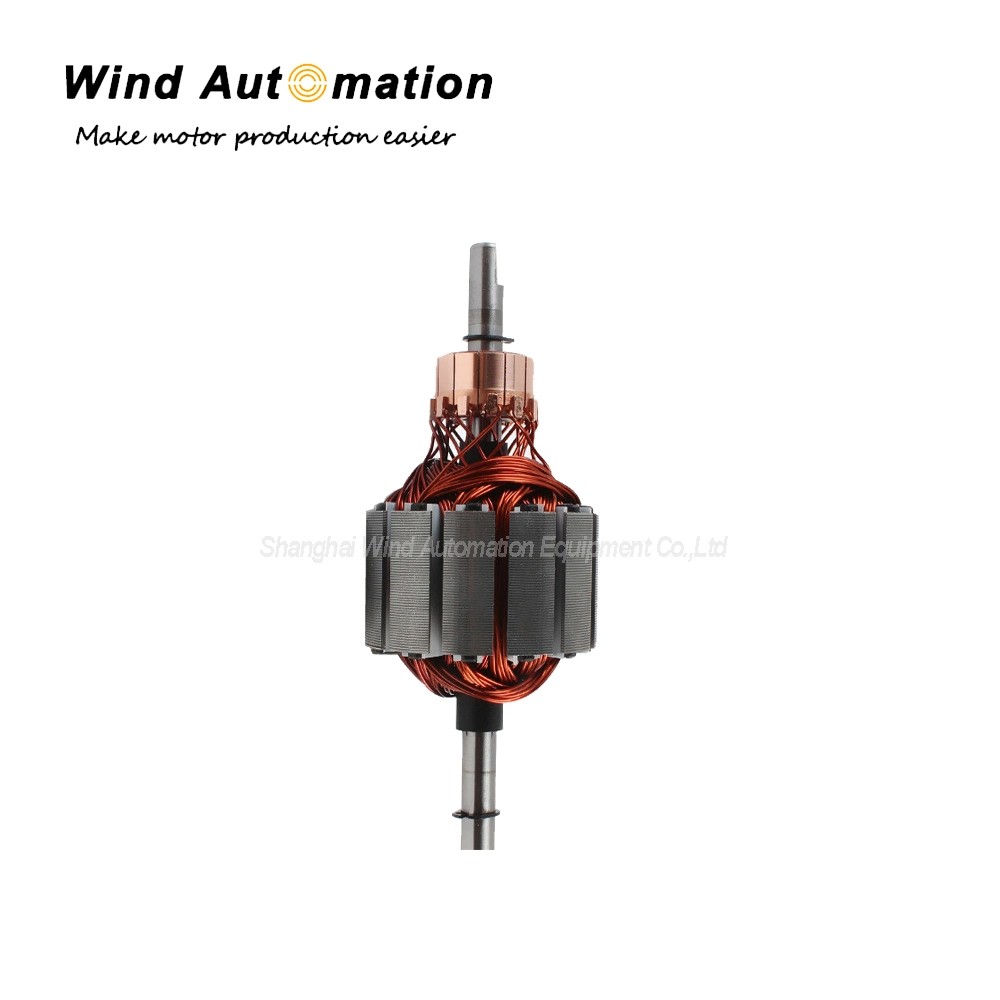

Suitable for automobile motor, motorcycle motor, house appliances series excited motor, power tool motor and various kinds of PM DC micro motor.
(4) Information needed for inquiry
1. Armature lamination drawing
2. Armature assemble drawing
3. Armature stack drawing
4. Armature winding diagram drawing
5. Commutator drawing
6. Required productivity
7. Other technical requirement
