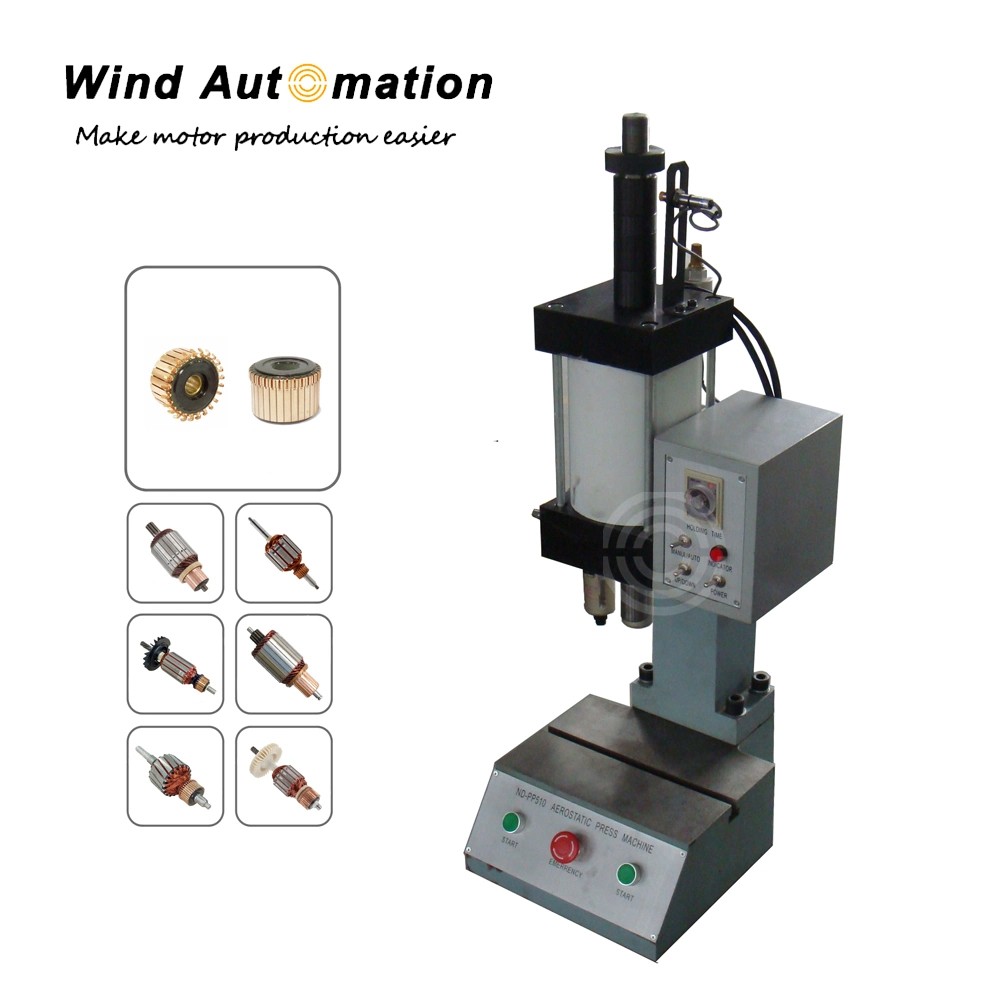

Pneumatic Commutator Pressing Machine for Starting Motor Armature
This machine has a strong applicability, it can be used to press shaft, commutator, and armature end plate. Once load workpiece, press start button, machine will automatically do the pressing process.
Feature
Wide application and strong applicability
High quality level of the shaft pressing process
Can be customized accordingly
Manual loading and unloading
Specification
| Air pressure | 0.2-0.6Mpa |
| Displacement | Max 60mm |
| Close height | Max 180mm |
| Rated operating pressure | 5KN |
| Pressure retaining time | 0~5S |
| Adjustable displacement | 25mm |
