Stator-Testing-Machine-Performance-Tester-for-Starting-System

Product Description

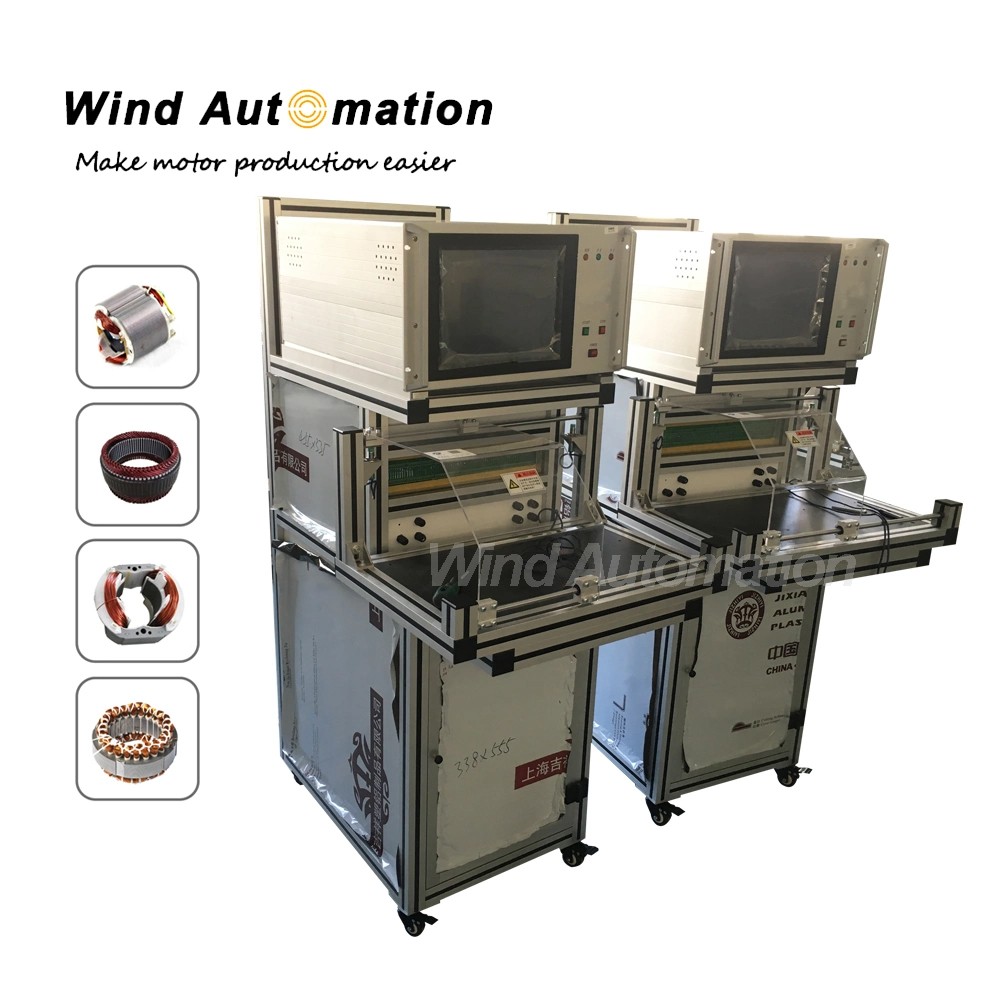

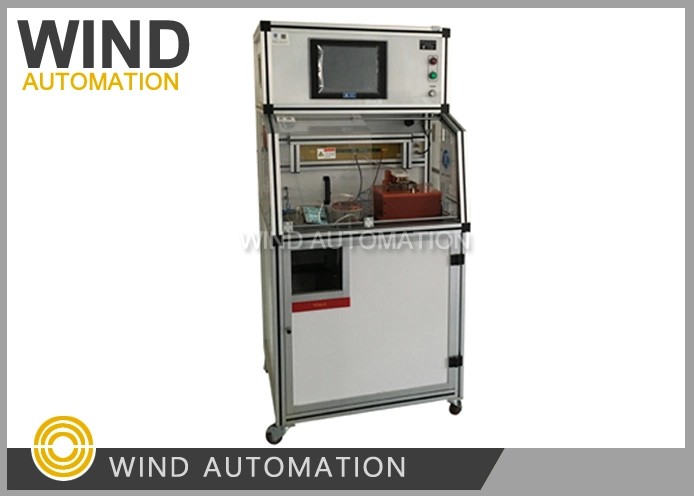

Stator Testing Machine, Performance Tester for Starting System

(1) Testing item

(2) Application

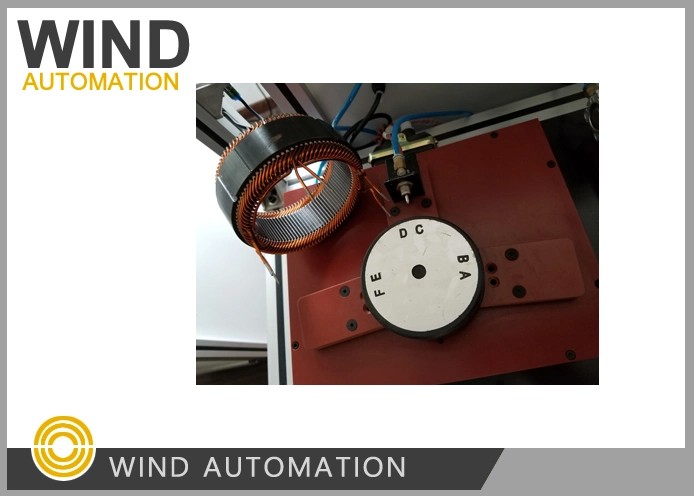

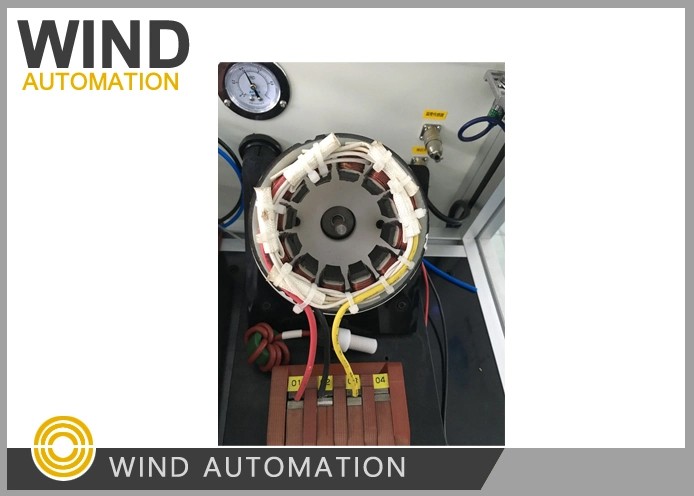

Suitable for various types of starter, starting motor stator to do performance testing.

(3)Feature
Both single and double working station applicable
QR/bar code applicable
Testing done by machine automatically
Quick and accurate test
Friendly HMI interface
Modular design of tooling
Work as stand-alone machine or integrated into a production line
All parameters can be catch automatically by one-key-operation

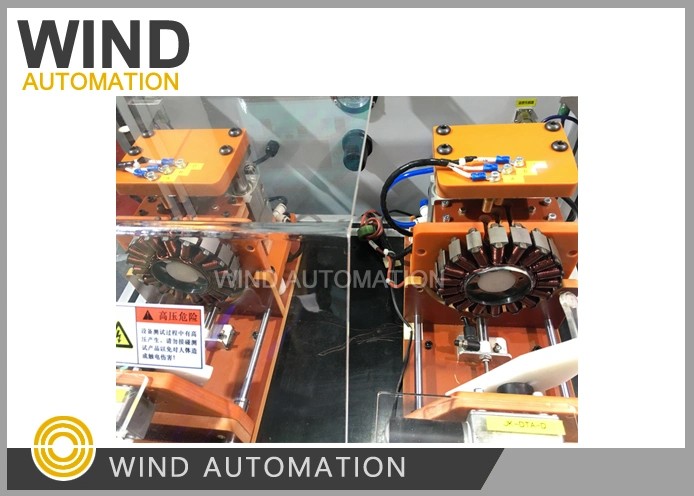

BLDC Motor Stator Tester DC Resistance Inductance Surge Isolation Hi-Pot Rotation WIND-DTS-300

(1) Stator tesing machine competitive advantages

     1. Testing Items Modular design,

         Each testing item including DC resistance,Inductance test,Surge Test, Insulation Resistance,

         Hi-pot was modularized to a separate testing circuit board.

      2. This testing machine were delivered 15pcs to 20pcs every month for motor manufacturers.

(2) Test Items

1. DC resistance test (include 3 phase balance test,phase equilibrium test)

Test range: 0.001Ω--1000Ω

Test loop: maximum 4 loop (expandable)

Repeat Test accuracy: ≤±0.5%

Test method :Four points,with auto correctting ambient temperature function

Or Infrared sensor temperature compensation (Optional)

Can eliminate temperature-induced changes in resistance

2. Inductance test

Test range:0.1µH - 999H

Test loop: maximum 4 loop (expandable)

Repeat Test accuracy: ≤±1.0%

Test method :Four points ensure the accuracy

3. Surge test

Pass high voltage between phases

Test condition: AC 100V-3000V adjustable

Pulse peak :0.5msec

Sampling frequency:0 - 20MHz

Test loop: 4 loop

Repeat Test accuracy:< ±2.5%

Judging method:By area difference(Sensitive to inductance and energy loss)

Standard waveform is White,OK waveform is Green, NG waveform is Red

4. Insulation Resistance

Test condition: DC 500V / 1000V

Range: 0.1MΩ~1000MΩ

Tolerance: ±2.5%

5. Hi-pot (Dielectric strength) AC 100-1000V

Testing time:1~10s (0.1s/time)

Range:0.1-20 mA

Tolerance:≤±2.5%

6. Rotation direction test

Clockwise/ Anti-clockwise


(3) Technical Data

(4) Cycle Time

    About 6seconds

    HS Code:9030390000
