Product Description

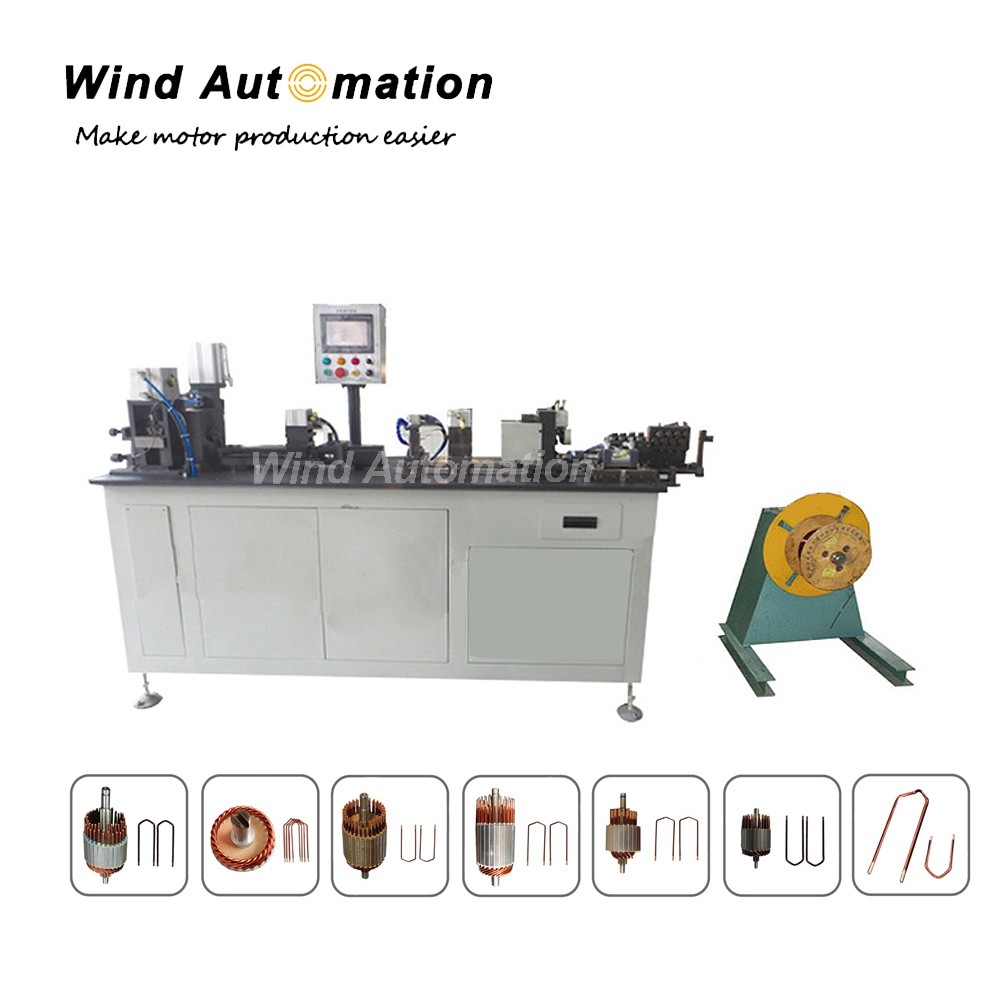

Fully Automatic Hairpin Forming Machine for Armature With Round Wire

Fully Automatic Hairpin Forming Machine for Armature with Round Wire
This hairpin forming machine is suitable for round wire type armature to do coil forming. It is controled by PLC. One operator is quite enough to operate this machine.

(1) Features
Suitable for round wire
Mitsubishi PLC control, colorful touch screen
Automatically turn single bare copper wire into formed hairpin coil
High efficiency, automation and productivity, 2.3s/pc
Capable of producing hairpins with customized twisting angle
One operator is quite enough to operate this machine

(2) Application

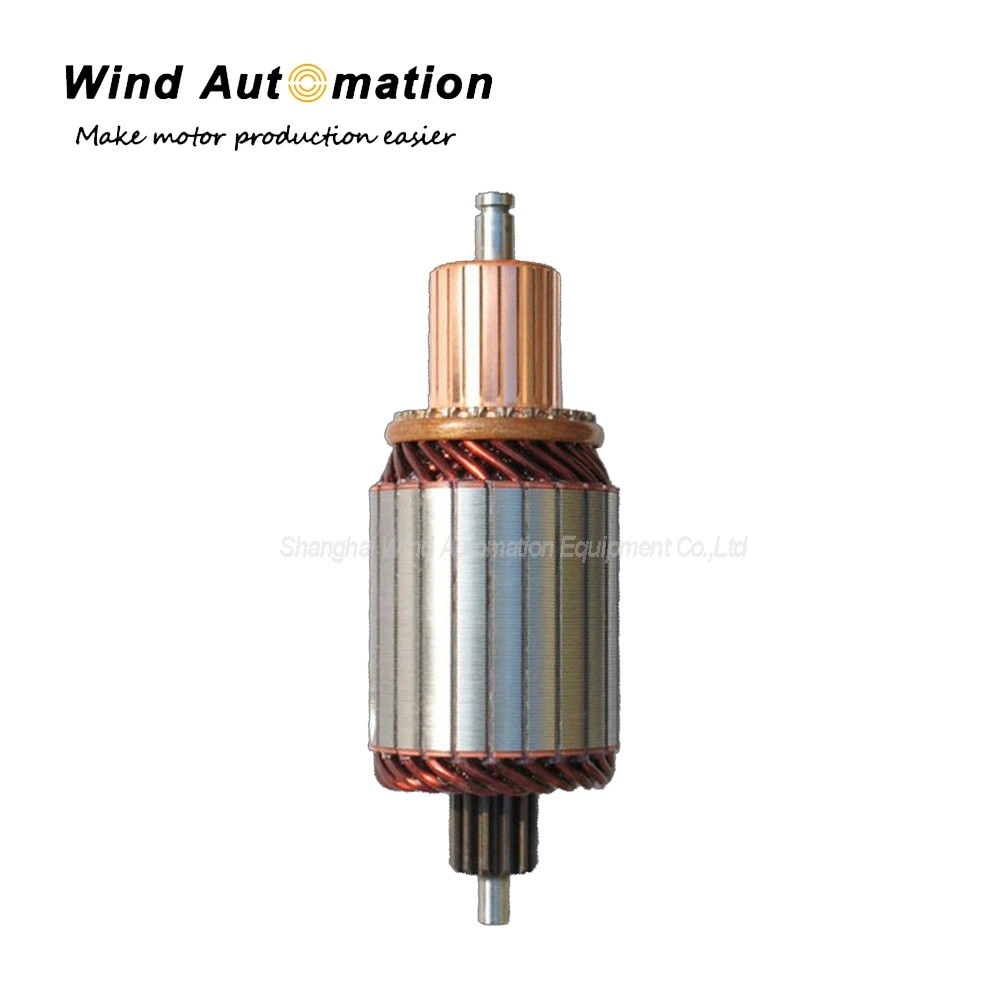

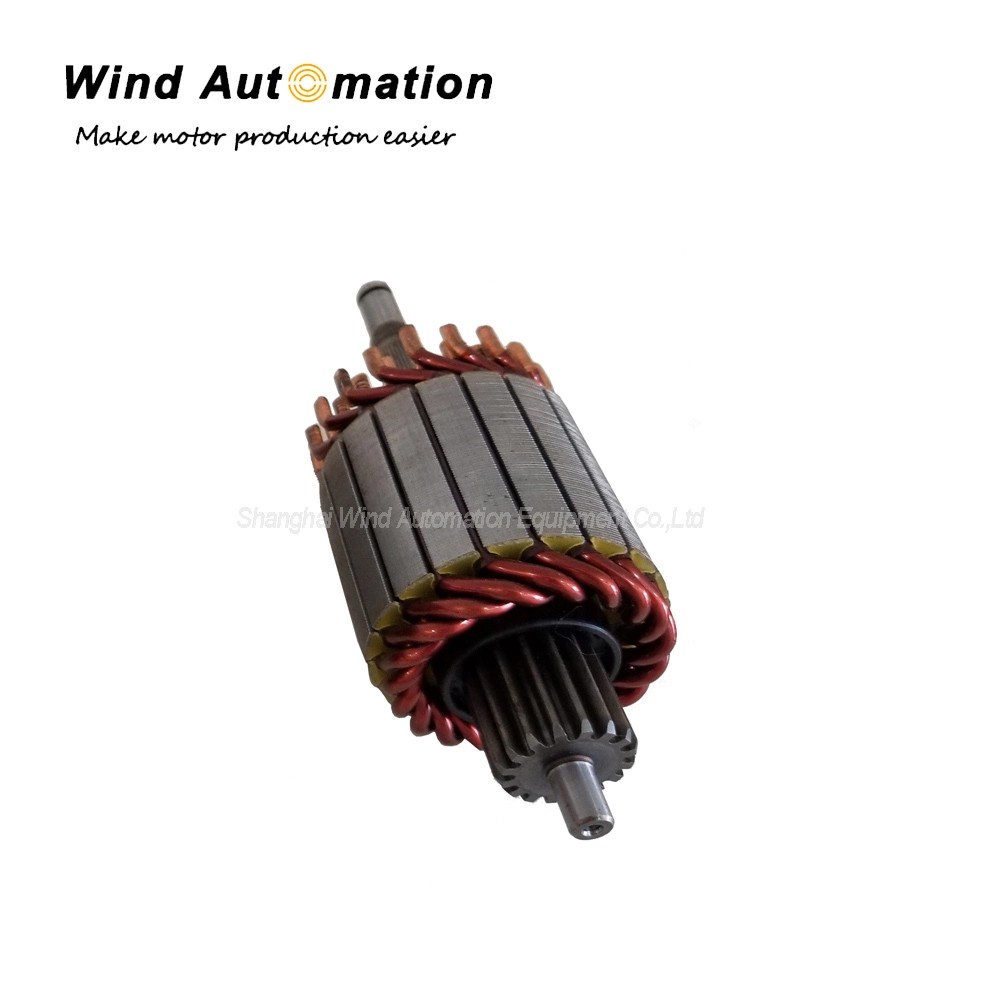

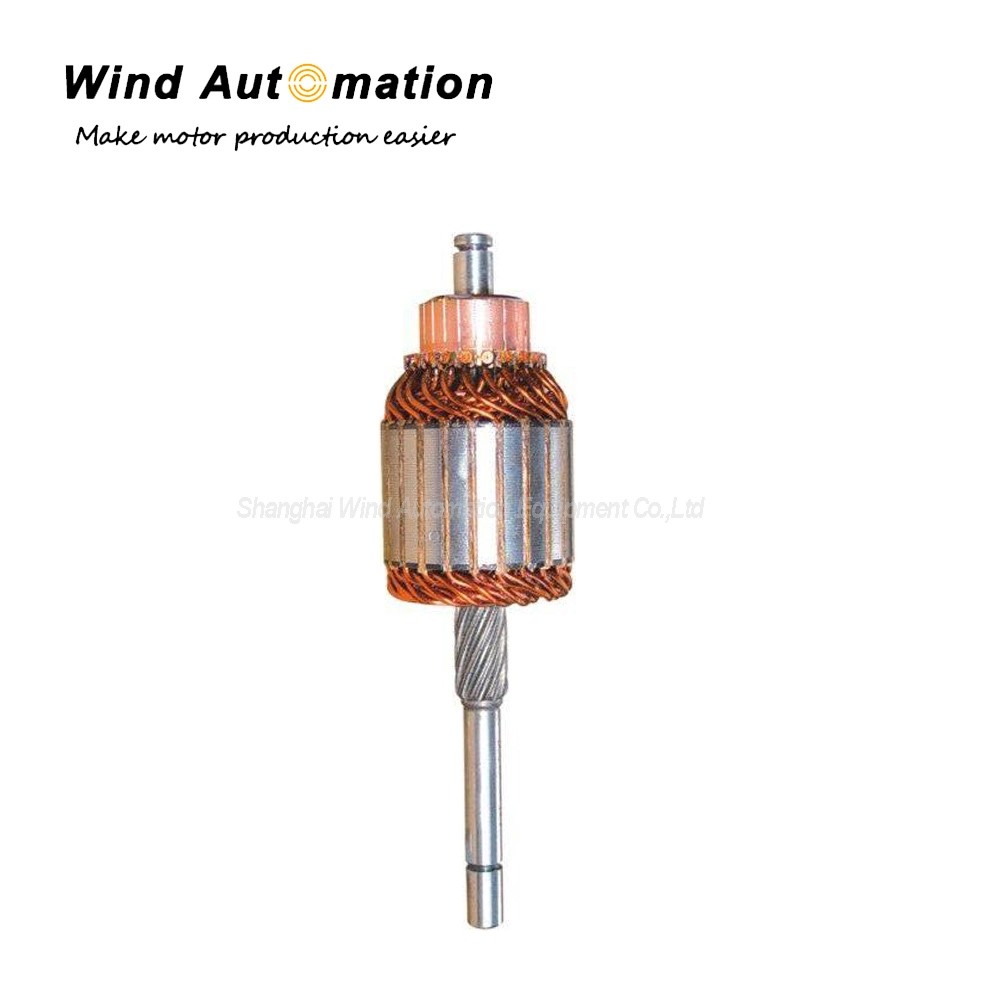

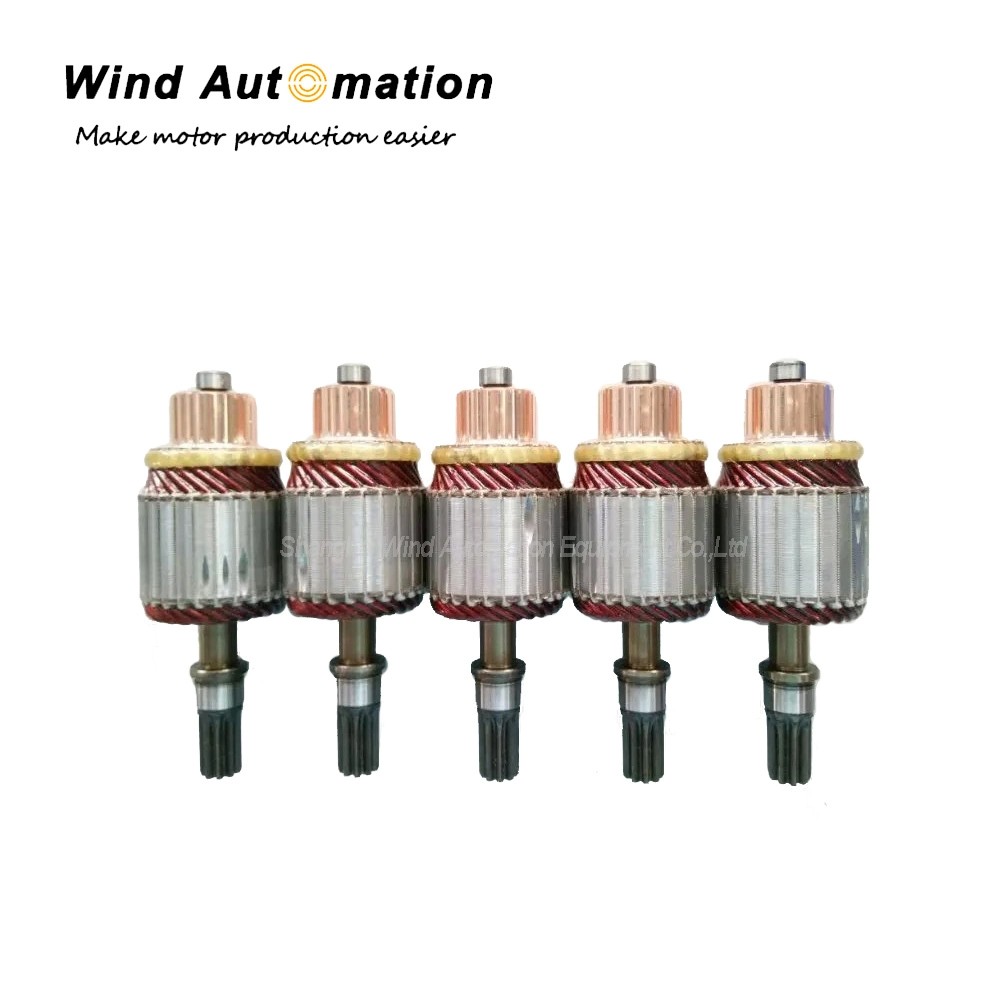

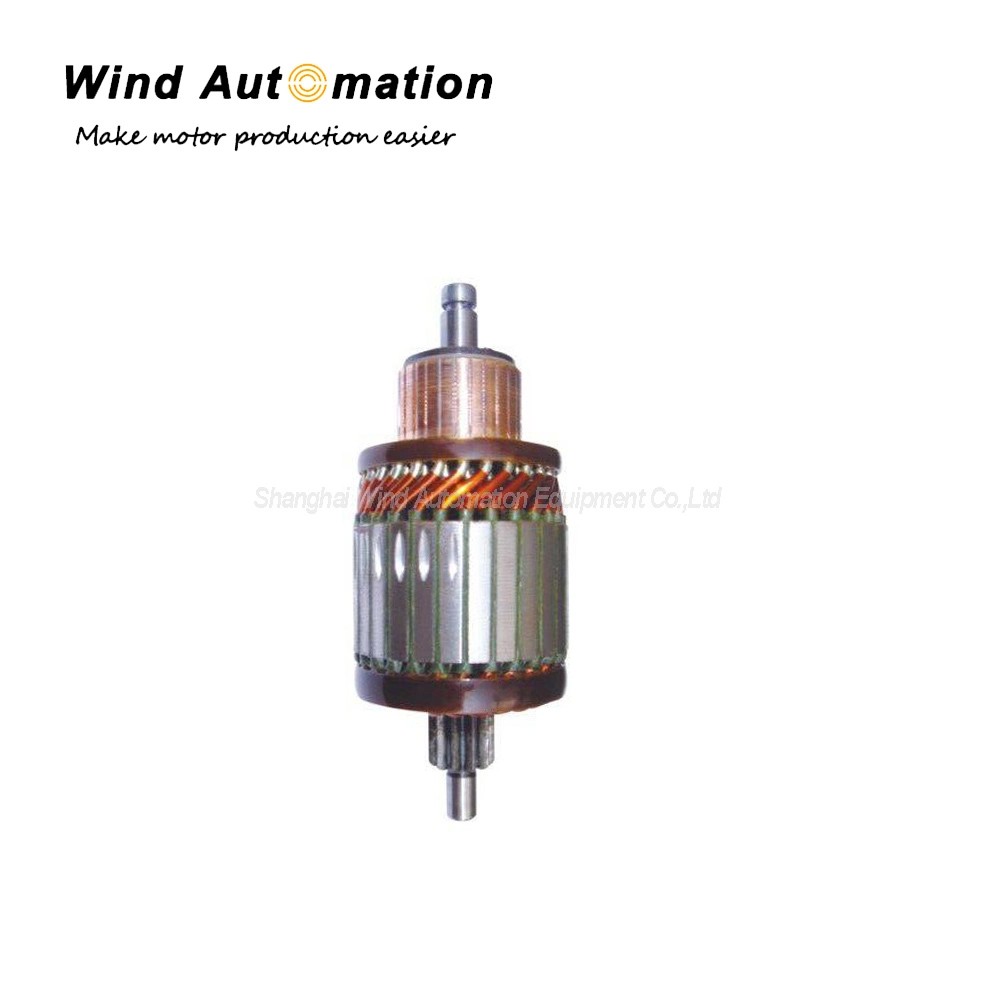

Suitable for starter motor, aerospace motor armature to do hairpin coil forming.

(3)Specifications

Power Supply	AC 380V
Air Pressure Supply	>0.5Mpa
Machine Power	500 kW
Productivity	2.3s/pc
Feeding length	0~250mm
Weight	700KG
Dimension	1700x600x1650mm

(4)Machine configuration
Mitsubishi PLC Control
WEINVIEW touch screen
Airtac pneumatic unit
SPG enamel remover
Schneider electric components

(5)Drawing and sample needed for Machine production

1. Formed conductor drawing

To check the size of conductor and angle of R size

2. Armature lamination drawing

To check the adpation of the formed wire which will be inserted to

armature slot by machine or by hand

3. Armature sample with formed

wire inserted

To check and produce tooling according the actual sample
