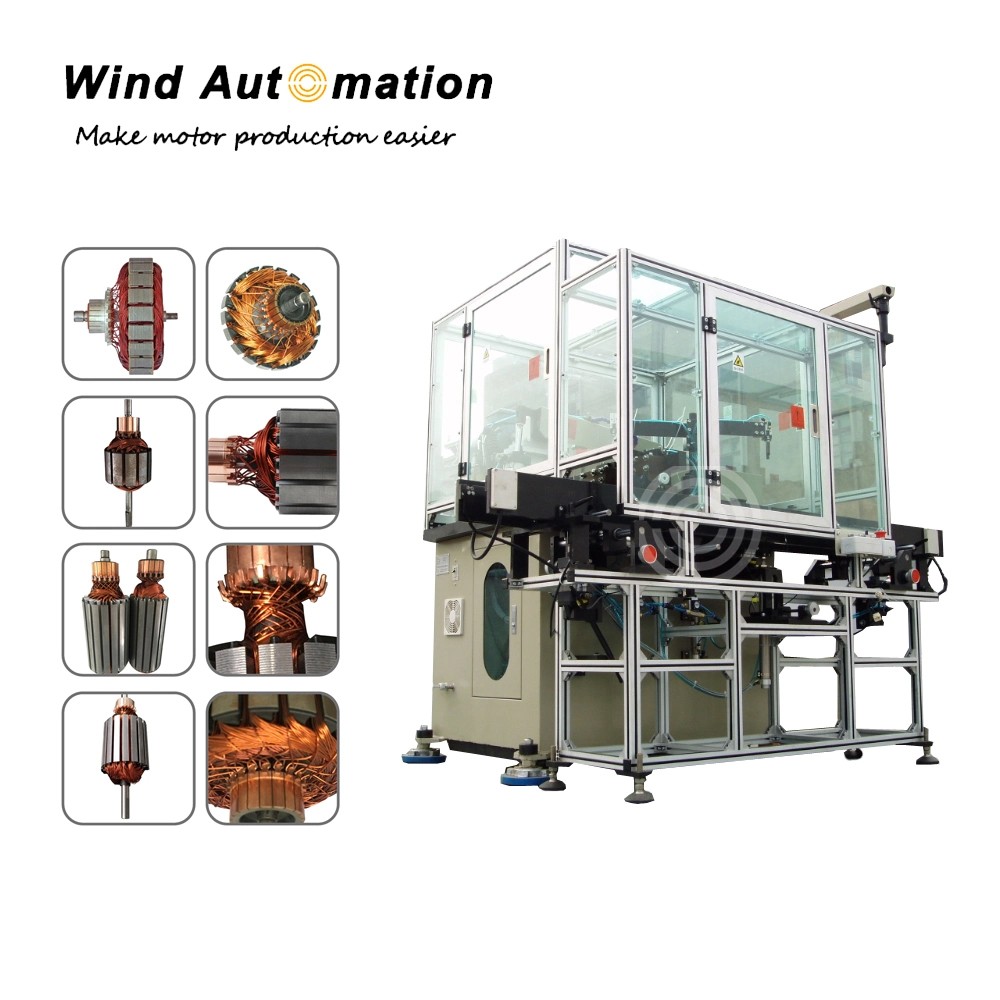

Fully Automatic Armature Winding Machine With Conveyor

This type fully automatic winding machine has a wide application,  is suitable for armature with a wire range 0.15 to 1.2mm. It can wind hook type commutator regardless of its slot numbers. It covers a wide wire range from 0.15 to 1.2mm.

(1)Feature
For hook type commutator
High Automation
Automatic loading and unloading
For medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
All winding parameter programmed on touch screen

(2) Specification

(3) Application

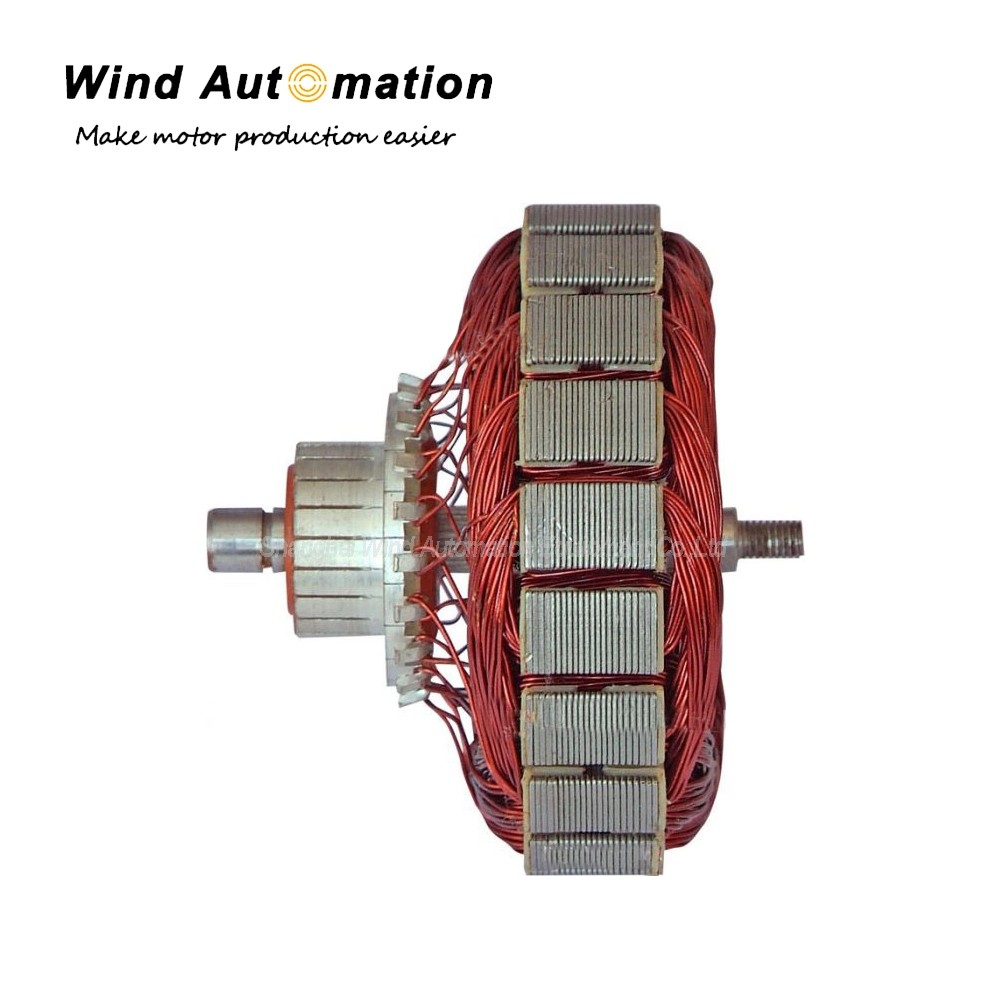

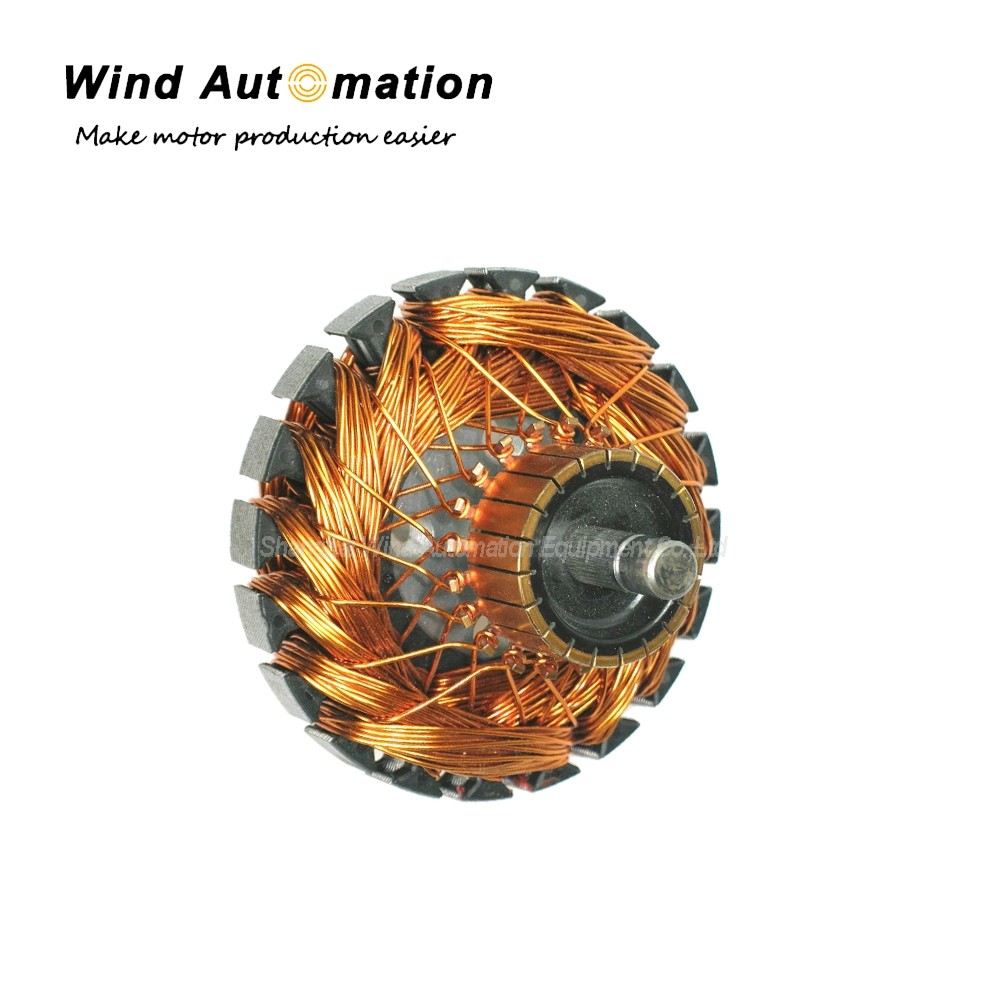

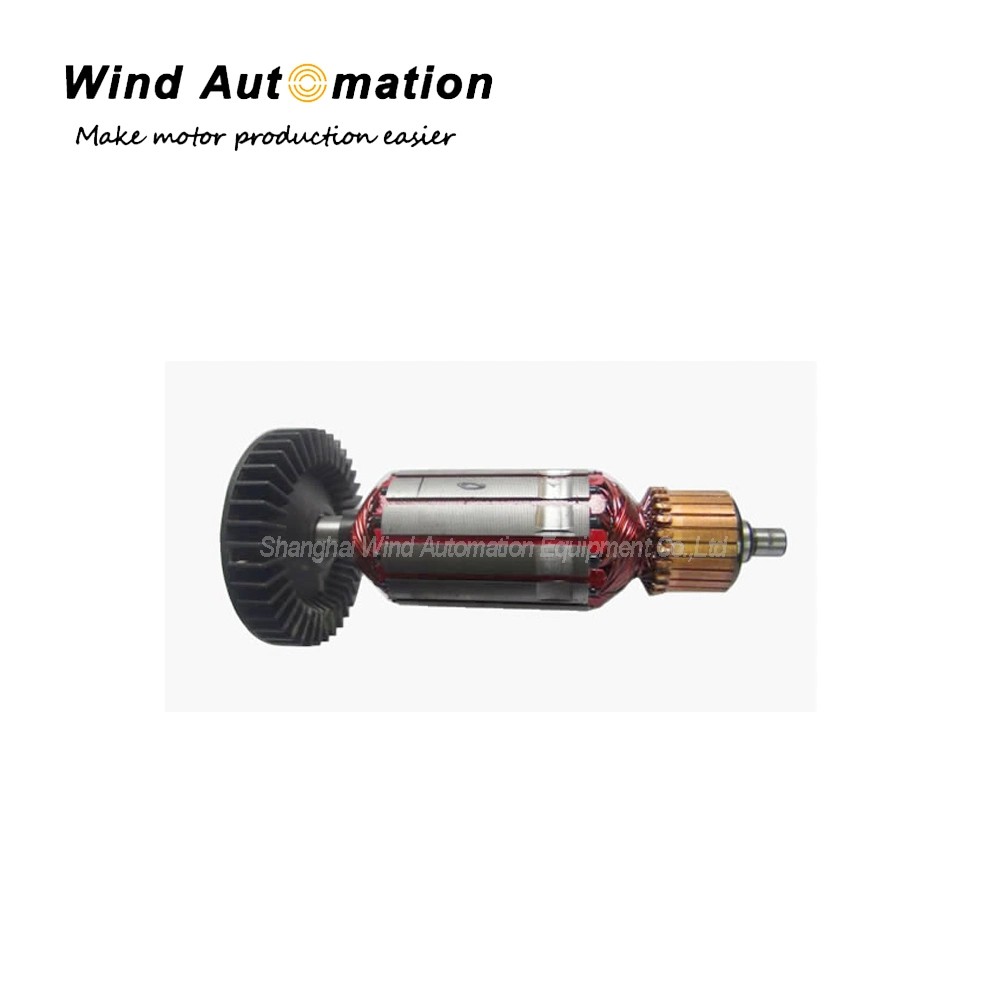

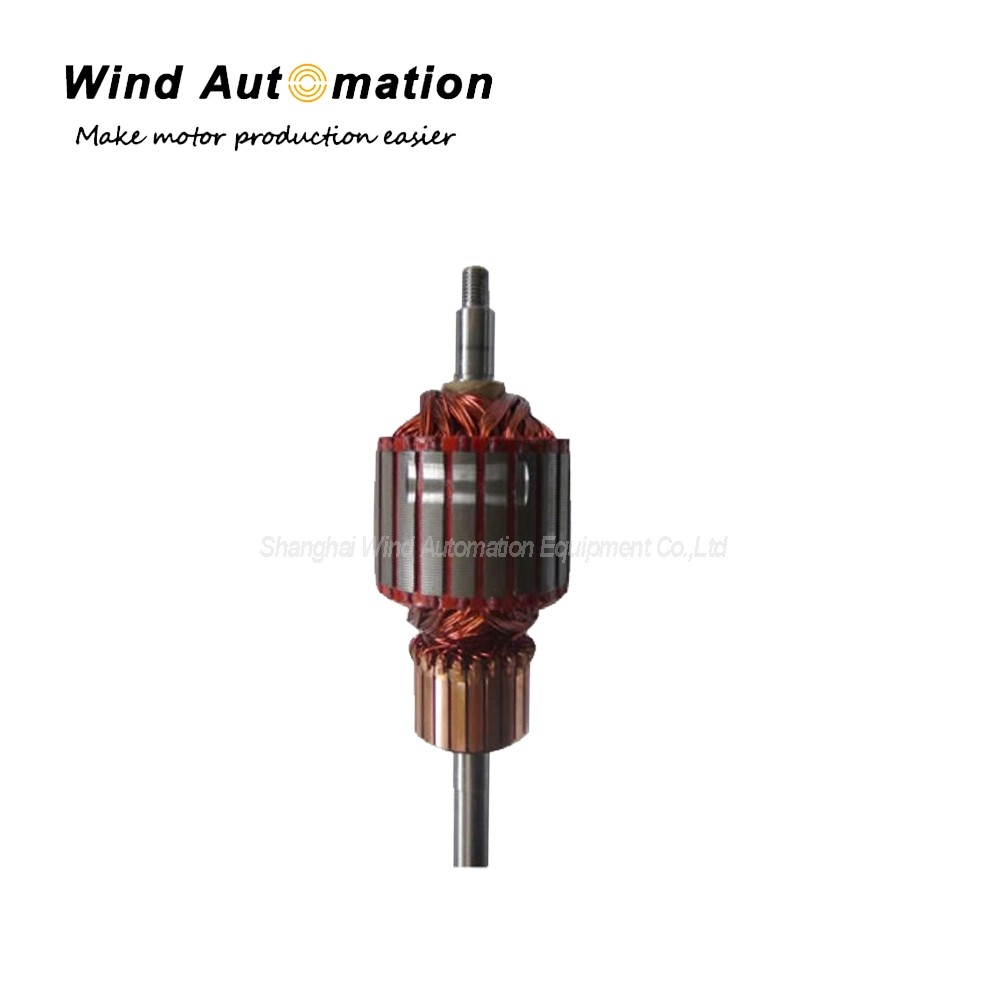

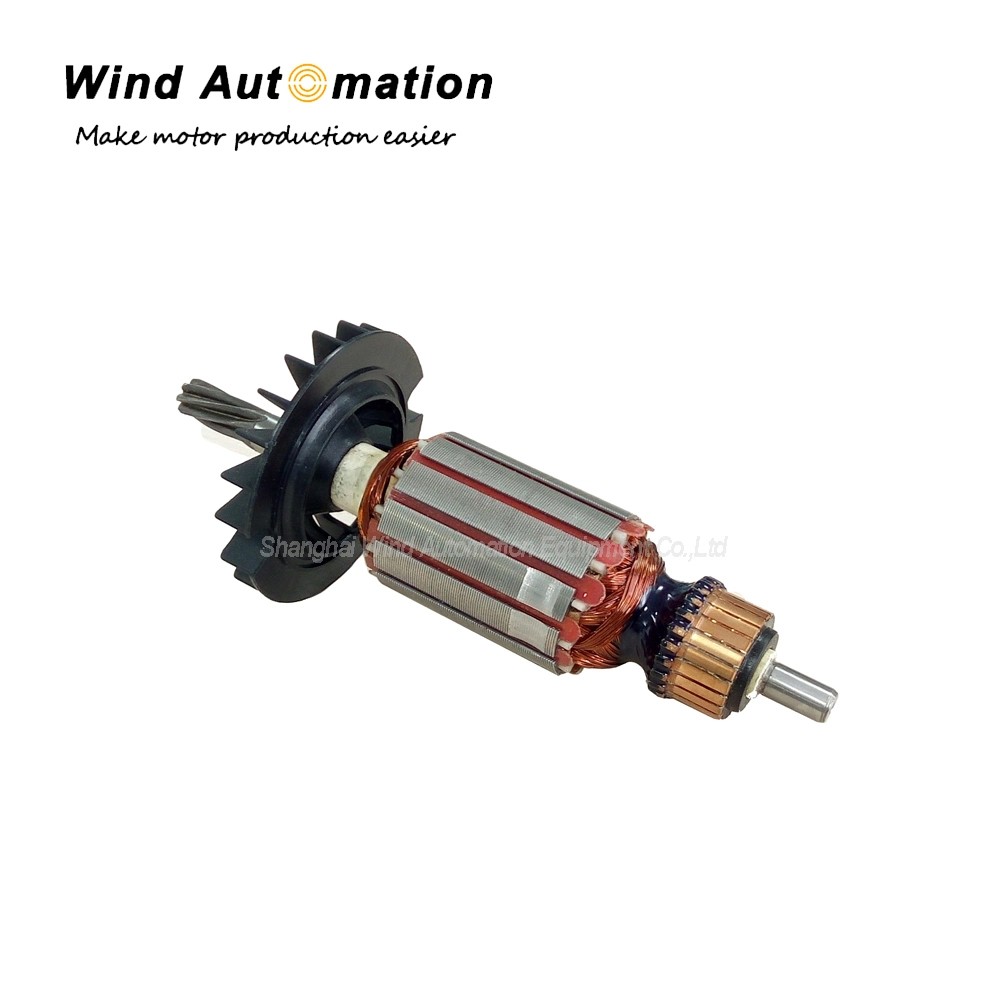

Suitable for automobile motor, motorcycle motor, house appliances series excited motor, power tool motor and various kinds of PM DC micro motor.

(4) Information needed for inquiry
1. Armature lamination drawing
2. Armature assemble drawing
3. Armature stack drawing
4. Armature winding diagram drawing
5. Commutator drawing
6. Required productivity
7. Other technical requirement
