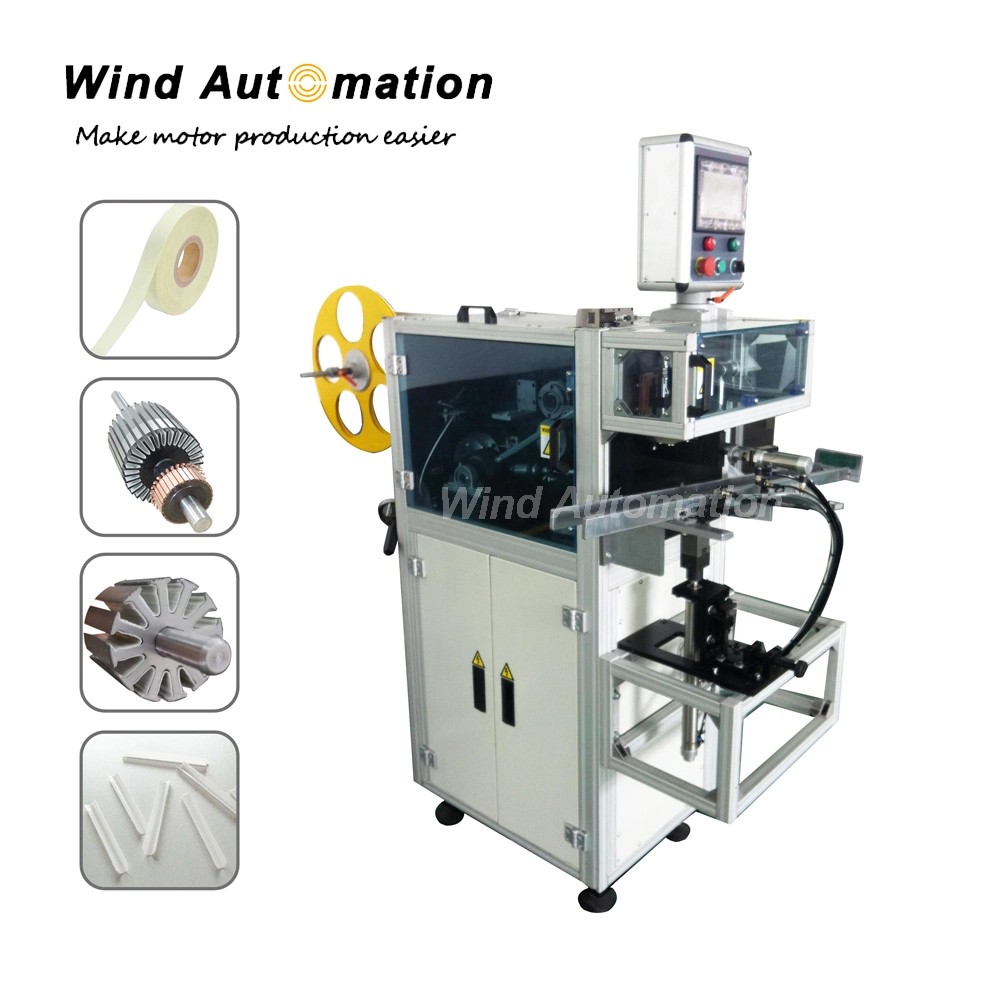

Pump Motor Automatic Insulation Paper Inserting Machine
Paper formation and placement of this machine is under precise control to ensure a high level of paper inserting. It is suitable for various types of insulation material.
(1) Application
This is suitable for home appliance, mixer, meat grinder, air conditioner, refrigerator, vacuum cleaner, washing machine, juicer, mixer, various pump, power tool.
(2)Specification

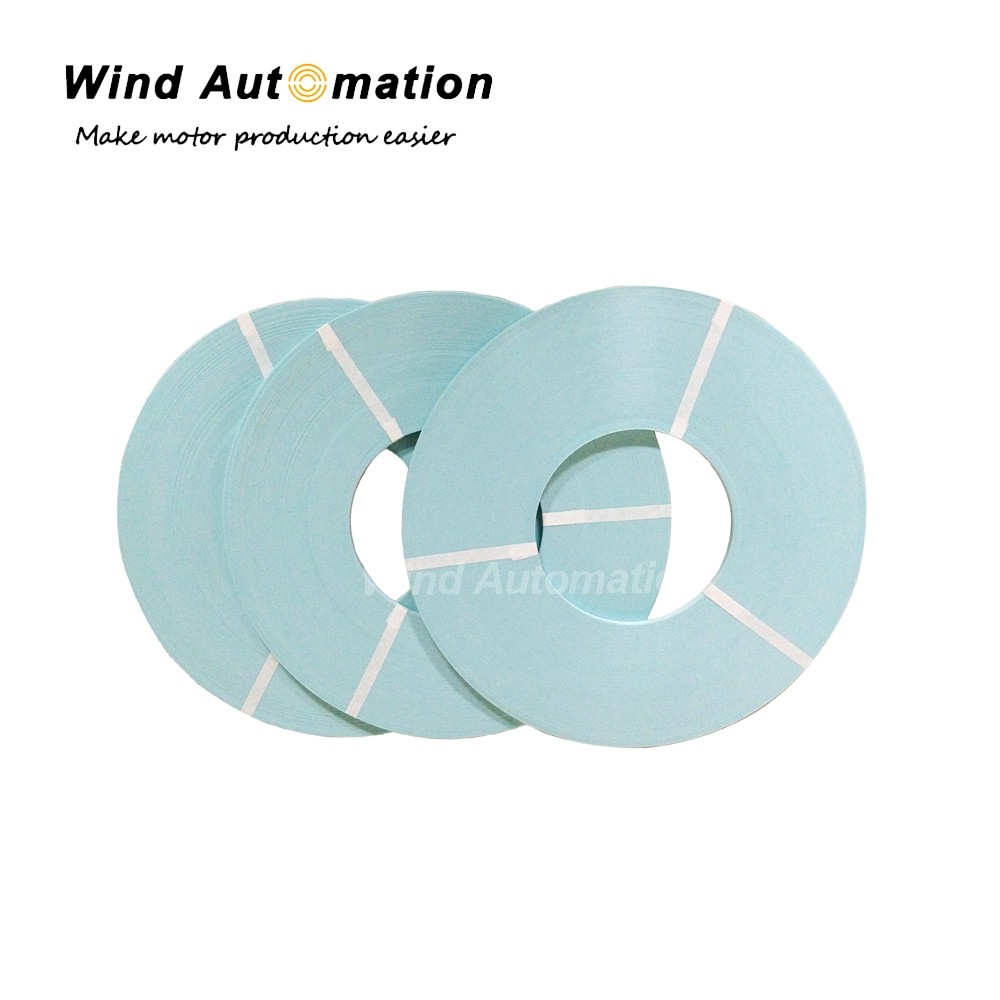

| Length of insulation paper | 15-60mm adjustable |
| Thickness of insulation paper | 0.1 mm ~ 0.5 mm |
| Insulation paper shape | V or edge-folding V |

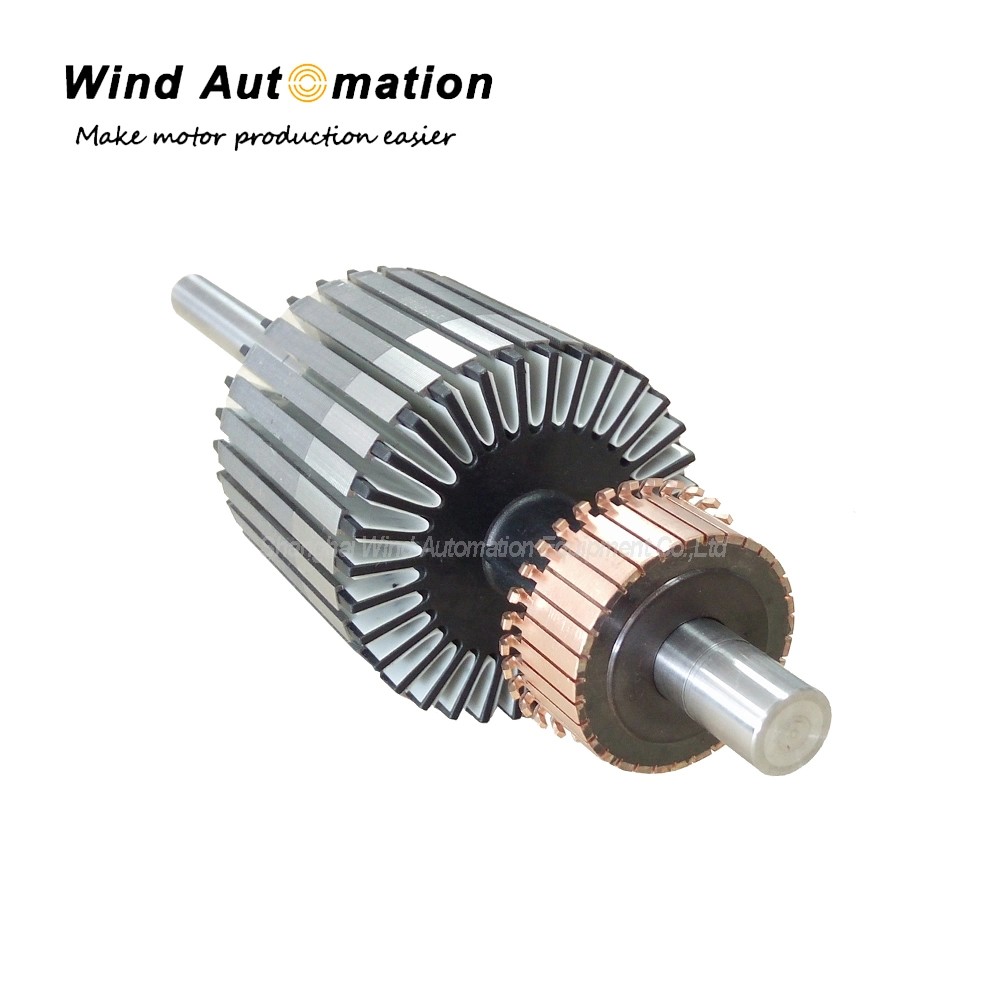

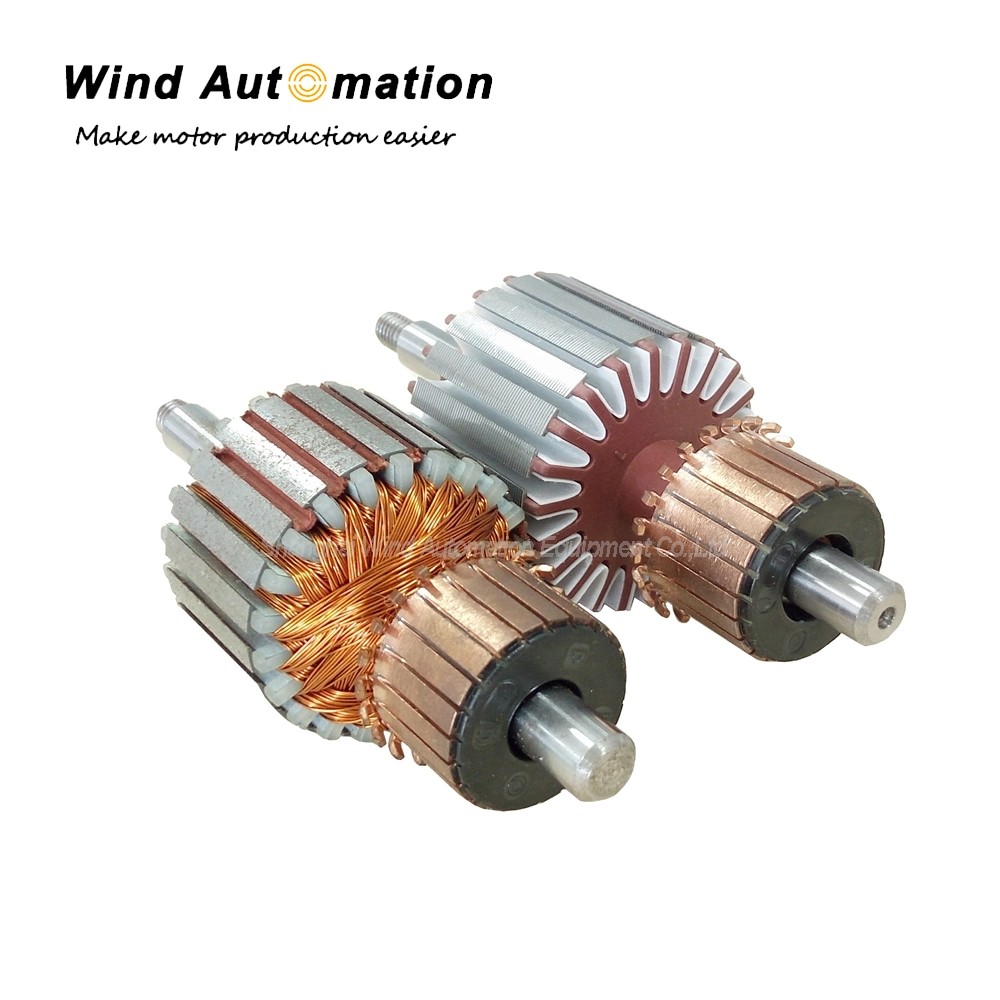

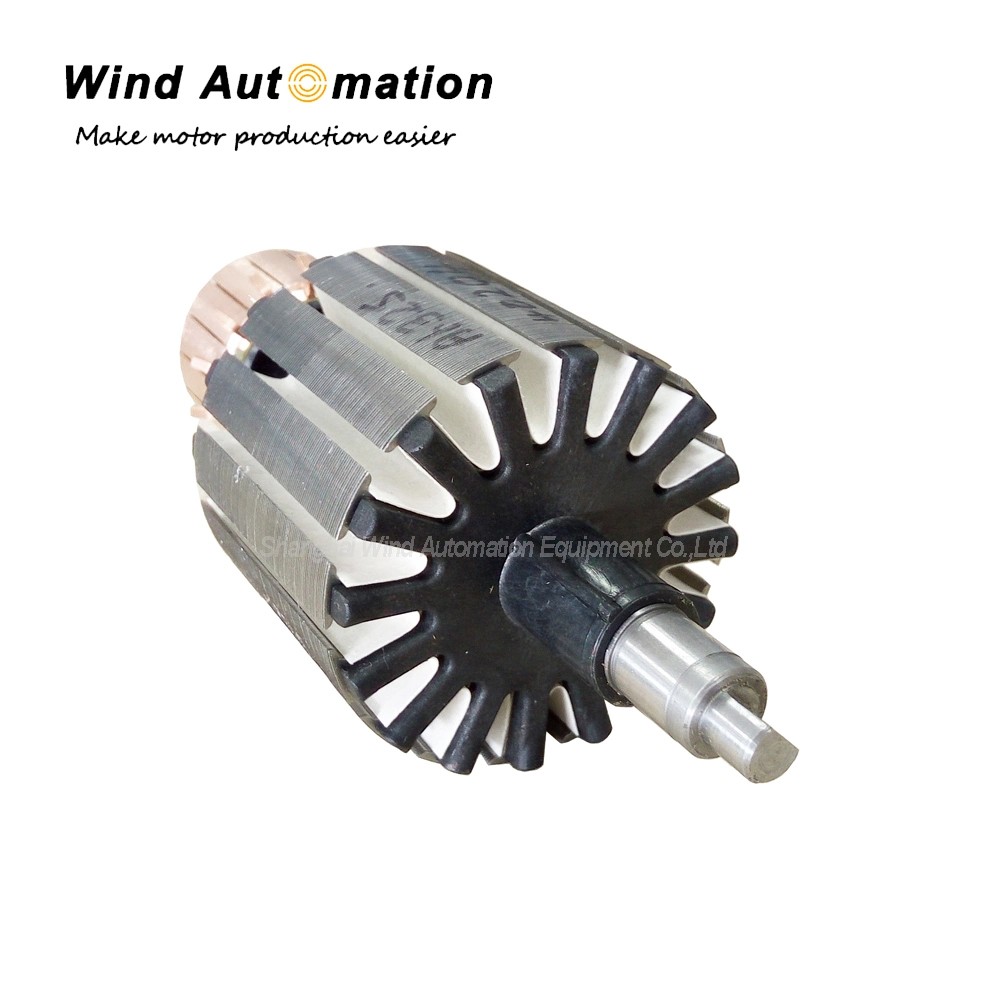

| Armature OD | 20-55mm |
| Length of lamination | Max 60mm |
| Shaft length | 32~250mm |
| Shaft OD | 6~20mm |
| Slot number | 8-24 slots |
| Commutator OD | 16~50mm |
| Speed regulation range | 0~60Hz |
| Air pressure | 4~6kg/cm2 |
| Voltage | AC220V±10%, 50/60Hz |
| Machine power | 1.0KW |
| Weight | about 400Kg |
| Dimension | 910 mm x 880 mm x 1300mm |
(3)Feature
PLC control
Adjustable for different rotor lengths
Quick and easy readjustment to other armature types
Precise Insulation paper length control
Suitable for three shifts continuous production
Friendly designed operator's interface

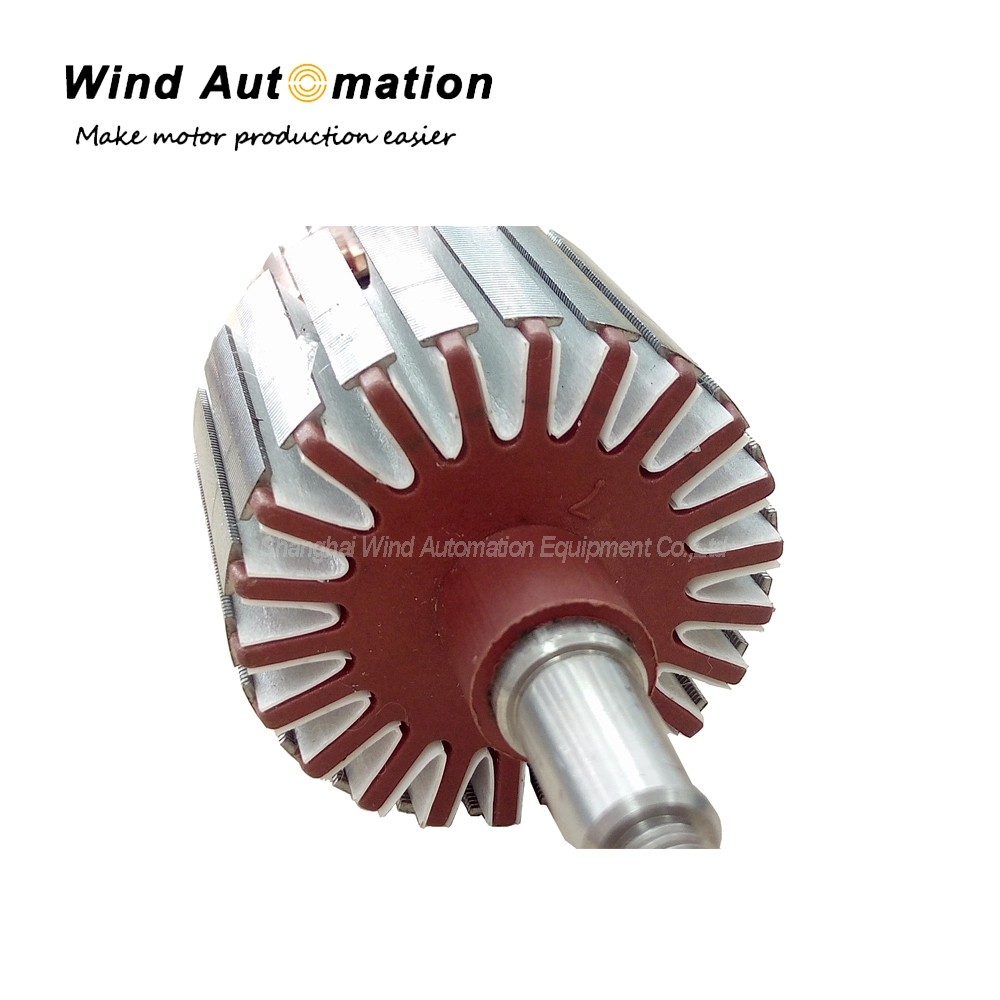

Precise paper formation and placement
