Mixer-Motor-Armature-Insulation-Paper-Inserter

Product Description

Mixer Armature Insulation Paper Inserter

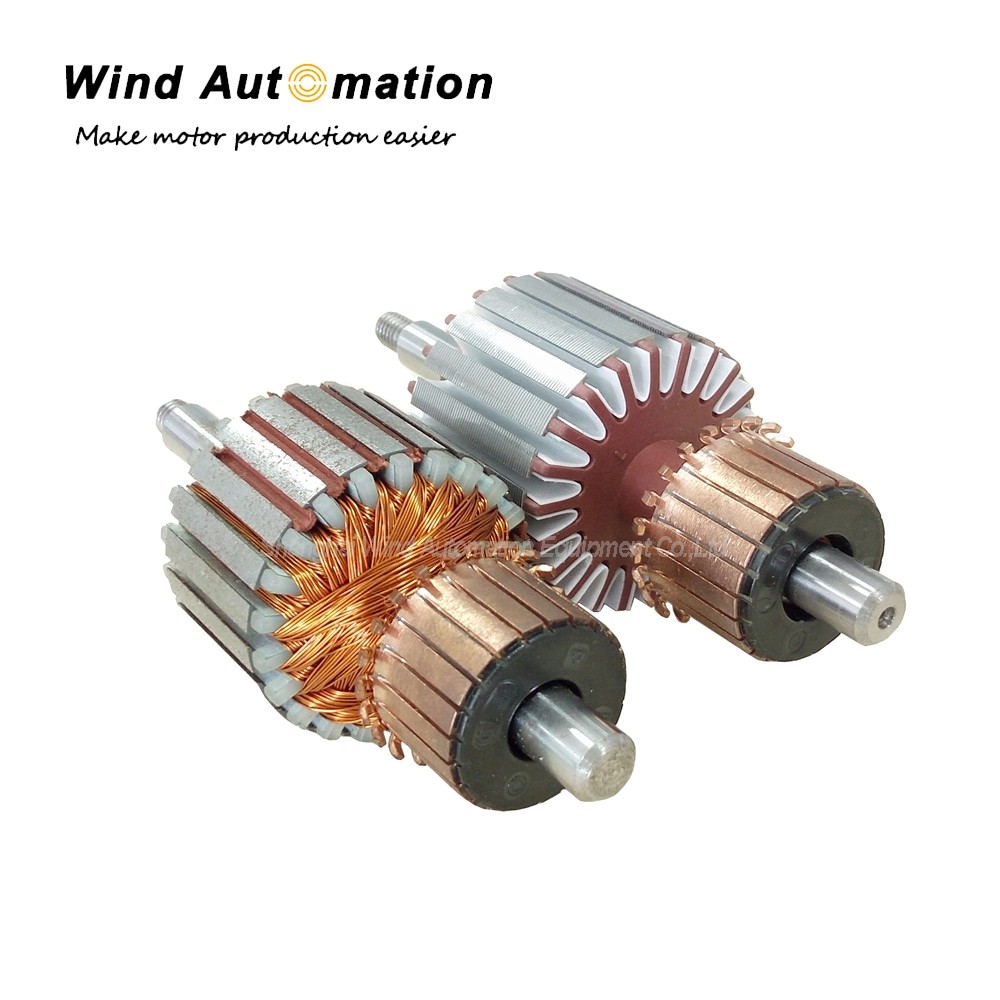

The paper inserter is a machine used to form, cut and insert the insulation paper polyester to armature's slot, in order to insulate the armature core and winding, the process is forming, cutting, inserting, indexing to next slot.

(1) Specification
Machine power: 1.0KW
Voltage: AC220V± 10%, 50/60Hz
Weight: About 400Kg
Dimension: L910 mm x 880 mm x 1300mm3
Length of insulation paper: 15-60mm adjustable
Thickness of insulation paper: 0.1 mm ~ 0.5 mm
Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.
Insulation paper shape: V or edge-folding V
Armature O. D: 20-55mm
Length of lamination: Max 60mm
Shaft length: 32~250mm
Shaft O. D: 6~20mm
Slot number: 8-24 slots
Commutator O. D: 16~50mm
Speed regulation range: 0~60Hz
Efficiency: 0.5sec - 0.8sec/per slot, loading, clamp, feeding paper, unloading
Air source: Air pressure: 4~6kg/cm2


(2) Application
This machine is suitable for home appliance, car motor, and power tooling motor armature.
