Power Tool Armature Slot Insulation Paper Folder and Inserter

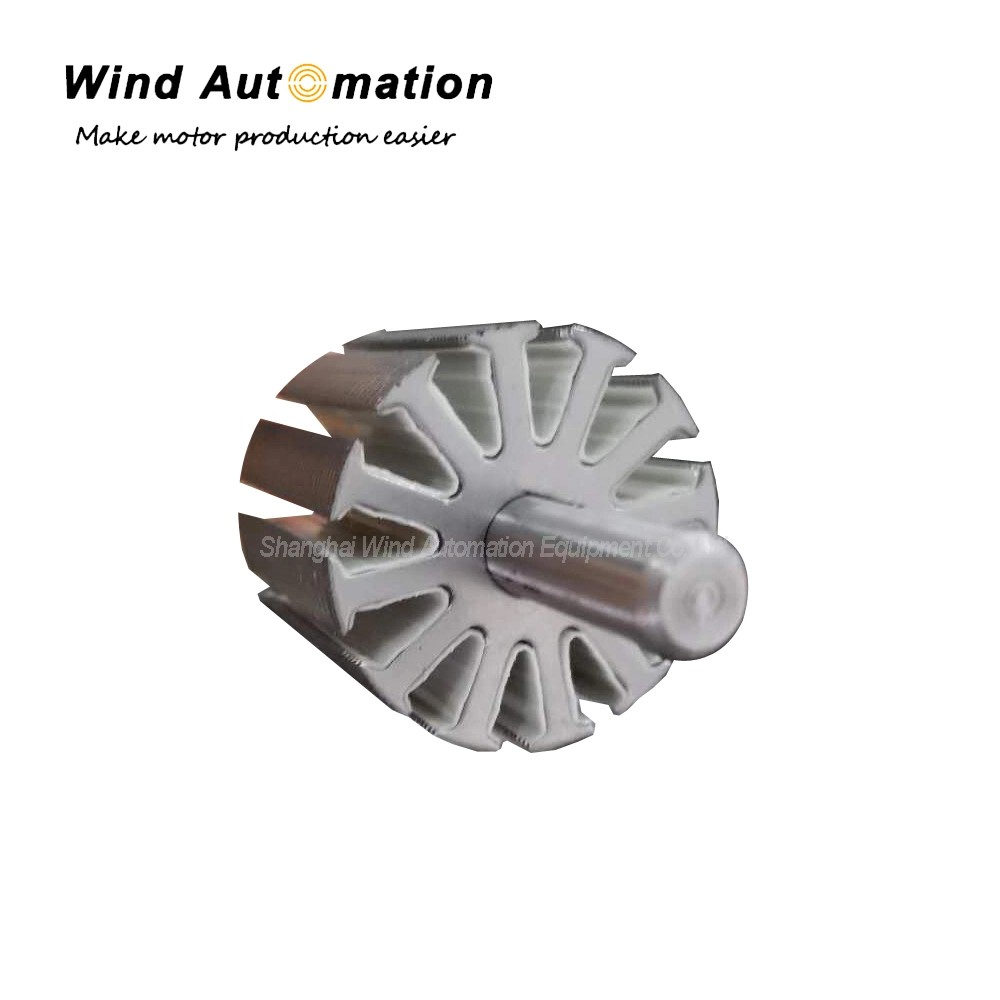

This paper insertion machine has a wide application, is designed for armature slot paper inserting. It can automatically form, cut, insert insulation paper into armature body.
(1)Specification
| Outside Dimension | 2000(L)X1550(W)X1727(H)mm |
| Machine Weight | ~250Kg |
| Motor Power | 0.75Kw |
| Voltage | 220V AC |
| Pressure | 0.4-0.6Mp |
| Manufacturing product | Motor armature insulation paper |
| Armature O.D range | 20-65mm |
| Length of insulation paper | 20-70mm Adjustable |
| (MAX) Width of insulation paper | 25mm |
| Armature slot number | 8-24 slots |
| Work procedure | Feeding-fix-insert paper-discharge (12 slots, 11 seconds totally) |
| Fixture | Pneumatic mechanical fixture |
| Feeding form | Automatic |
| Lubricant form | Grease lubrication |
(2)Feature
PLC control
Adjustable for different rotor lengths
Quick and easy readjustment to other armature types
Precise Insulation paper length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precise paper formation and placement
(3) Application
This is suitable for home appliance, mixer, meat grinder, air conditioner, refrigerator, vacuum cleaner, washing machine, juicer, mixer, various pump, power tool.
