Automatic-Paper-Insertion-Machine-for-Air-Conditioner-Armature

Product Description

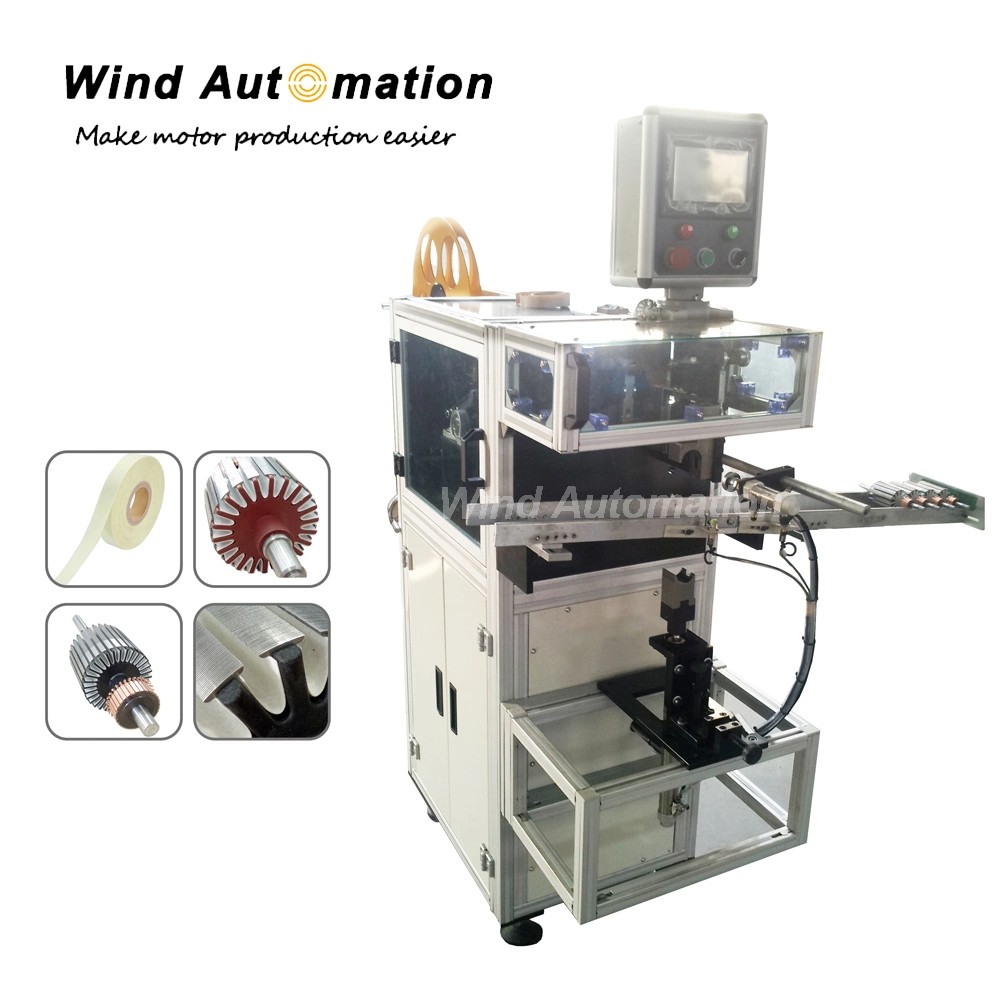

Automatic Paper Insertion Machine For Air Conditioner Armature Automatic Paper Insertion Machine for Air Conditioner Armature

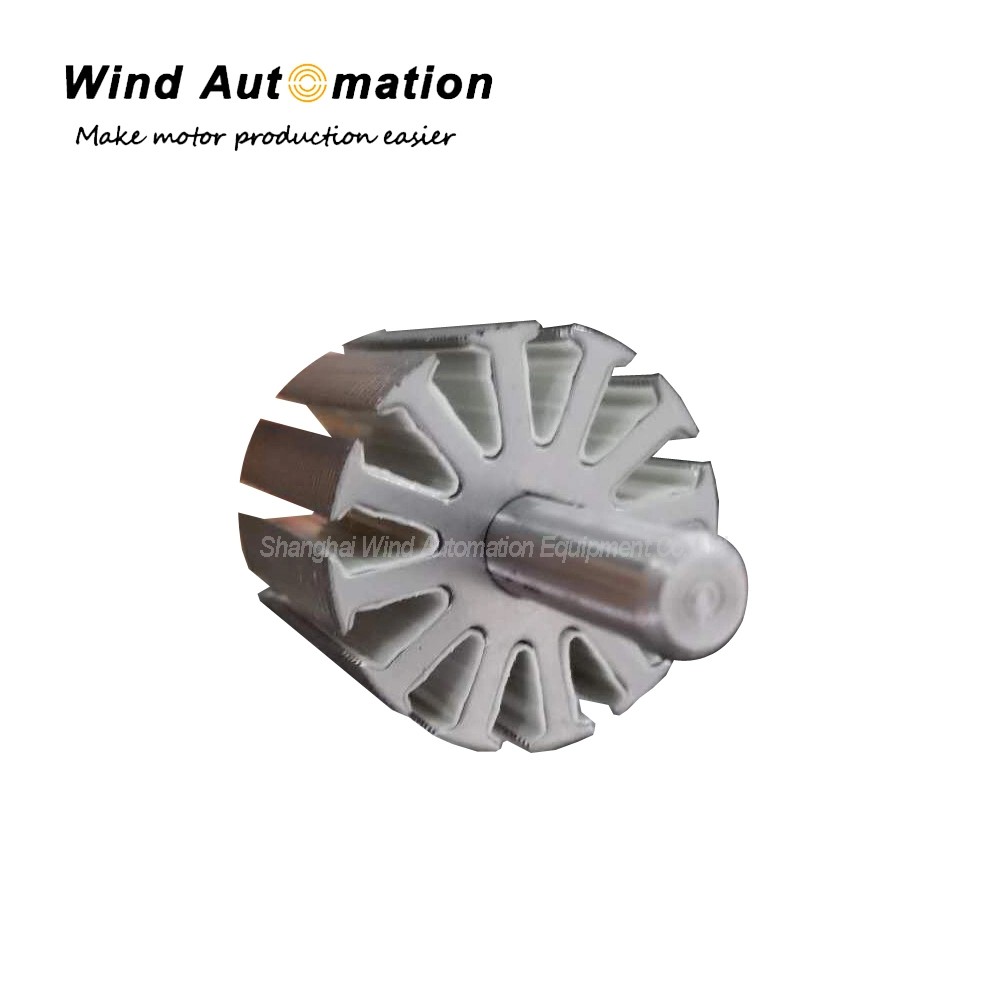

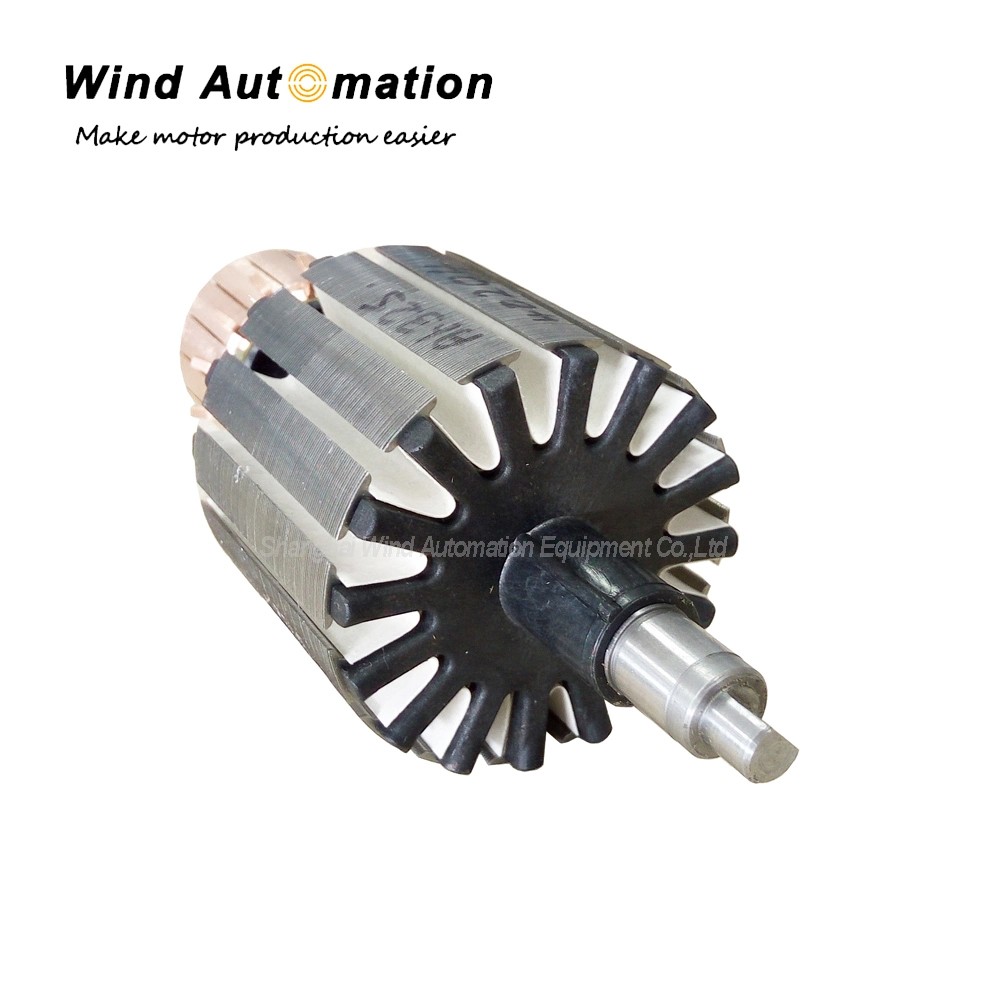

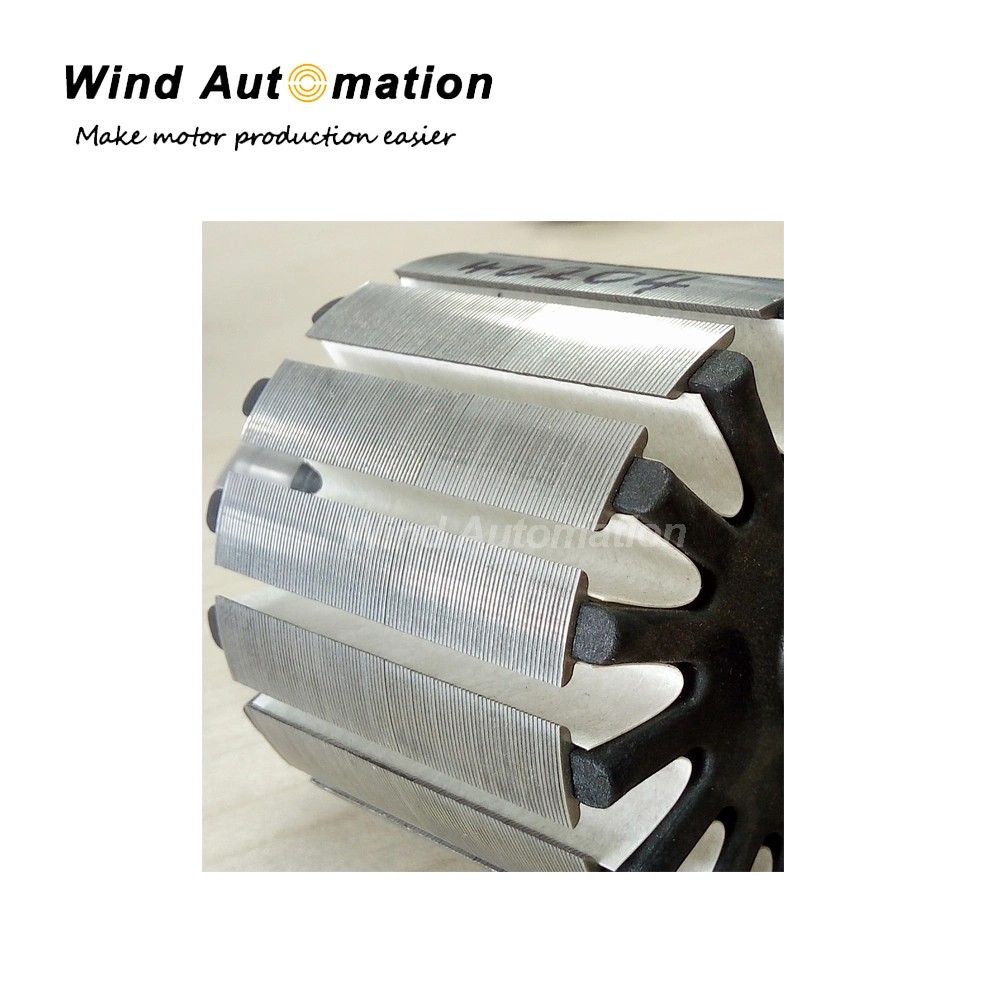

This paper insertion machine has a wide application, is designed for armature slot paper inserting. It can automatically form, cut, insert insulation paper into armature body.


(1)Specification

Outside Dimension2000(L)X1550(W)X1727(H)mm
Machine Weight~250Kg
Motor Power0.75Kw
Voltage220V AC
Pressure0.4-0.6Mp
Manufacturing productMotor armature insulation paper
Armature O.D range20-65mm
Length of insulation paper20-70mm
Adjustable
(MAX) Width of insulation paper25mm
Armature slot number8-24 slots
Work procedureFeeding-fix-insert paper-discharge (12 slots, 11 seconds totally)
FixturePneumatic mechanical fixture
Feeding formAutomatic
Lubricant formGrease lubrication


(2)Feature
PLC control
Adjustable for different rotor lengths
Quick and easy readjustment to other armature types
Precise Insulation paper length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precispaper formation and placement

(3) Application
This is suitable for home appliance, mixer, meat grinder, air conditioner, refrigerator, vacuum cleaner, washing machine, juicer, mixer, various pump, power tool.


Automatic Paper Insertion Machine for Air Conditioner Armature
Automatic Paper Insertion Machine for Air Conditioner Armature
Automatic Paper Insertion Machine for Air Conditioner Armature
