Winding Solution For Automobile Motor Armature Production

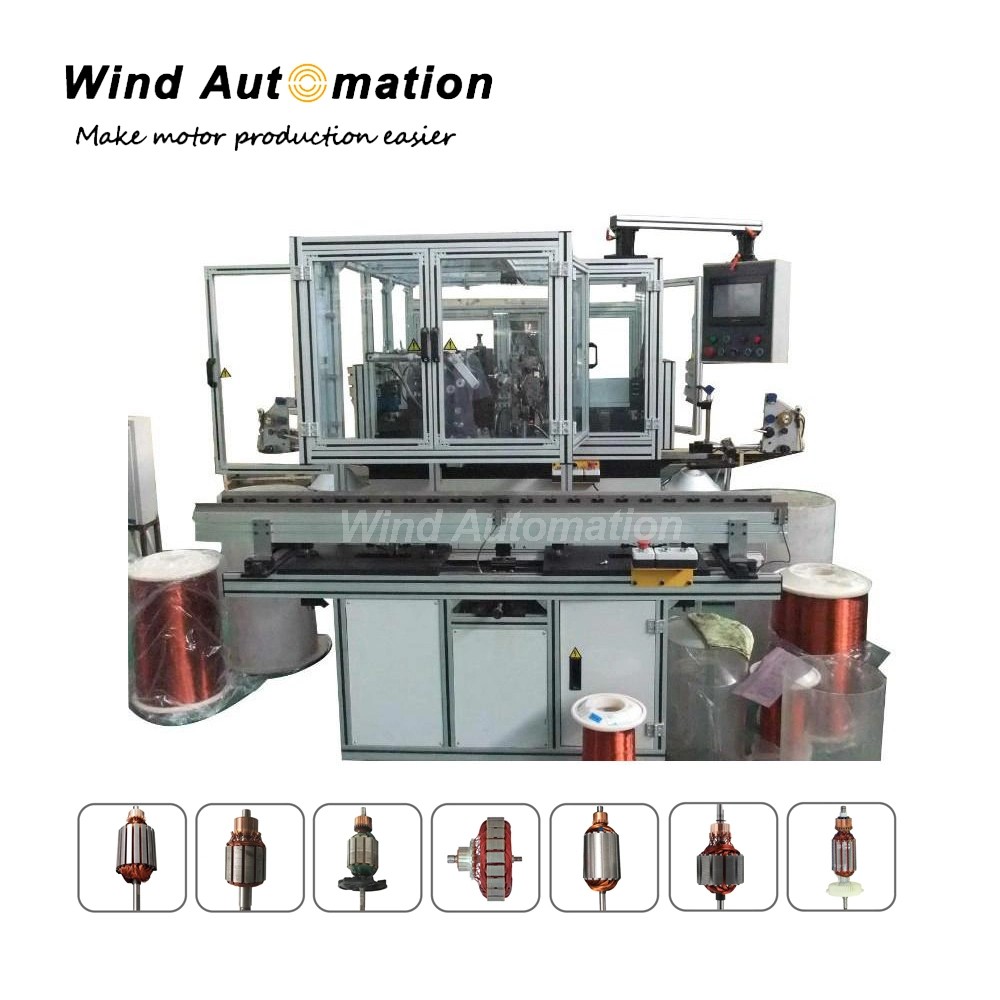

With conveyor and mechanical arm, this machine is suitable for mass production. It can wind hook type commutator regardless of its slot numbers. It covers a wide wire range from 0.15 to 1.2mm.
(1) Specification
| Wire range | 0.15~1.2mm |
| Armature OD | 20~80mm |
| Stack height | 10~90mm |
| Commutator OD | 8~60mm |
| Movement | Jog/auto |
| Slot No. | Odd/Even |
| Turn No. | 0~9999 |
| Flyer speed | 0~2000rpm |
| Power supply | AC 380V 50/60HZ |
| Air source | 5~7kg/cm3 |
| Power | 4KW |
| Weight | 1000KG |
| Dimension | 2000x1650x1950mm |
(2) Application
Suitable for automobile motor, motorcycle motor, house appliances series excited motor, power tool motor and various kinds of PM DC micro motor.
(3)Feature
For hook type commutator
High Automation
Automatic loading and unloading
For medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
All winding parameter programmed on touch screen
(4) Information needed for inquiry
1. Armature lamination drawing
2. Armature assemble drawing
3. Armature stack drawing
4. Armature winding diagram drawing
5. Commutator drawing
6. Required productivity
7. Other technical requirement
