Product Description

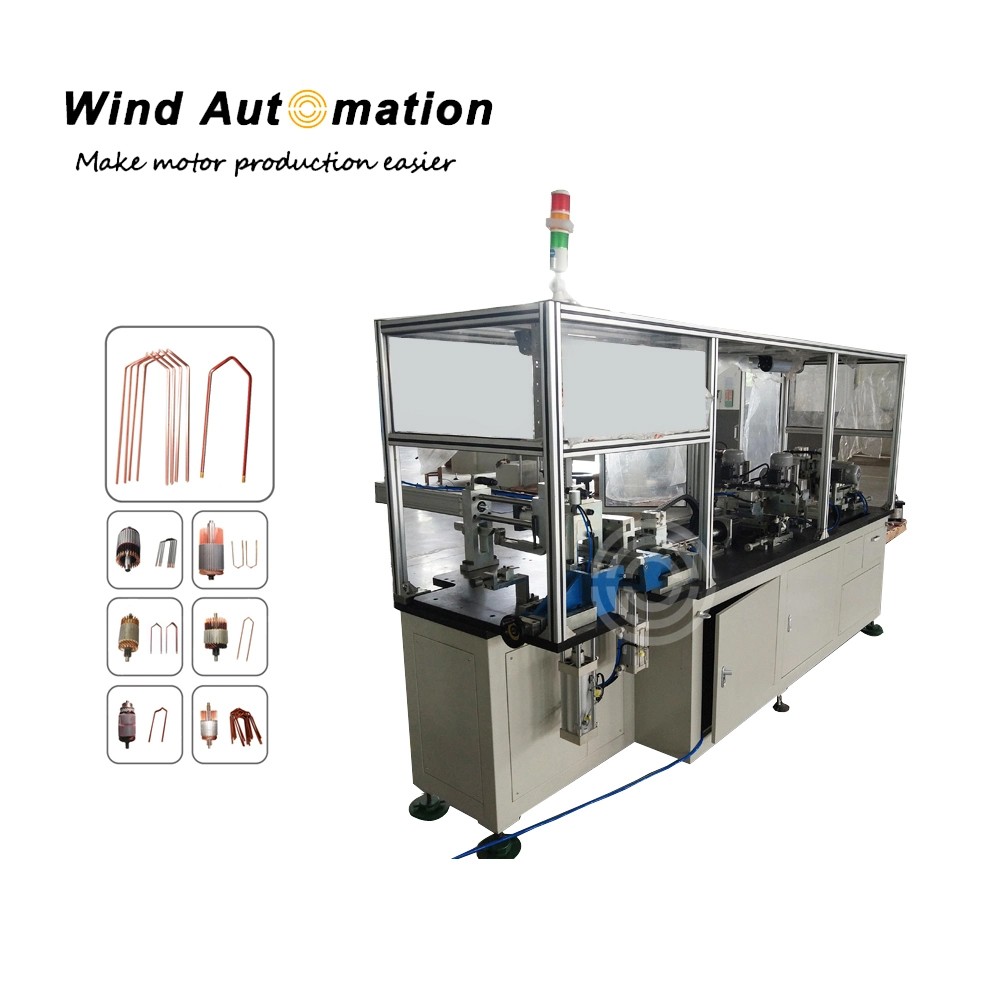

Rectangle Wire Forming Machine Armature Coil Winding Machine

Rectangle Wire Forming Machine Armature Coil Winding Machine

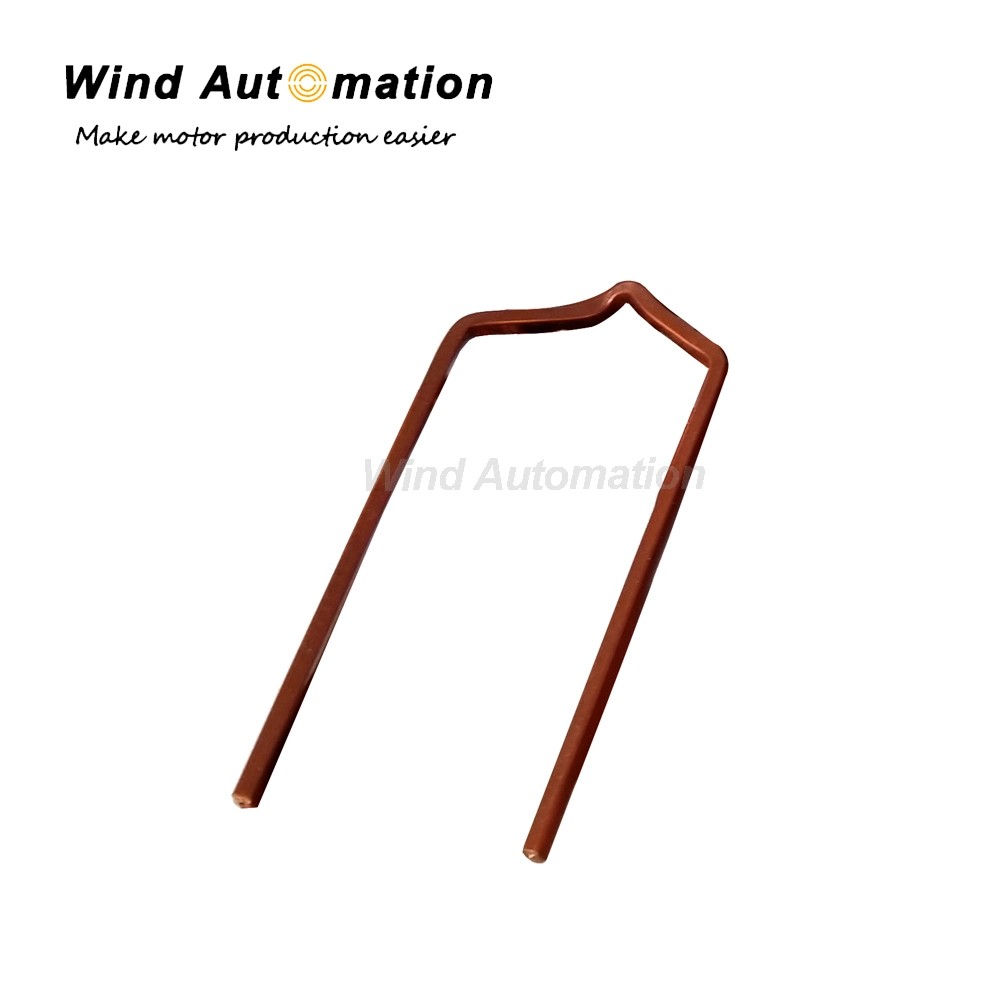

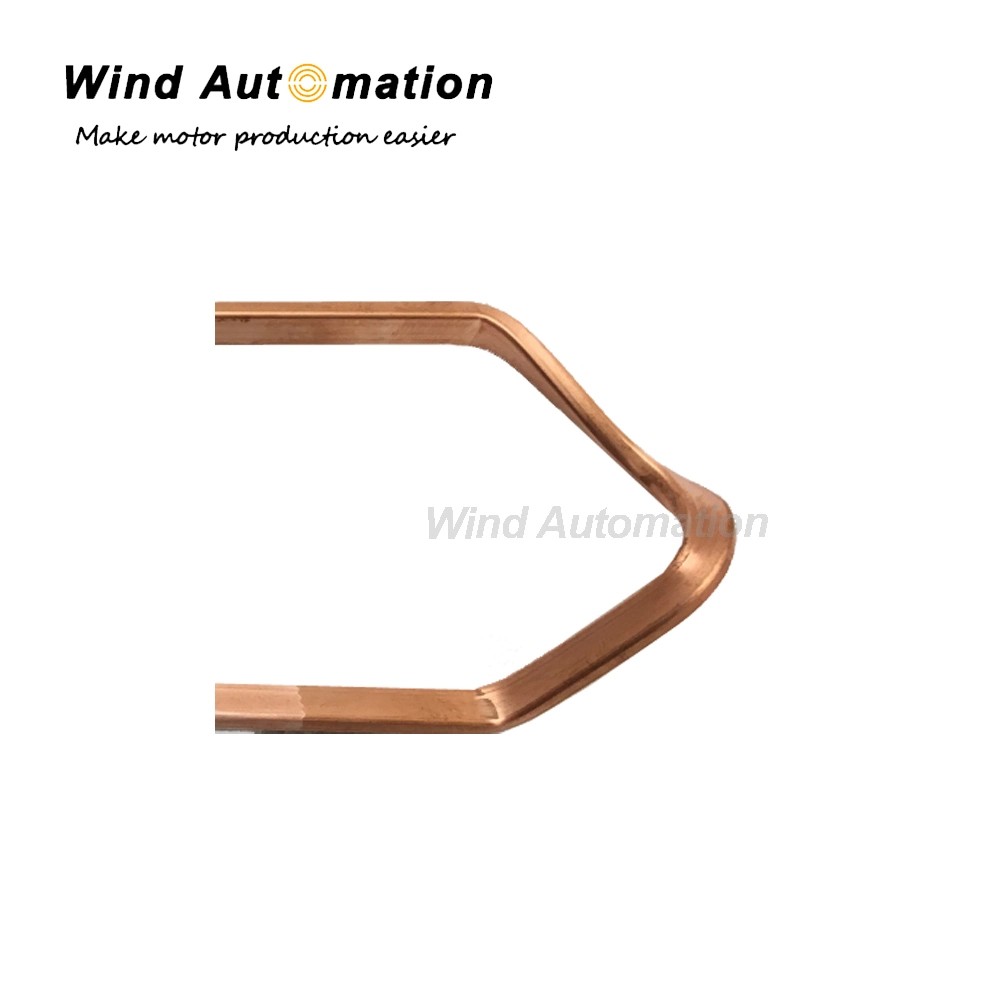

This forming machine produces conductor for starter armature bare wire without enamel. It can automatically turn single bare copper wire into conductor. During forming, one operator is quite enough to operate this machine.

(1)Specifications

Power SupplyAC220V±10% 50Hz
Air Pressure Supply0.5~0.7Mpa
Rated Capacity2KW
Varnish Removing Length0~50mm
Productivity2.3s/pc
Feeding length150~400mm


(2) Application

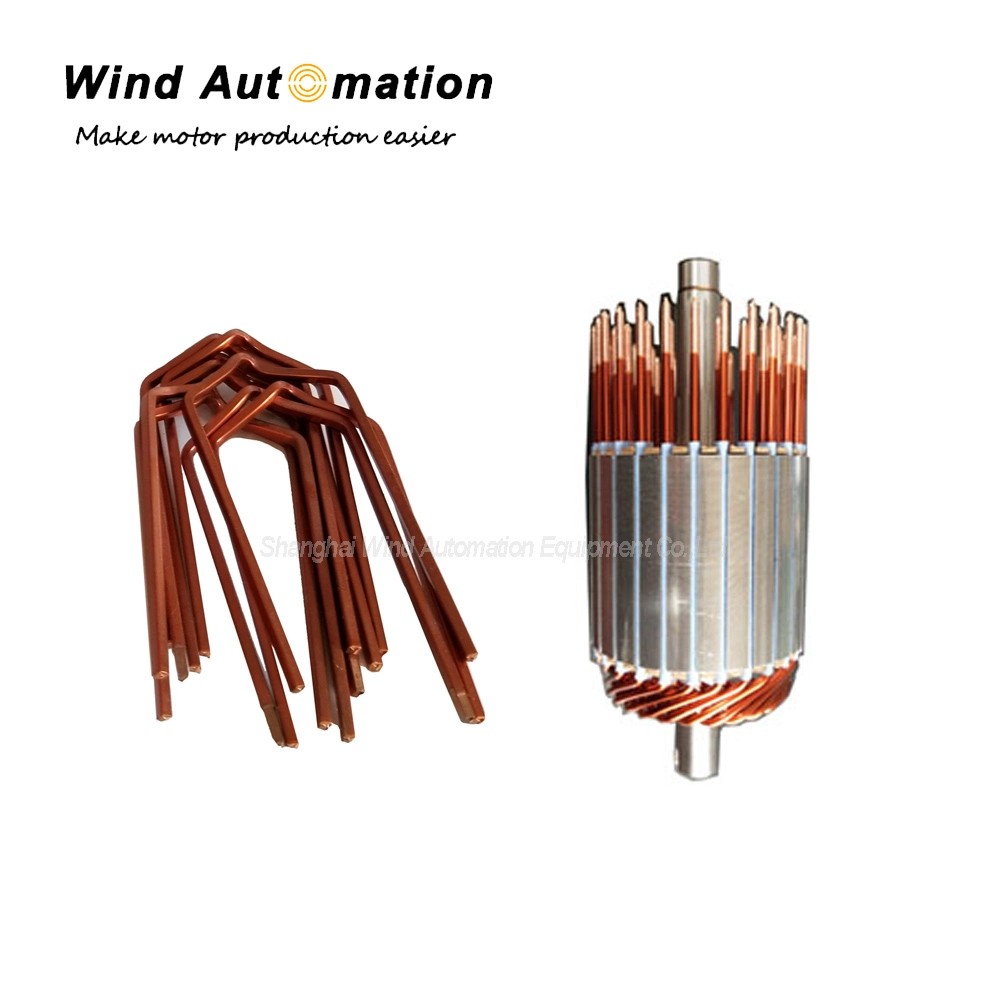

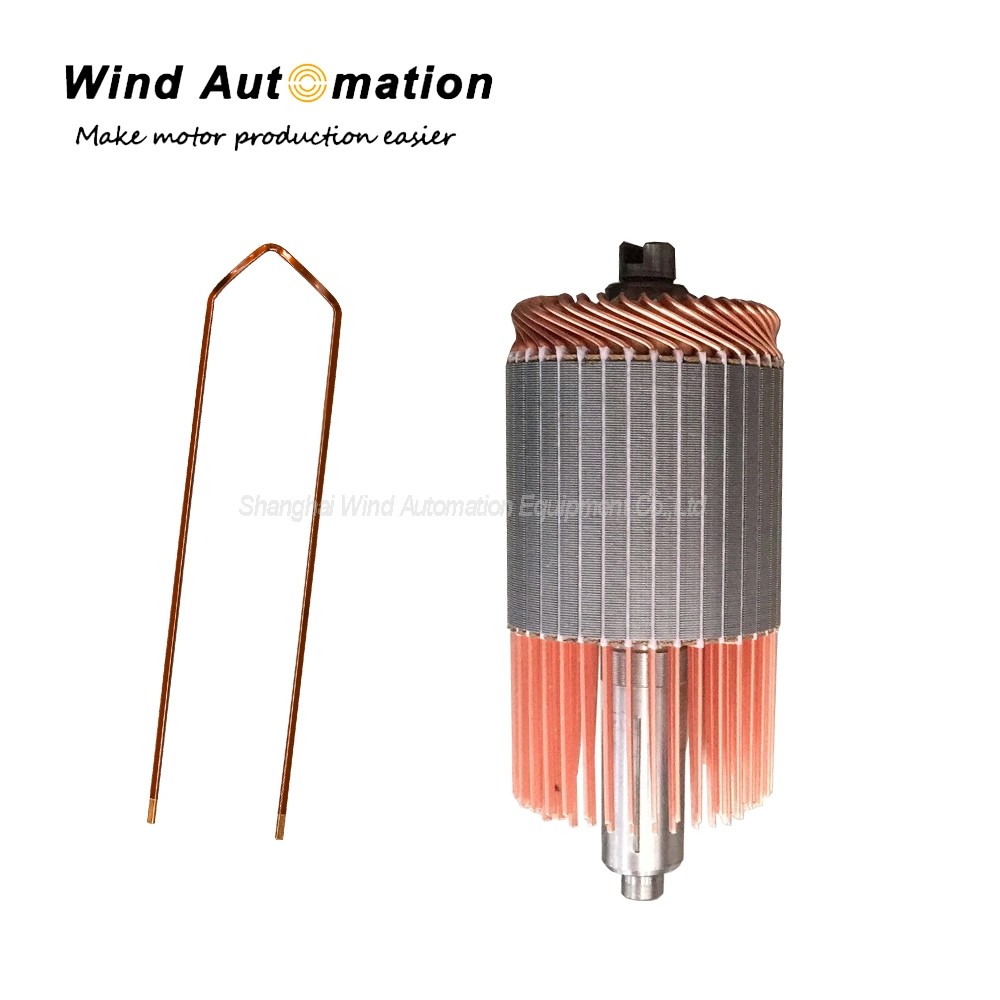

Suitable for starter motor, aerospace motor armature to do hairpin coil forming.

(3) Features
Suitable for flat wire
High efficiency, automation and productivity, 25pcs/min
Mitsubishi PLC control, colorful touching screen
Capable of producing conductor with customized twisting angle
One operator is quite enough to operate this machine


Rectangle Wire Forming Machine Armature Coil Winding Machine

Rectangle Wire Forming Machine Armature Coil Winding Machine
Rectangle Wire Forming Machine Armature Coil Winding Machine
