Product Description

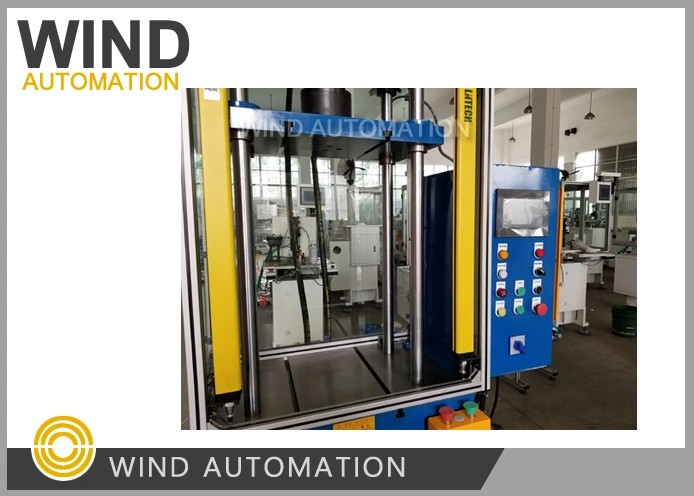

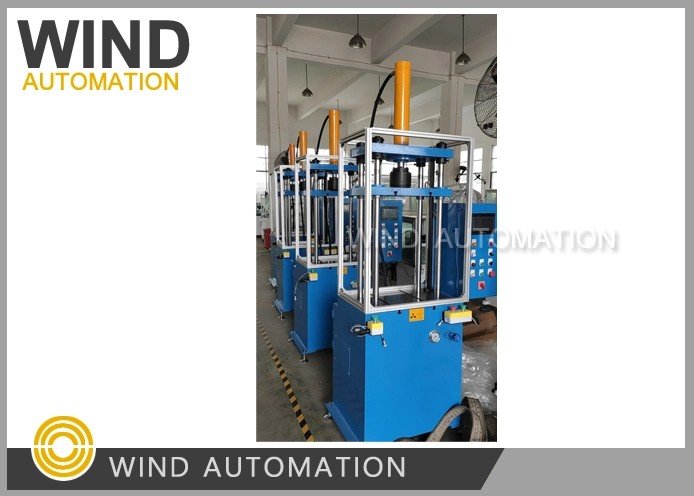

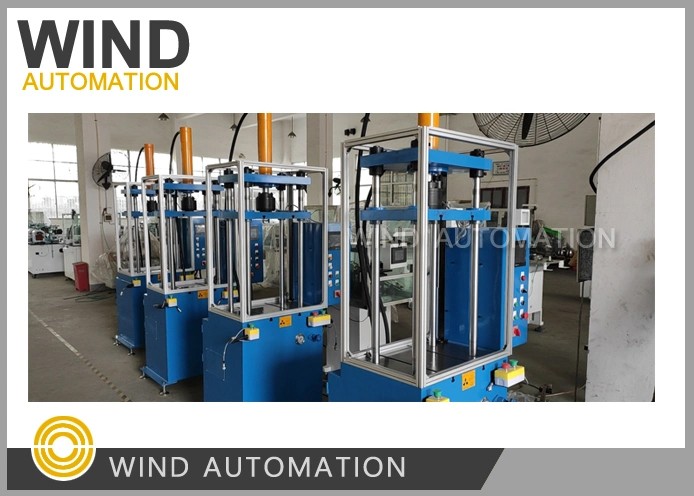

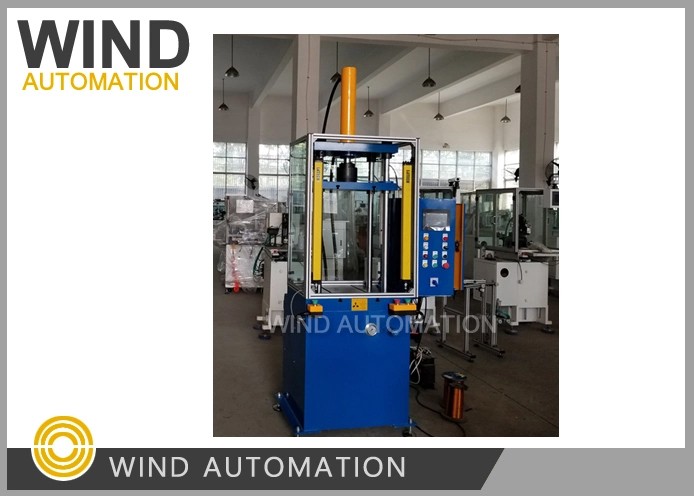

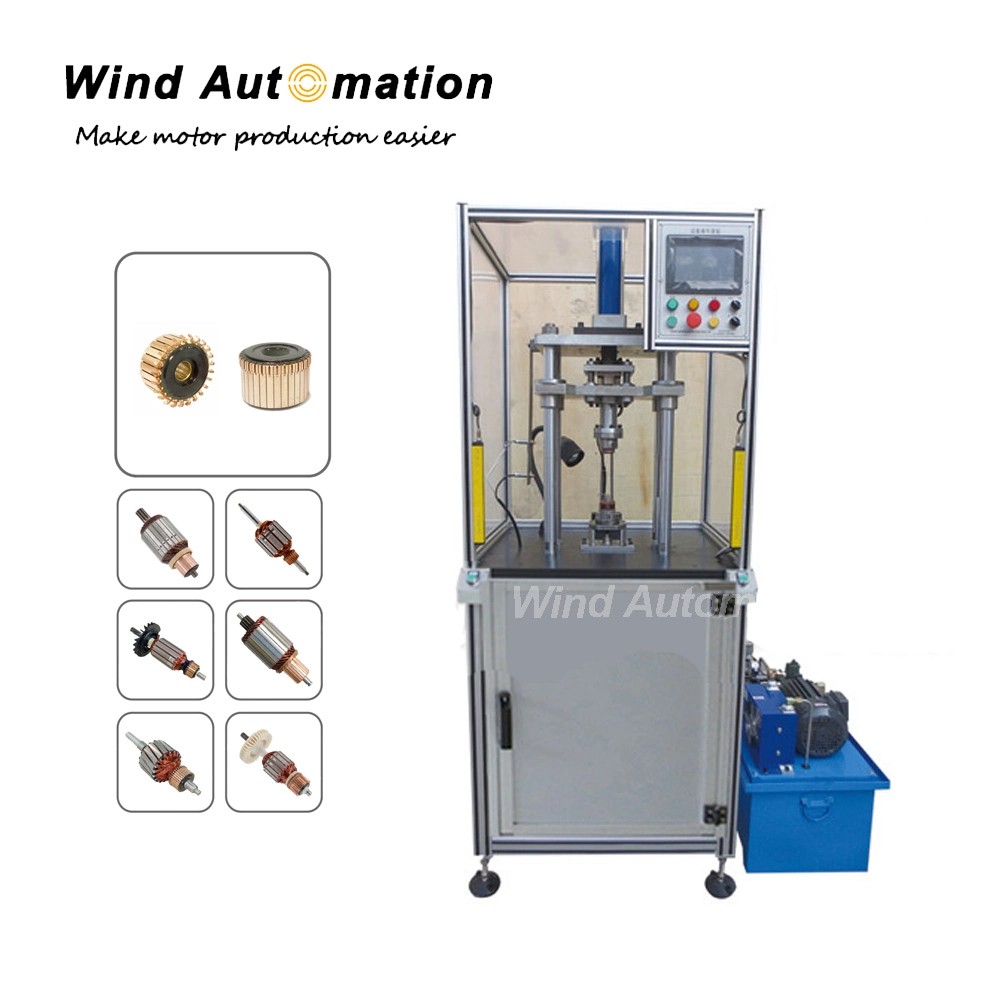

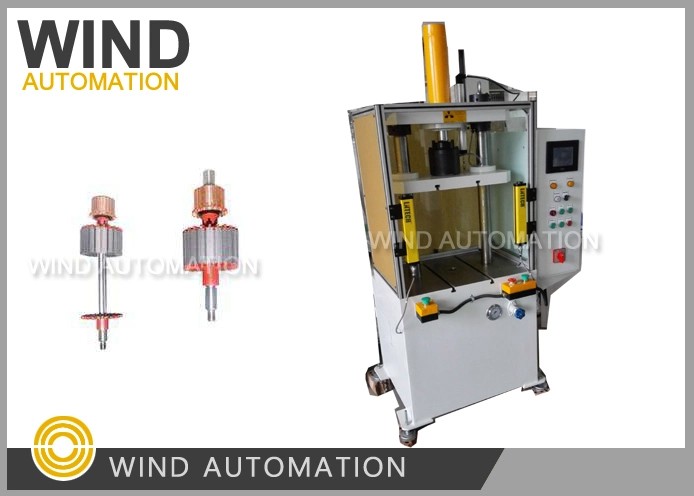

Armature Commutator Pressing Machine How to Press Commutator

This commutator pressing machine is suitable for various types of motor armature to do commutator pressing, regardless of commutator type. With grating protection system, this machine deeply reduces working accidents.

To ensure the accuracy of commutator and stack position, this machine will press commutator consistently each time at same location of armature relative position. Thus, it won't affect indexing effect during automatic winding process.


Specification

Machine configuration
Mitsubishi PLC
Weinview HIM
Chinese domestic hydraulic system
Safety light curtain
Schneider electric components

1. This machine is designed and manufactured according to the user's special requirements.
2. According to the relevant requirements,  the machine is equipped  with a pressure sensor on the main cylinder to carry out measuring and controlling of the pressure value of the work-piece,and thus complete screening of the unqualified parts during the assembly process. This equipment can execute adjustment,  storage and calling out of the parameters according to the different parameters of the products through the touch screen on the human machine interface. (step-less adjustment can be carried out between 15%-100% of the nominal force on measuring and controlling value of the pressure)
 Main technical parameters
