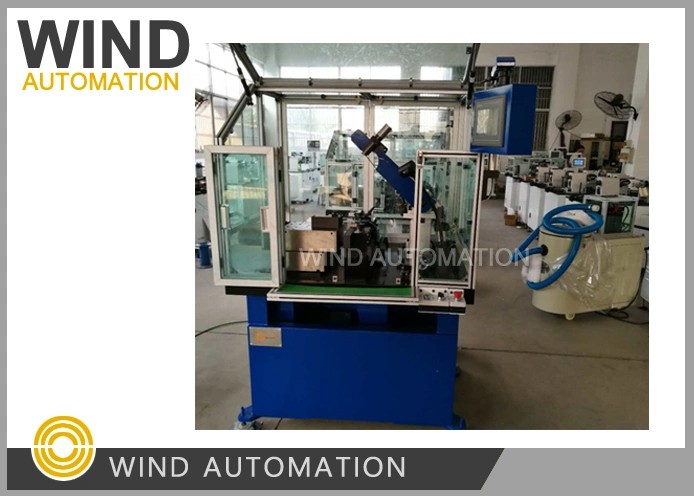

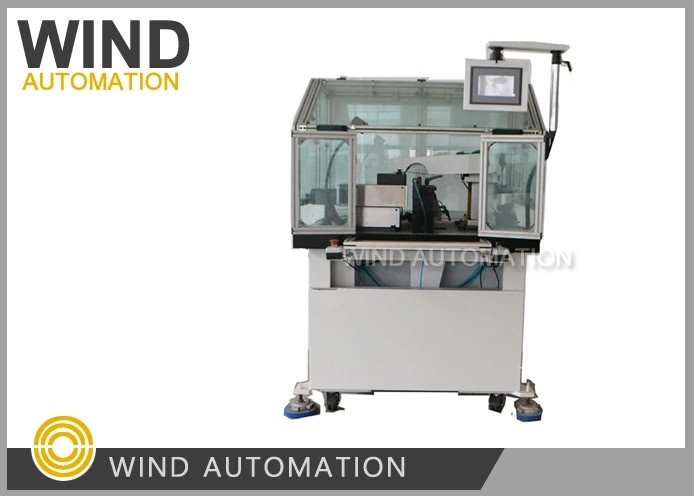

Starter Armature Commutator Turning Machine
This commutator turning machine is designed for turning commutator both hook type or riser type. Sophisticated turning technology ensures the high quality of turning process. The belt rotational system is driven by a AC servo drive motor. Dust collector can automatically collect swarf removal.
(1) Specifications
| Rotor OD | 20~80mm |
| Spindle OD | 3~18mm |
| Commutator OD | 5~40mm |
| Cutting length | Less than 40mm |
| Surface roughness | Less than Ra 0.4 |
| Concentricity | Less than 5µm |
| Max unilateral cutting | 0.1mm |
| Air source | >0.5 MPa |
| Input Power Source | AC 220V |
| Weight | 400 KG |
| Dimension | 1100mm × 700mm × 1400mm |
(2)Application
This machine is suitable for any type of commutator of starter rotors, automotive car motor.
(3) Features
Mitsubishi PLC control system
Precise servo drive control of the cutting process
Fully automatic turning cycle after loading of the armature
Strong applicability and wide application
Sophisticated turning technology based on using servo drive systems
Suitable for both hook and riser type commutator
V type tool holder for turning
Dust collector outlet for swarf removal
Adjustable drive system speeds and belt tension
Quick and easy readjustment for other types of armatures
