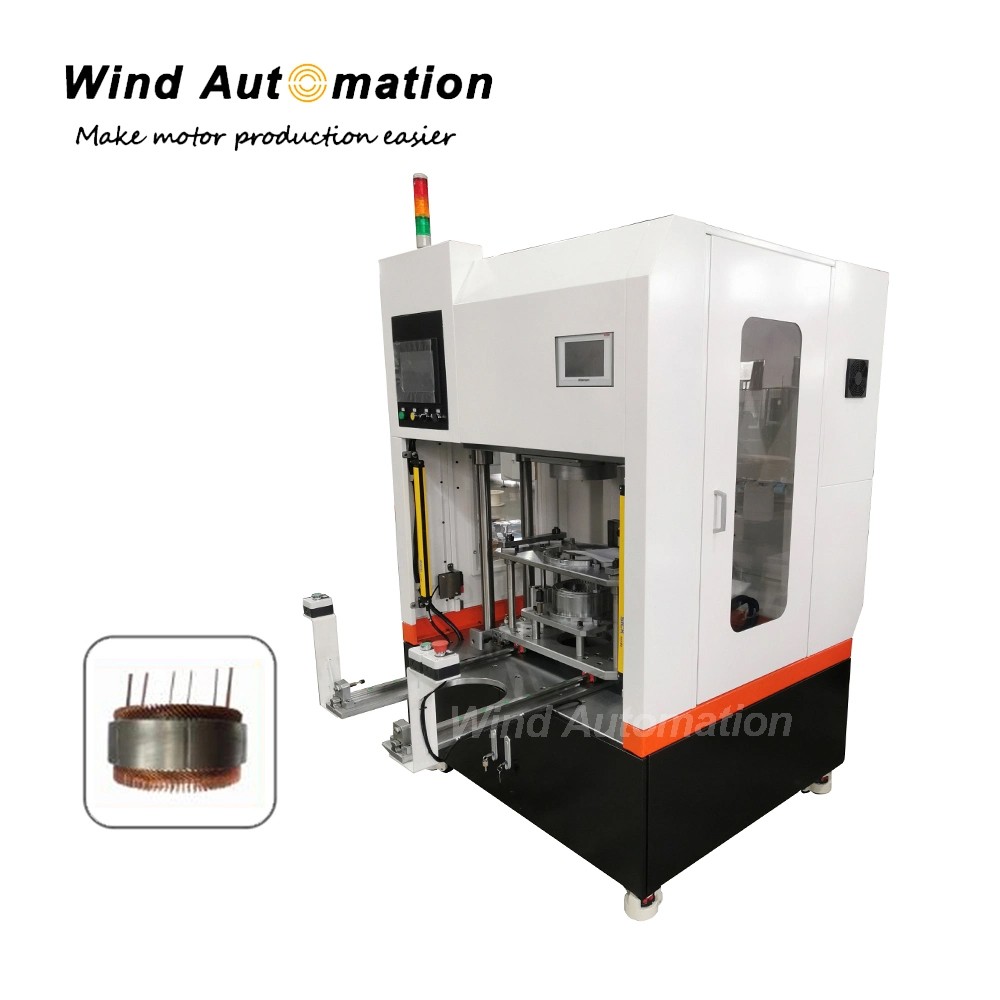

Hybrid Car Motor Stator Coil Forming and Inserting Machine

This coil inserting and forming machine is a fully automatic machine that integrates two separate machines (coil inserting machine, coil forming machine) into one machine. It will first insert hairpin coil into stator slot, then form the coil shape as per required size. The entire working cycle is fully automatic.

(1)Specifications

(2) Application
This machine is suitable for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators.

(3) Features
High productivity, up to 360 pieces/hour
Mitsubishi PLC controlled process
Built-in high-efficiency automatic inserting and forming system
Two ways of loading, manual or by mechanical arm
Precise servo drive control of coil inserting and forming process
Self-diagnostic troubleshooting system
User-friendly operator interface via touch screen LCD display

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
