Hook Type Commutator Rotor Winding Machine For Hammers

Hook Type Commutator Rotor Winding Machine for Hammers

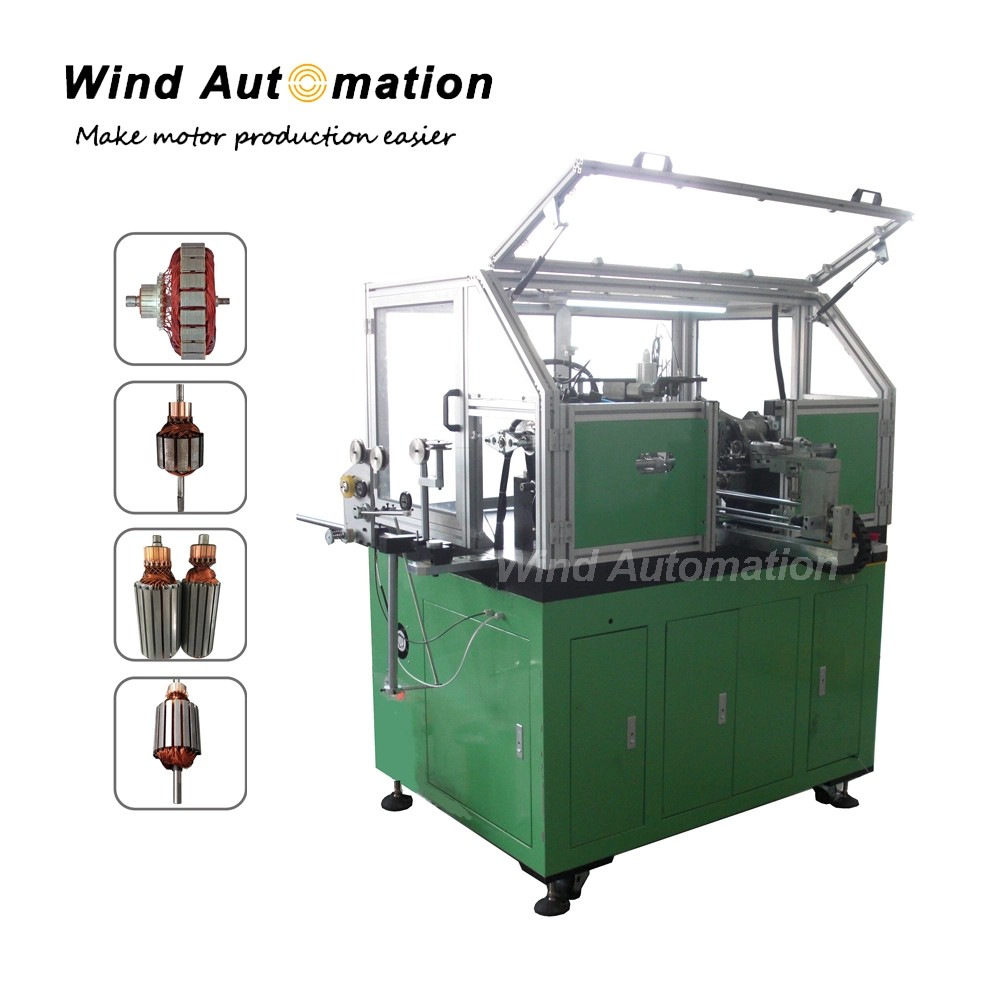

This rotor winding machine adapts double flyers structure. Servo motor drive the two flyers rotation, while indexing servo motor make sure the precise indexing.

(1) Application
Suitable for
mixer,vacuum cleaners, hammers,power tool.

(2) Specification

Power supplyAC380V±10%  50/60HZ
Air resource4~6kg/cm2
Weightabout 1250kg
Dimension2000mm×1000mm×1800mm
Total power4KW
Armature OD20~85 mm
Commutator OD8~40mm
Shaft OD3~15 mm
Shaft lengthMax 250mm
Wire diameter0.16~1.2 mm
Slot numberEven number
Turn No.0~9999
Stack length10~70 mm
Winding speed0~2500rpm
Winding motor power1.5KWX2
Angle detecting speed0~3000rpm
Angle detecting motor power0.75KWX1


(3)Feature
For hook type commutator
High quality level of winding

Manual loading and unloading
For medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
All winding parameter programmed on touch screen


(4)Machine configuration
Mitsubishi PLC
Mitsubishi or Panasonic servo motor control system
5.7'' colorful touch screen system
SMC Cylinder
