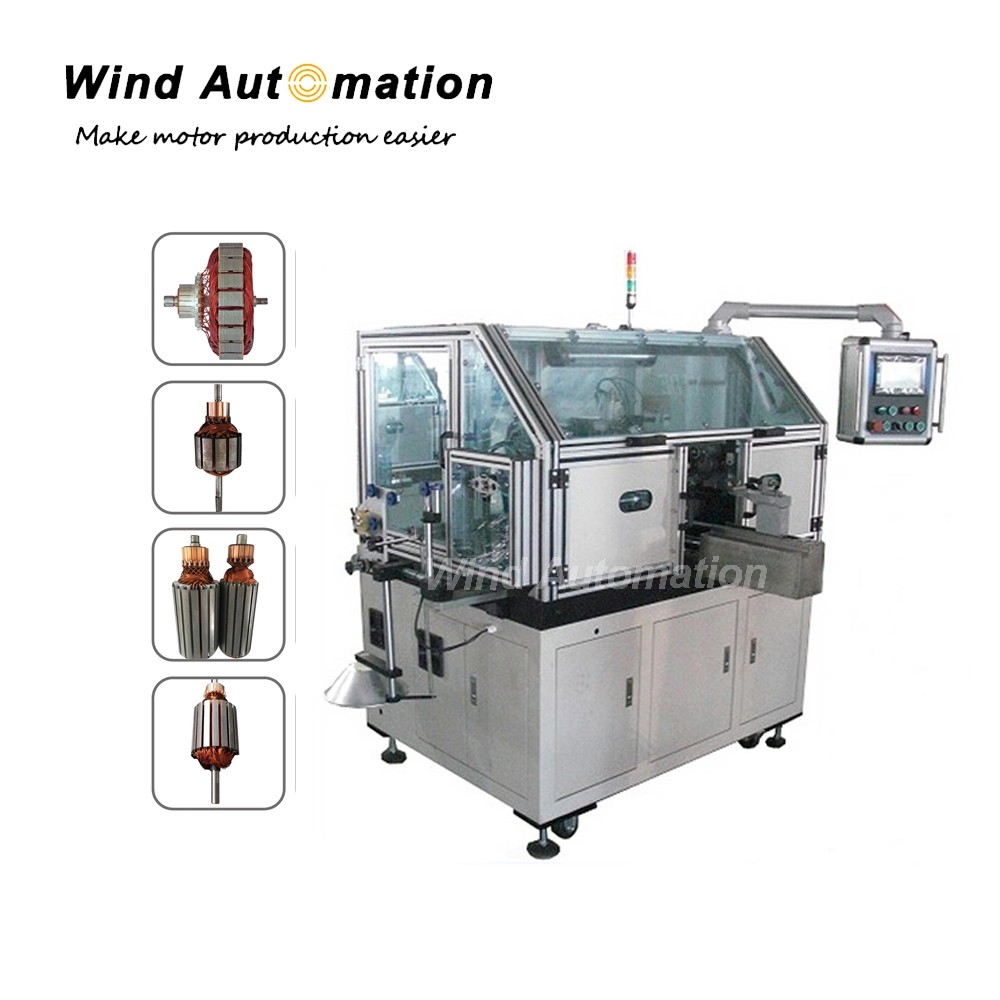

Juicer Mixer Motor Armature Automatic Winding Machine

Juicer Mixer Motor Armature Automatic Winding Machine

This series automatic armature winding machine is developed in 2008. It adopts world class technology and applies the servo motor as the driving force of winding and indexing. Furthermore, it adopts touch screen to make it more convenient to set the parameter. So working efficiency is higher than before.

Machine Operation
1)Put the armature on the tooling
2)Then press the start button.
3)Machine will wind the armature automatically
4)Unload wound armature

Specification

Power supply	AC 380V±10% 50/60HZ
Air resource	5~7kg/cm2
Weight	about 1180kg
Dimension	2560mm×1300mm×1800mm
Armature OD	Φ20~Φ60mm
Commutator OD	Φ18~Φ40mm
Wire diameter	Φ0.2~Φ0.6mm
Slot number	Even number
Turn No.	0~99
Stack length	10~60mm
Winding speed	0~2000rpm
Indexing speed	0~2000rpm

Feature
For even slot armature
For hook type commutator
With medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
Manual loading and unloading
Three winding method optional
Can work as a stand-alone machine or integrated into a production line
All winding parameter programmed on touch screen

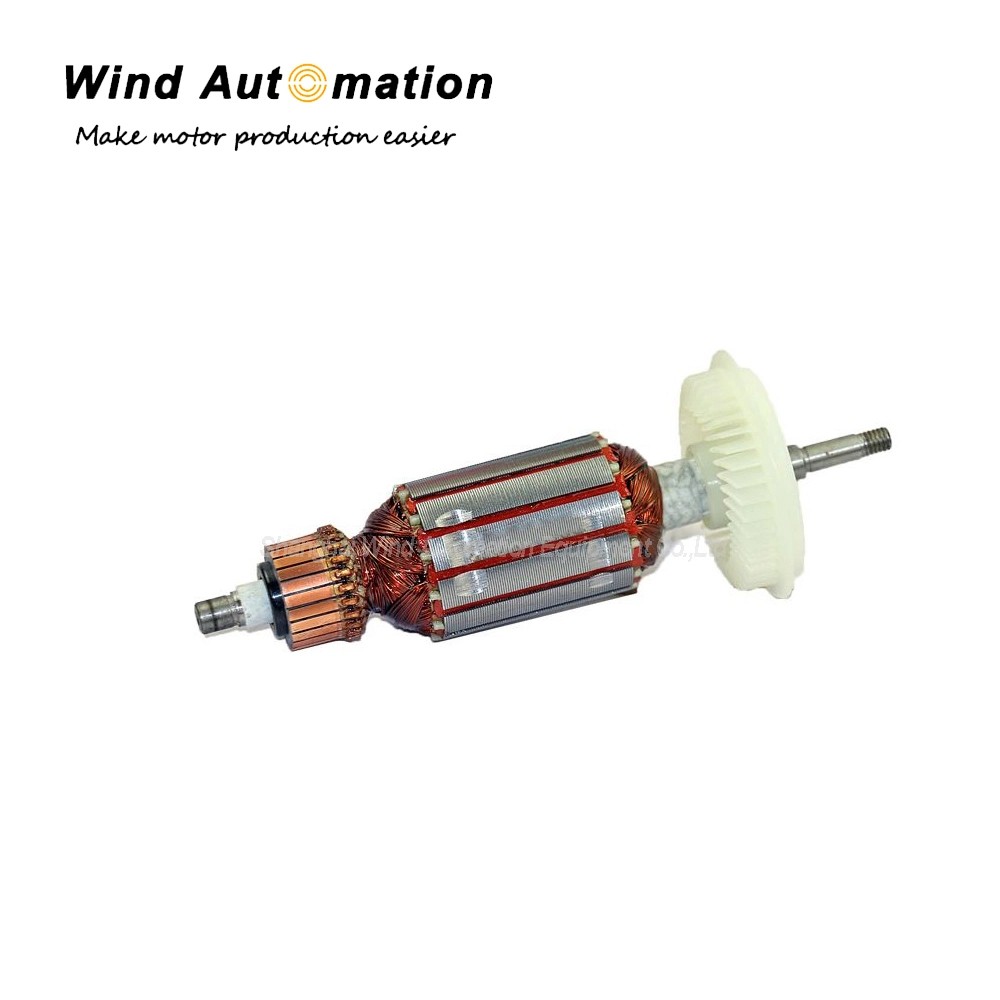

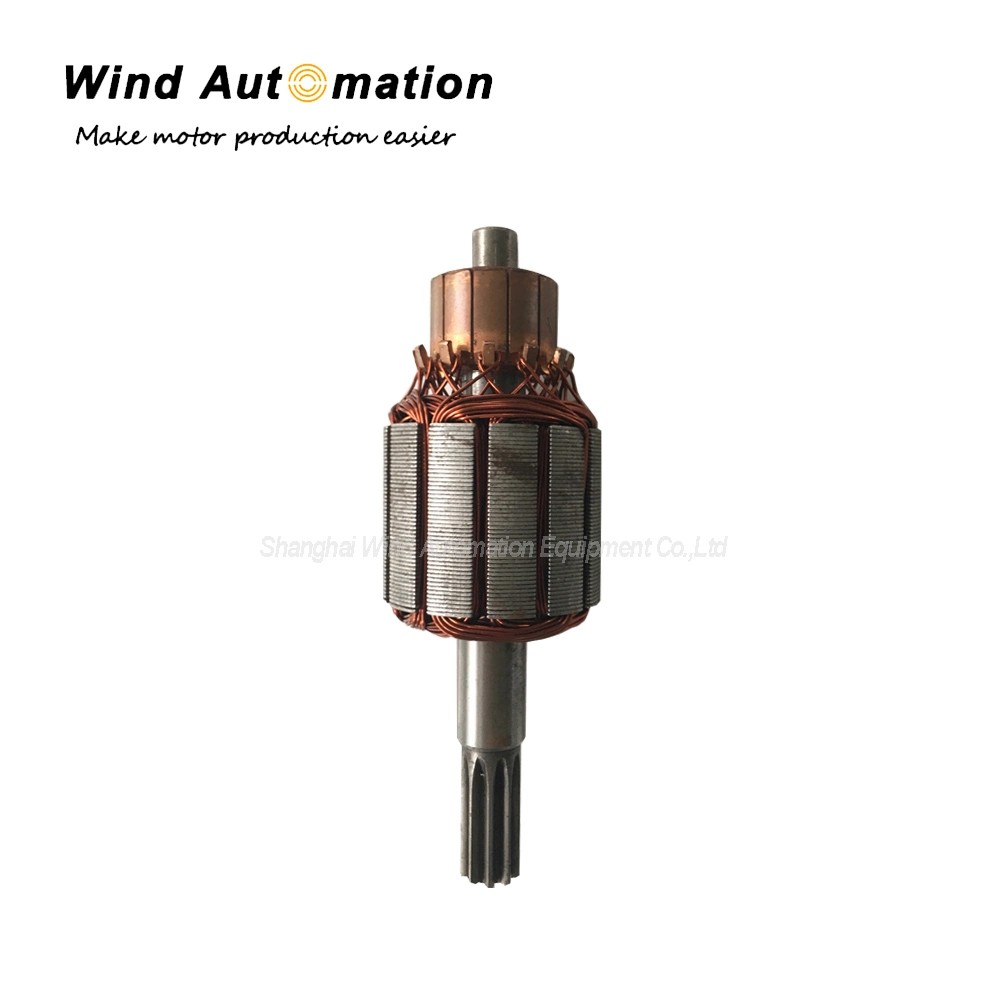

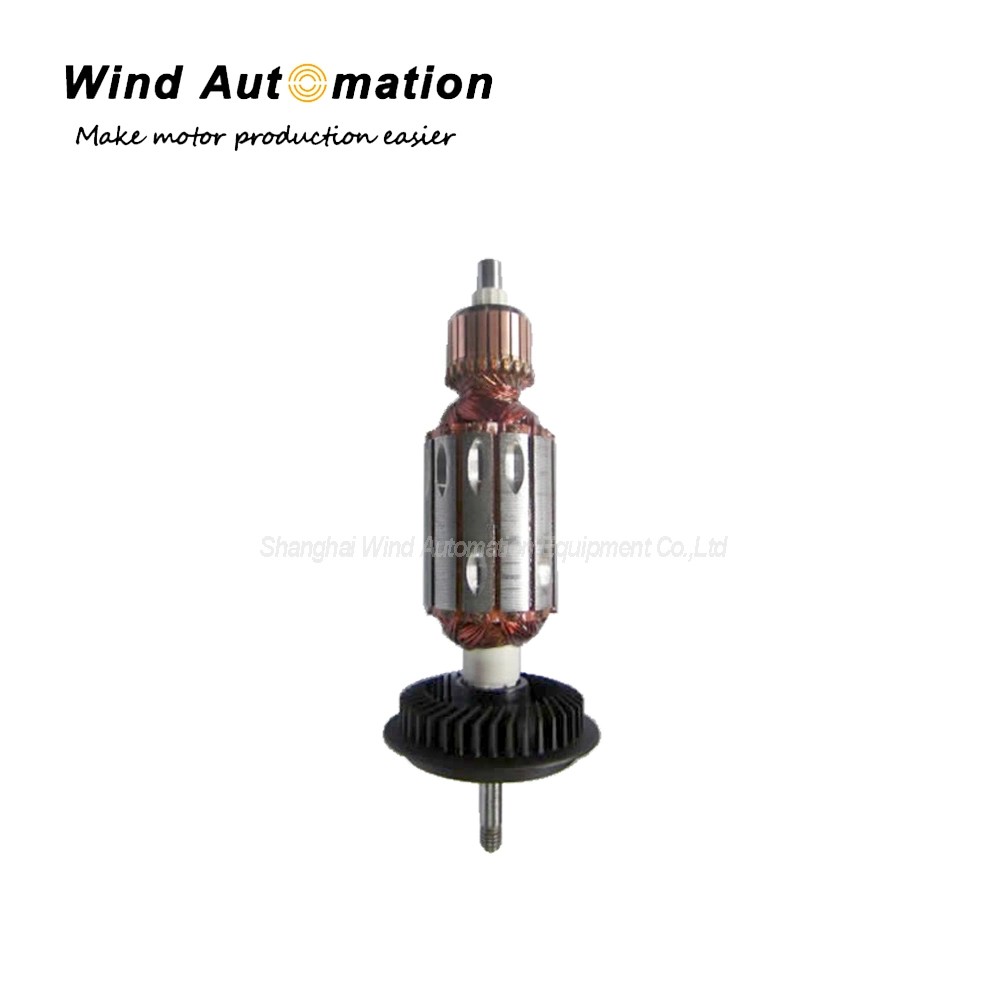

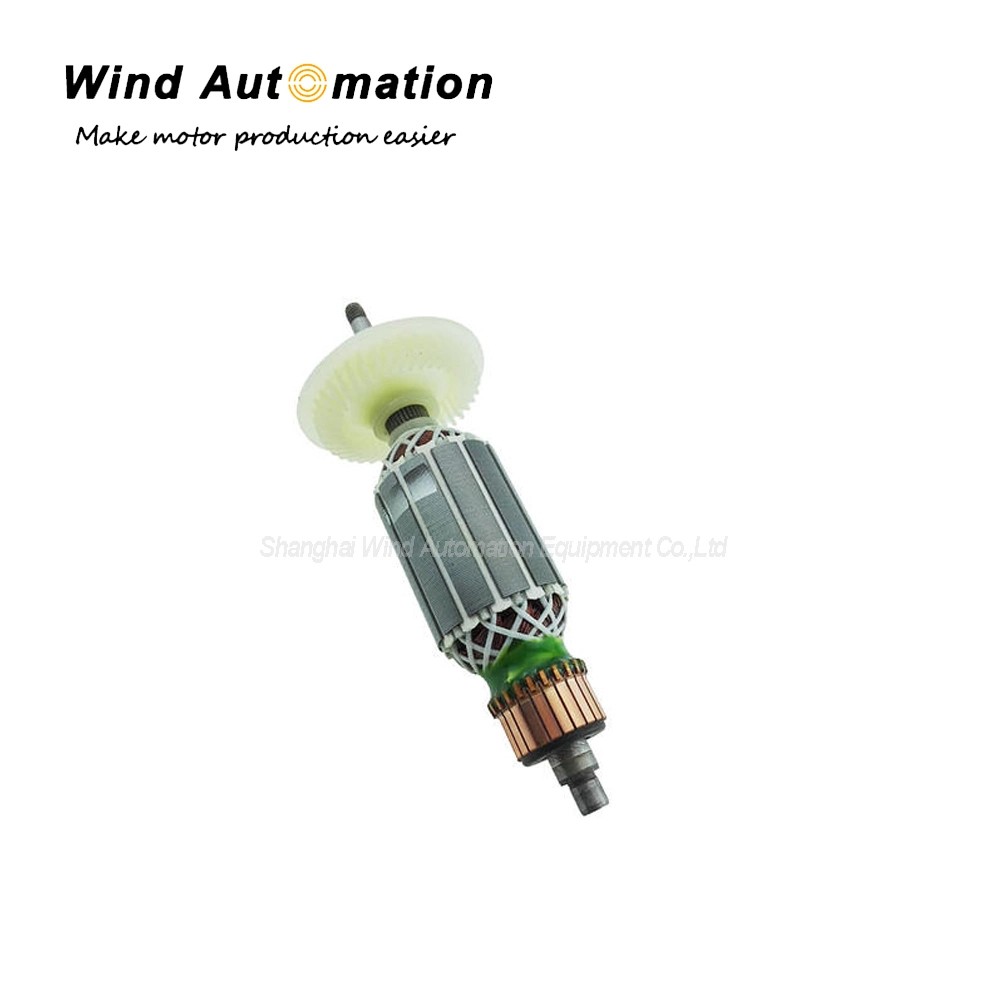

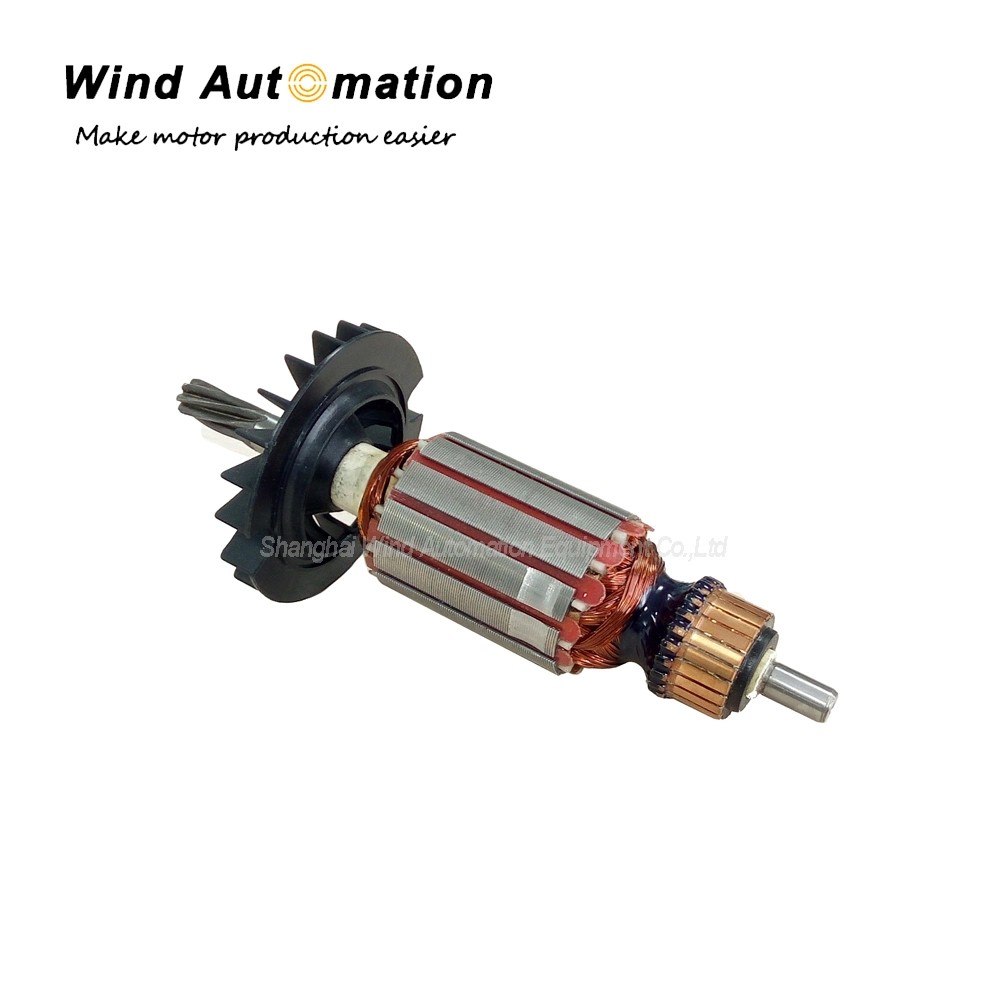

Application
It is suitable for hook type home appliance, car and power tool motor armature.
