Product Description

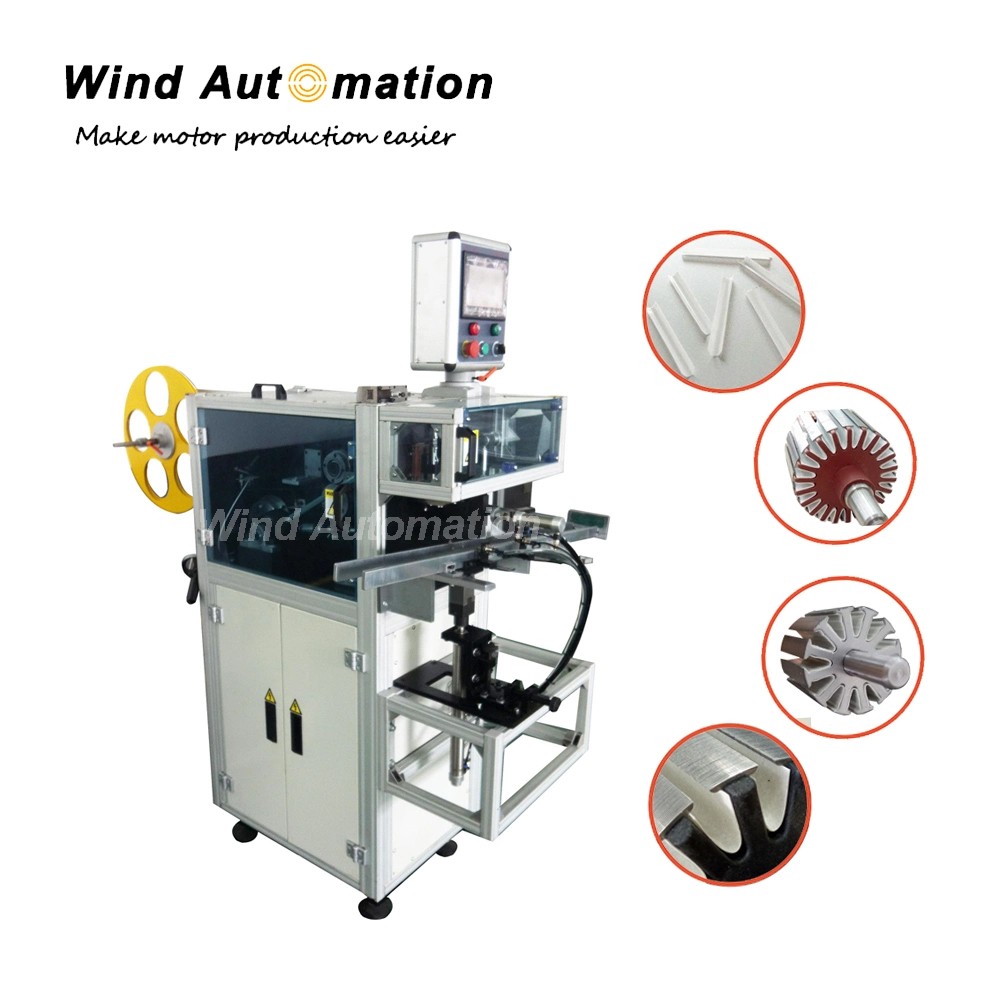

Paper Forming and Inserting Machine for Household Appliances

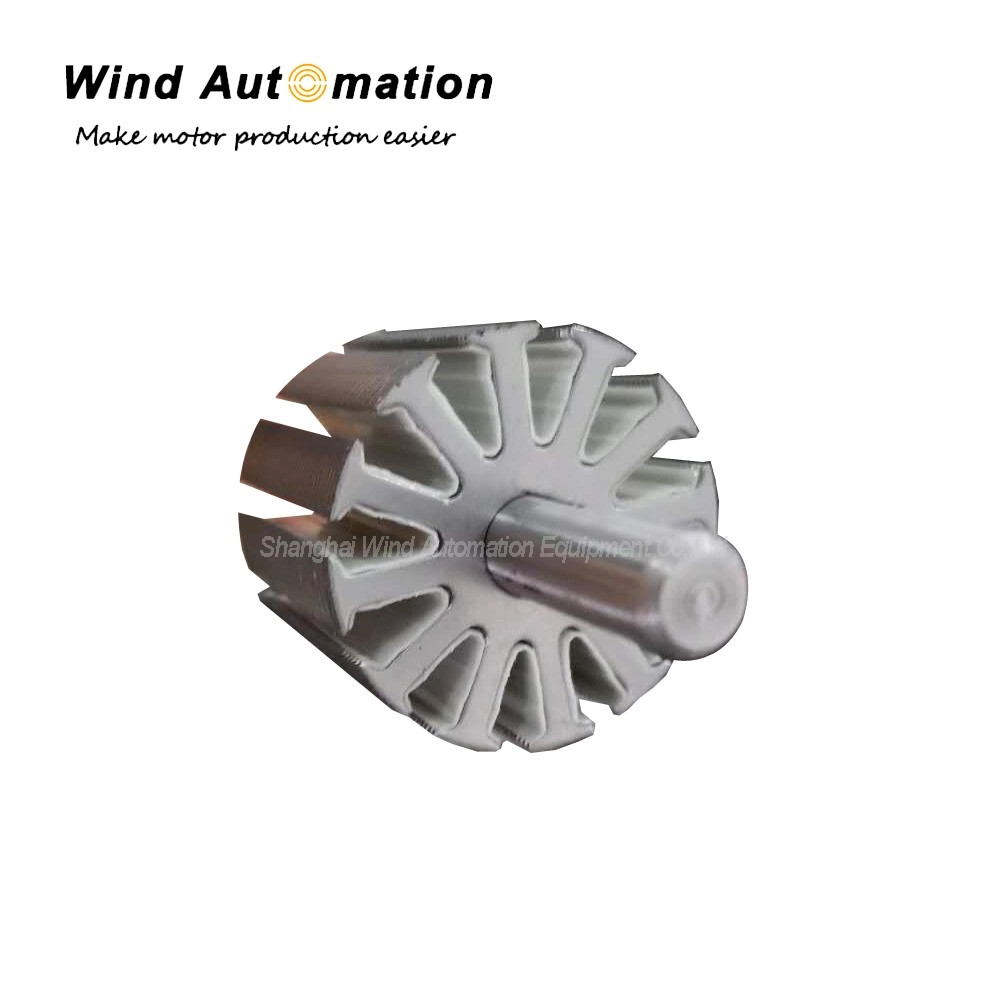

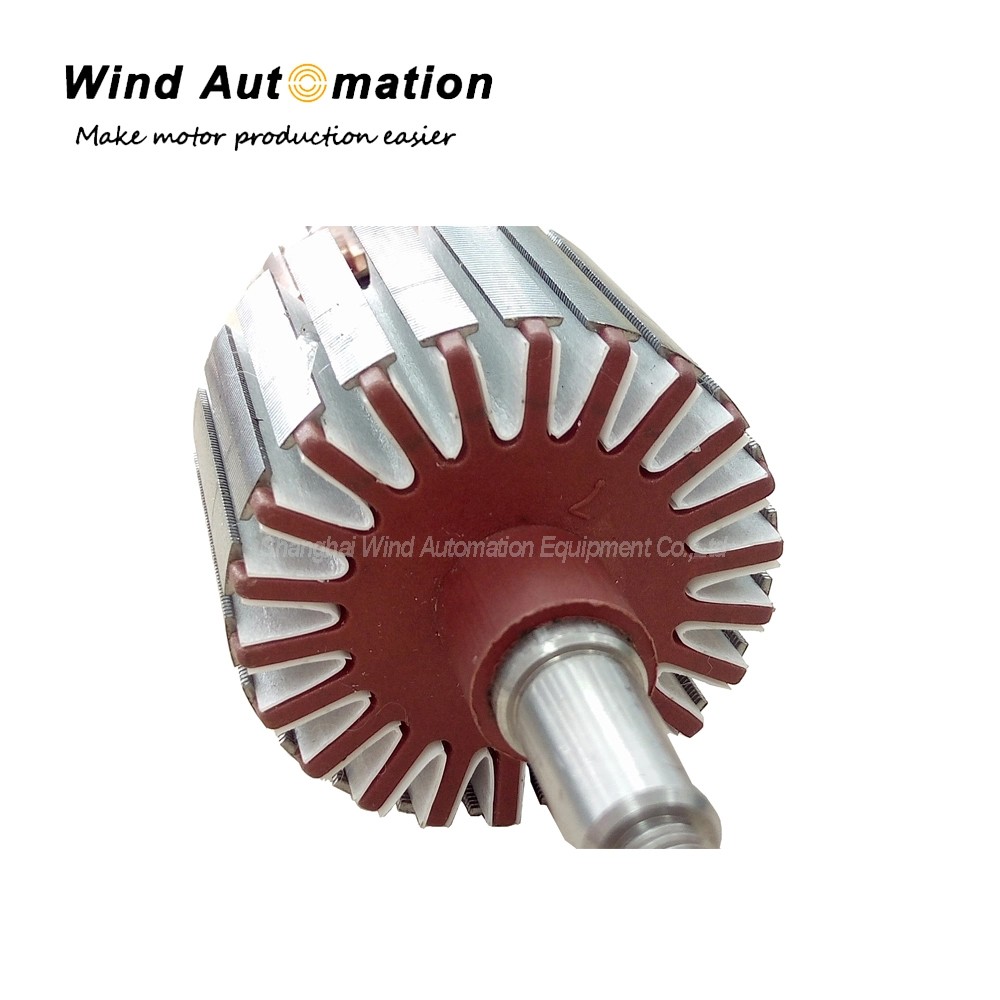

This machine is capable of inserting insulation paper into armature slot before armature winding process.

(1)Specification

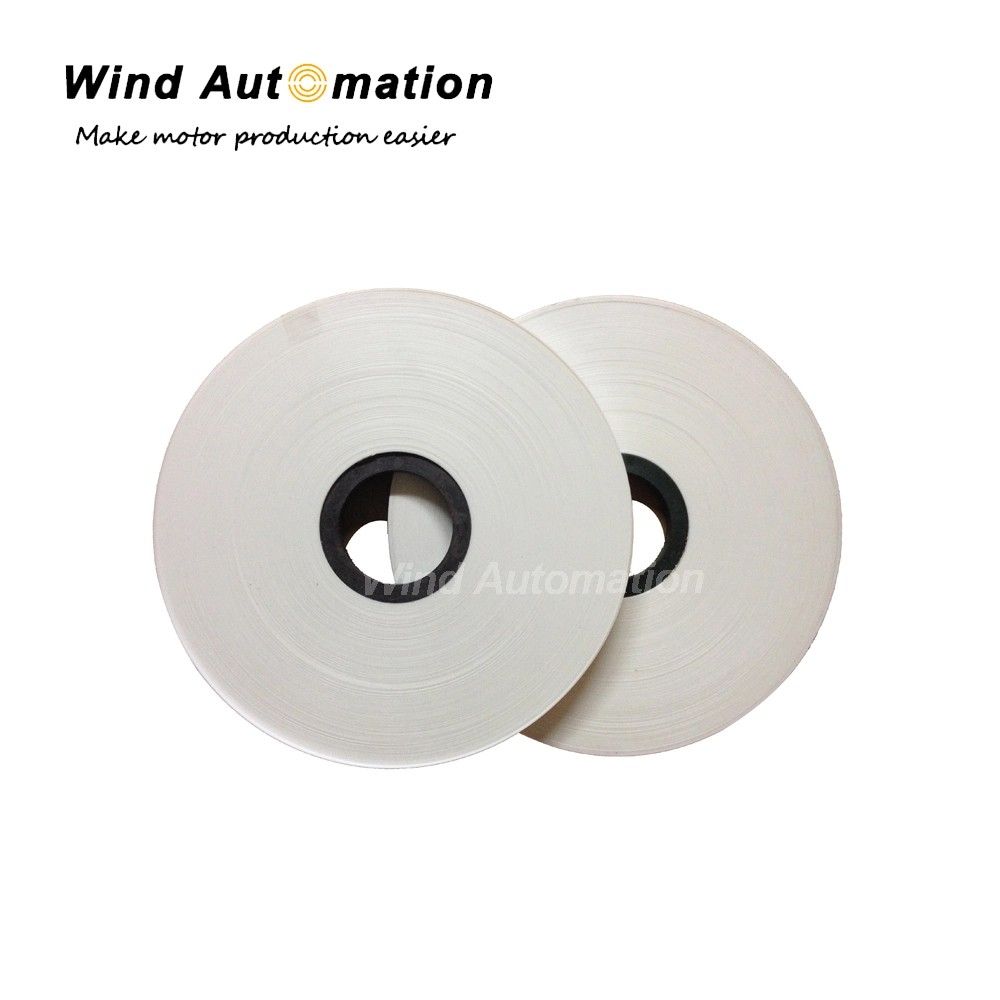

Length of insulation paper	15-60mm adjustable
Thickness of insulation paper	0.1 mm ~ 0.5 mm
Insulation paper shape	V or edge-folding V
Armature OD	20-55mm
Length of lamination	Max 60mm
Shaft length	32~250mm
Shaft OD	6~20mm
Slot number	8-24 slots
Commutator OD	16~50mm
Speed regulation range	0~60Hz
Air pressure	4~6kg/cm2
Voltage	AC220V±10%, 50/60Hz
Machine power	1.0KW
Weight	about 400Kg
Dimension	910 mm x 880 mm x 1300mm

(2)Feature
PLC control
Adjustable for different rotor lengths
Quick and easy readjustment to other armature types
Precise Insulation paper length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precise paper formation and placement

(3) Application
This is suitable for home appliance, mixer, meat grinder, air conditioner, refrigerator, vacuum cleaner, washing machine, juicer, mixer, various pump, power tool.
