Slot Paper Insulation Paper Insertion Machine

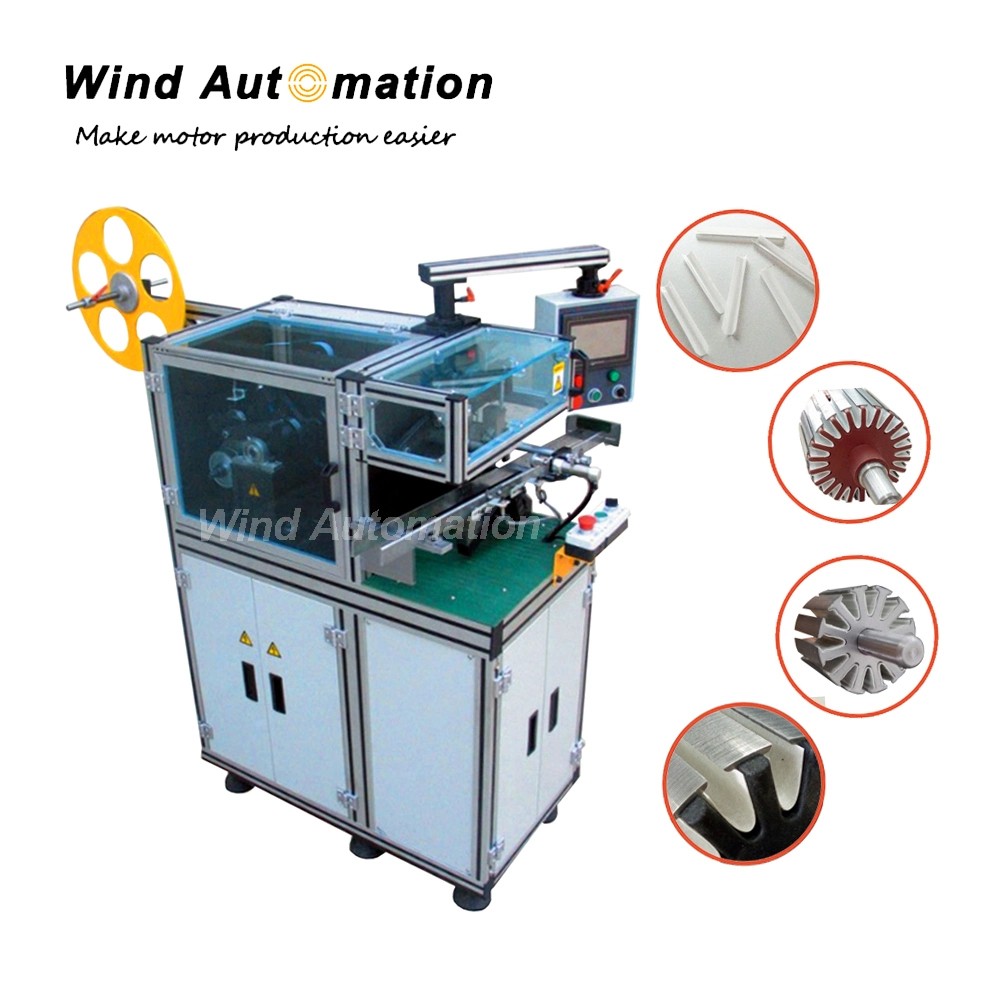

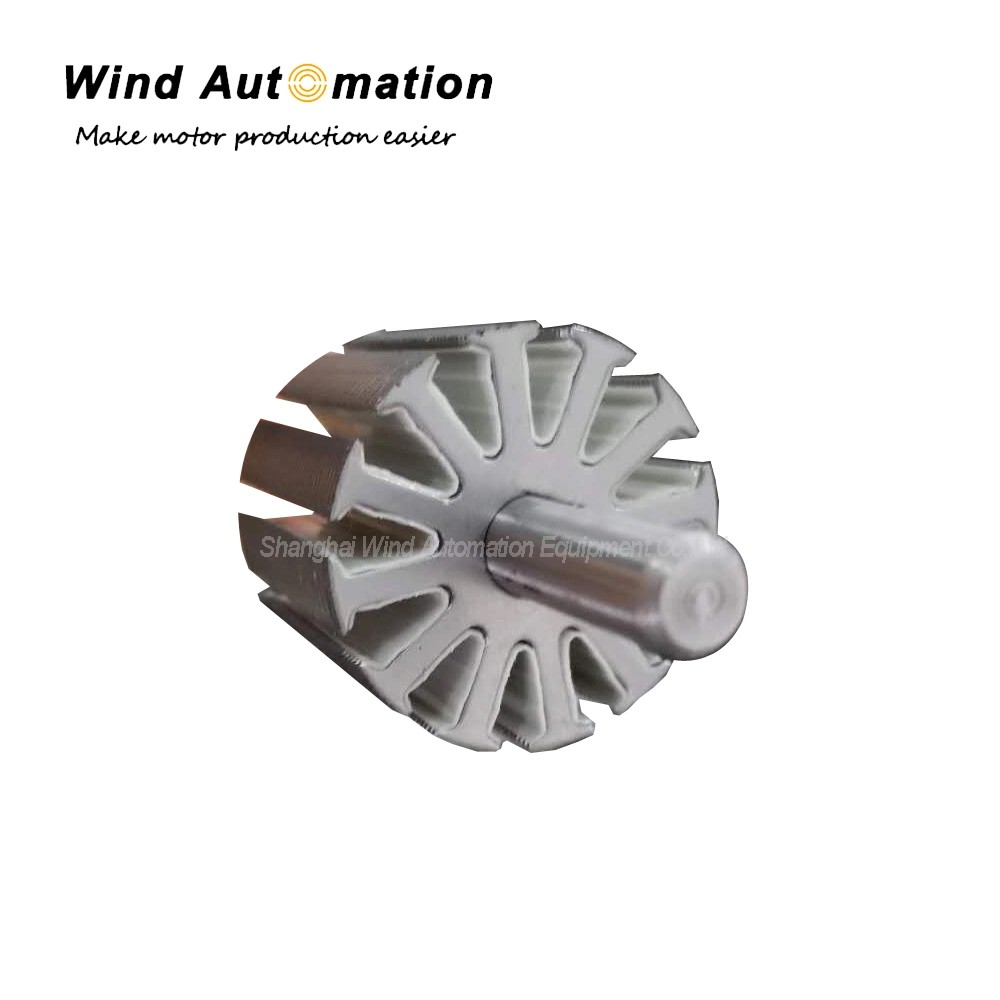

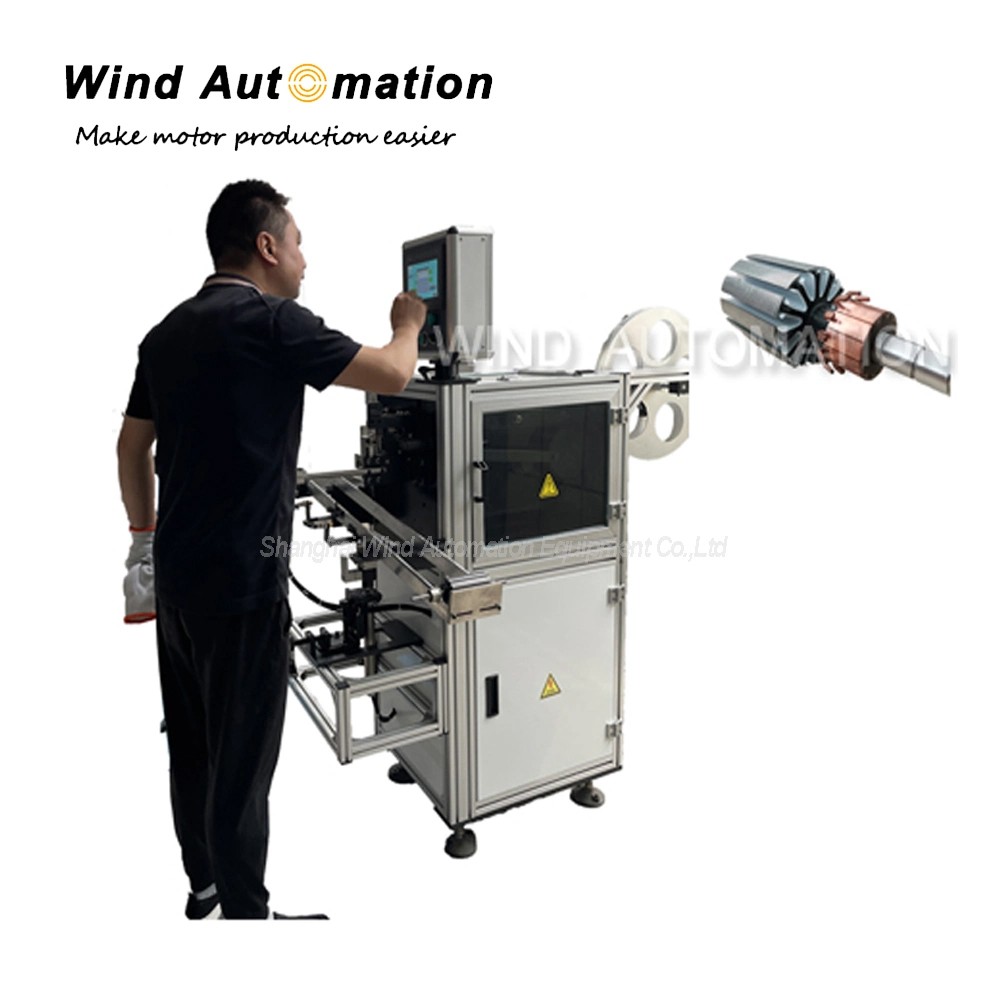

This kind of machine is used to do slot insulation treatment for armature. All the movement is controlled by PLC, while all the parameter are programmed on touch screen.

(1)Specification
Length of insulation paper: 15-60mm adjustable
Thickness of insulation paper: 0.1 mm ~ 0.5 mm
Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.

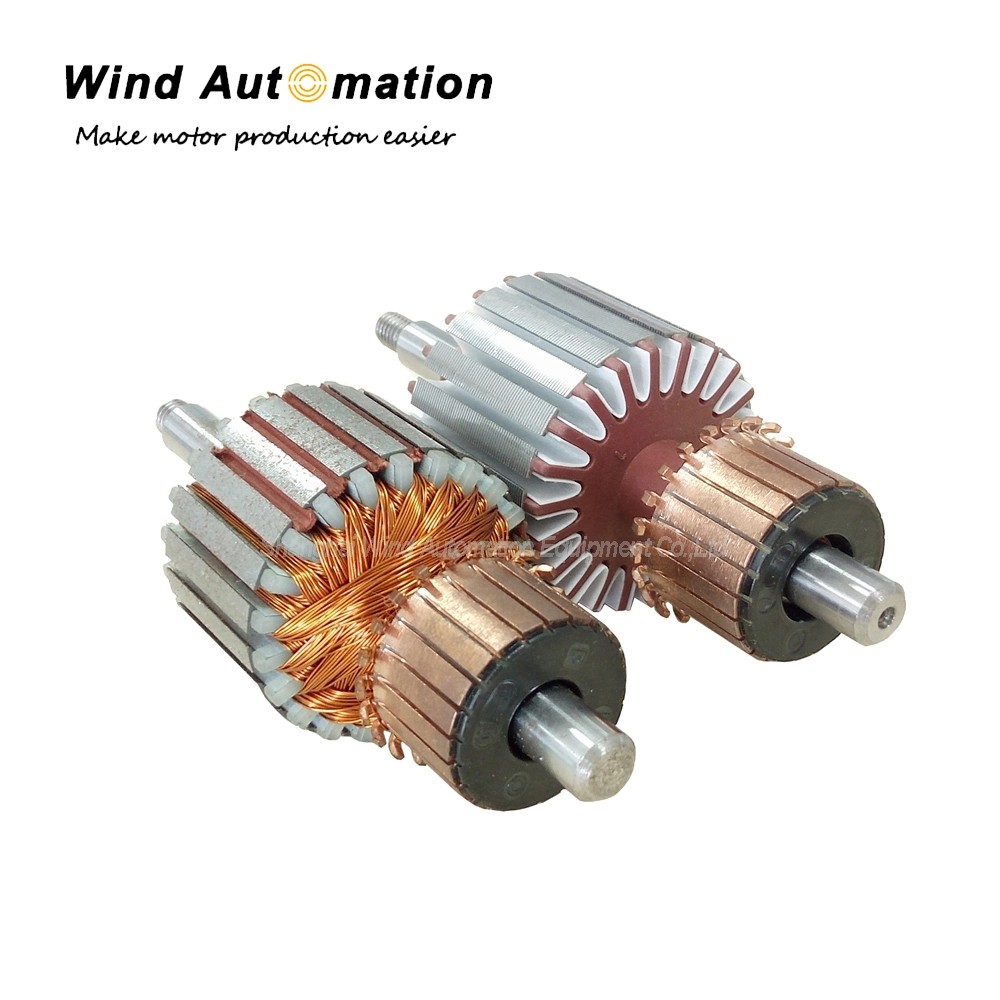

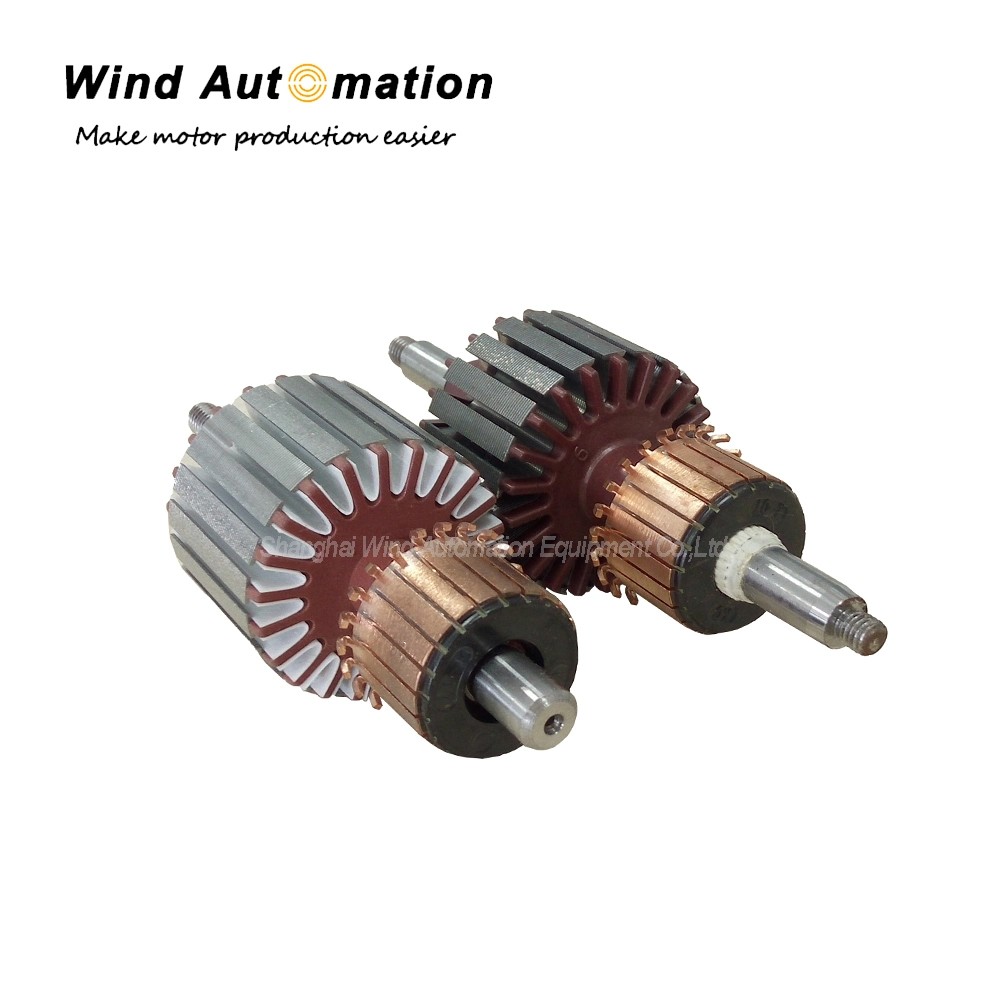

Insulation paper shape: V or edge-folding V
Armature O.D: 20-55mm
Length of lamination: Max 60mm
Shaft length: 32~250mm
Shaft O.D: 6~20mm
Slot number: 8-24 slots
Commutator O.D: 16~50mm
Speed regulation range: 0~60Hz
Efficiency: 0.5~0.8sec/per slot
Air source: air pressure: 4~6kg/cm2
Machine power: 1.0KW
Voltage: AC220V±10%, 50/60Hz
Weight: about 400Kg
Dimension : L910 mm x W880 mm x H1300mm3

(2)Feature
PLC control
Adjustable for different rotor lengths
Quick and easy readjustment to other armature types
Precise Insulation paper length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precise paper formation and placement

(3) Application
This is suitable for home appliance, mixer, meat grinder, air conditioner, refrigerator, vacuum cleaner, washing machine, juicer, mixer, various pump, power tool.
