Double-Flyer-Winding-Machine-for-Armature-Slot-Coils

Basic Info.

Model NO.

WIND-1-TD

Automatic

Automatic

Transport Package

Wooden Case

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

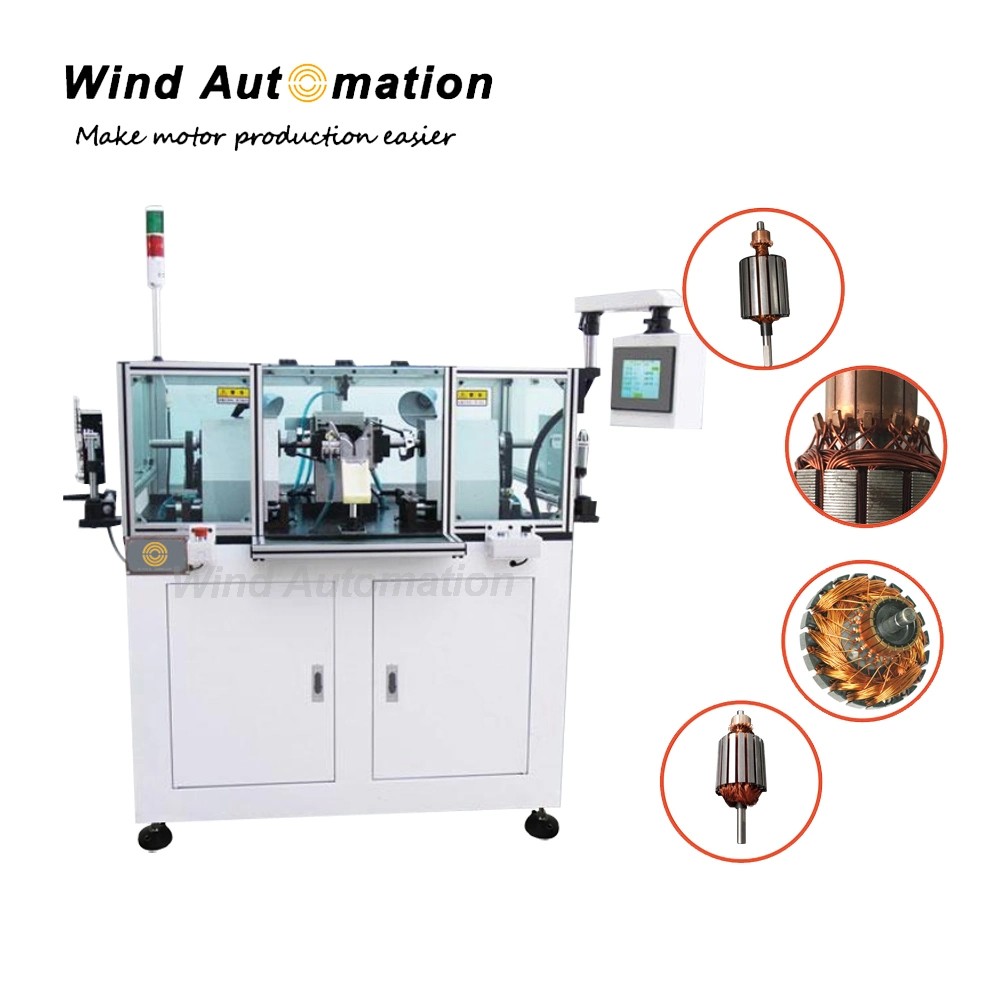

Double Flyer Winding Machine For Armature Slot Coils

This machine can be connected with a production line to realize online automatic production. It is suitable for high-speed winding of medium and big wire diameter rotors.

(1) Application

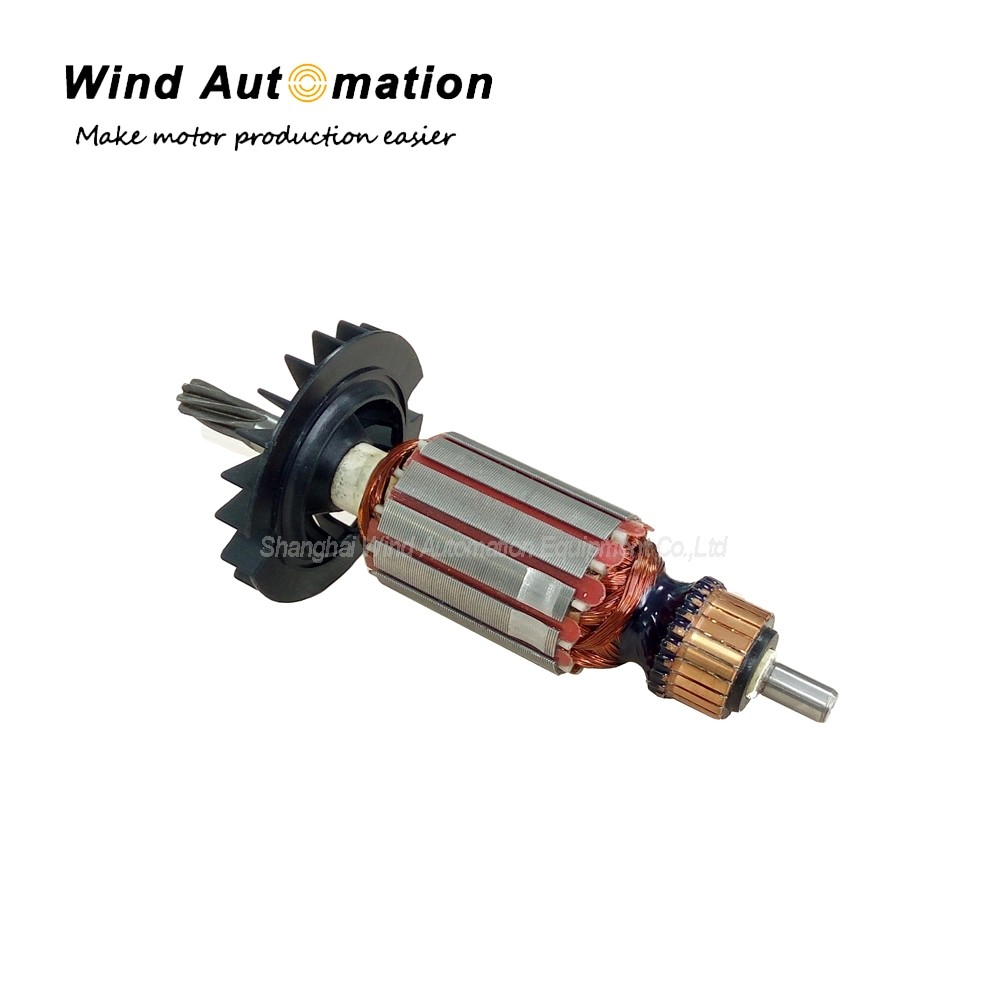

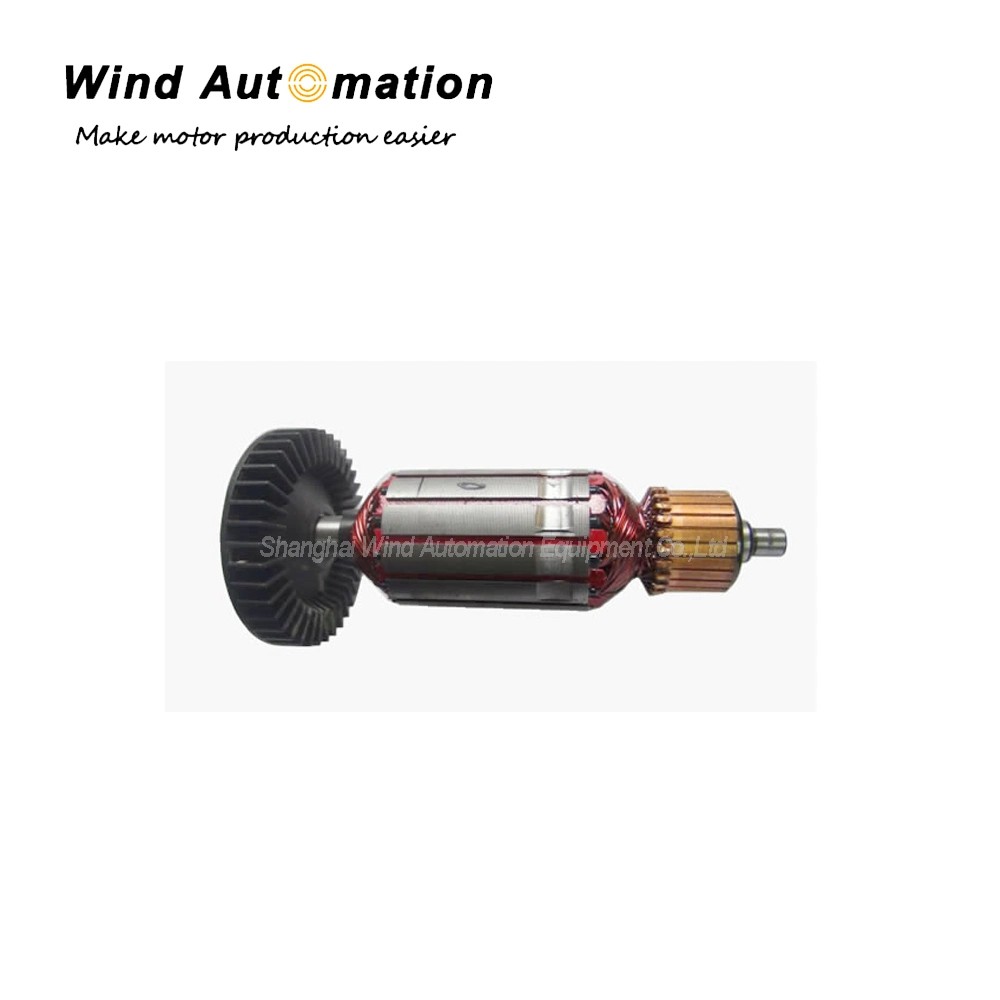

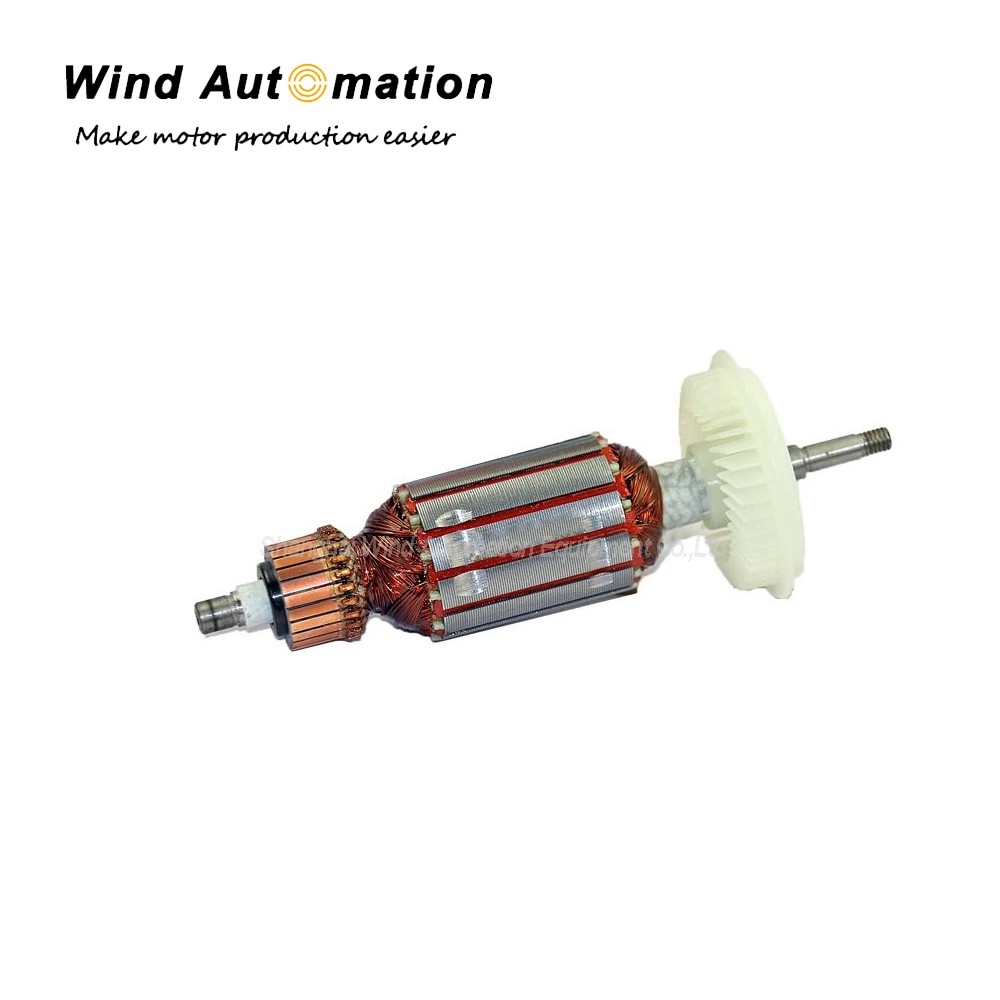

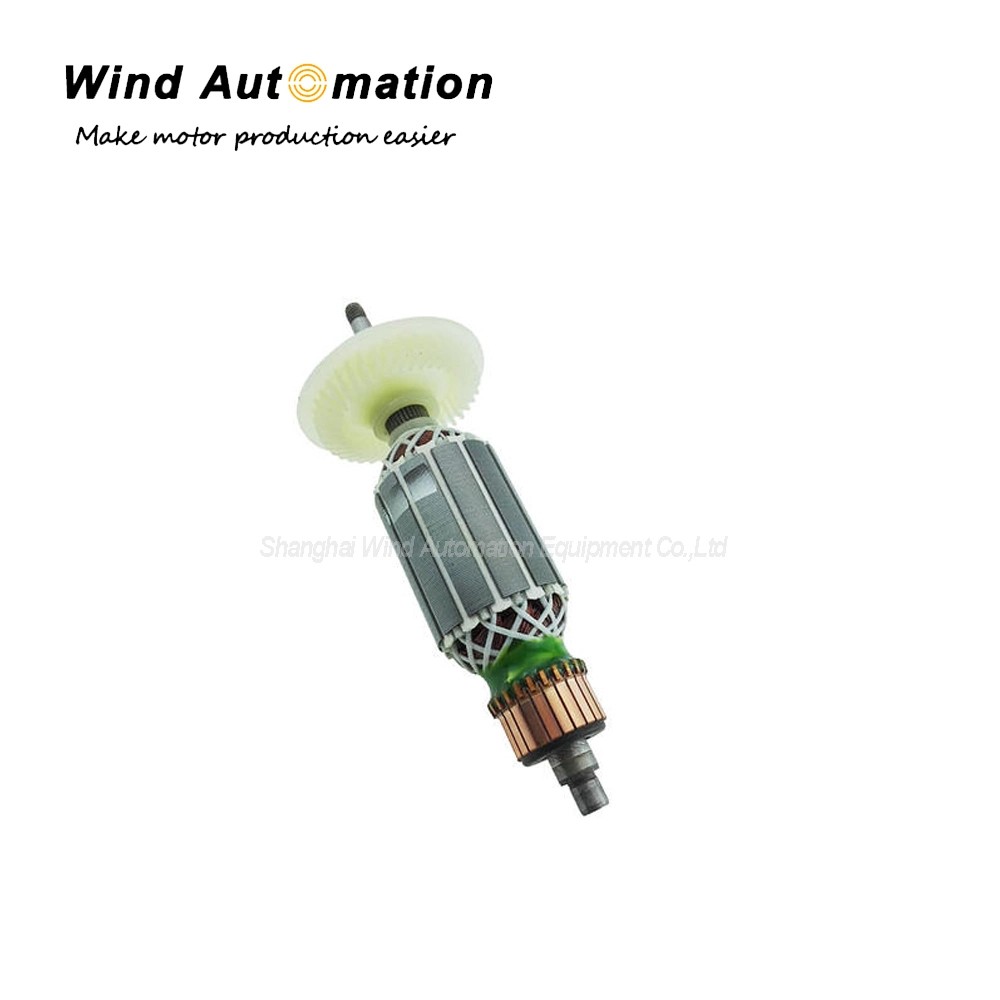

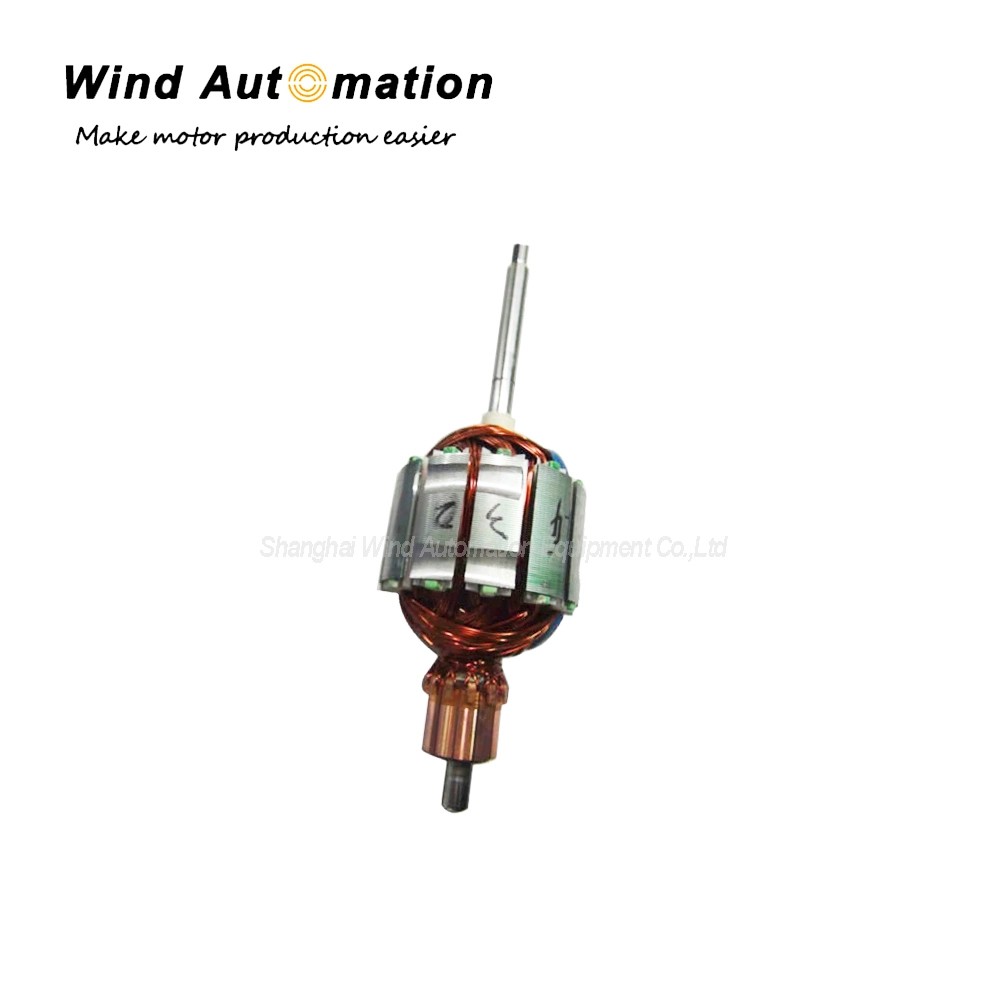

This machine is widely used in the winding of DC and series excited motor rotors.

(2) Specification

(3)Machine configuration
Mitsubishi PLC
Delta servo control system
Touch screen
Airtac pneumatic system and air source treatment
Fully automatic feeding device (can be connected with production line)
Hysteresis tension control unit
HIWIN linear guide
