Product Description

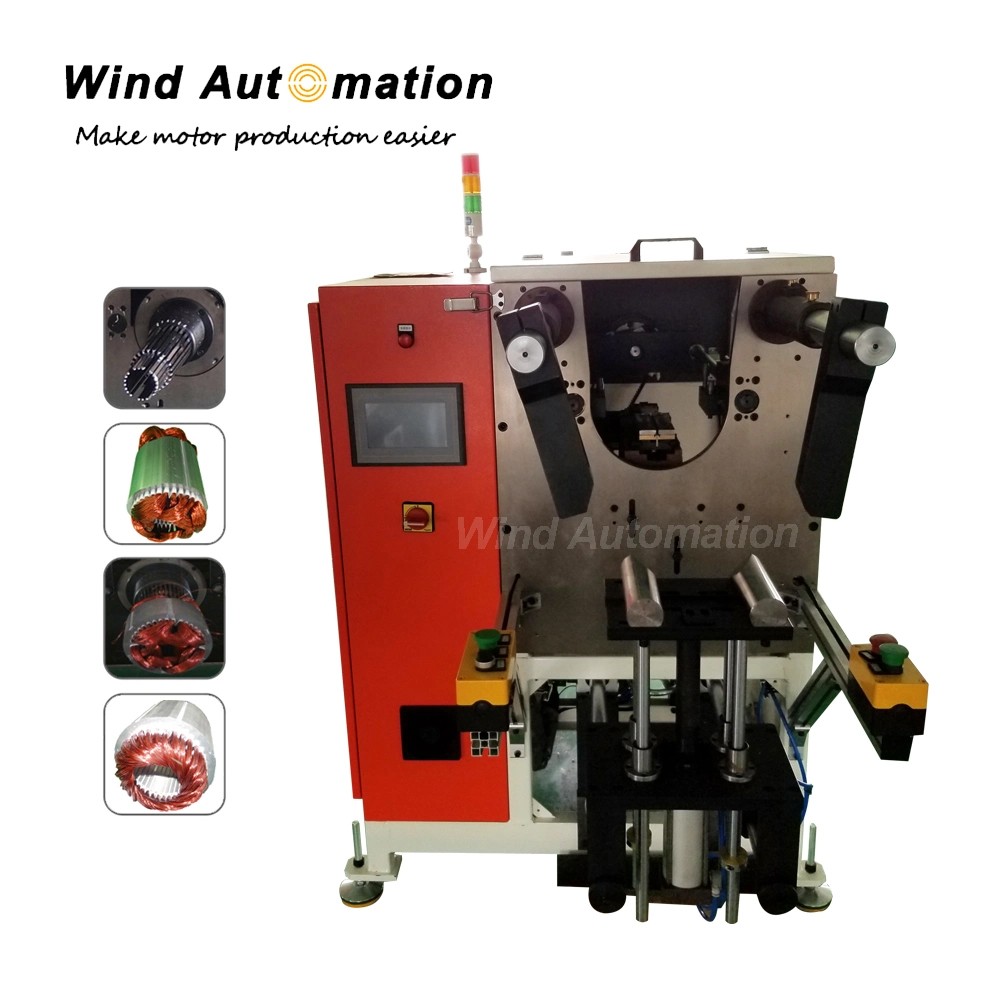

Horizontal Type Stator Coil Winding Inserting Machine

Horizontal Type Stator Coil Winding Inserting Machine

Wind Automation offers customized service for stator coil inserting machine. Besides horizontal type, we also supply standard type, semi-auto type, auto type.

(1) Feature
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required


(2) Specification

Stator ID60~150mm
Stator ODMax 210mm
Stack lengthMax 190mm
Tooling strokeMax 90mm
Suitable wire materialCopper/Aluminium wire
Slot number24~48slots
Power supply380V 50/60HZ
Weight1050KG
Dimension2380x1180x1700mm


(3) Application
This type of machine is suitable for large and medium-sized AC motor, induction motor stators.


Horizontal Type Stator Coil Winding Inserting Machine
Horizontal Type Stator Coil Winding Inserting Machine
Horizontal Type Stator Coil Winding Inserting Machine


Horizontal Type Stator Coil Winding Inserting Machine
