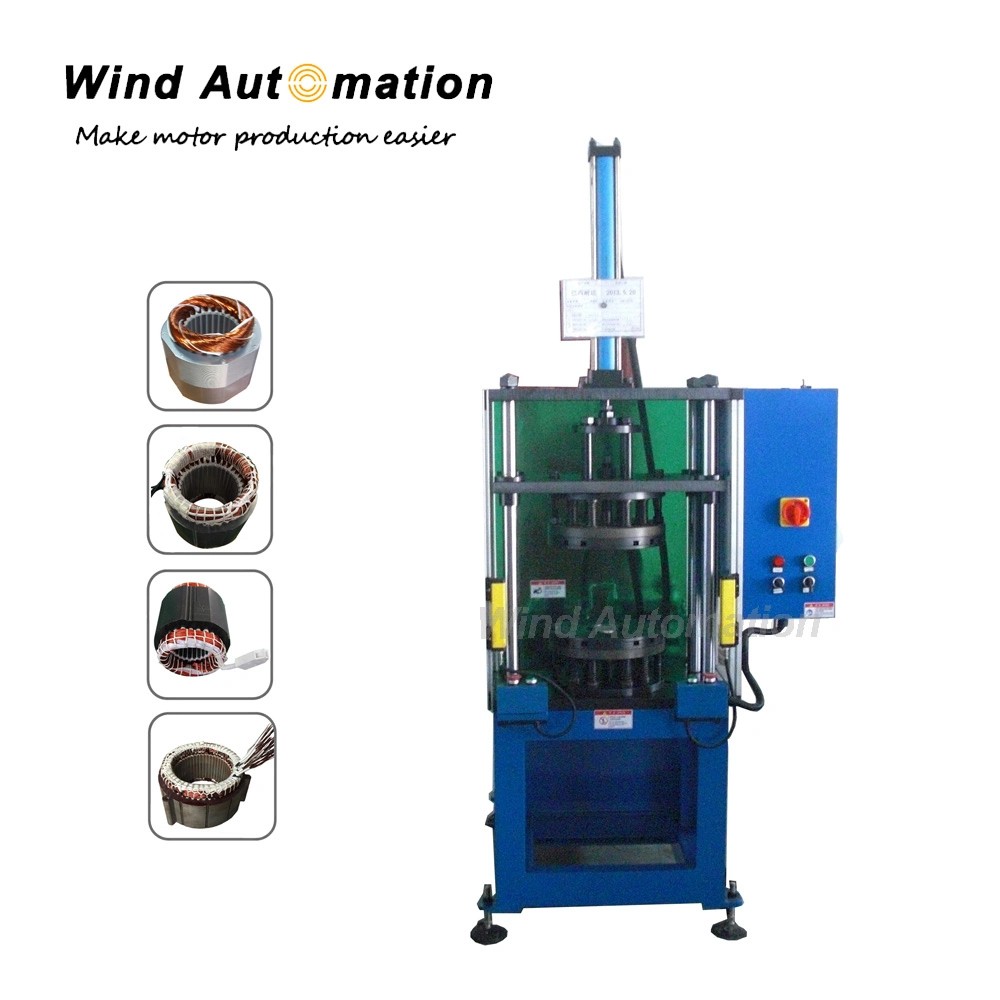

Air Conditioner Motor Stator Winding Shaping Coil Forming Machine
This machine is used to do coil forming after lacing process. The head coil forming will be processed after the forming of internal and external of coil completed.
(1) Feature
High quality level of the forming process
Manual loading and unloading
Hydraulic driven, PLC control
Can be customized accordingly
Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required
(2) Specification
| Item | Data |
| Size | (L)950×(W)1550×(H)2400mm |
| Tooling included weight | Around 800KG |
| Power supply | 380V/50Hz three phase four wire power |
| Working pitch time | ≤13S/PC |
| ID | Φ30~Φ120mm |
| OD | Φ50~Φ160mm |
| Stack height | 15~300mm |
(3) Application
This type of machine is suitable for AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor, generator motor and pump motor.
