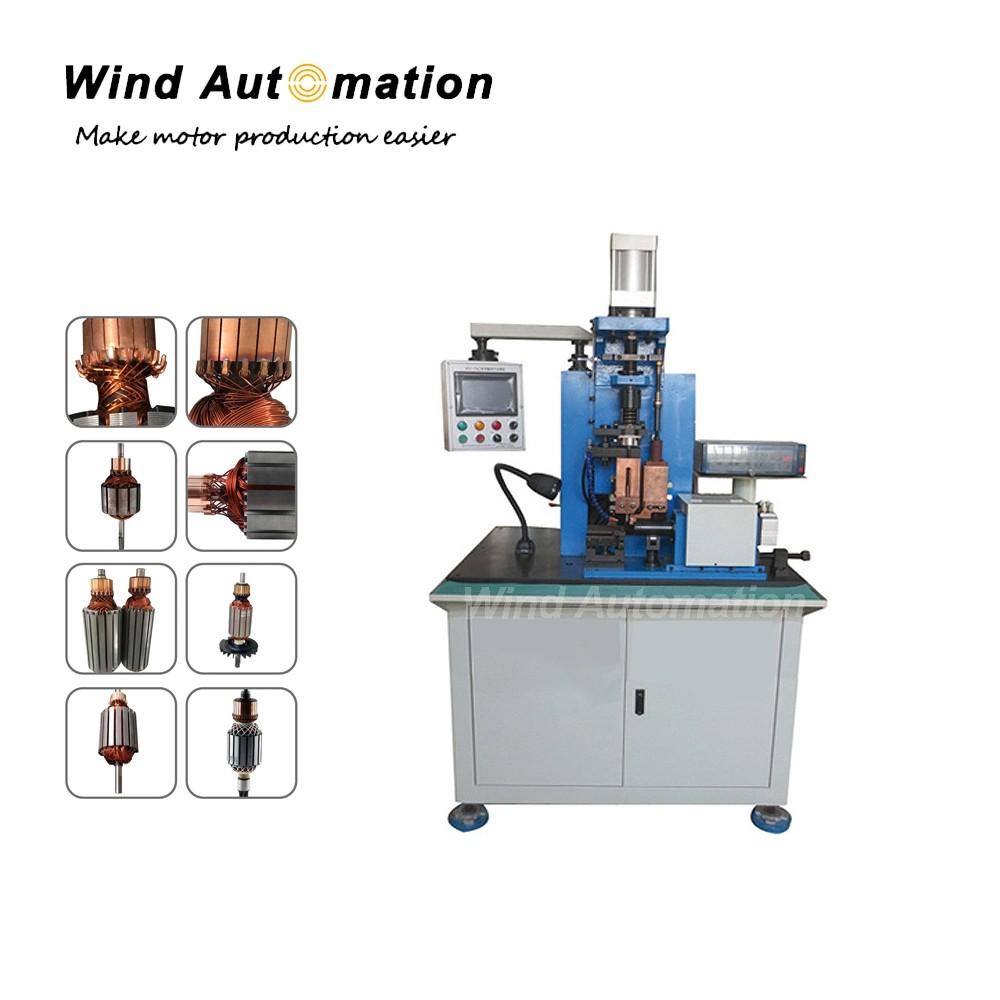

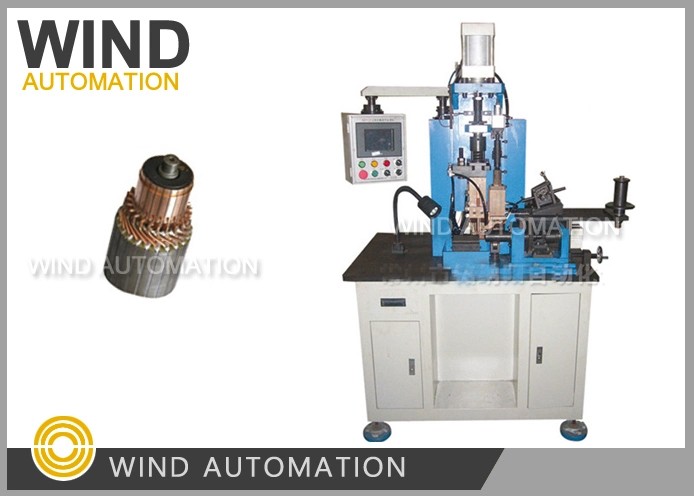

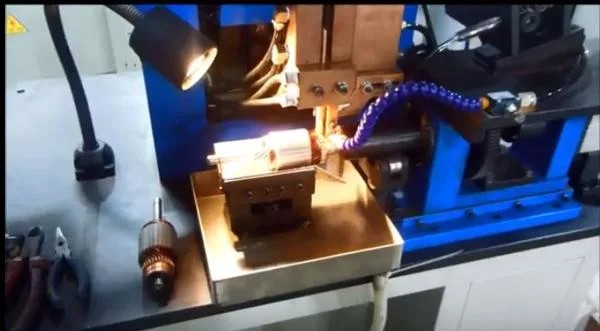

Starter Armature Commutator Brazing Machine

This commutator brazing machine can do commutator welding as well as commutator brazing, no need to change tooling but modify program on touch screen. Indexing is controlled by servo motor, while feeding by stepping motor. Machine can be customized accordingly.


(1)  Features
Dual-use for both welding and brazing
Feeding length adjustable
Servo controlled indexing
High quality level of the welding and brazing process
Quick and easy readjustment for other types of armatures
Can be customized accordingly


(2) Specification

(3)Application
This machine is suitable for starter rotors, automotive car motor.

(4)Machine configuration
Siemens PLC
Weinview touch screen
Mitsubishi servo indexing motor
AIRTAC cylinder and magnetic switch
Schneider electrical unit
Miyachi current controller
HIWIN Linear Guide



70KVA Brazing Armature Colector Spot Welding Hot Stacking Machine Welder

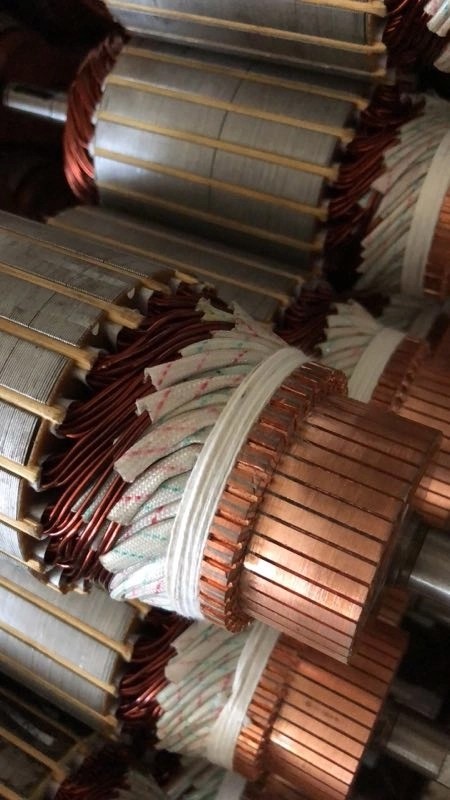

Commutator Wire brazing,

use material sliver or other metal material which have a lower melting point than copper wire.

Brazing is the welding way which use a metal material with a lower melting point than the workpiece as the

solder material. The workpiece and the brazing material are heated to a temperature higher than the

melting point of the solder and lower than the melting point of the workpiece. The workpiece is wetted with

the liquid solder and the gap is filled and the workpiece is filled. Inter-diffusion between atoms to achieve

the welding method.

 Competitive Advantages

1. The brazing heating temperature is low, the joint is smooth, the deformation is small

2. Brazing soldering can weld the same kind of metal, can also weld different materials,

    and there is no strict limit on the difference in thickness of the workpiece

3. Compared with welding, the base metal does not melt during brazing, only the solder melts

4. More pressure welding, no pressure on the weldment during brazing

Parameter

Power Supply : 380V±10% 50Hz

Rated capacity:70KW

Welding conductor time: 0.1~2s

Secondary no-load voltage: 3V-6V

Secondary short circuit operating current: 35KVA

Air source Pressure: 0.5~0.7Mpa

Wire: 1.0~3.0mm round wire

Cooling Method: External circular water cooling

Water pressure: 0.1~0.3Mpa

Armature OD:<90mm

Shaft OD: 6 to 25mm

Weight:1300KGS

Dimension: 1100mm*850mm*1700mm
