Riser-Type-Commutator-Armature-Winding-Machine

Basic Info.

Model NO.

WIND-2B-TD

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

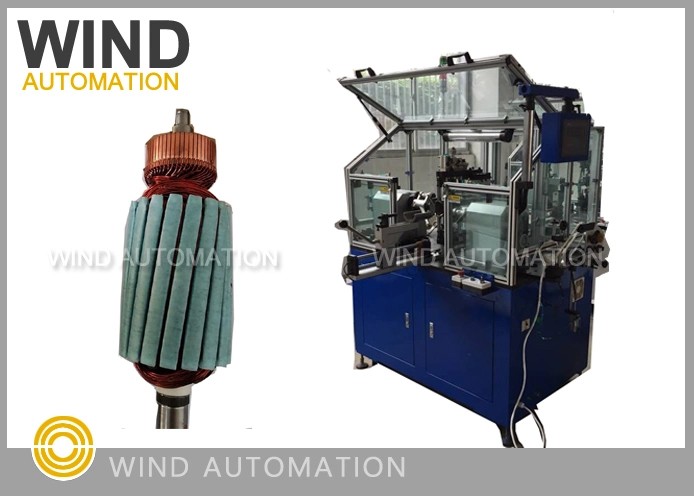

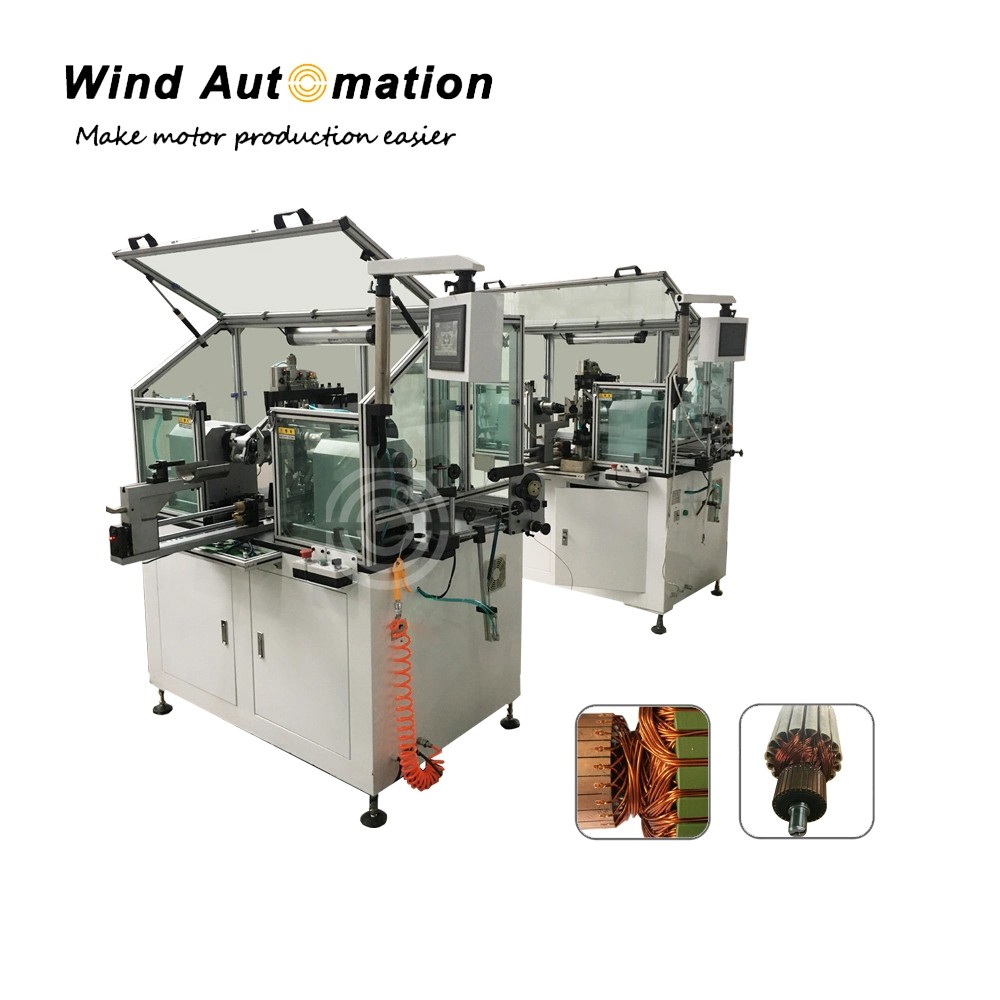

Riser Type Commutator Armature Winding Machine

This machine is suitable for slotted type armature with riser type commutator. Comparing with hook type armature, slotted type armature needs less copper wire. However, the winding process is much more difficult. This machine will do clamping, hooking ,winding, indexing automatically. The yield rate can reach 98%.


(1)Application

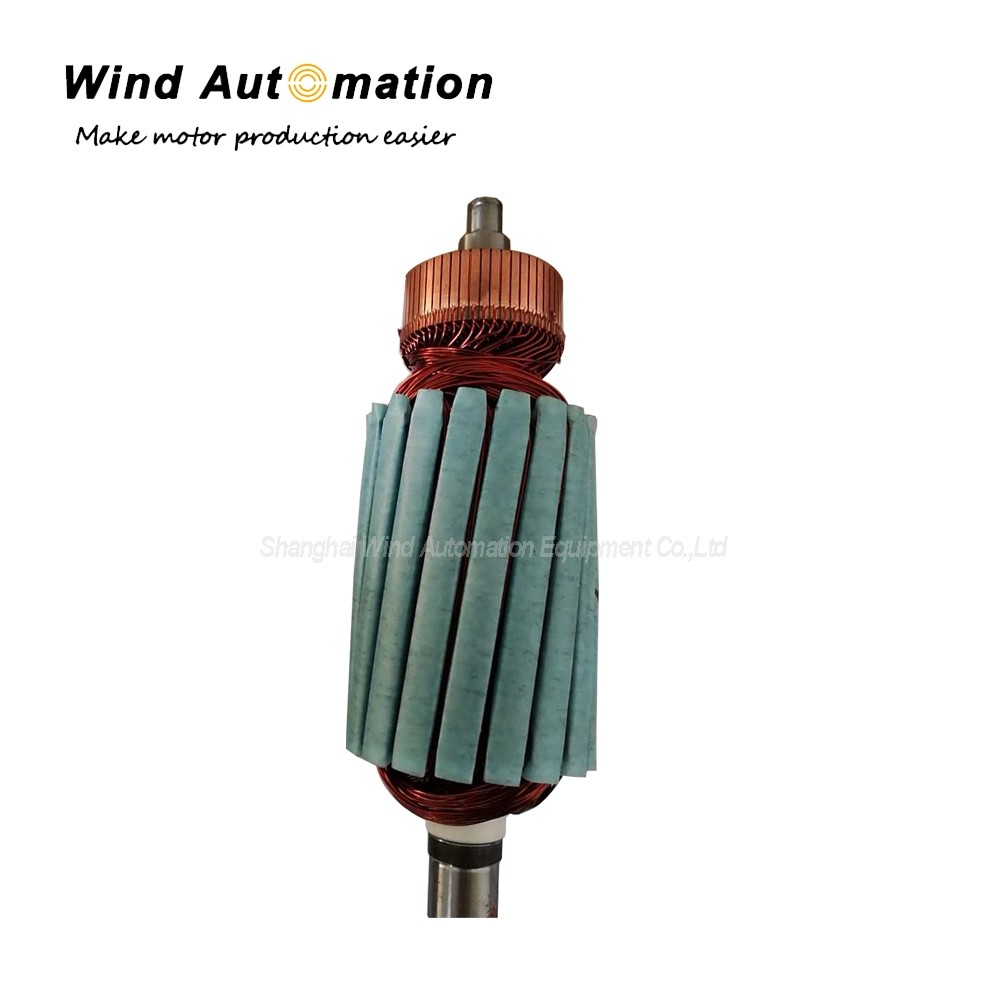

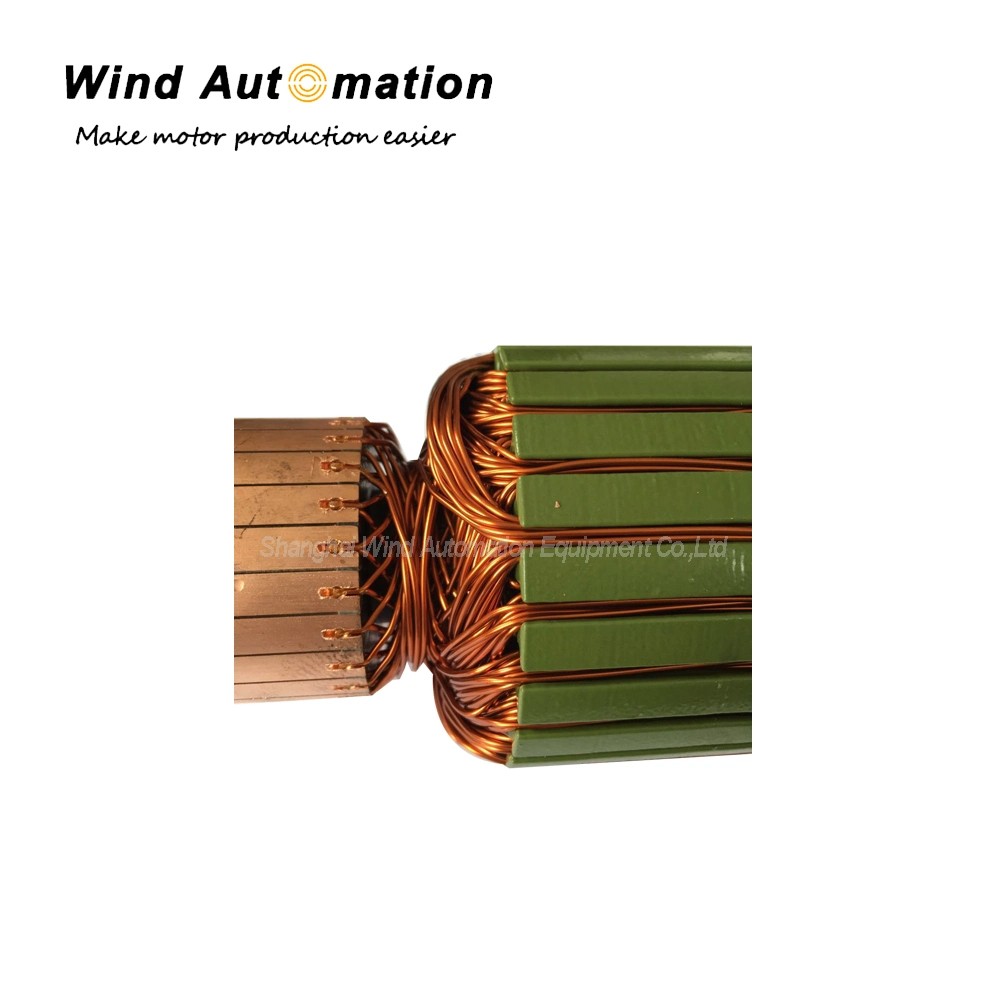

This machine is suitable for slotted type armature with riser type commutator.

(2)Specification

(3)Feature
For riser type commutator
With medium and big wire diameter
Manual loading and unloading
Can work as a stand-alone machine or integrated into a production line
All winding parameter programmed on touch screen

(4)Machine Operation
1)Put the armature on the tooling
2)Then press the start button.
3)Machine will wind the armature automatically
4)Unload wound armature
