Rotor Winding Machine For Hook Type Commutator

Rotor Winding Machine for Hook Type Commutator

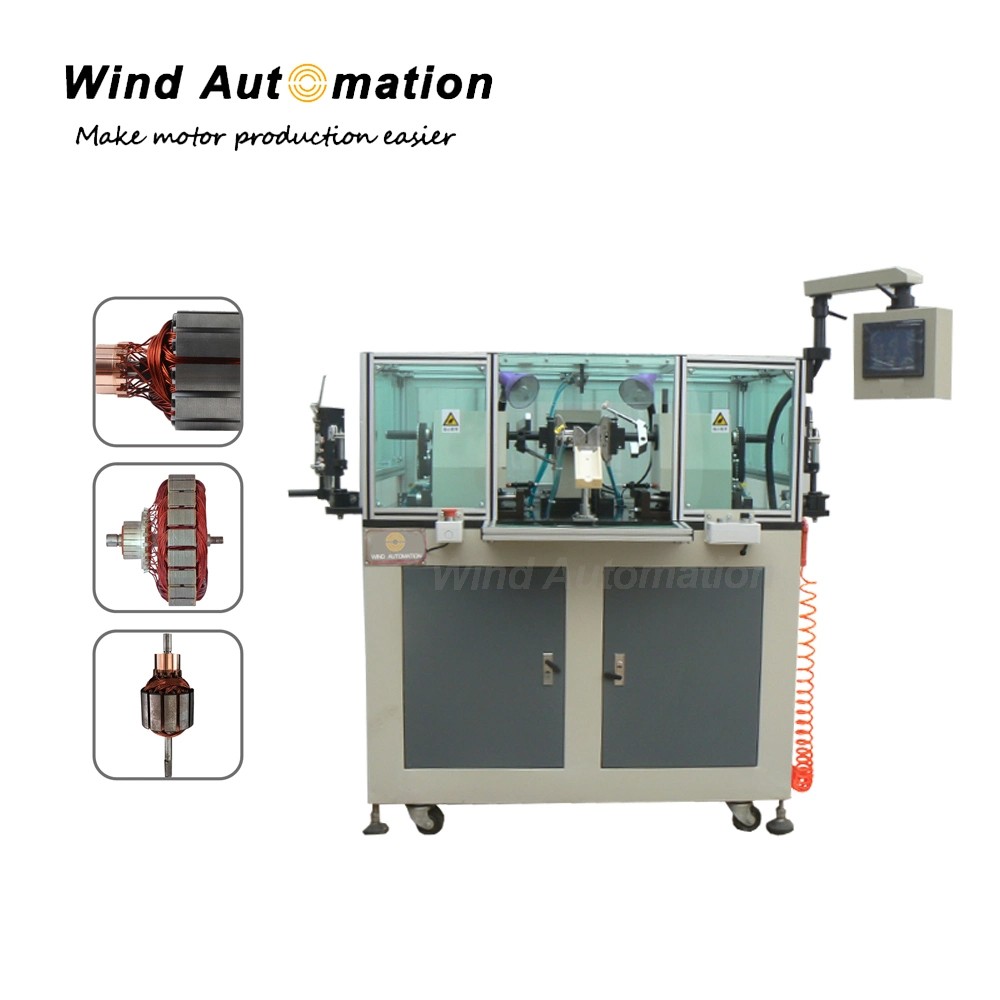

This machine is suitable for high-speed winding of medium and big wire diameter rotors. It is designed with automatic cutting and clamping mechanism.It can be connected with a production line to realize online automatic production.

(1) Application

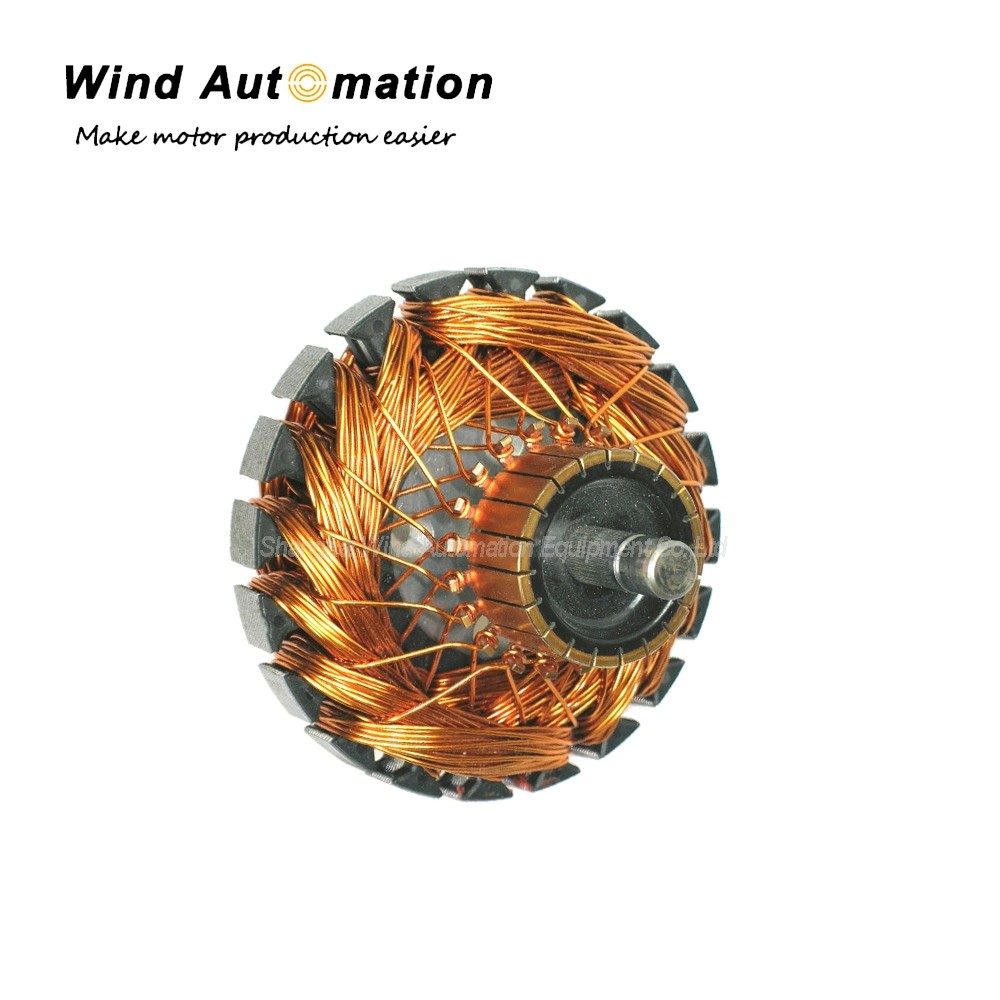

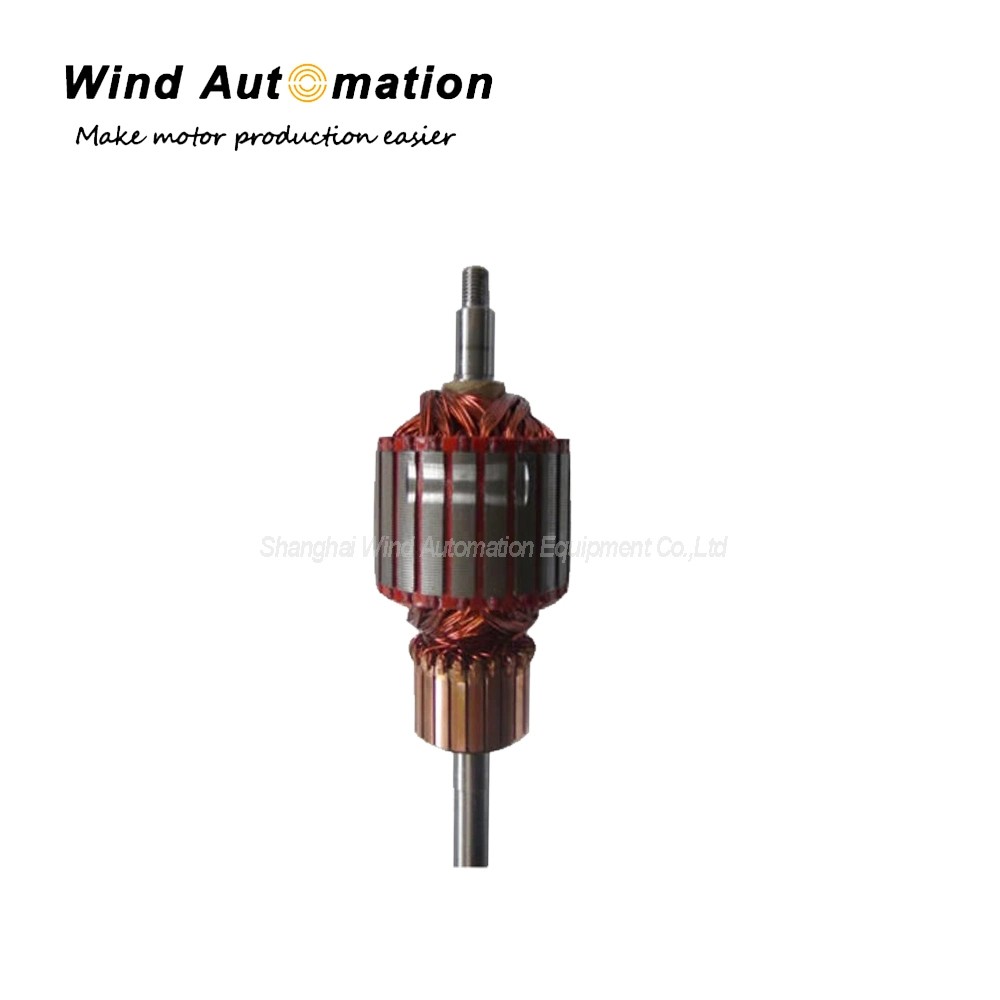

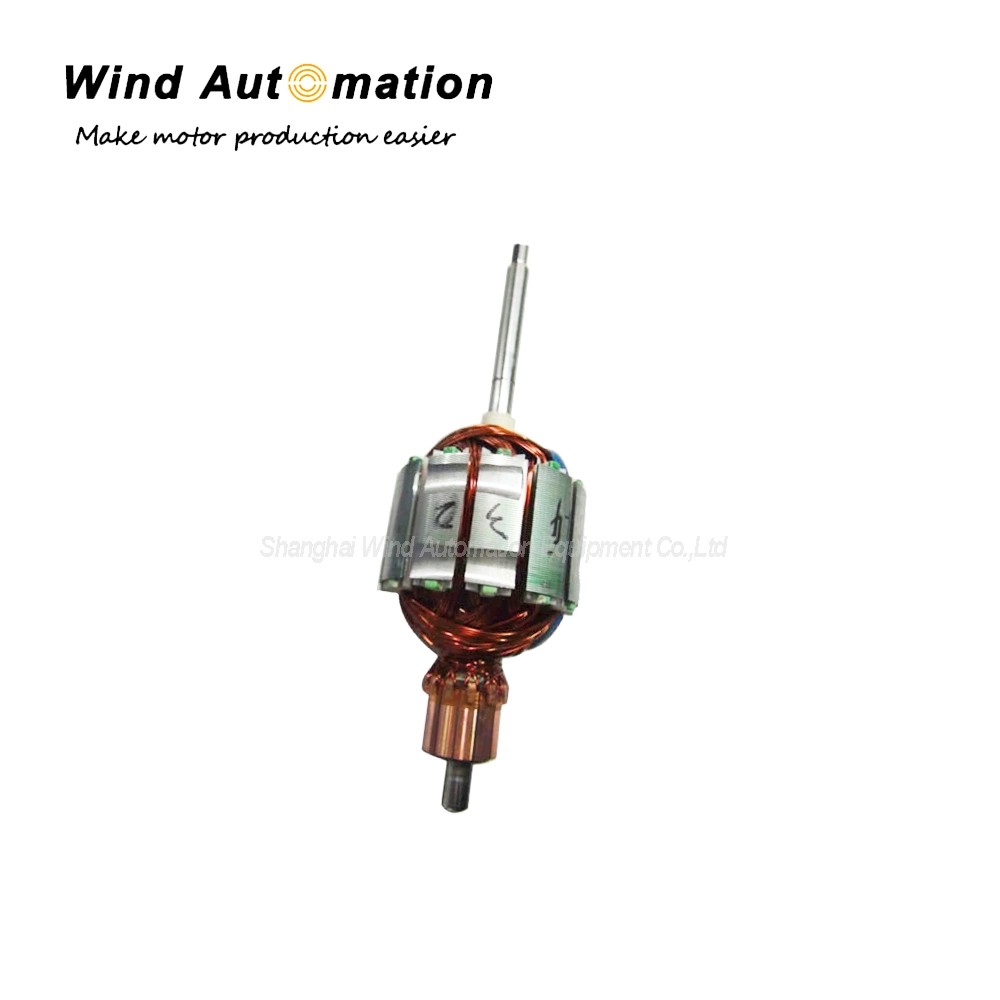

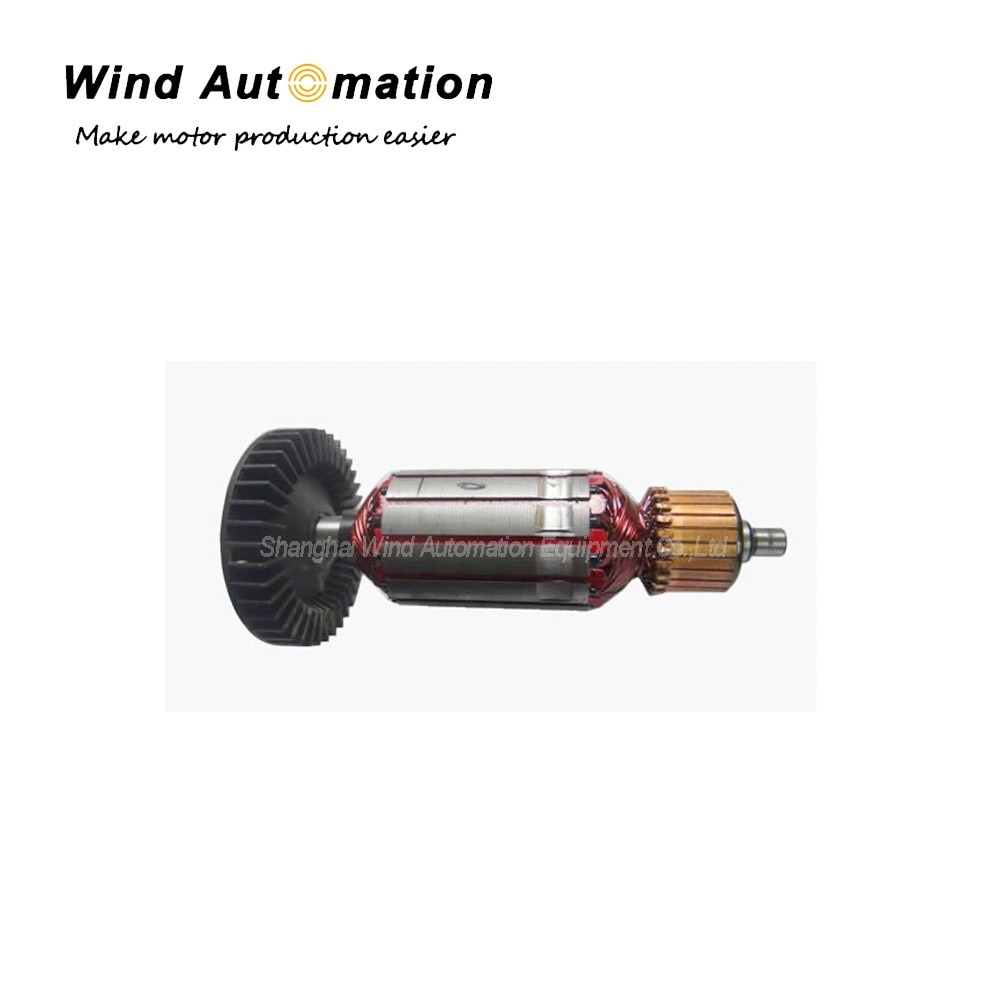

This machine is widely used in the winding of DC and series excited motor rotors.

(2) Specification

Wire range	0.05~0.7mm
Armature OD	20~70mm
Stack height	10~90mm
Commutator OD	8~40mm
Movement	Jog/auto
Slot No.	Odd/Even
Turn No.	0~9999
Flyer speed	0~3000rpm
Power supply	AC 220V 50/60HZ
Air source	5~7kg/cm3
Power	2.5KW
Weight	350KG
Dimension	1450x930x1500mm

(3)Machine configuration
Mitsubishi PLC
Delta servo control system
Touch screen
Airtac pneumatic system and air source treatment
Fully automatic feeding device (can be connected with production line)
Hysteresis tension control unit
HIWIN linear guide

Rotor Winding Machine for Hook Type Commutator
