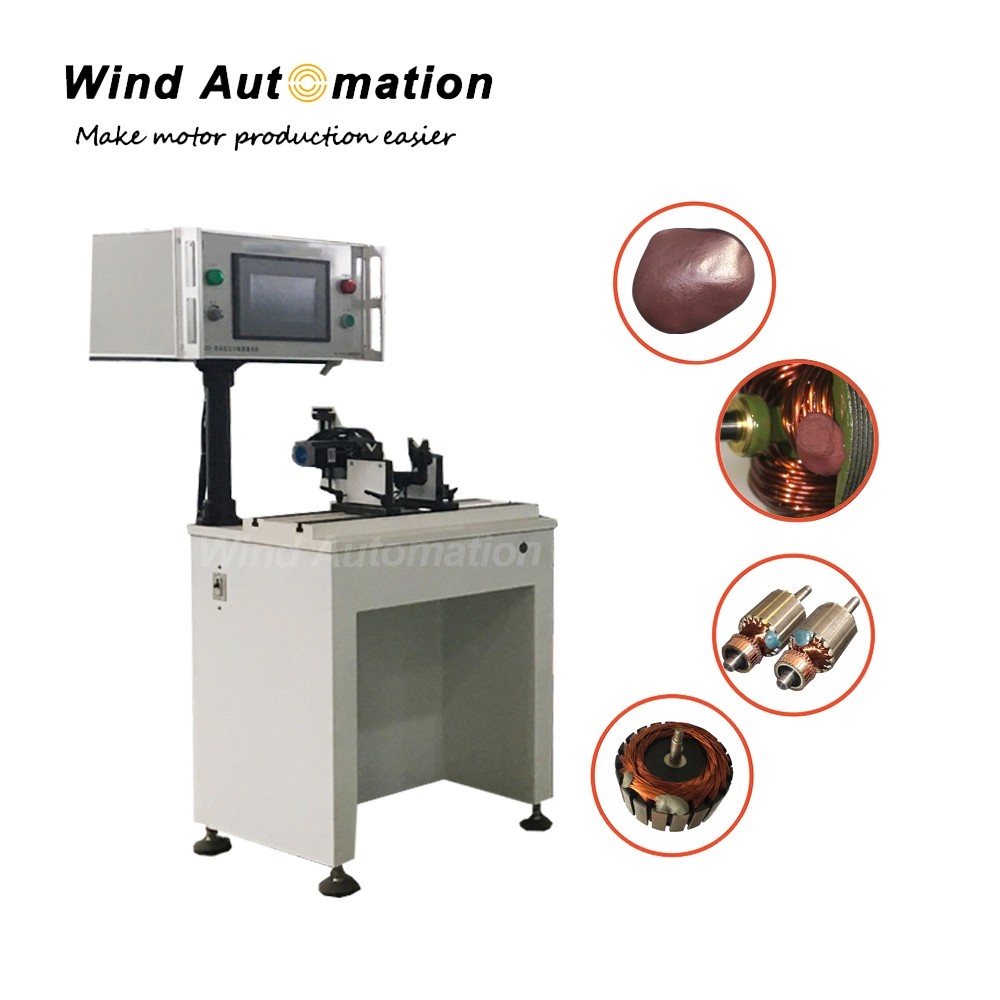

Rotor Dynamic Blancing Machine For DC Motor

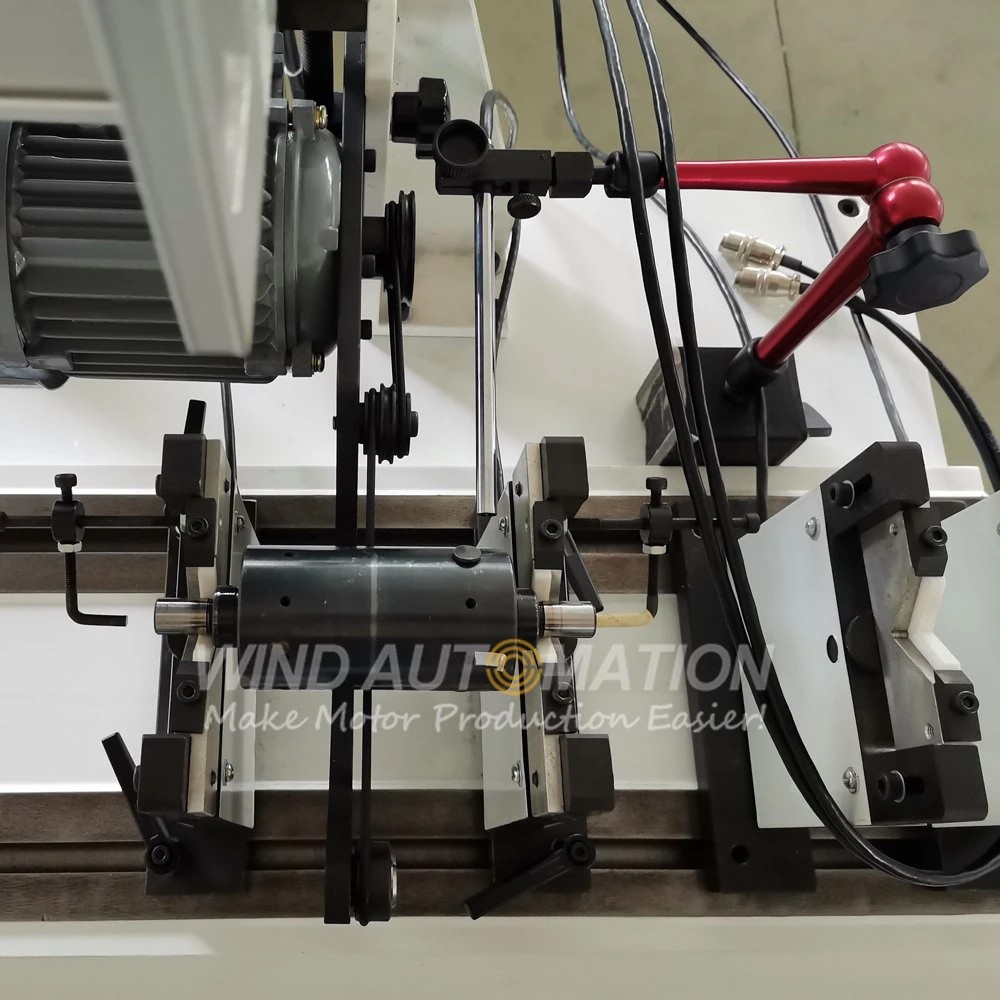

Driving system is installed on the machine base and use step motor to drive the driving wheel. If loose lock screw and rotate the round handle, the height of driving rack could be adjusted as per workpiece O.D.


Feature
a. Easy operation step
b. Precisely automatic stop for positioning without marking through the measuring process.
c. Tracking the slot No. to reduce or avoid the positioning error resulting from belt sliding away. The phase tolerance by repeated measuring is within ±2.5°.
d. Only setting the armature semi-diameter r, the distance between calibrating sides b, the distance between calibrating side and support point a/c and speed parameter of stepper motor before starting the machine is ok.

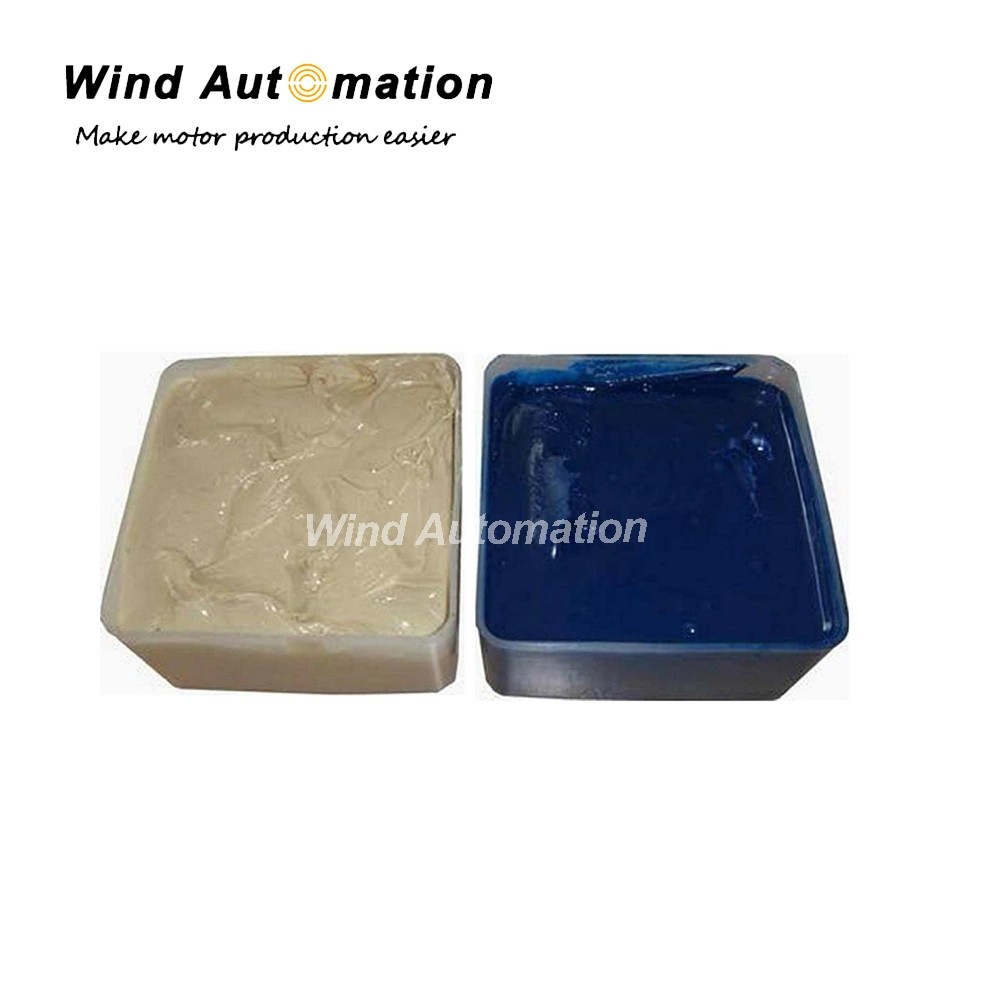

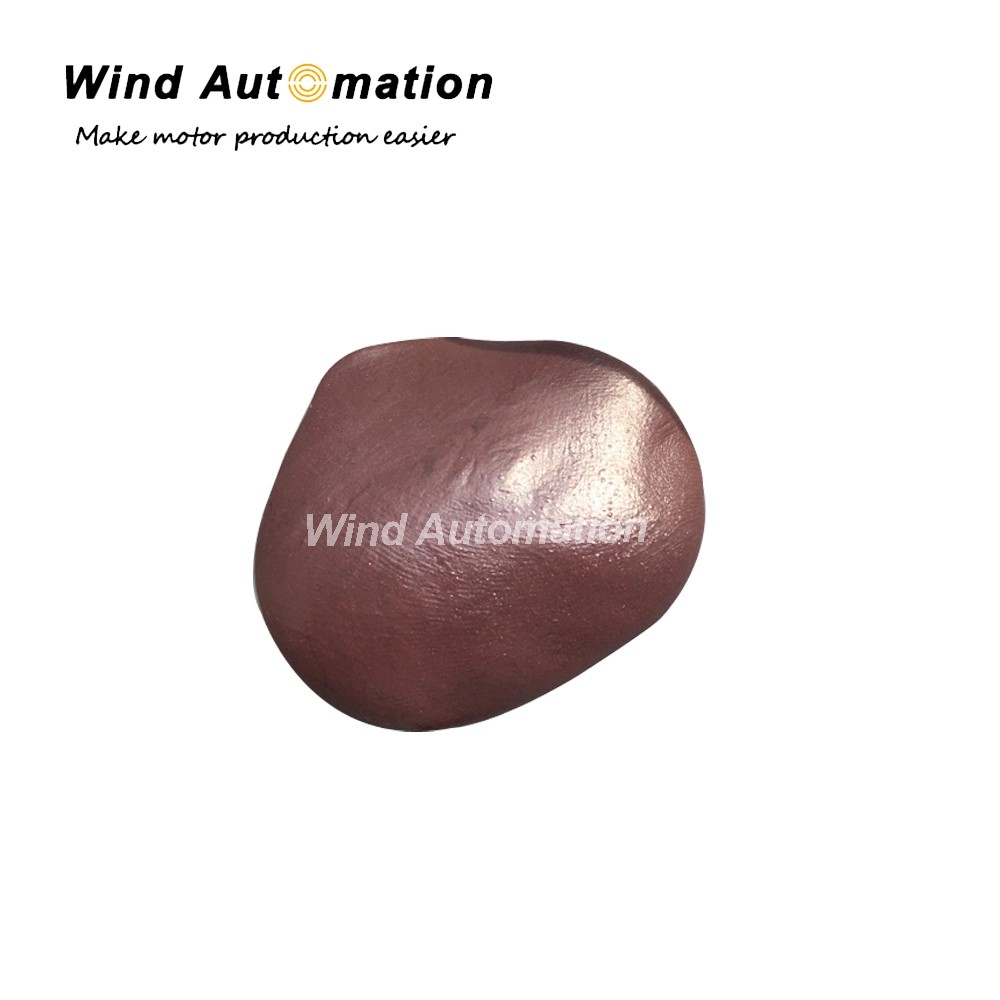

e. The armature comes to support rack; the sensor switch will start the stepper motor. After the measuring, the unbalancing value for both sides will be shown on touch screen. By default, it will stop left side; operator could add the adhesive referring to the unbalancing value, then press "changing phase" to stop at right side. So does right side.

Specification

Working Environment
a. Temperature: -5-45ºC, Humidity: <80%
b. Power: 220V 50HZ; Vary range for voltage<±10%
c. Without strong electromagnetic interference, vibration and with cleaning and ventilate place.

Applications

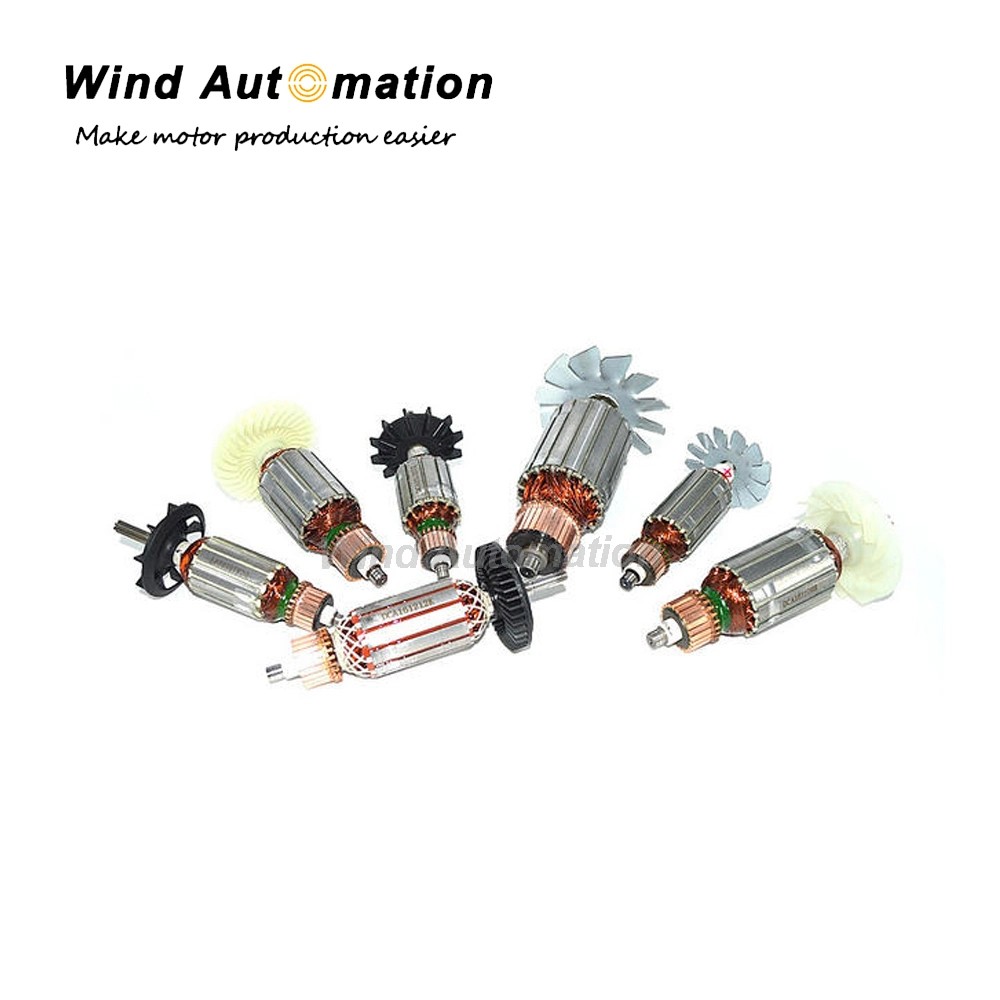

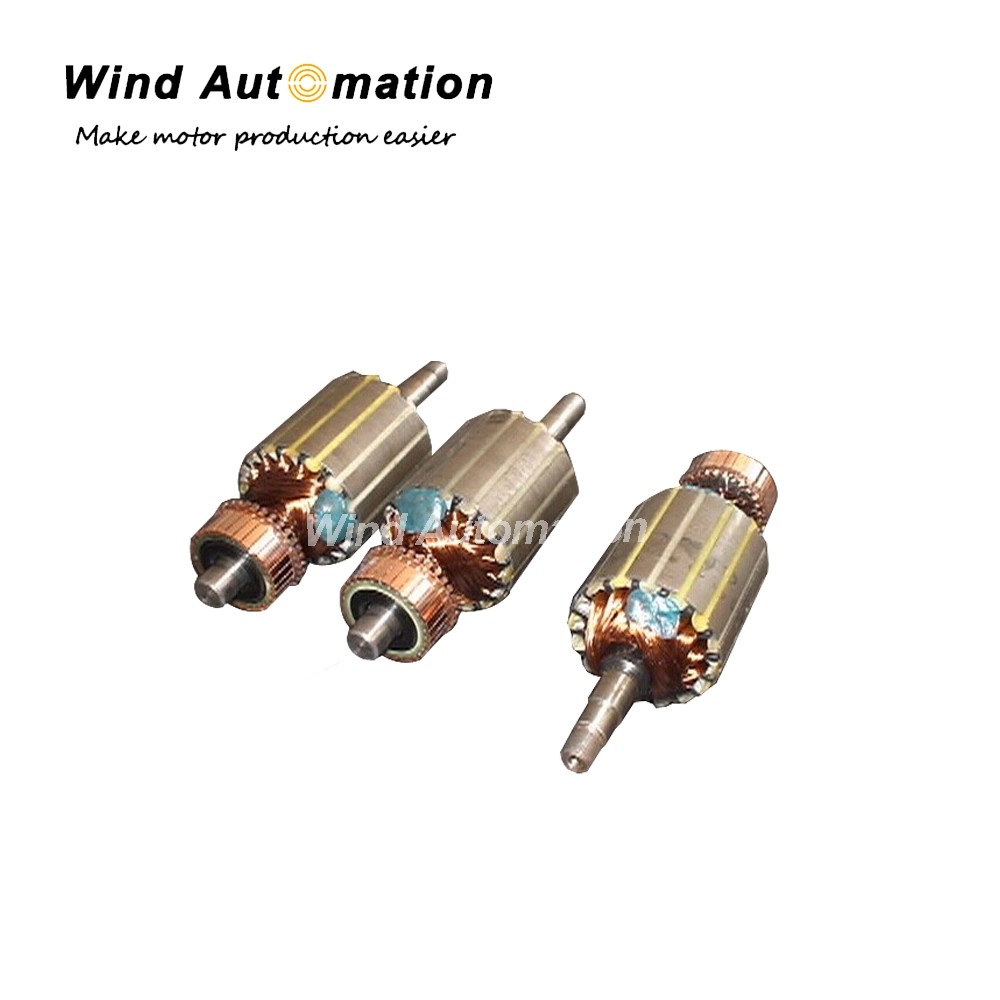

Suitable for power tool motor, DC motor, mixer motor, wiper motor, vacuum cleaner motor, window lifter motor, condenser motor, etc.

Working station
