Product Description

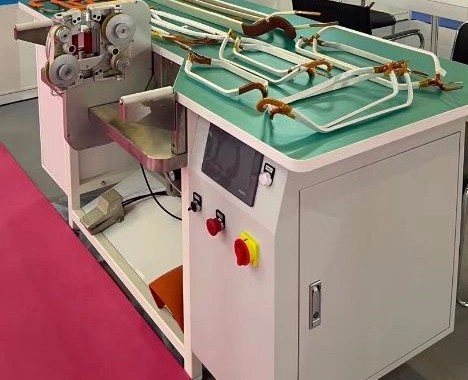

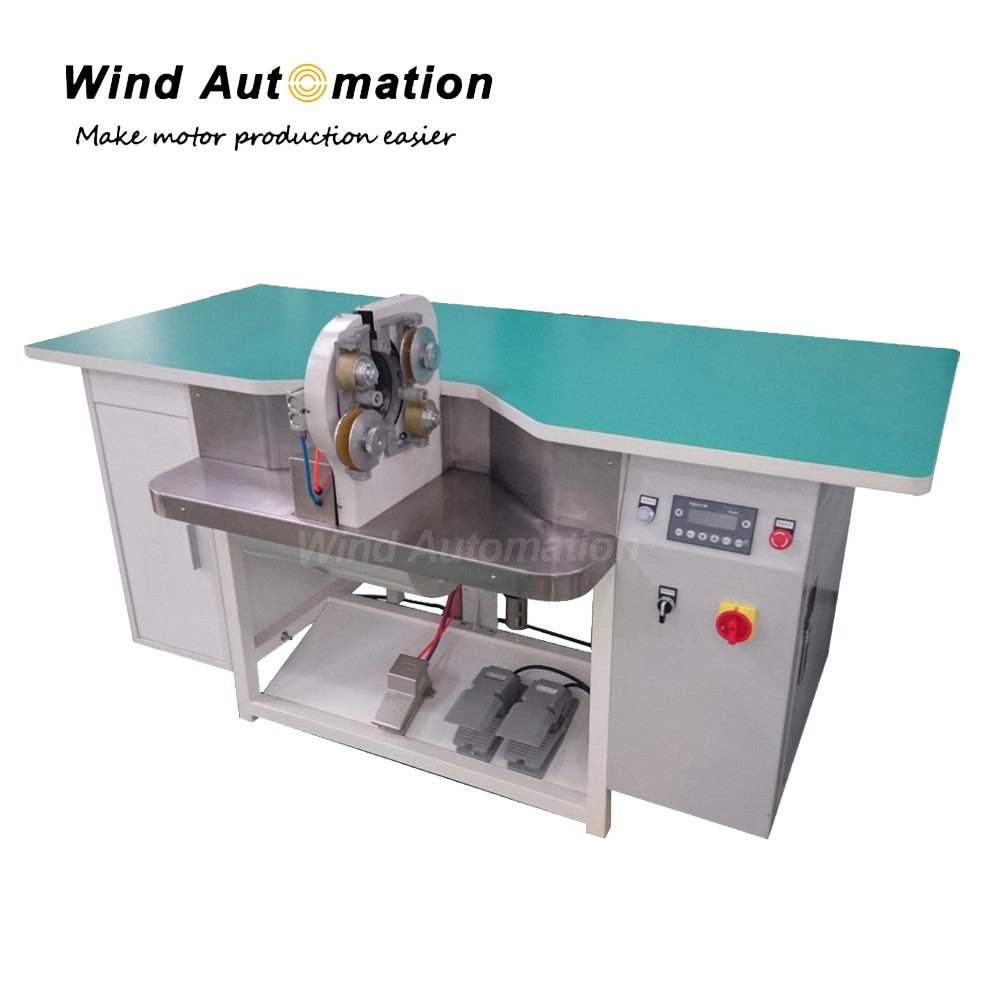

PLC Control Constant Tension Desk-type Insulation Tape Winding Machine

Specification

1, Mechanical constant tension adjustment range: 1~6KG;

2, Air chuck roller clamp the coil for overlapping rate, min. coil opening: 190mm, min. coil opening can be 130mm after dismantling the air chuck, manually put the coil leaning against the walking roller for taping;

3, Max. section area after taping: 25×60mm². Max. coil length: 1200mm, table-board length 1800mm;

4, Insulation tape width 15mm, 20mm, 25mm, random tape width. Overlapping 1/3~1/2~3/4, stepless adjustable. Has stand column roller to push coil for taping pitch, totally above 4-phases;

5, Rotation speed: 50~260r/min, frequency control 0.75kw, speed adjustment motor power: 0.2kw;

6, PLC control, input parameter on the touch screen


1 To 6 KGS Constant Tension Taping Winding Machine To Insulate Conductor Coils WIND-TP06A

Conductor Insulation Tape Winding Machine Application:

Insulate the conductor coil by semi-auto taping winding process

Tape Insulation Winding Machine Parameter:
