Fully-Automatic-CNC-Coil-Taping-Machine-with-Robot

Product Description

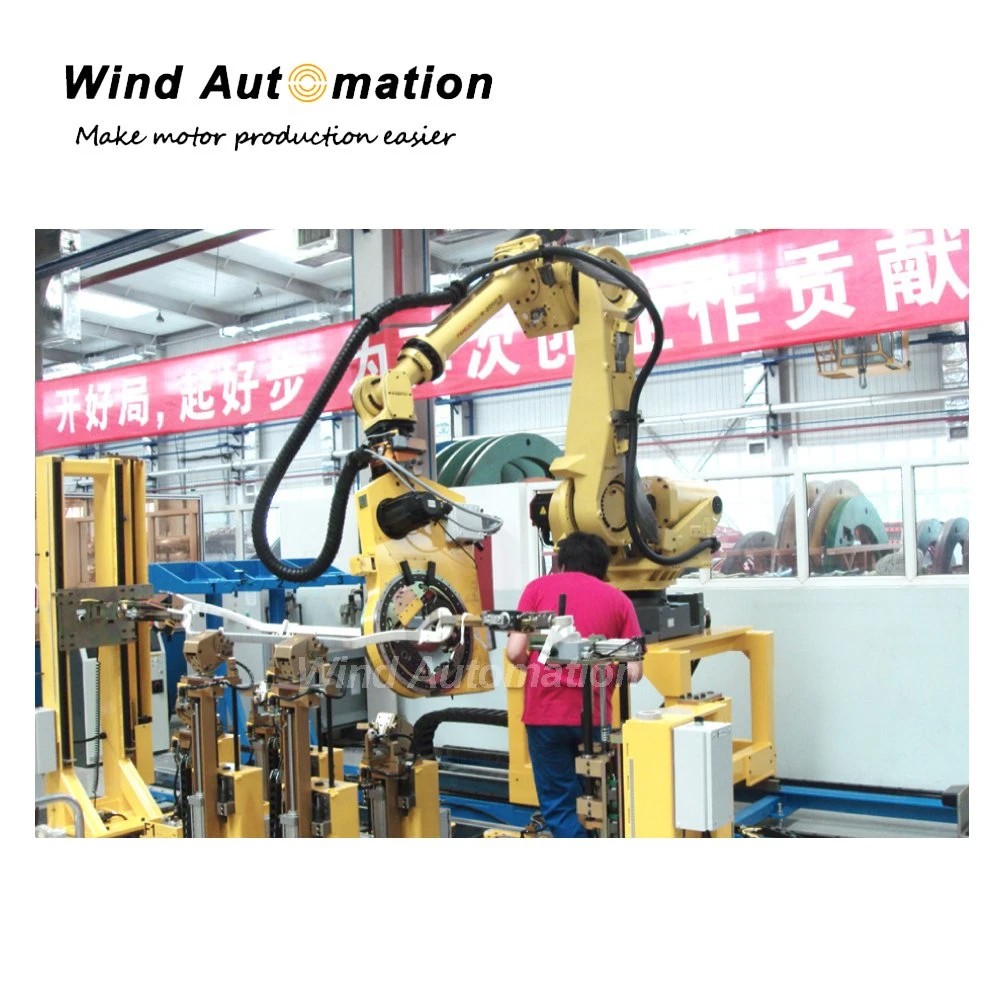

Fully Automatic CNC Coil Taping Machine with Robot

Specification

1.Coil opening about 200~800mm;

2.Coil linear length 400~2000mm; End length max. 400mm×2; Nose height max. 300mm;

3.Nose clip center distance max. 2800mm; Nose clip can turn 360°, pneumatic clamping mechanical hands on both sides;

4.Taping speed: 50~250rpm;

5.Tape width: 10~15~20~25mm (φ110×φ25mm mica tape with slot)

6.Overlapping rate: 1/4~2/3;

7.Coil section: (width×height) (12~25mm)×(18~65mm);

8.This equipment can bandage the stator coil as well as the rotor coil; With function of automatic, manual, and also set the function of mechanical hand grasping to avoid shock and multi-point security protection setting;

9. Can tape for single coil reel or double coil reels, and can carry out the taping with different angles, different speed according to the coil size, shape, the instructions, taping tension adjustment can be set by the touch screen, overlapping rate can be set freely;

10.This machine has the function of tape reel radius detection, tape broken protection, this machine's two reels can also automatically deflflect according to the set angle.
