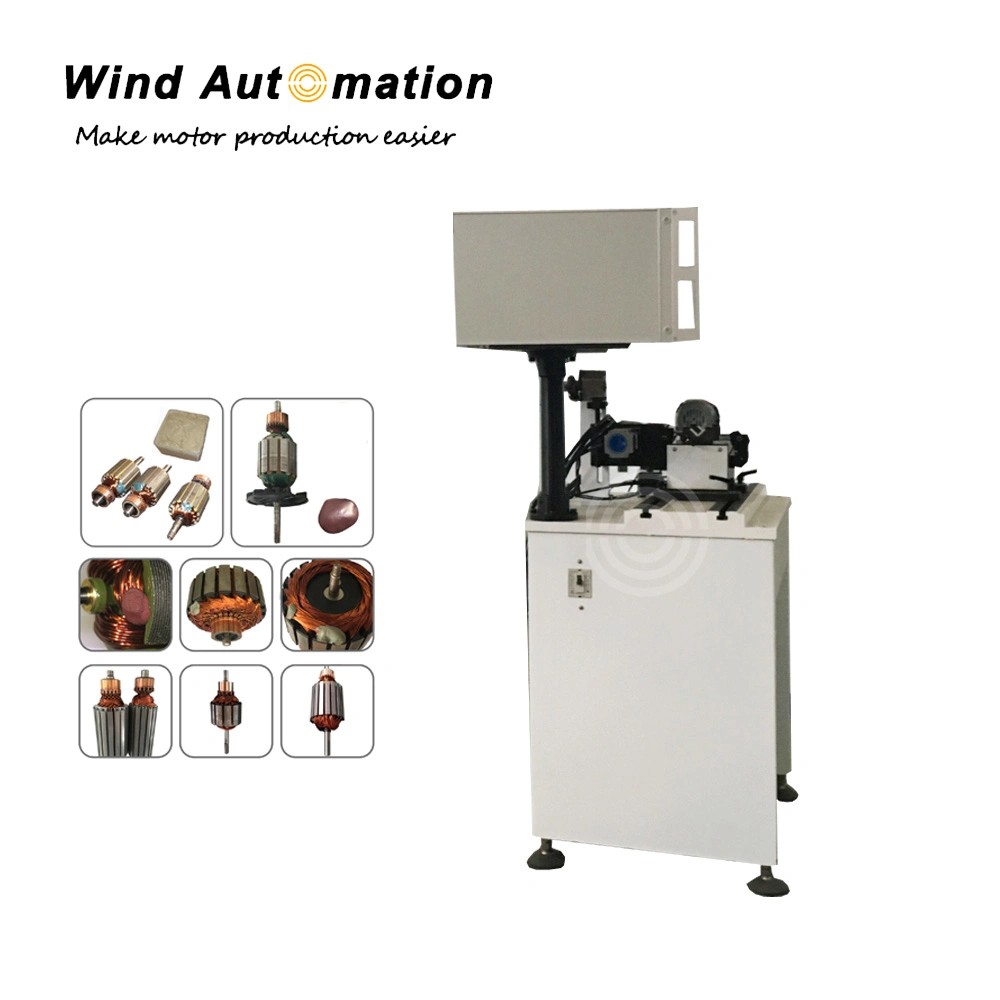

Wiper Motor Rotor Auto Balancing Machine

Wiper Motor Rotor Auto Balancing Machine

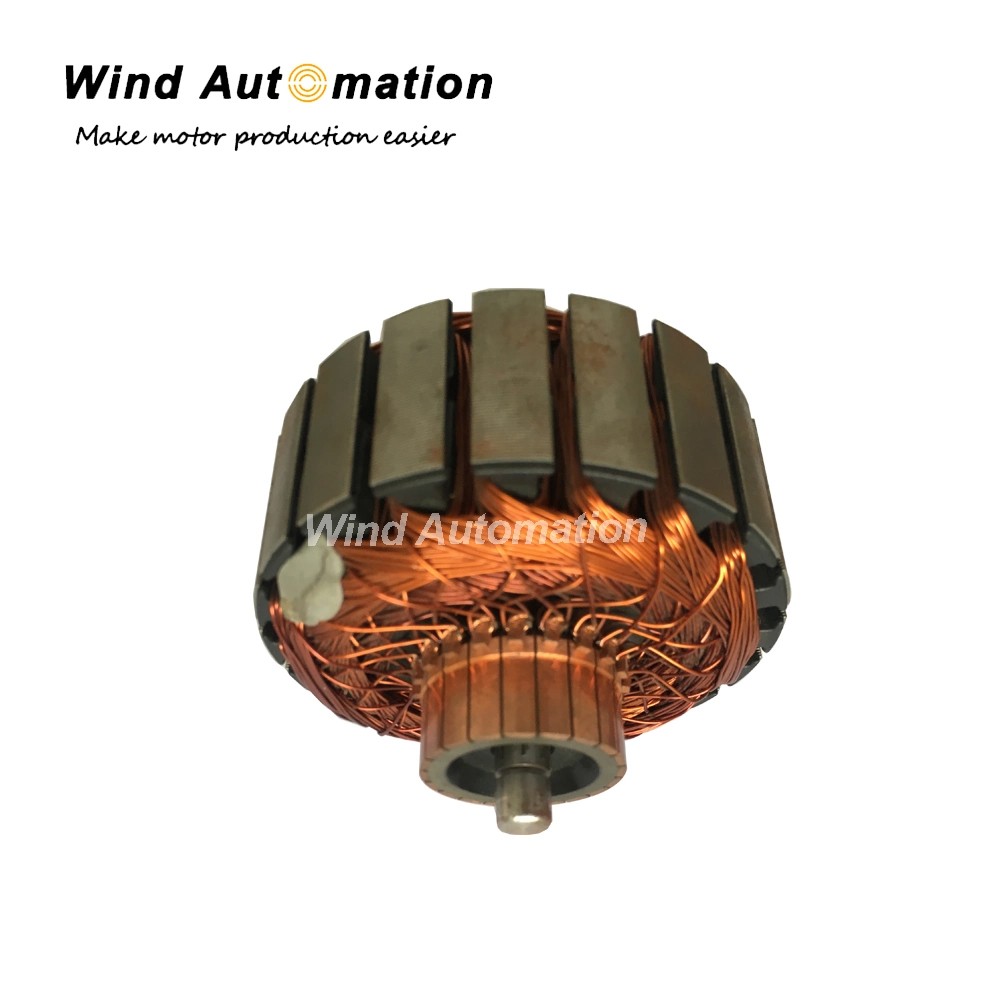

The machine is suitable for microelectronic rotors, power tool rotors, single-phase three-phase motor rotors, air-conditioning cross-flow fans, centrifuge drums, supercharger fan blades, etc.

Specification

Workpiece weight range0.1-5kg
Max diameter of workpiece260mm
Support shaft neck range3-40mm
Driving methodO shape belt
Diameter range of belt driving position20-85mm
Motor speed2800rpm
Motor Power120W
Min residual unbalance value≤0.3g·mm/kg
URR≥90%


Feature
Weight adding balancing method
Unbalancing weight measurement before balancing
No skilled operator need
Adding Balancing mud manually
Fast and easy readjustment
Provide customized service
Wide application and strong applicability
V-shape support block


Maintenance
1)Electrometric box should be put in ventilated, dry and clean place. Don't allow nearby strong electromagnetic interference. Charge the machine 1-2 times per month, 1-2 hours each time on self-checking situation provided the machine is not frequently used. Cover the machine by dust-proof shield during the time out of operation. Put desiccant in the electrometric box and replace it regularly provided the machine is put in the humid area.
2)Check every index of the electrometric box and accuracy of the complete machine. Assign sole operator to keep and operate it.
3)Note: Don't adjust any potentiometer.

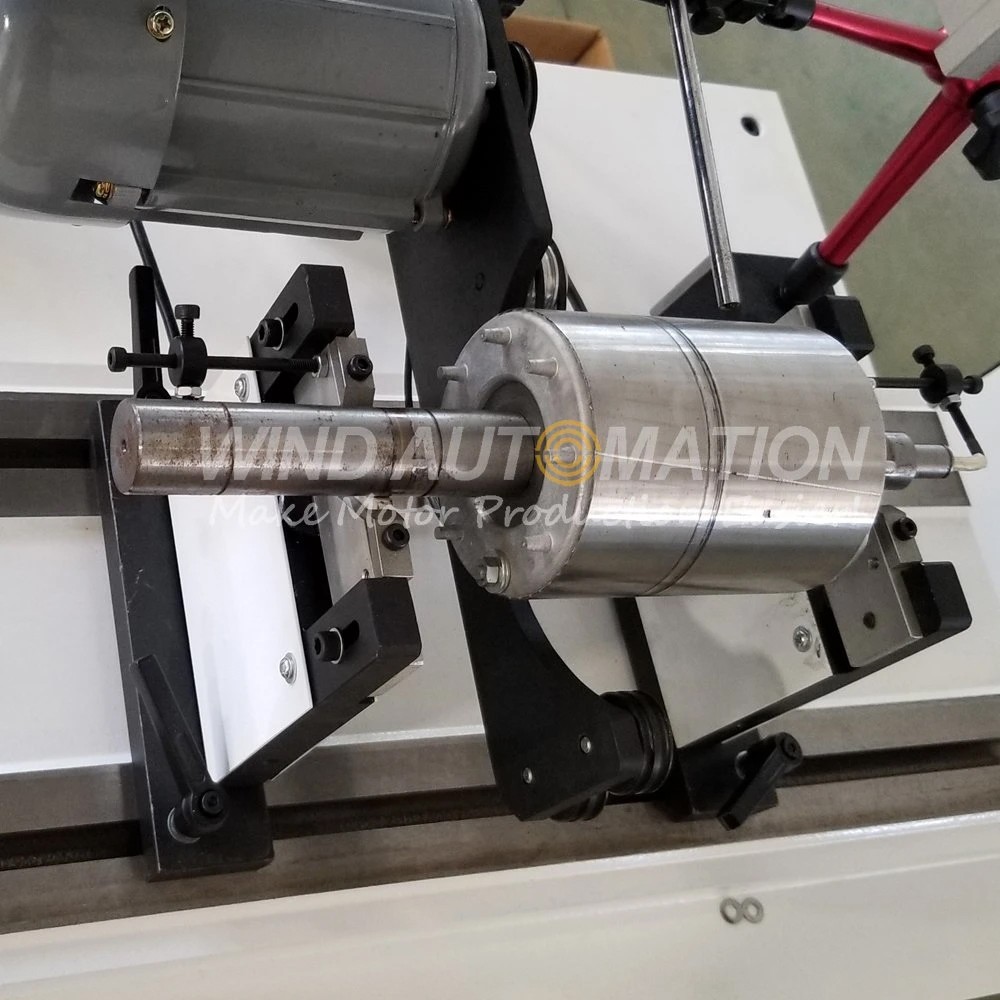

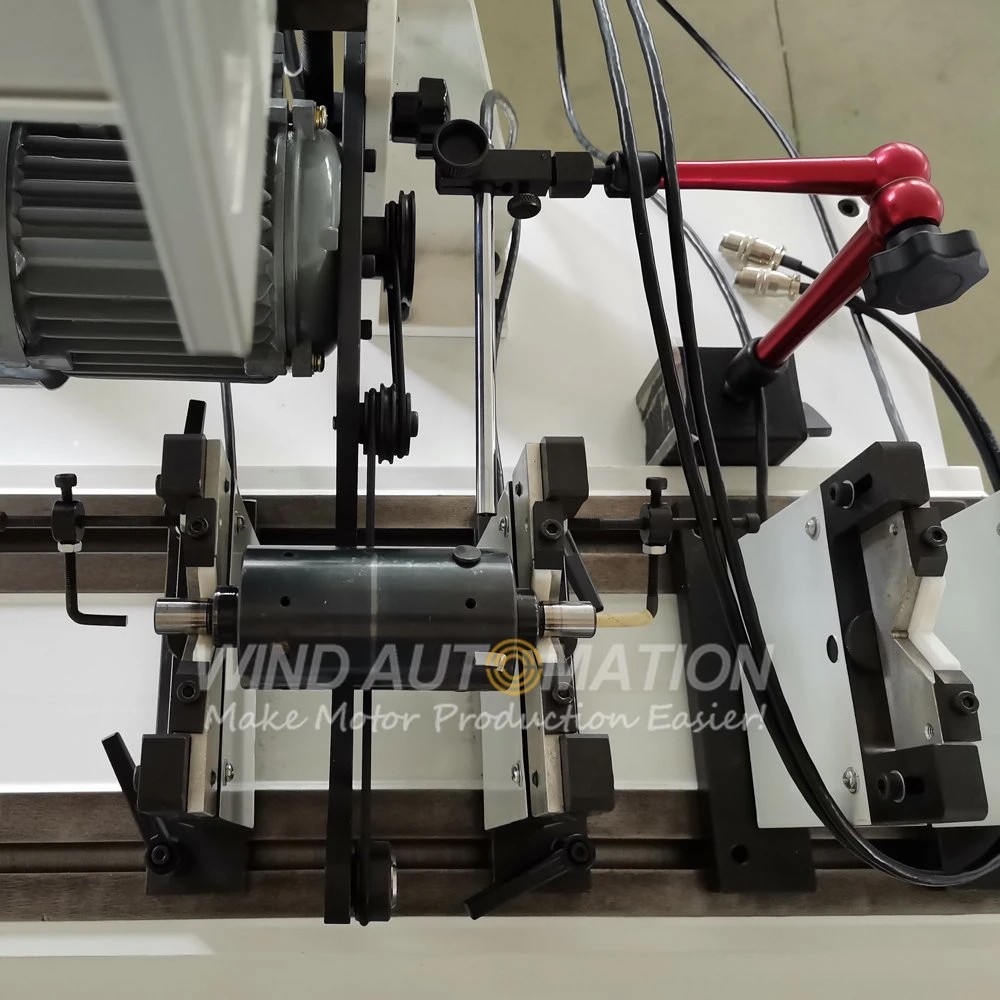

Working station
Wiper Motor Rotor Auto Balancing Machine
Wiper Motor Rotor Auto Balancing Machine

Wiper Motor Rotor Auto Balancing Machine
Wiper Motor Rotor Auto Balancing Machine
Wiper Motor Rotor Auto Balancing Machine
