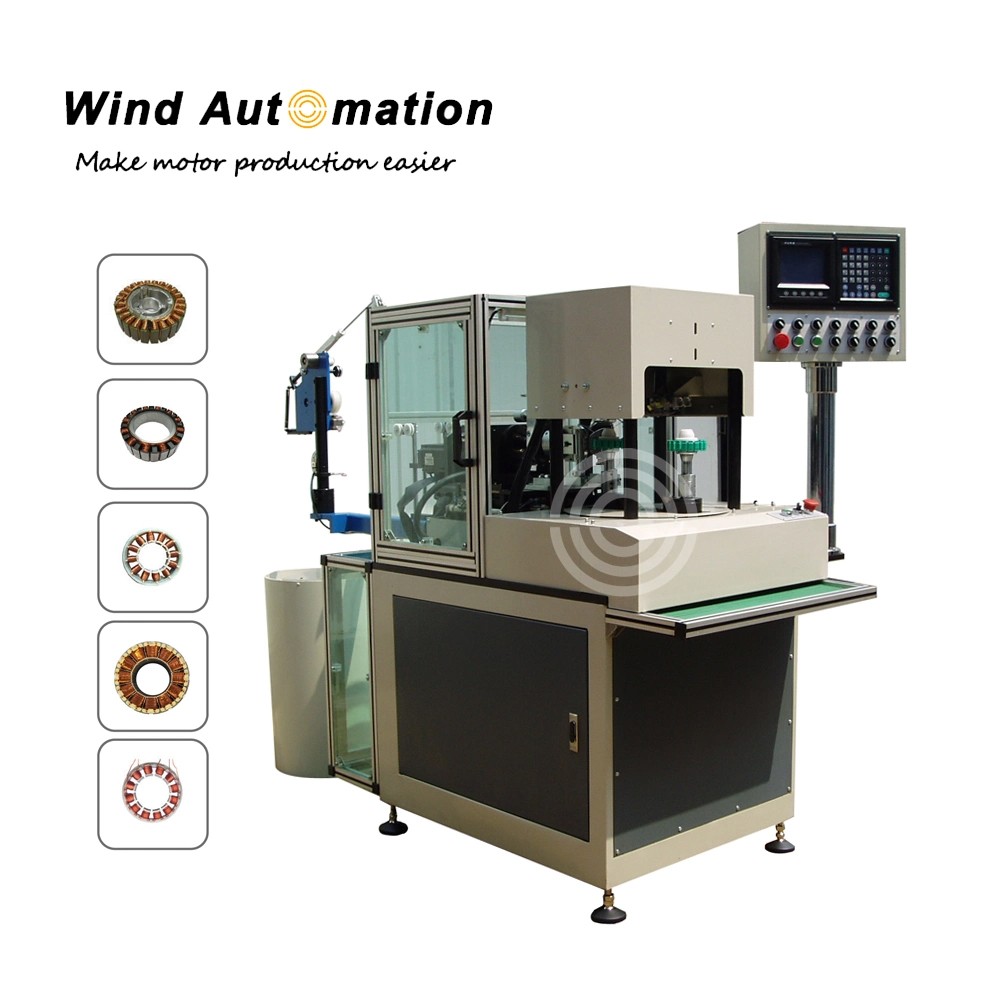

Outer Rotor Slot Coil Winder for Digital Generator Motor
Winding speed of this outer rotor winder can reach up to 1500rpm, in particular conditions of rotor geometry and wire size. It is able to work with the product type listed in specification.
(1) Specification
| Wire diameter | 0.15~1.50mm |
| Rotor O.D | 15~260mm |
| Slot number | Multi poles |
| Turn no | 0~99999 |
| Movement | Stepping / Auto |
| Stack height | 7~60mm |
| RPM | Max 1500RPM |
| Voltage | 220v/50Hz |
| Power | 2.5 KW |
| Air source | 5~7kg/m3 |
| Weight | 600Kg |
| Dimension | 1150X2350X1500mm |
(2) Features
Winding speed up to 1500RPM
Wide wire diameter range
Wide application and strong adaption
Perfect layer winding
Fast retooling
(3) Application

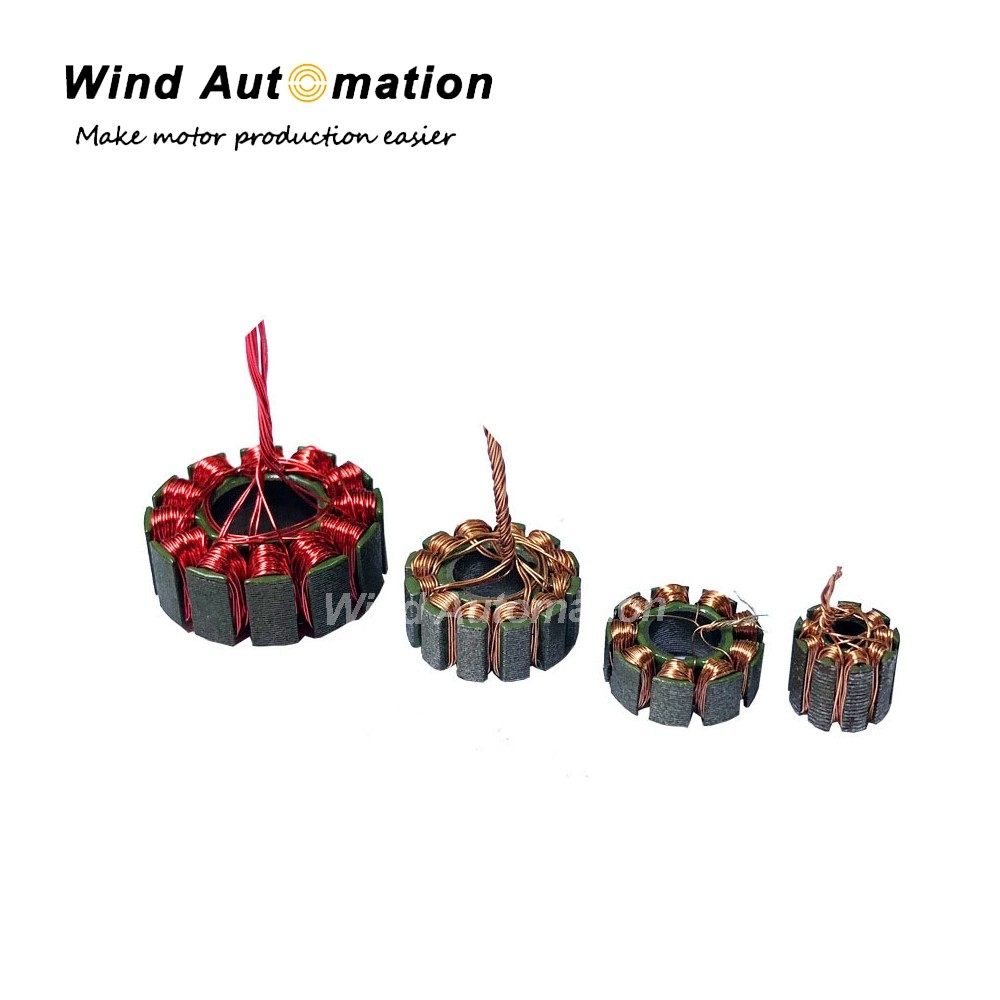

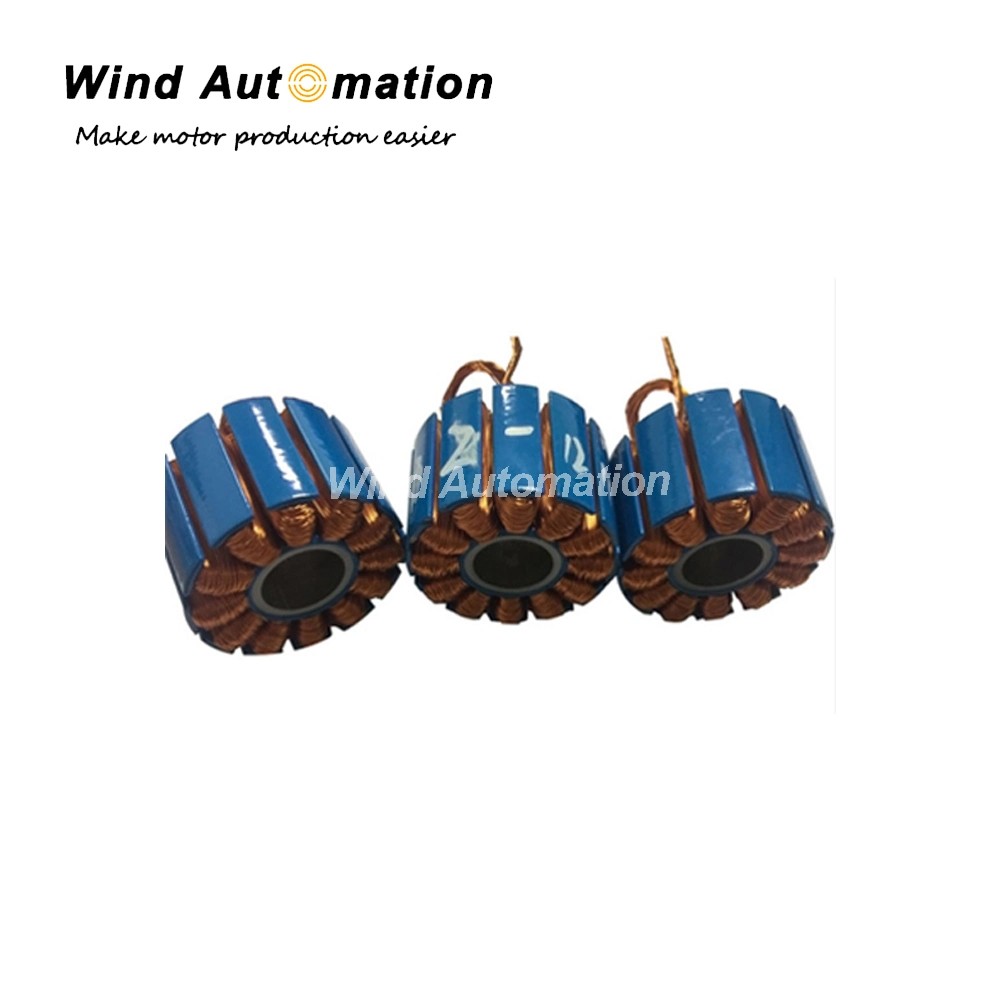

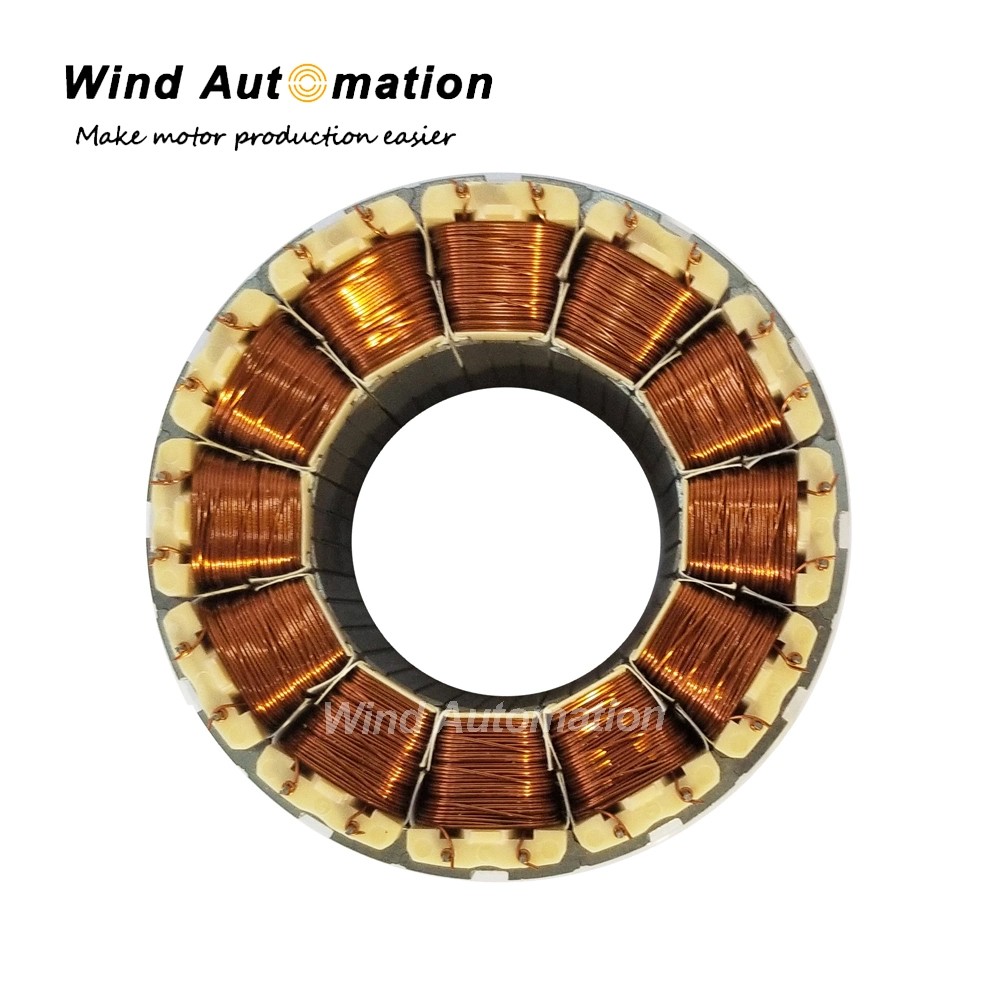

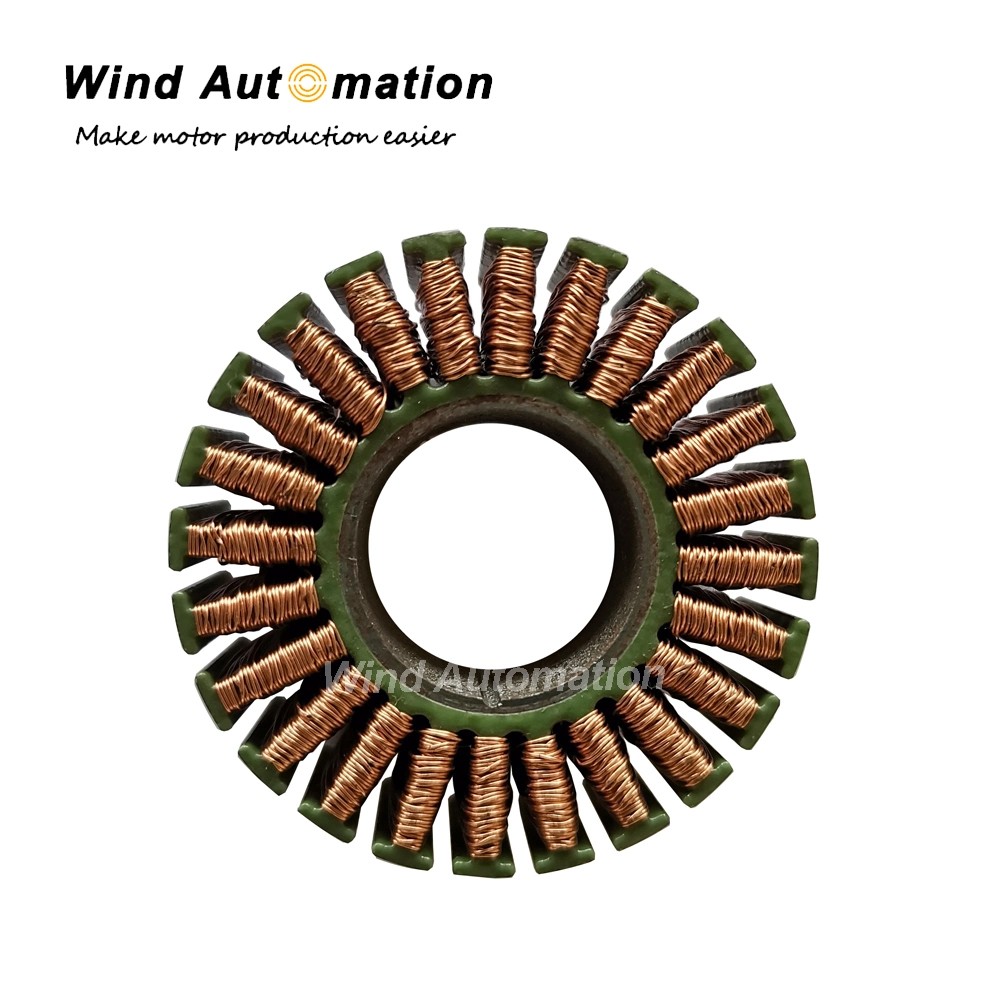

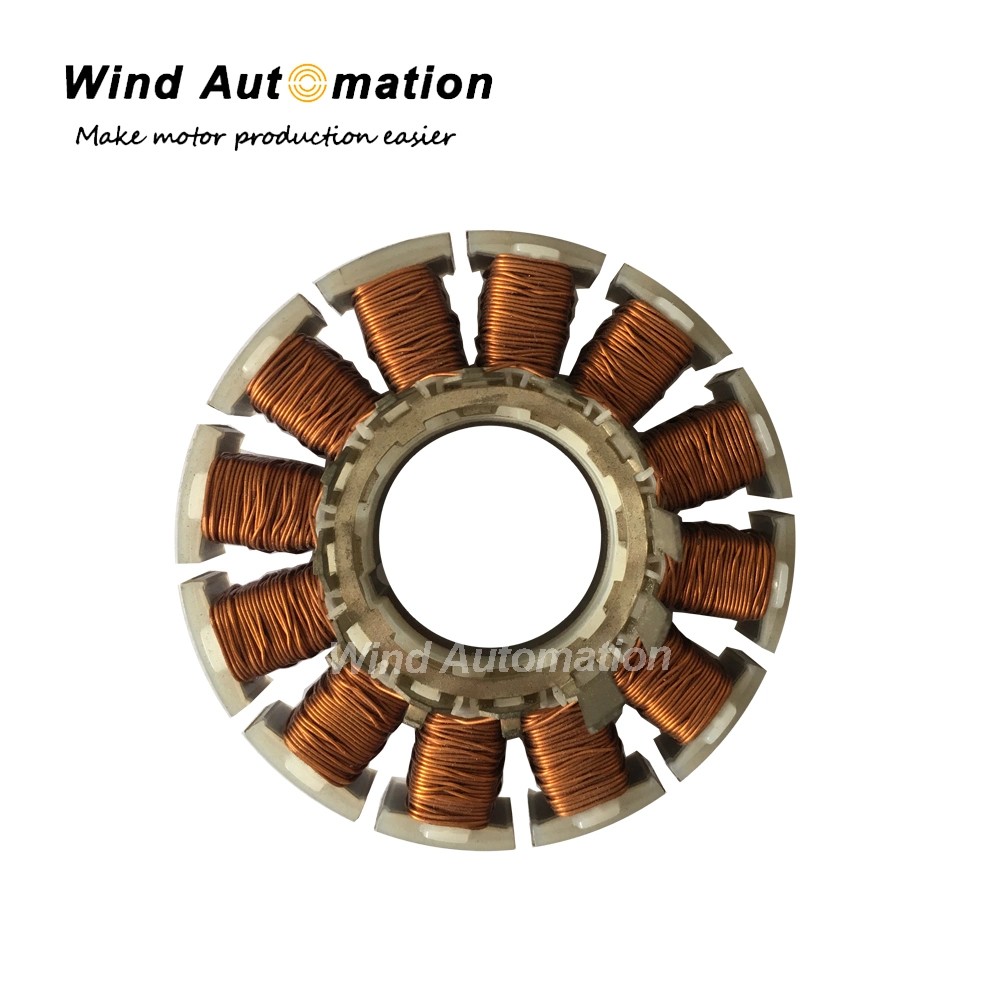

Suitable for magnetic motor, digital generator, washing machine motor, air conditioner motor.
