Product Description

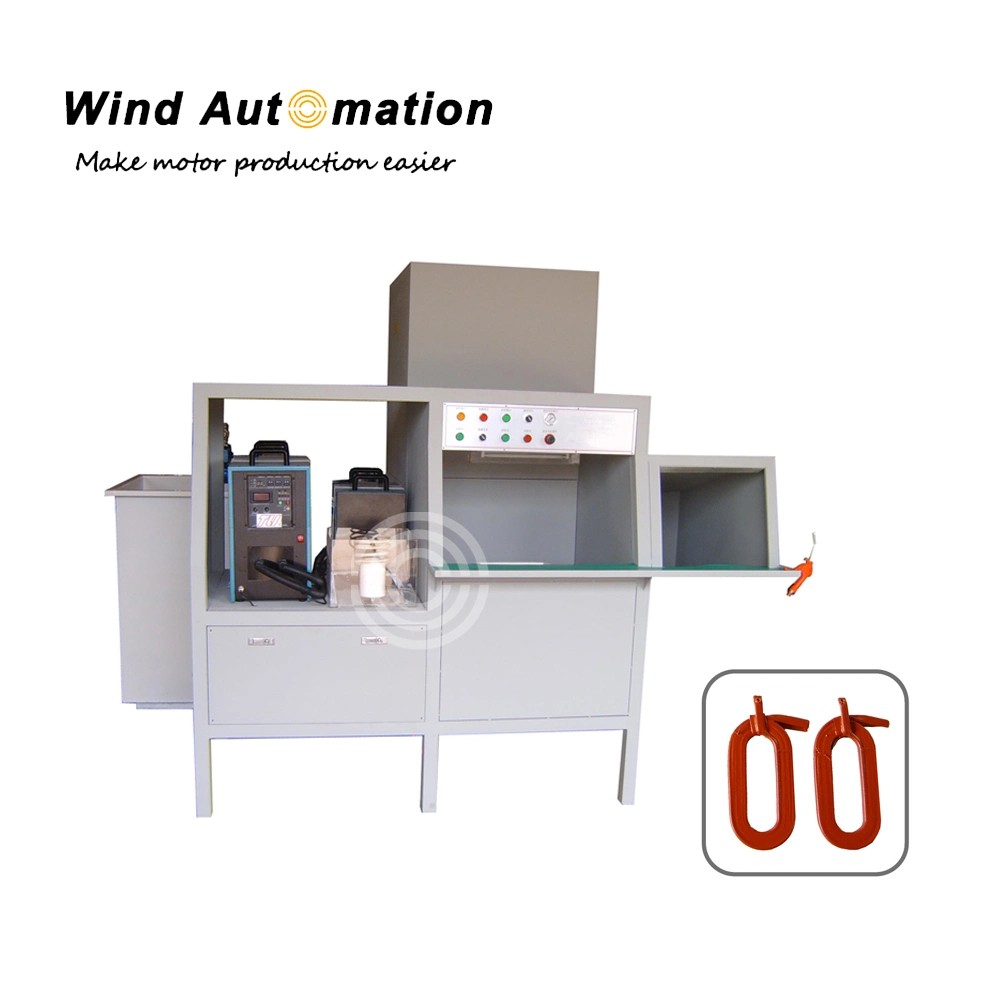

Starting Motor Stator Magnetic Filed Coil Power Coating Machine

This powder coating machine is special for field coils to do powder coating. It will heat coils before load it into fluide bed. With a rotation function, it ensures a high quality level of powder coating process.

(1)Specifications

(2) Application
It is suitable for starting stator field coils, motocycle coils and  E-Bike stator.


(3) Working Process
1. Fix the stator (work piece) in the fixture, then put it inside the inductorium
2. Power on the machine, then the induction heater automatically begin working, the heating time could be set, when set time is reach heater automatically stop, Normally the heater time is 10s.
3. Fetch out the fixture,then dip both side in the power coating station, the stator is hot, and the fixture is in normal temperature and won't burn you
4. Dip the fixture in the power coating station both side, the dipping time is depened on stator stack thickness and powder's character, For example,normally one side is 3s, then the other side 2s
5. After dipping, disassemble the fixture clean the fixture using a air gun to remove the remain power when necessary
6. Collect and put the stators into oven( the machine didn't have a oven with it), the oven temperature need reach to 180~200ºC (depended on powder's character), keep that temperature for more than 30 minutes
