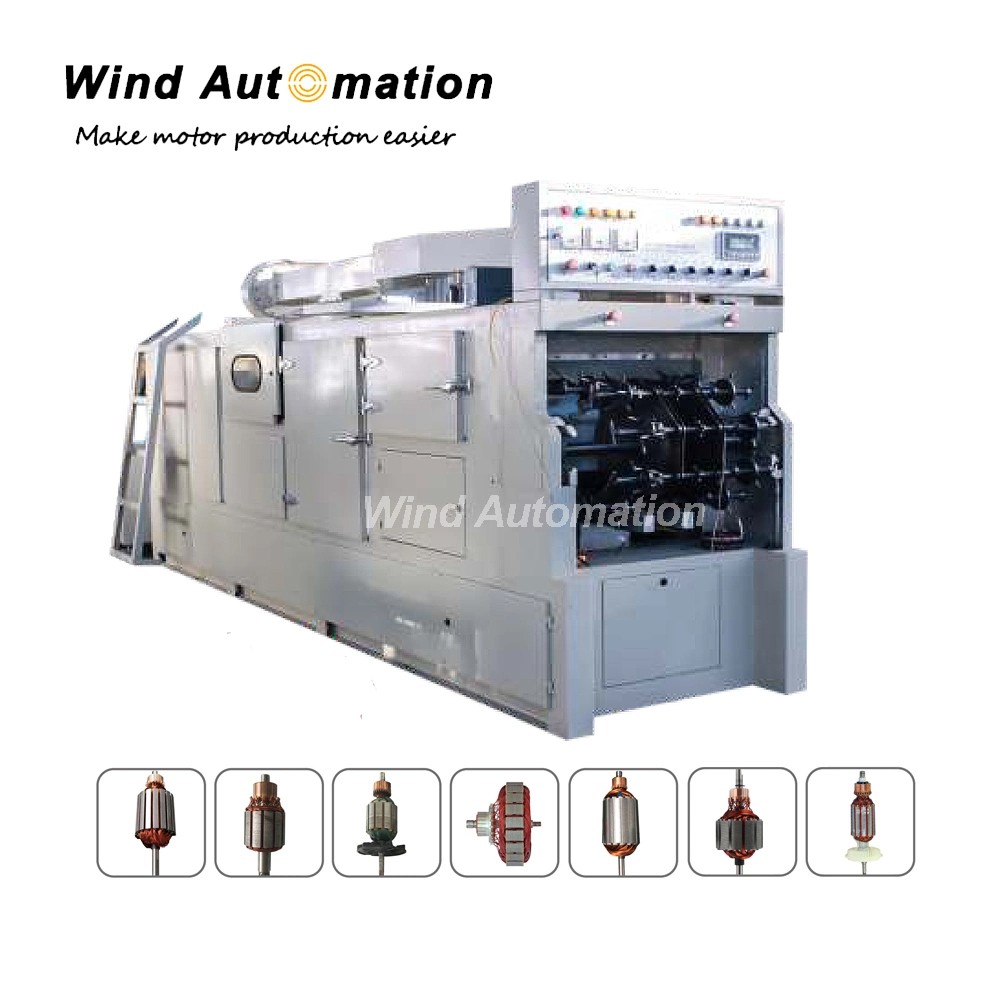

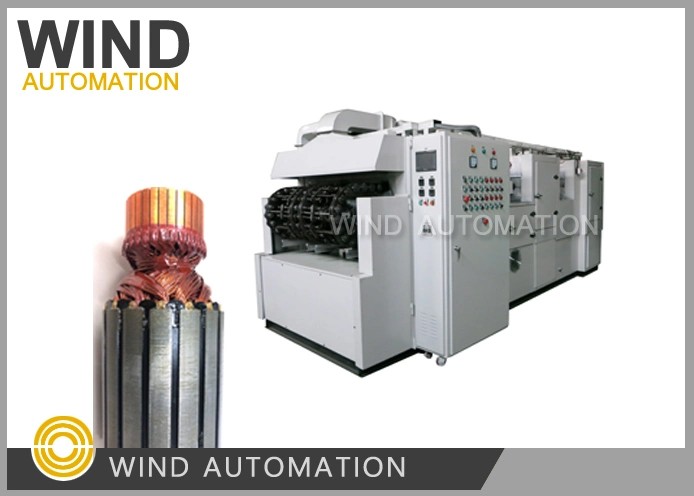

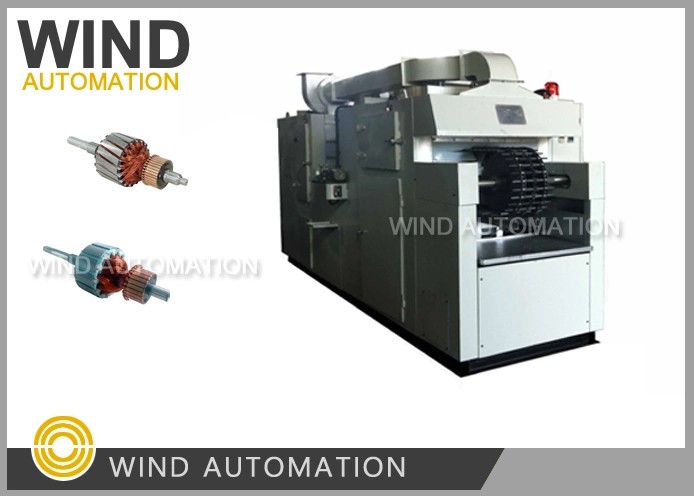

Armature Varnish Trickling Machine Rotor Varnishing Machine
This machine has a wide range of application, suitable for various kinds of rotors, such as starter motor, hybrid motors, home appliance motors, pump motors, vacuum cleaner motors, power tool motors, series motors, vacuum cleaner motor.
(1) Specification
| Working position | 124×2 |
| Position pitch | 76 mm |
| Heating time | ≤45min |
| Tunnel working temperature | 0~160ºC |
| Pitch time | 0~10 adjustable |
| Power | 28 KW |
| Dimension | 4900×1600×2100 mm |
| Weight | 3.5 T |
(2) Application
This machine has a wide range of application, suitable for various kinds of rotors, such as starter motor, hybrid motors, home appliance motors, pump motors, vacuum cleaner motors, power tool motors, series motors, vacuum cleaner motor.
(3) Features
High quality level of the varnishing process
Environment friendly
Heating time, pitch time and temperature can be set
Can be customized accordingly
Mass production

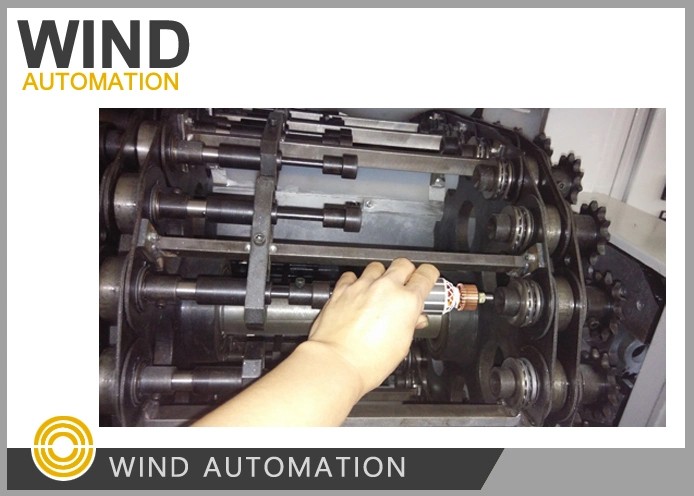

Fully automatic working cycle after loading of the armature
High efficiency, automation and productivity
