Product Description

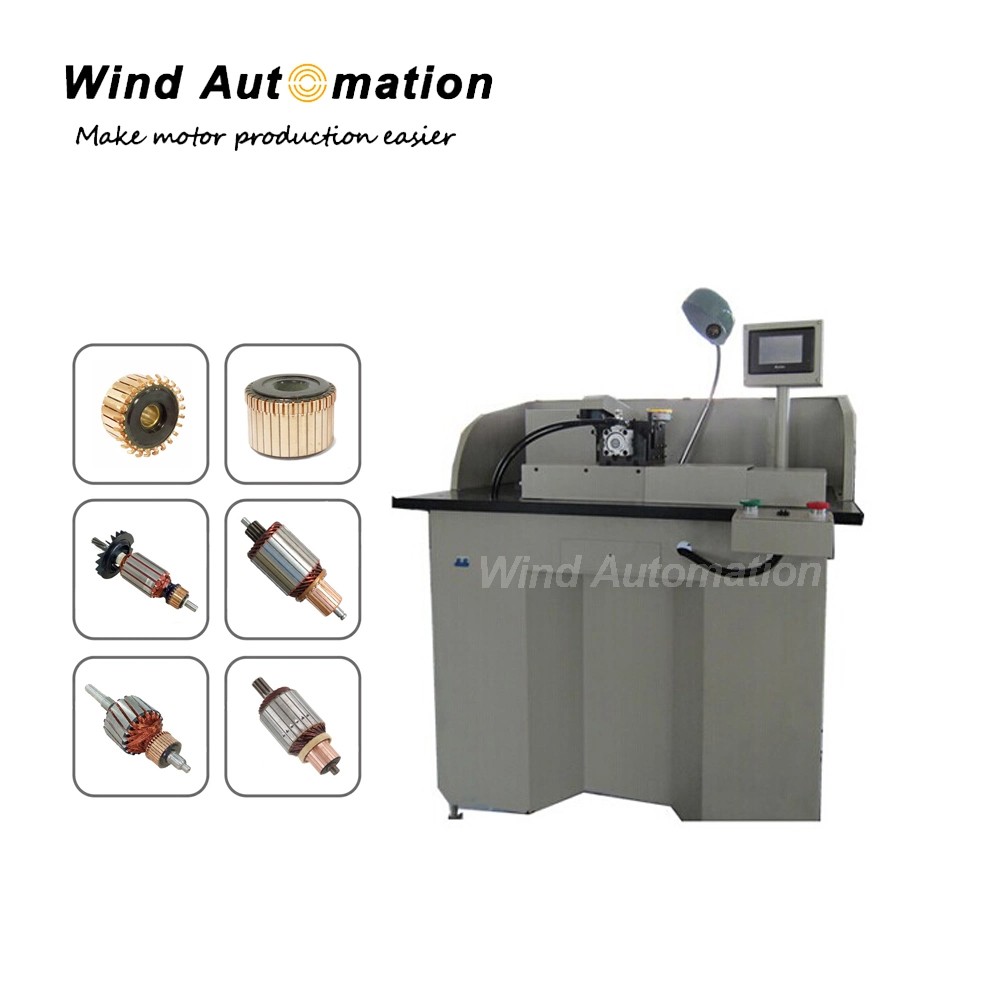

Armature Commutator Turning Machine
This machine can turn both commutator and rotor surface. Different belt and cutter are needed for turning commutator or rotor.
(1) Specifications
| Product name | Armature commutator / collector skimmer |
| Armature diameter range | 71~86mm |
| Armature shaft diameter range | 3-16mm |
| Shaft length range | 290~330mm |
| Cutter linear speed | 50m-1000m/Min |
| Weight each cutting | 0.02-0.2mm |
| Surface roughness | 0.25micron for commutators. and rotor 0.4micron |
| Concentricity | ≤0.005mm |
| Max cutting length | 100mm |
| Belt press time | 0.1s |
| Speed frequency range | 0-60Hz |
| Air pressure | 0.5-0.7Mpa |
| Frequency | 50Hz |
| Motor power | 750W |
| Frequency converting power | 750W |
| Voltage | 240V+/- 10% |
| Machine dimension | 930×630×900mm |
| Weight | 350Kgs |
(2) Application
Suitable for electrical tool, household appliances , vehicle, motorcycle starting engine, mini-engine and so on.
(3) Feature
V type tool holder for turning
PLC control, servo drive
Strong applicability and wide application
Manual loading and unloading
Cutting parameter programmable on touch screen
Quick and easy readjustment for other types of armatures
