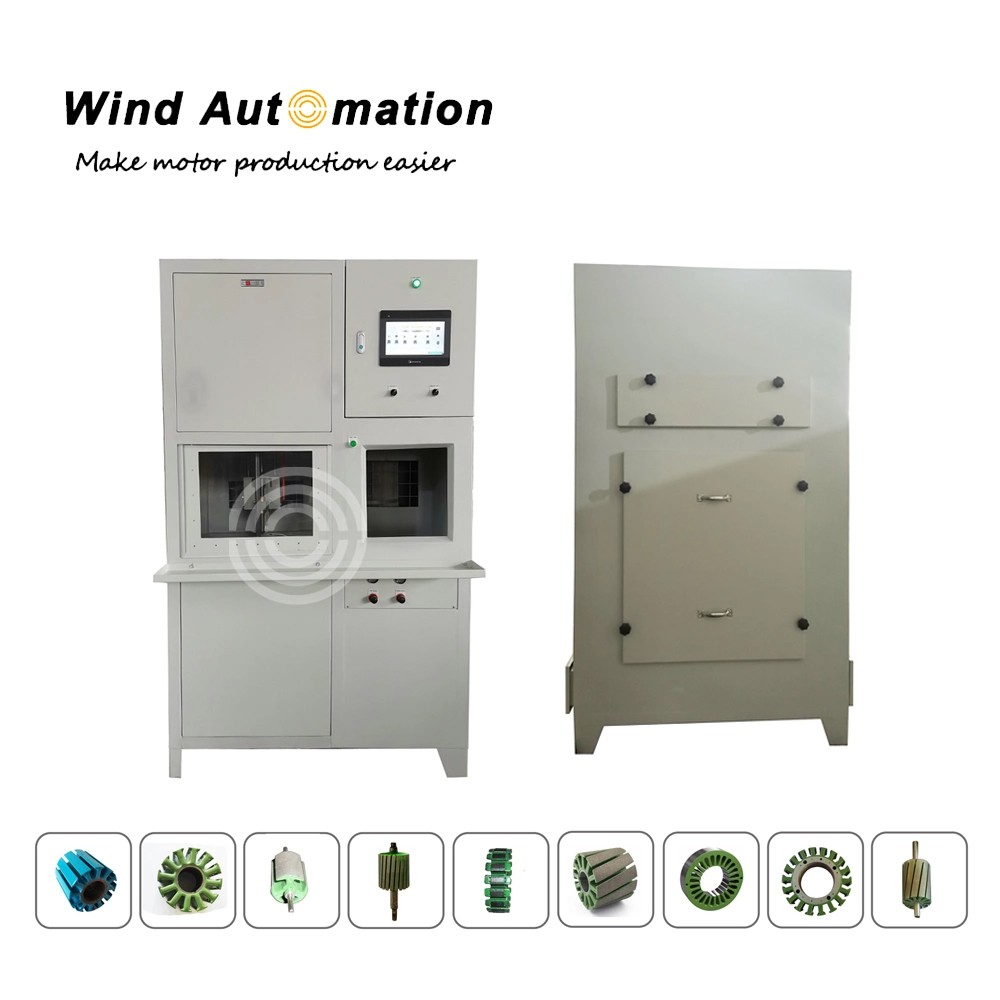

Epoxy Powder Coater Insulation Treatment of Armature and Stator

Epoxy Powder Coater Insulation Treatment of Armature and Stator

This powder coater has  a sepical design of fixture with a  rotation function. It can greatly improve the powder coating effect by rotate 180 degree to evenly coating powder.

(1)Features
Workpiece should be pre-heated.
Manual loading and unloading
Dipping time adjustable on touch screen
Safety door to keep powder contained
With powder recycling function and fixture rotation function
Stator pre-heating temperature is as per customer's requirement, our recommendation is 220-230 degree.


(2)Specification

Ambient temperature-20ºC~40ºC
Relative humidityLess than 80%
Air supply0.6MPa
Power3KW
Power supplyAC 380V ± 10%, 50Hz / 60Hz
Dimensions1200(L)X1280(W)X2060(H) mm


(3) Operation step
Power on machine
Pre-heat stators
Select related stator parameter on touch screen
Load heated stator
Press auto start button
Machine will automatically do powder coating
Unload stator
Remove extra powder by air gun
