Product Description

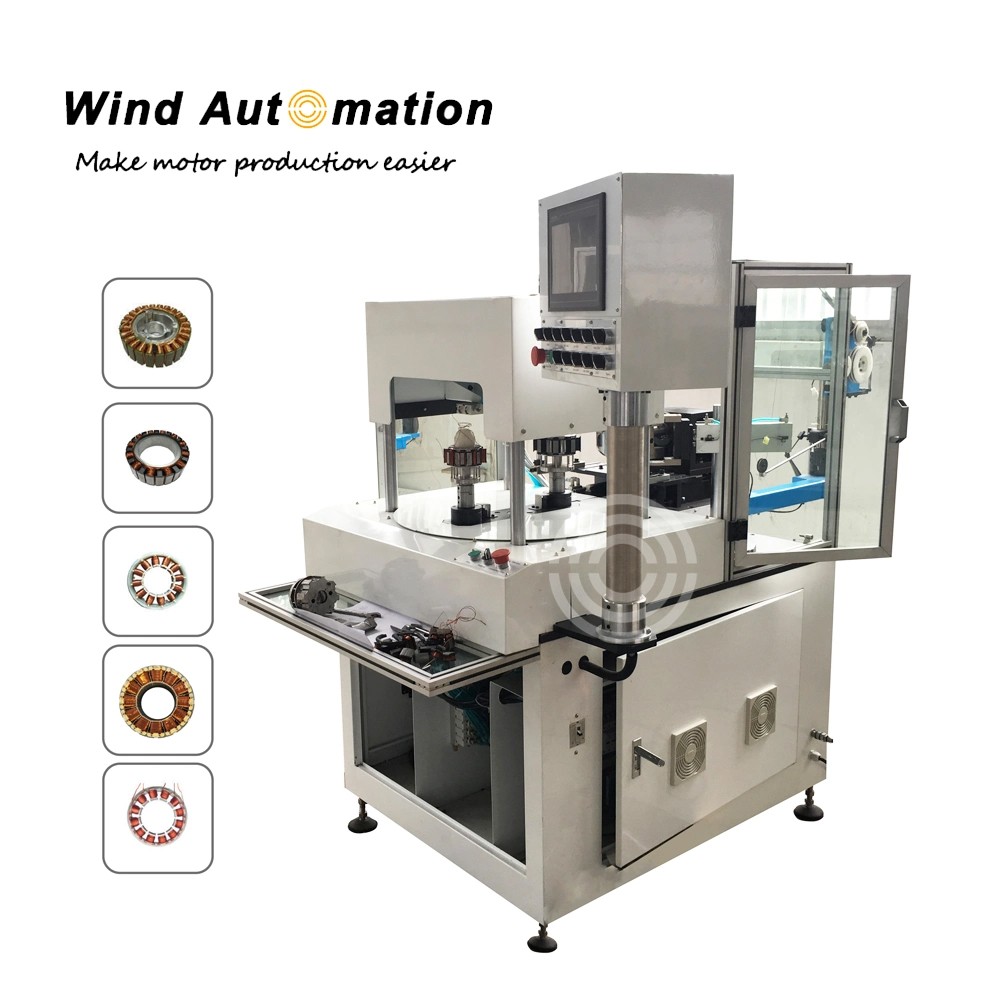

External Rotor Direct Coil Winding Equipment

This external rotor winding machine is a high speed coil winding machine for magnetic motor, digital generator, washing machine motor, air conditioner motor. There are two movement options, stepping or auto mode. The winding speed could reach 1500RPM.

(1) Specification

Wire diameter	0.15~1.50mm
Rotor O.D	15~260mm
Slot number	Multi poles
Turn no	0~99999
Movement	Stepping / Auto
Stack height	7~60mm
RPM	Max 1500RPM
Voltage	220v/50Hz
Power	2.5 KW
Air source	5~7kg/m3
Weight	600Kg
Dimension	1150X2350X1500mm

(2) Application

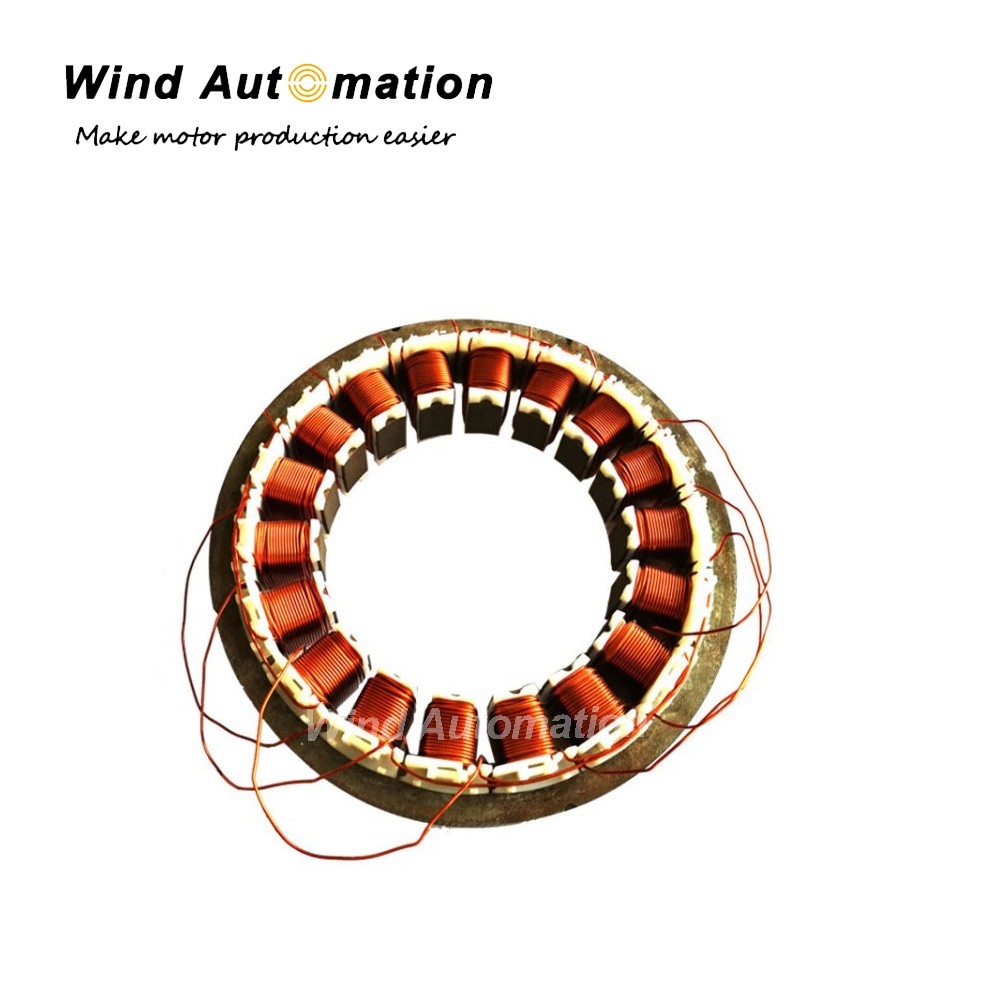

Suitable for magnetic motor, digital generator, washing machine motor, air conditioner motor.

(3) Features
Winding speed up to 1500RPM
Wide wire diameter range
Wide application and strong adaption
Perfect layer winding
Fast retooling
