Hair-Pin-Winding-Machine-for-Bsg-Motor-Armature

Product Description

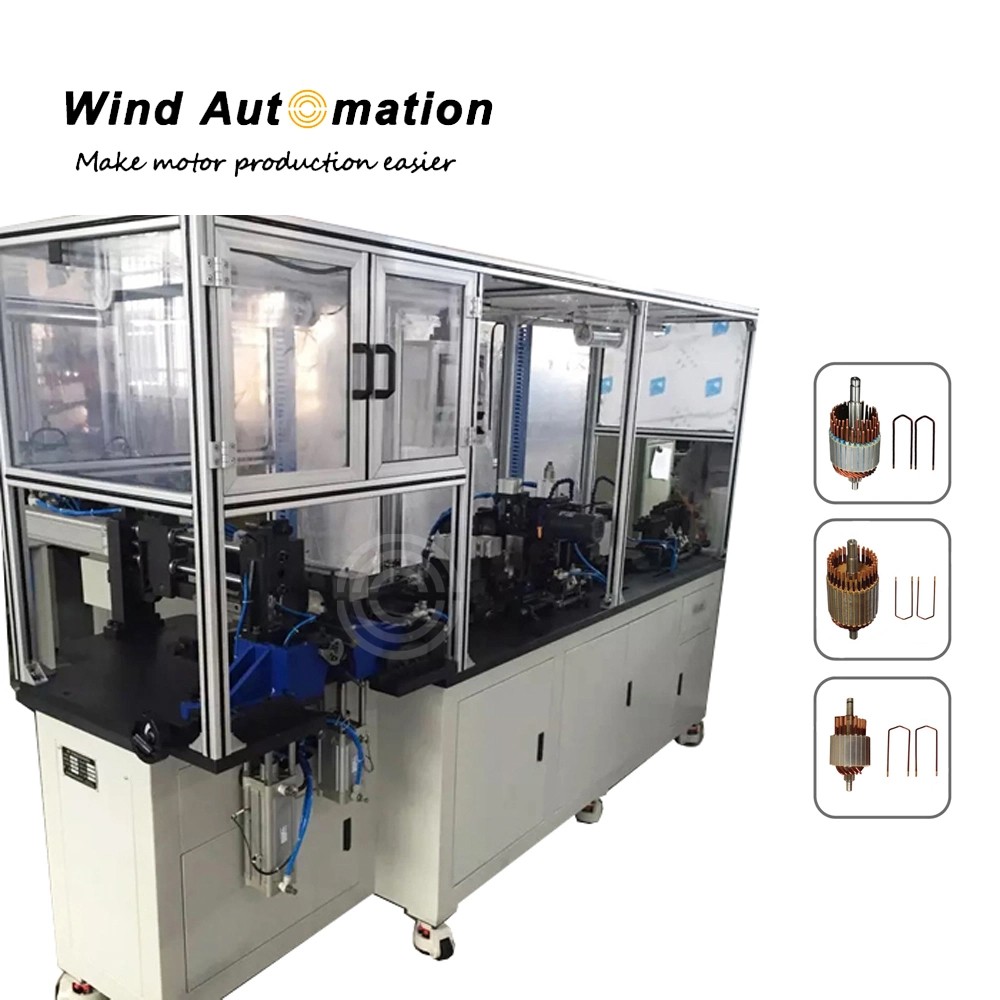

Hair Pin Winding Machine for BSG Motor Armature

This hair pin winding machine is controled by PLC. One operator is quite enough to operate this machine.

(1) Application
Suitable for starter motor, aerospace motor armature to do hairpin coil forming.

(2) Features
Suitable for round wire
Mitsubishi PLC control, colorful touch screen

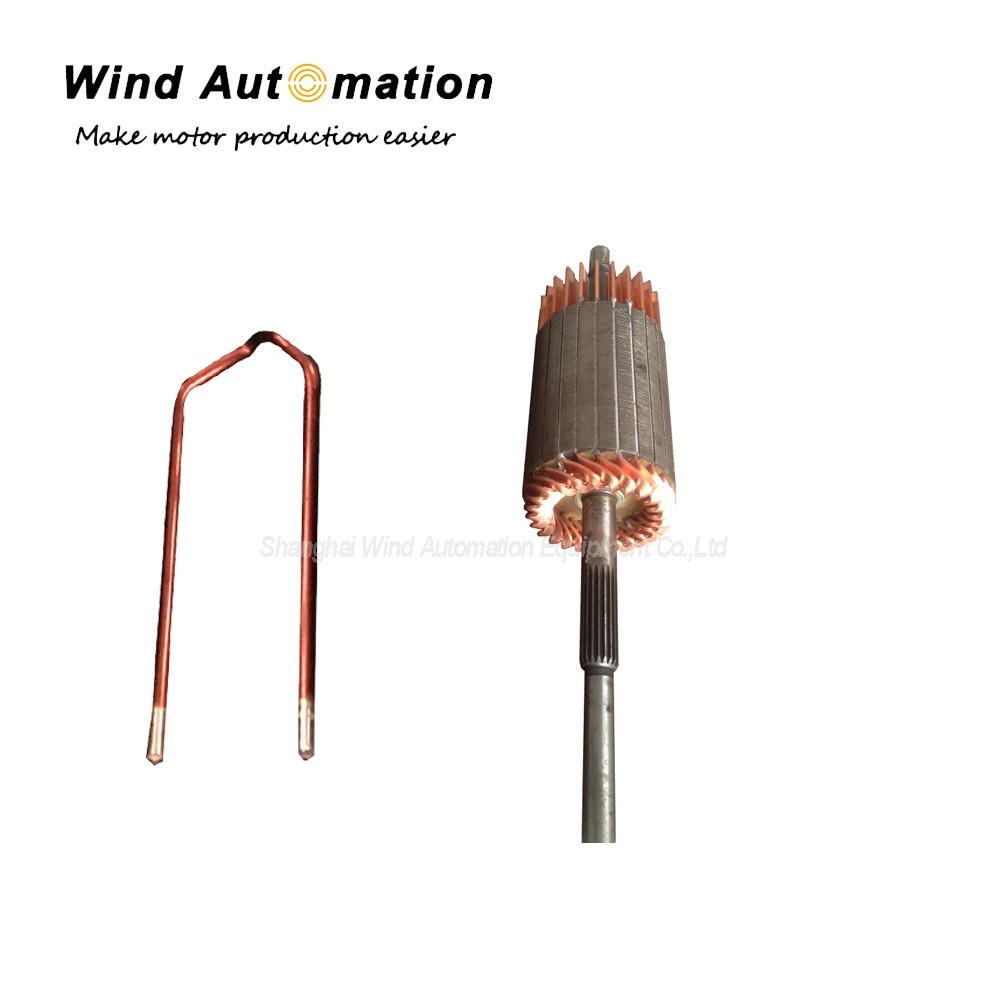

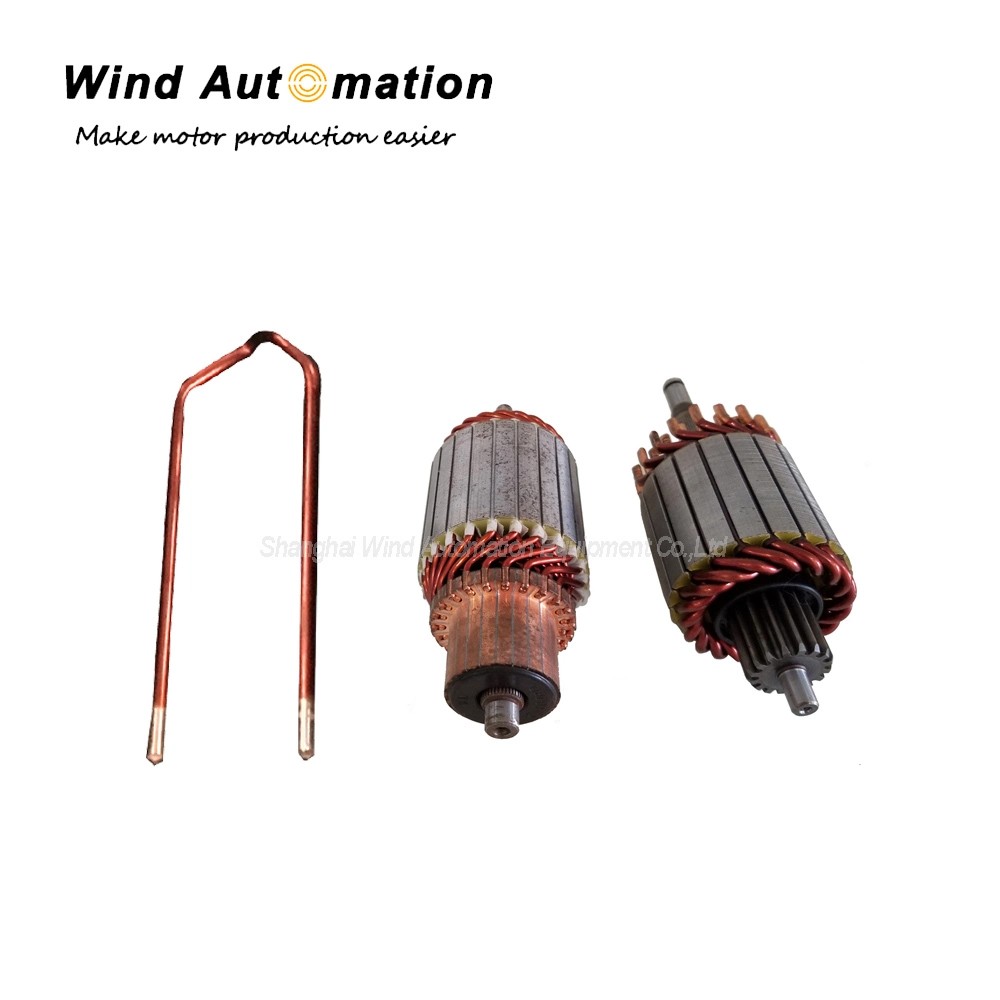

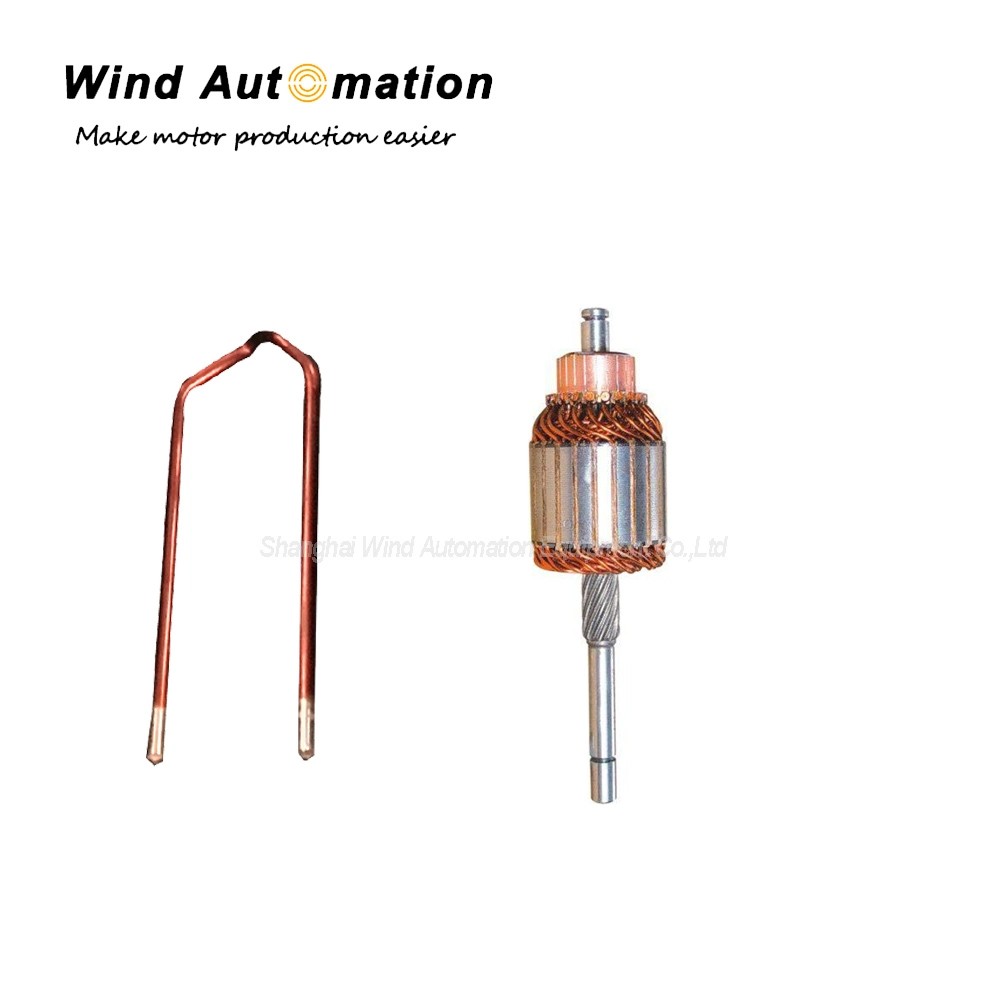

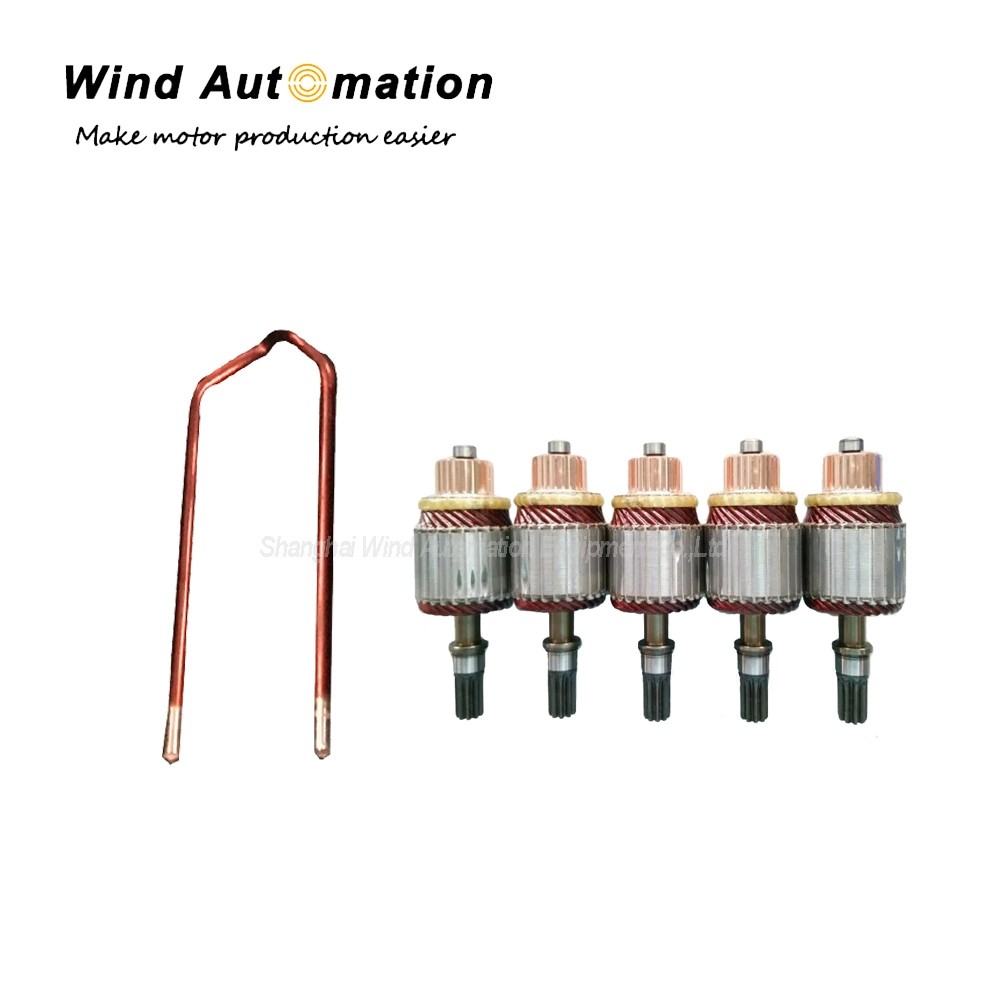

Automatically turn single bare copper wire into formed hairpin coil
High efficiency, automation and productivity, 2.3s/pc
Capable of producing hairpins with customized twisting angle
One operator is quite enough to operate this machine

(3)Specifications

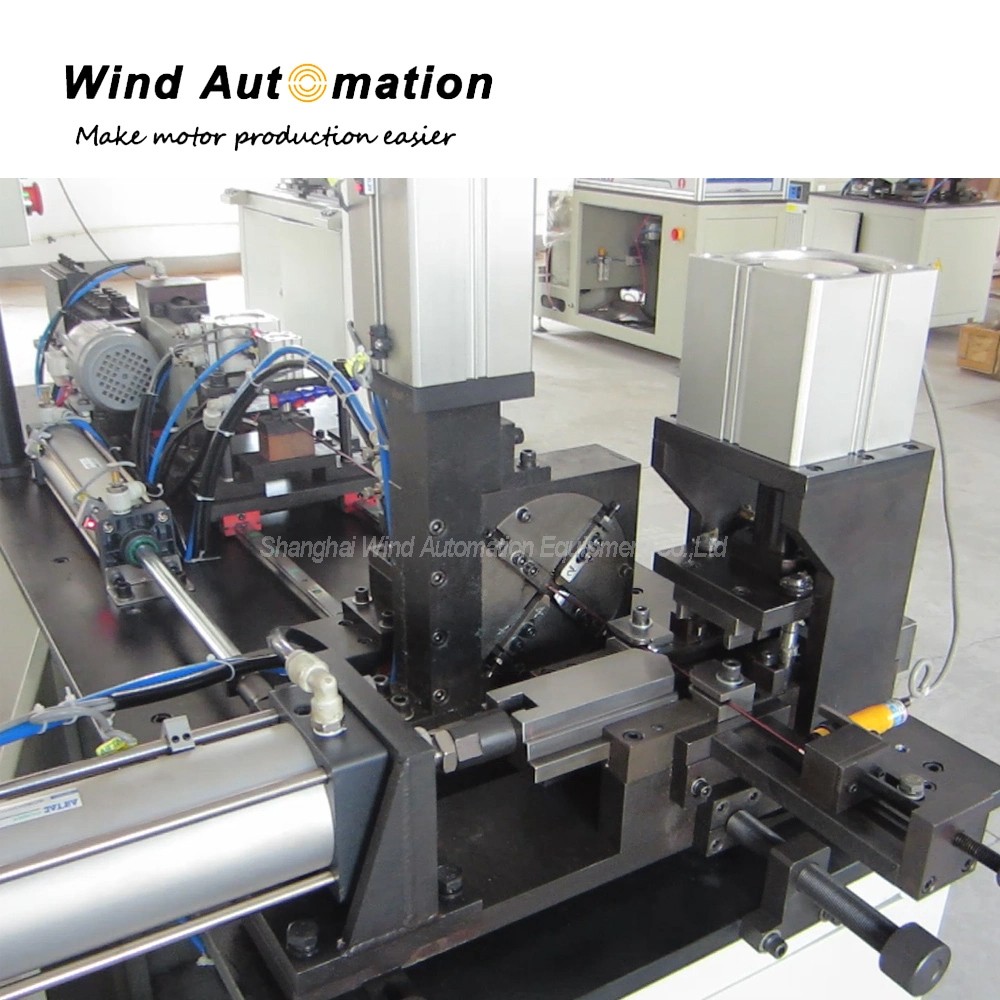

(4)Machine configuration
Mitsubishi PLC Control
WEINVIEW touch screen
Airtac pneumatic unit
SPG enamel remover
Schneider electric components
