Product Description

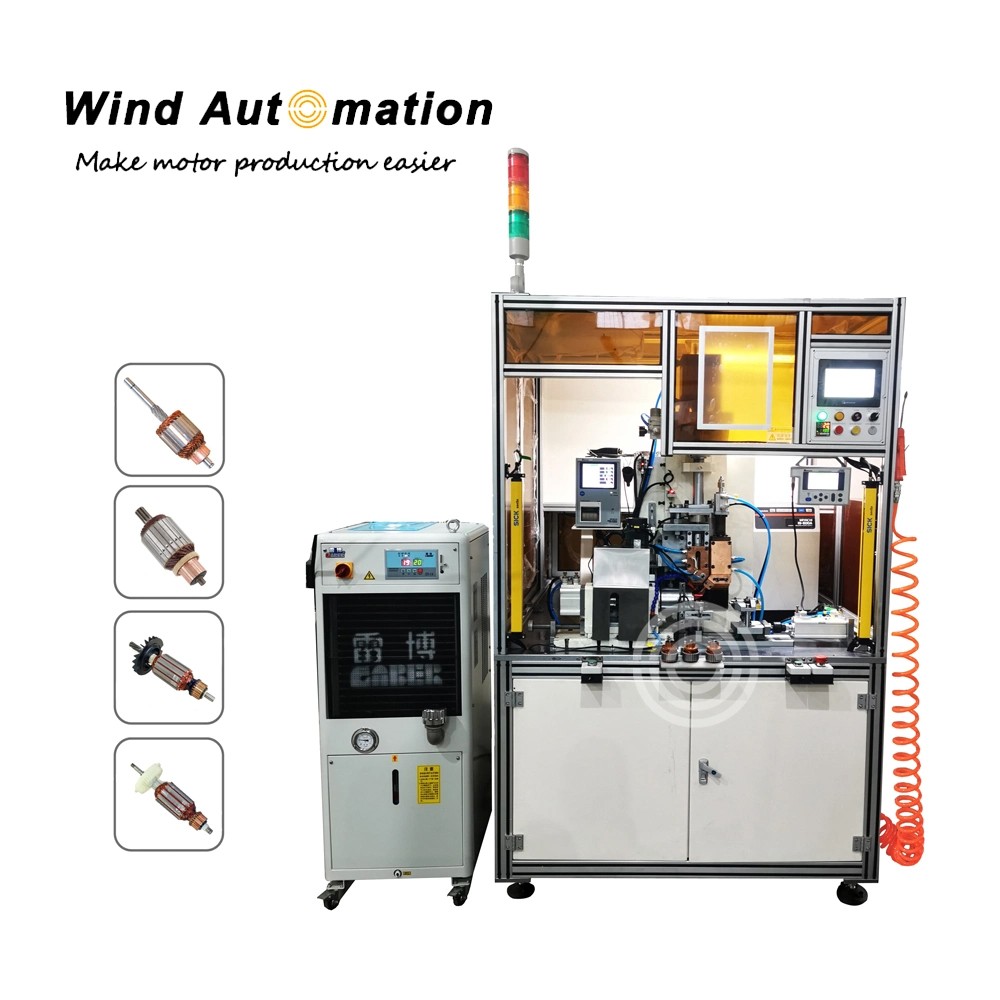

Armature Commutator Spot Welding Machine with AC power

Armature Commutator Spot Welding Machine with AC Power

This series machine is suitable for both hook and riser type commutator to do welding. 40KVA series suitable for round wire within 3.2mm-4mm( AWG8 -AWG6) while,80KVA for flat wire within 2.8mm-7.8mm( AWG9 -AWG1). It can weld 23 slots armature within 50 seconds.


(1)  Features
Suitable for armature with both flat or round wire
Suitable for both hook or riser type commutator
Fully automatic welding cycle after loading of armature
Water cooling system prevents overheating
Memory storage of welding and commutator's parameters
Can be customized accordingly
High quality level of the commutator welding process



(2) Specification

ItemWIND-DNZ-40
Fusing Rated power (KVA)40
Power supply (3phase)380V, 50Hz
Max. starting current6A
Max.short circuit current9KV
Rated load duration20%
Secondary voltage4.8V
Welding cylinder dimensionf 100*50
Electrode sizef10*100
Fusing machine dimension1200*720*1720


(3)Application
This machine is suitable for starter rotors, automotive car motor.
 Starter motor armature with round wire, flat wire

Armature Commutator Spot Welding Machine with AC Power


(4)Advantages of welding machine





Fusing Quality Assured



Motor manufacturer use it for 8 years only replace parts two times,

one time is valve replace, the other time is relay replacement





Wide Application



Copper wire wide adaption below 3.2mm to 2.8*7.8mm





Easy to Operate



Easy for the operator to set with Miyachi controller CT110 which is widely used in fusing machine




(5)Welding machine series parameter



Fusing Power supply and parameterWIND-DNZ-40WIND-DNZ-60WIND-DNZ-80
Fusing Rated power (KVA)406080
Power supply (3phase)380V, 50Hz380V,50Hz380V,50Hz
Max. starting current6A7A8A
Max.short circuit current9KV11KV13KV
Rated load duration20%20%20%
Secondary voltage4.8V5V5.2V
Welding cylinder dimensionf 100*50f125*50f125*50
Electrode sizef10*100f10*100f10*100
Fusing machine dimension1200*720*17201200*720*17201200*720*1720mm



(6)Welding cycle time & Feature
Commutator spot welding WIND-DNZ machine fuse 23 slots armature within 50 seconds,



Armature Rotor Commutator spot welding fusing machine 15KW,25KW,32KW,75KW series per armature copper wire diameter size, suitable for weldling hook type or with conventional slot groove commutator starting motor armatures,

40KVA(3.2mm AWG8 round wire, Max 4.0mm AWG6)

80KVA (2.8*7.8mm AWG9*AWG1 flat wire)





Armature Commutator Spot Welding Machine with AC Power
Armature Commutator Spot Welding Machine with AC Power
Armature Commutator Spot Welding Machine with AC Power
