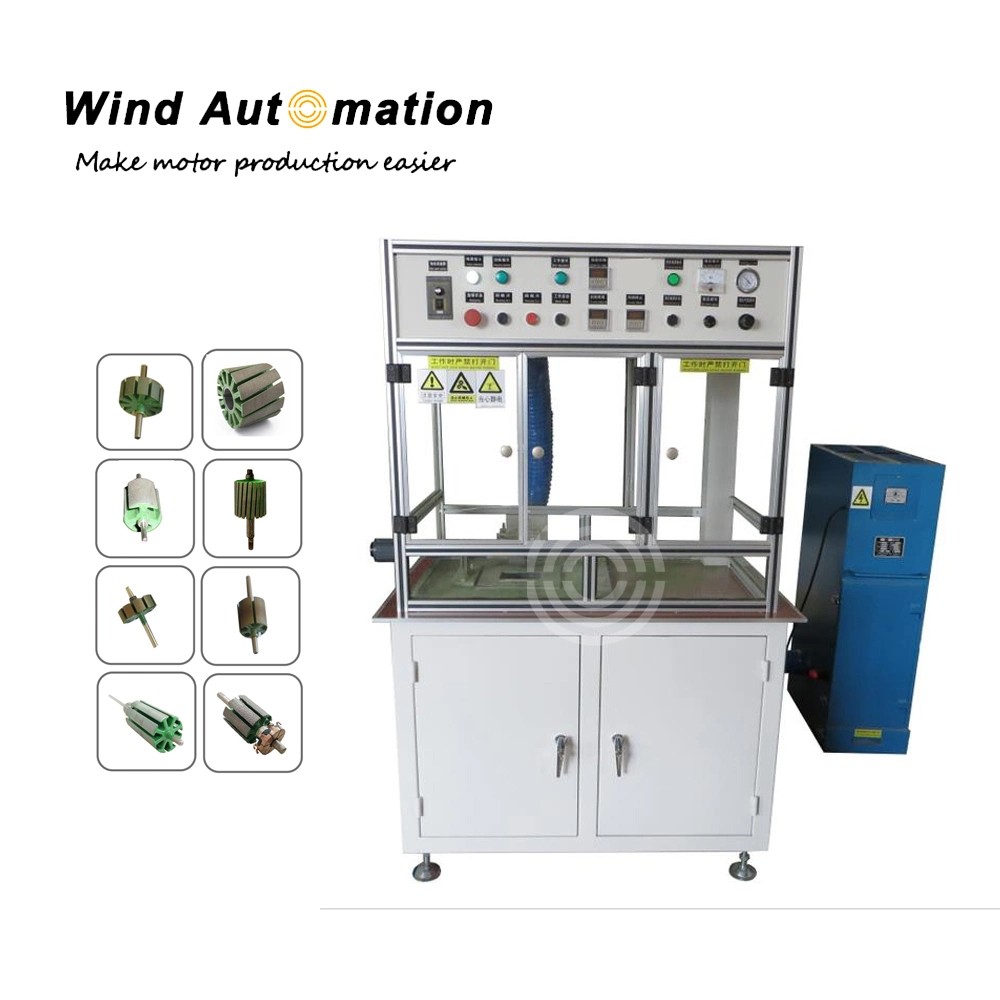

Lab Use Electro-Static Armature Slot Powder Coating Machine
This type of powder coating machine is suitable for small batch purpose, especially for lab. Powder coating thickness is adjustable as per different needs.
(1)Specifications
| Model | 100 | 80GG | 80GD | 50H | Lab model | note | |
| Part size | Max OD | 160 | 120 | 120 | 100 | 200 | Is able to be tailored produced |
| Max core length | 50 | 50 | 50 | 50 | 80 | ||
| Max shaft length | 180 | 180 | 180 | 180 | 180 | ||
| transfer speed m/min | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | Electronic driving | Stepless adjustable | |
| output(pc/h) | 2500 | 1500 | 1500 | 800 | 10-60 | фMax≤20mm | |
| Curing method | High frequency | High frequency | High frequency | Curing oven | Curing oven | Oven is prepared by customer | |
| Coating thickness(mm) | Adjustable within 0.15mm - 0.5mm | ||||||
(2) Features
Suitable for small batch purpose
High quality level of the powder process
Provide customized service
Electrostatic powder coating method
Coating thickness is adjustable
