Segment-Winding-Machine-Tooth-Coil-Winding-Machine

Product Description

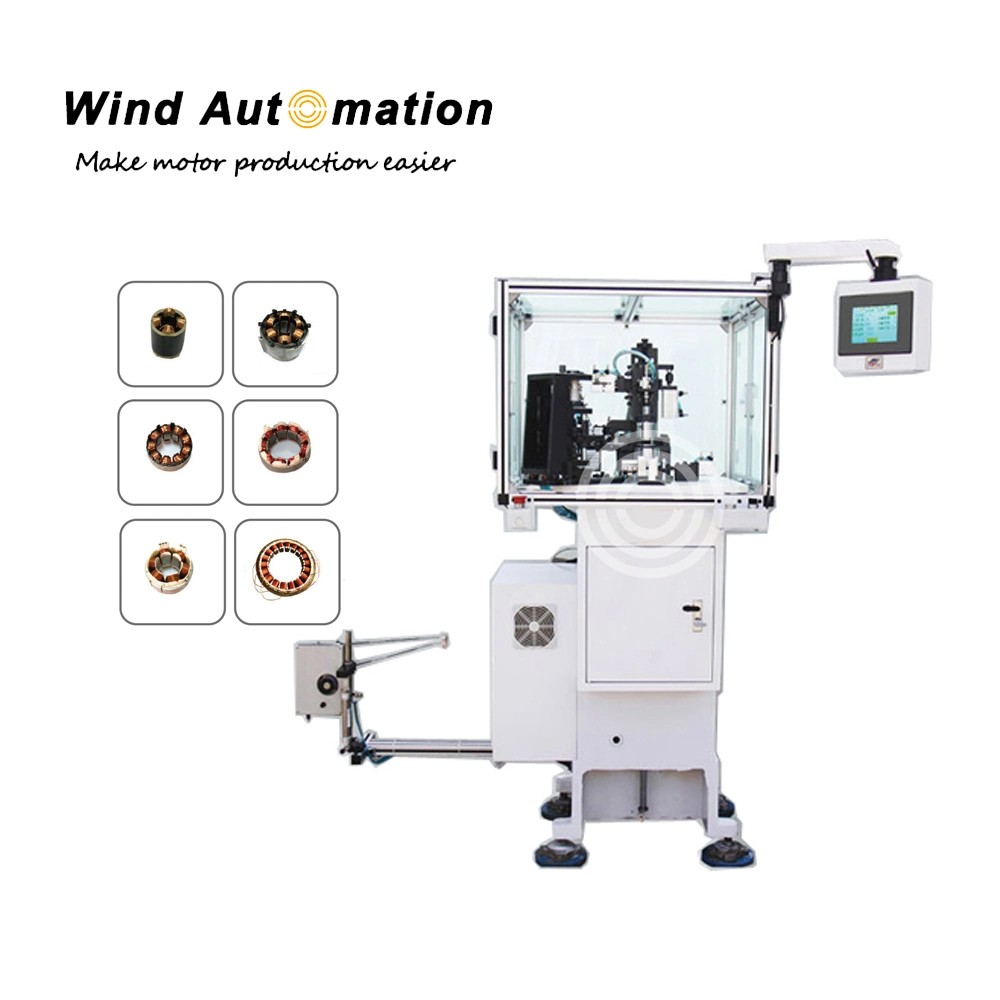

Segment Winding Machine Tooth Coil Winding Machine

This tooth coil winding machine adopts a rectangle shape winding track, greatly improving machine productivity and winding quality.  Wind Automation also provides customer with customized service, if stator beyond the specification listed blow.

(1)Specification

(2)Application

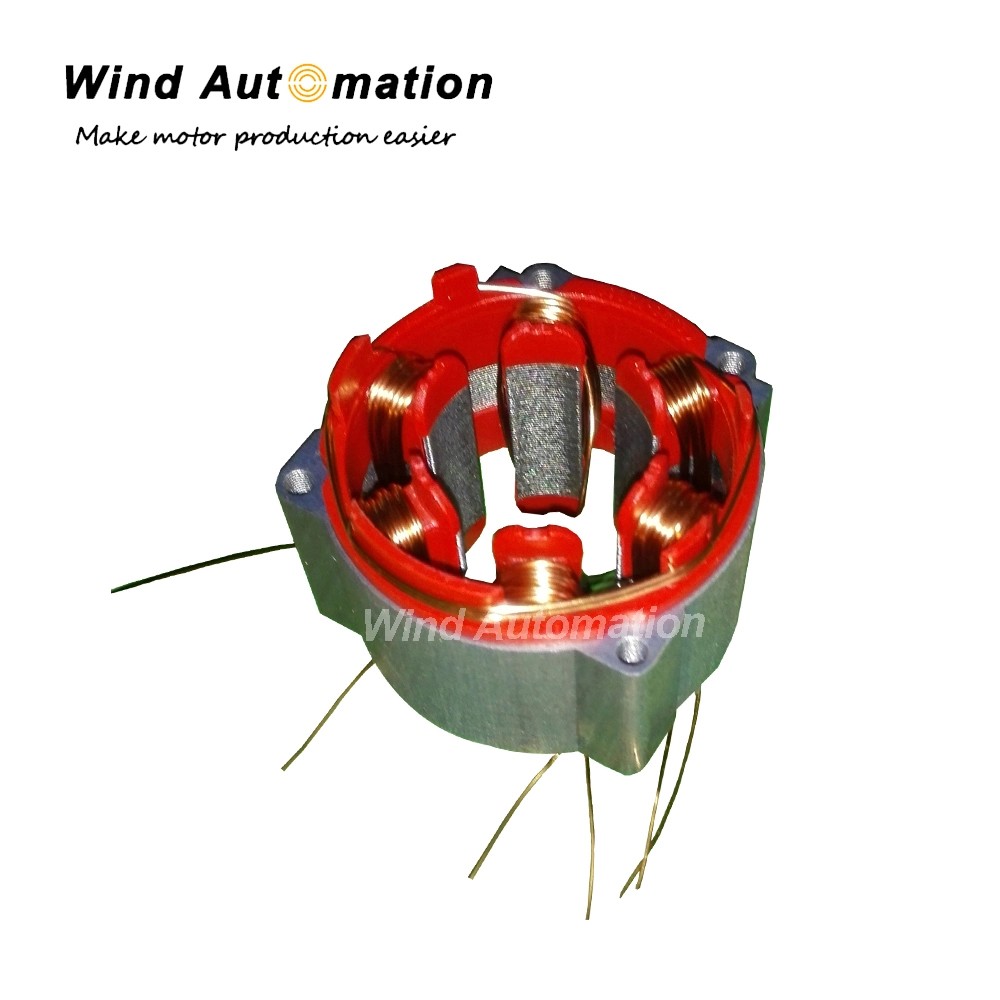

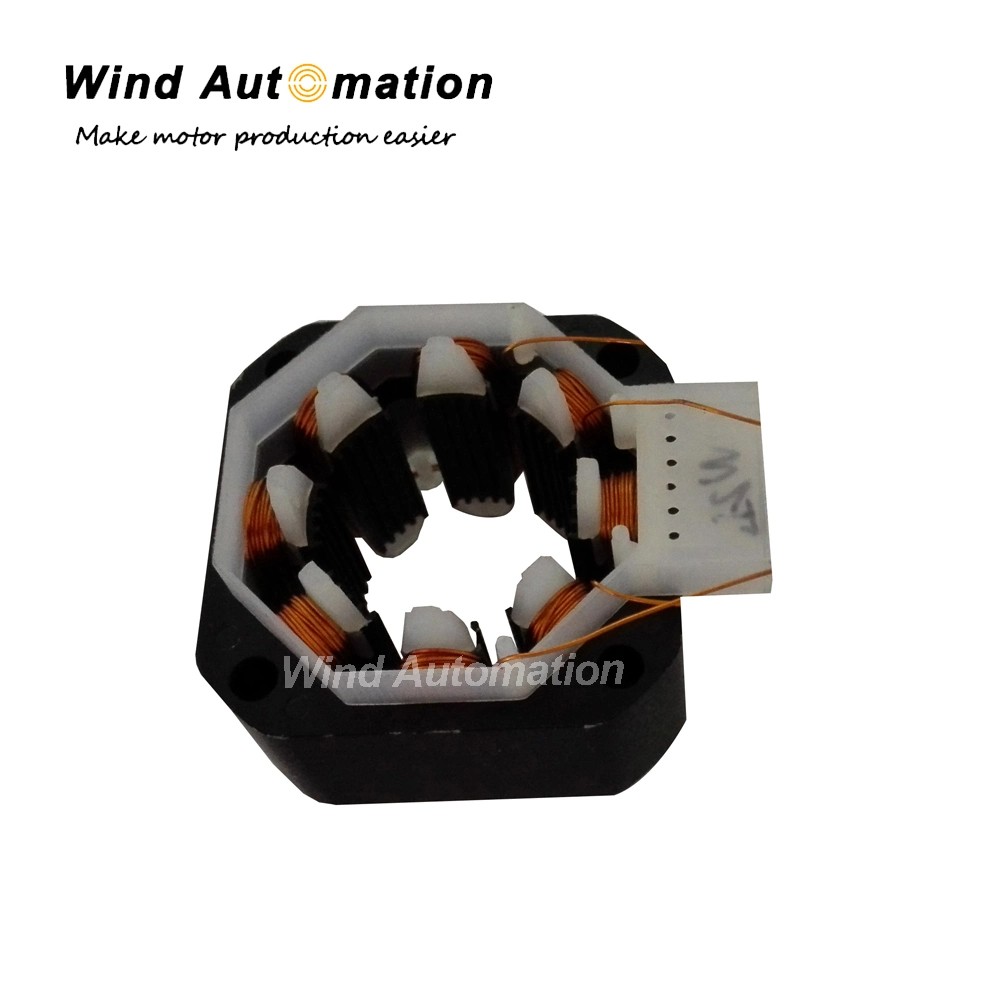

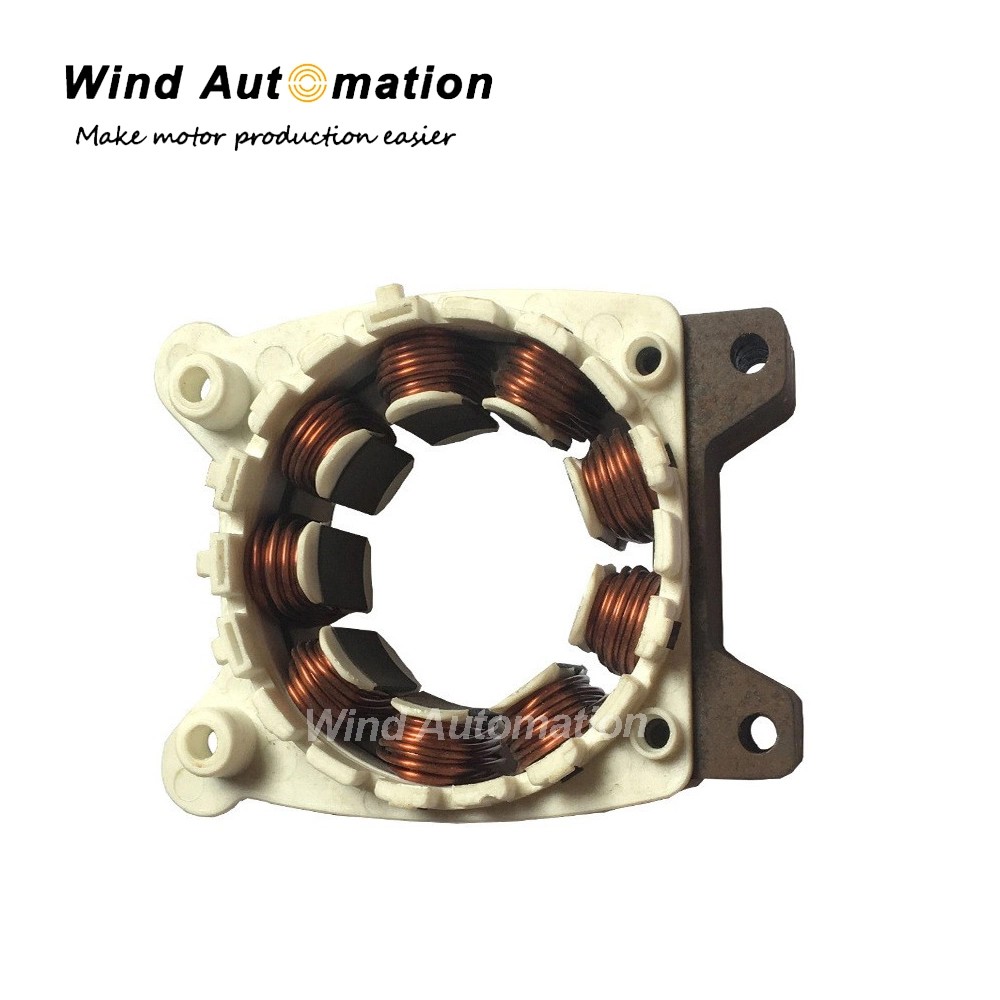

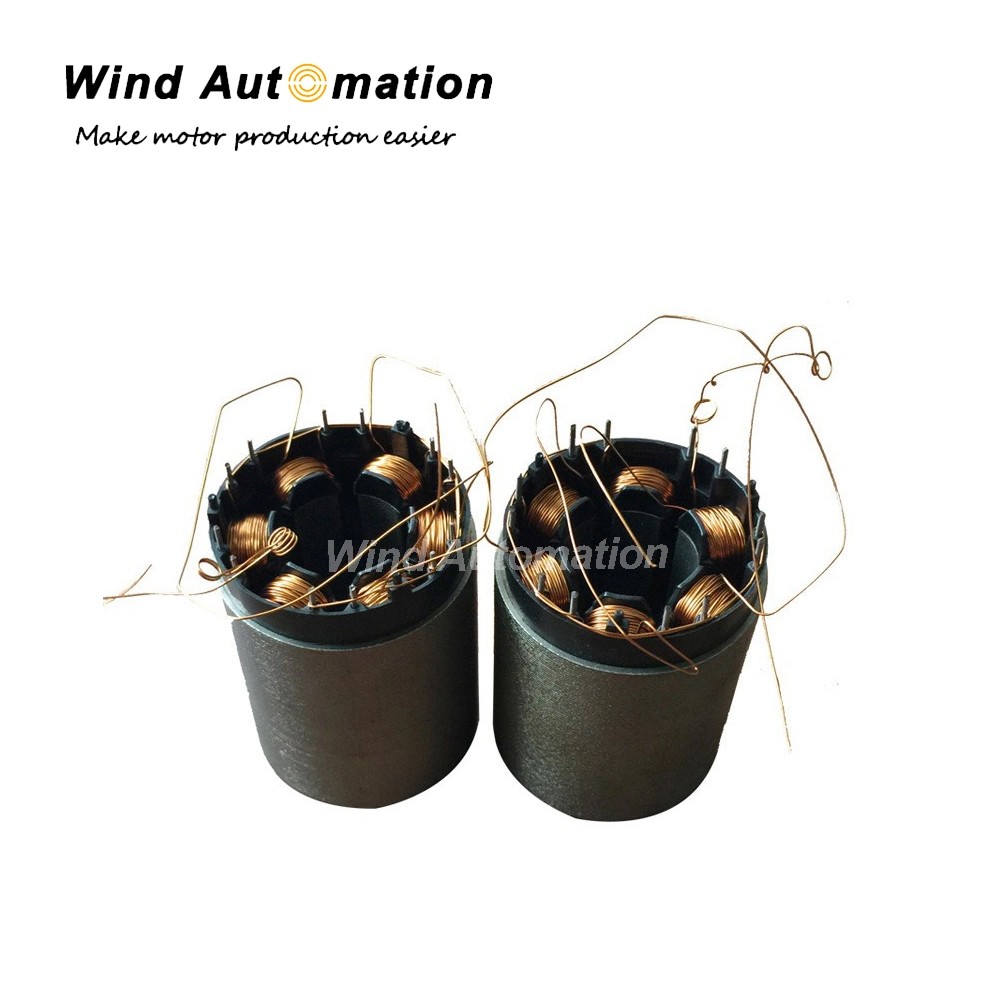

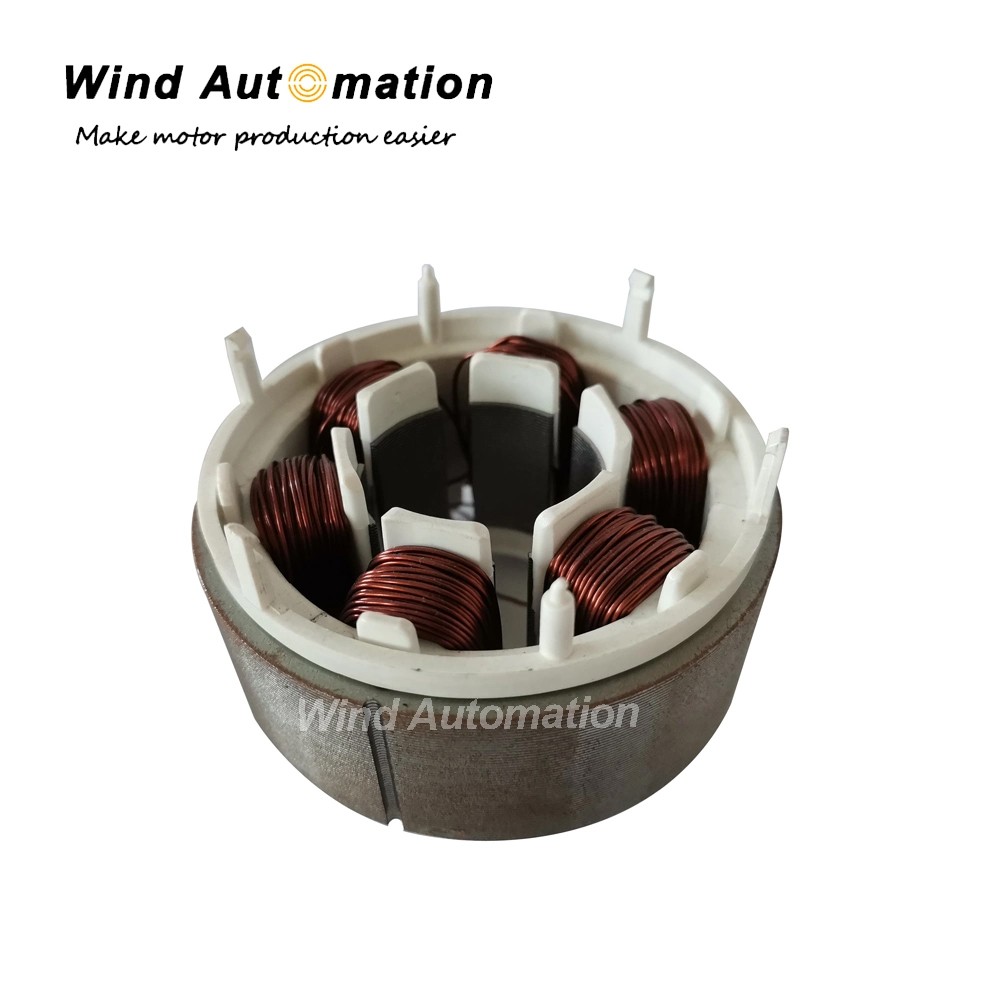

Suitable for various types of multi-poles stators, stepping motor, BLDC motor regardless of wire diameter.

(3)Features
Rectangle winding track
Fully programmable operation
Can meet high winding requirements
Precision performance of needle winding
Quick change-over of tooling
Suitable for stators with narrow slot width but high slot filling rate

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and dual spindle synchronous control unit
Lubrication system
