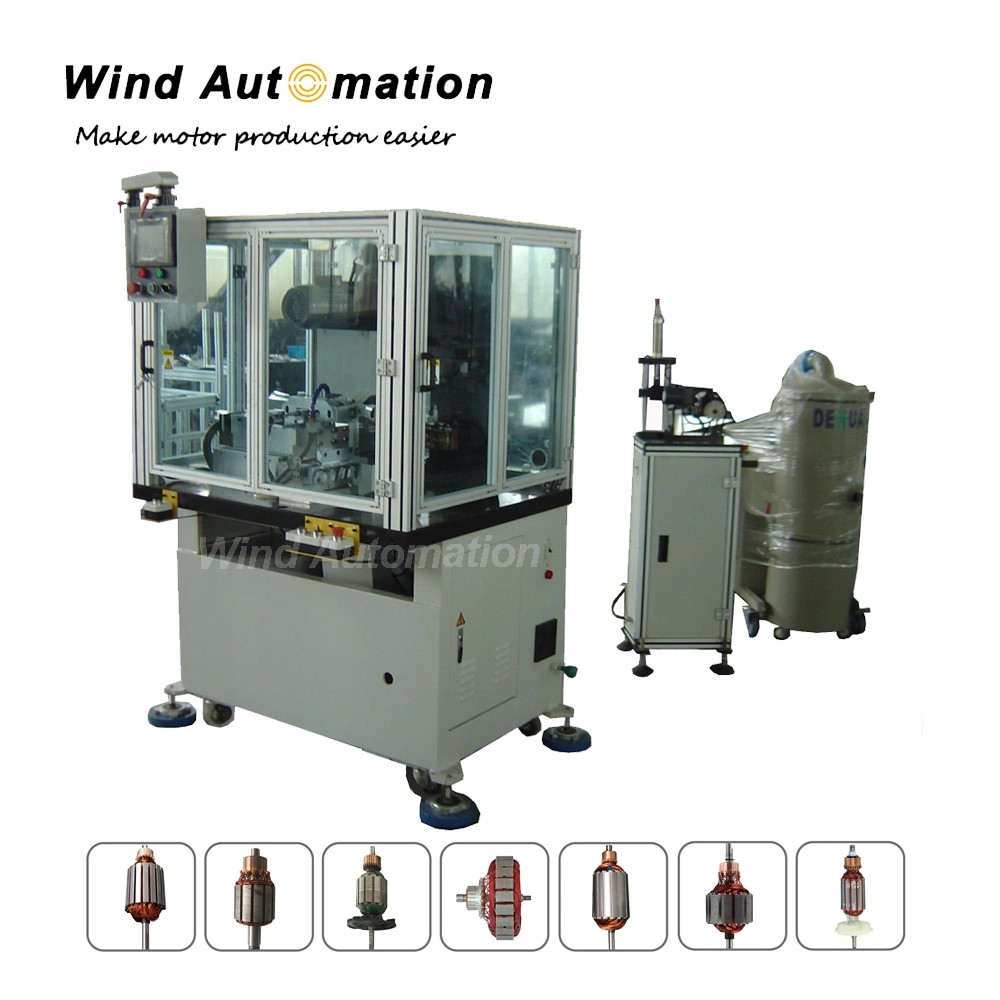

Servo Cutter Commutator Surface Cutting Turning Machine

Servo Cutter Commutator Surface Cutting Turning Machine

This machine is designed for armature with outer diameter within 20 to 80mm and commutator outer diameter within 4.3 to 60mm

(1) Feature
V type tool holder for turning
PLC control, servo drive
Strong applicability and wide application
Manual loading and unloading

Cutting parameter programmable on touch screen
Quick and easy readjustment for other types of armatures

(2) Specifications

Roundness:<=0.003mm
Surface roughness:<=Ra0.40
Rotor outer diameter:Ф20-Ф80mm
Rotor shaft length:32-250mm
Rotor shaft diameter:Ф2-Ф18mm
Commutator outer diameter:Ф4.3-Ф60mm
Armature ODФ20-Ф90mm
Turning capability:rough turning Max0.20mm diameter
Speed amplitude modulation:0-60Hz
Feeding unit:1μm-0.5mm arbitrary
Cutting length:Max50mm
Feeding speed:Stepless adjustable
Control mode:stepping, automatic
Operation method:Touch screen operation
Air source pressure:5-7kg/cm²
Turning times:1-4 Any setting
Fixture:Diamond V-shaped Frame
Total power:2Kw
Power source:AC220V 50/60Hz


(3 Application
Suitable for electrical tool, household appliances , vehicle, motorcycle starting engine, mini-engine and so on.
