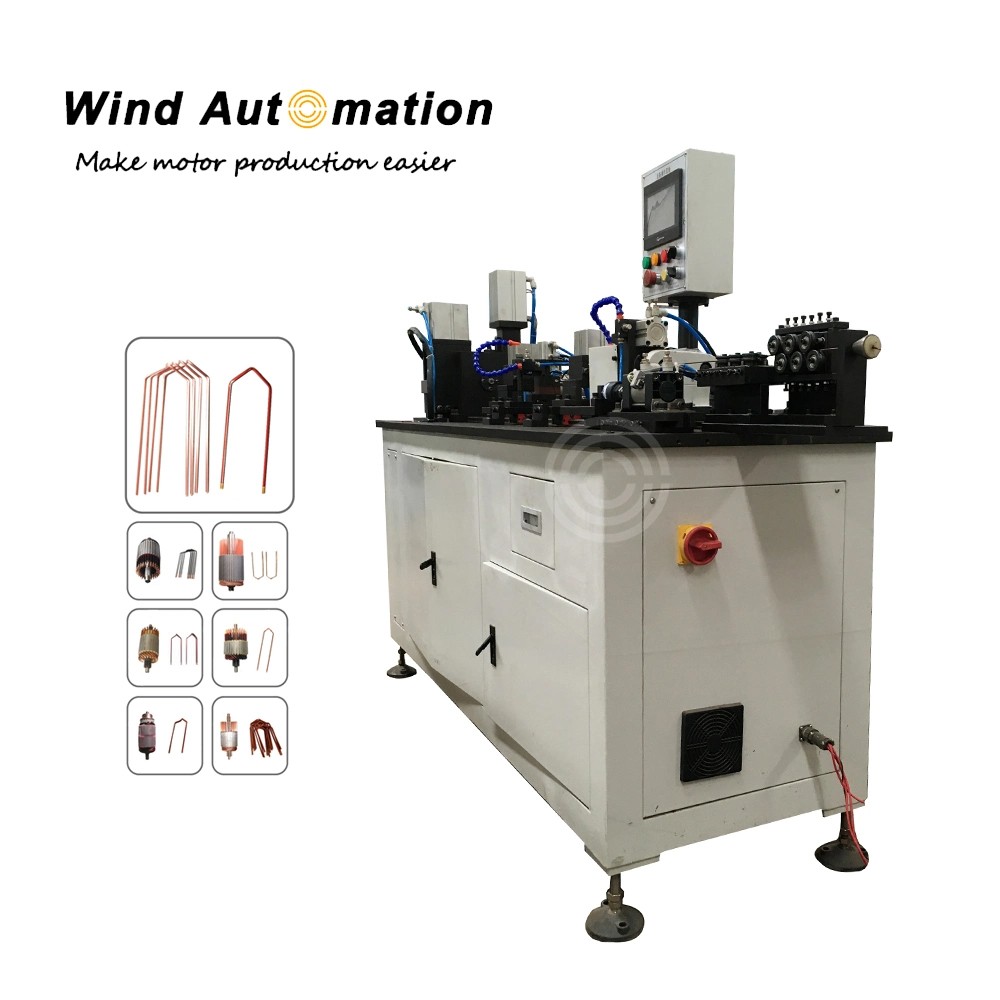

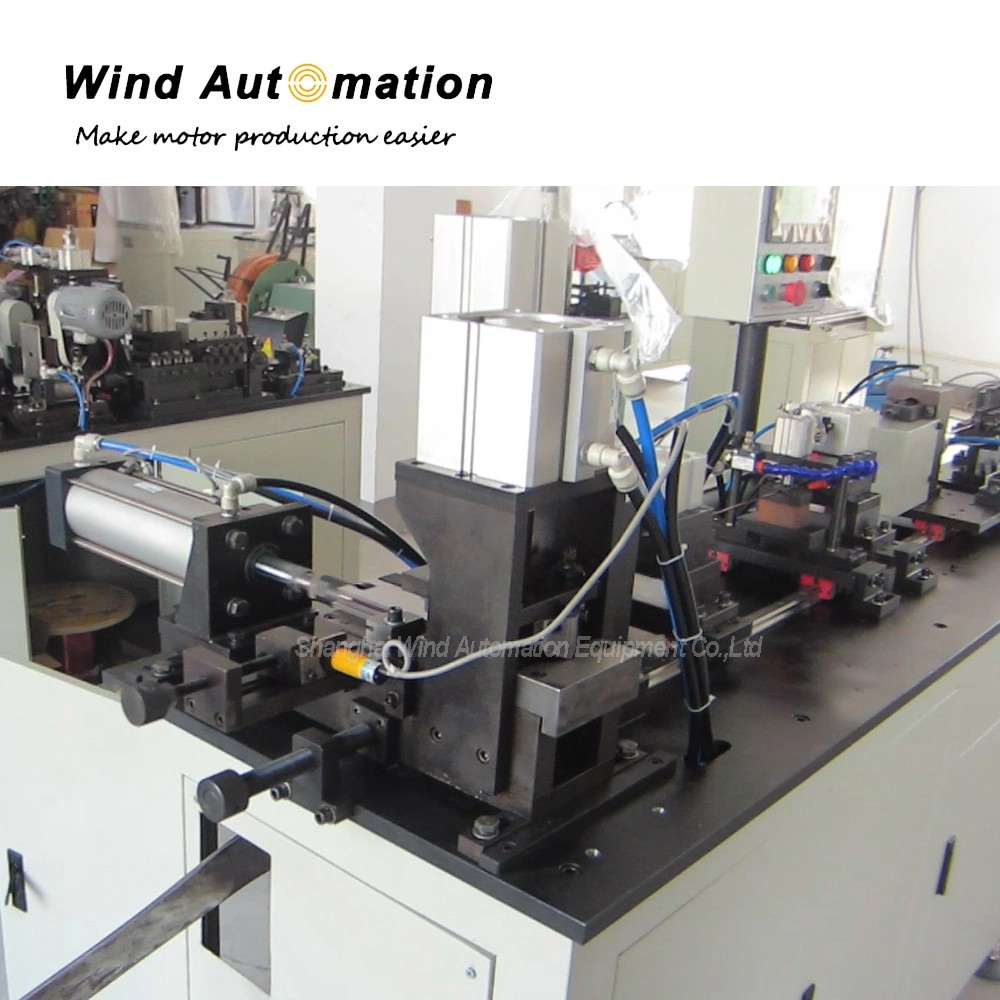

Hairpin Winding Rectangle Wire Forming Machine

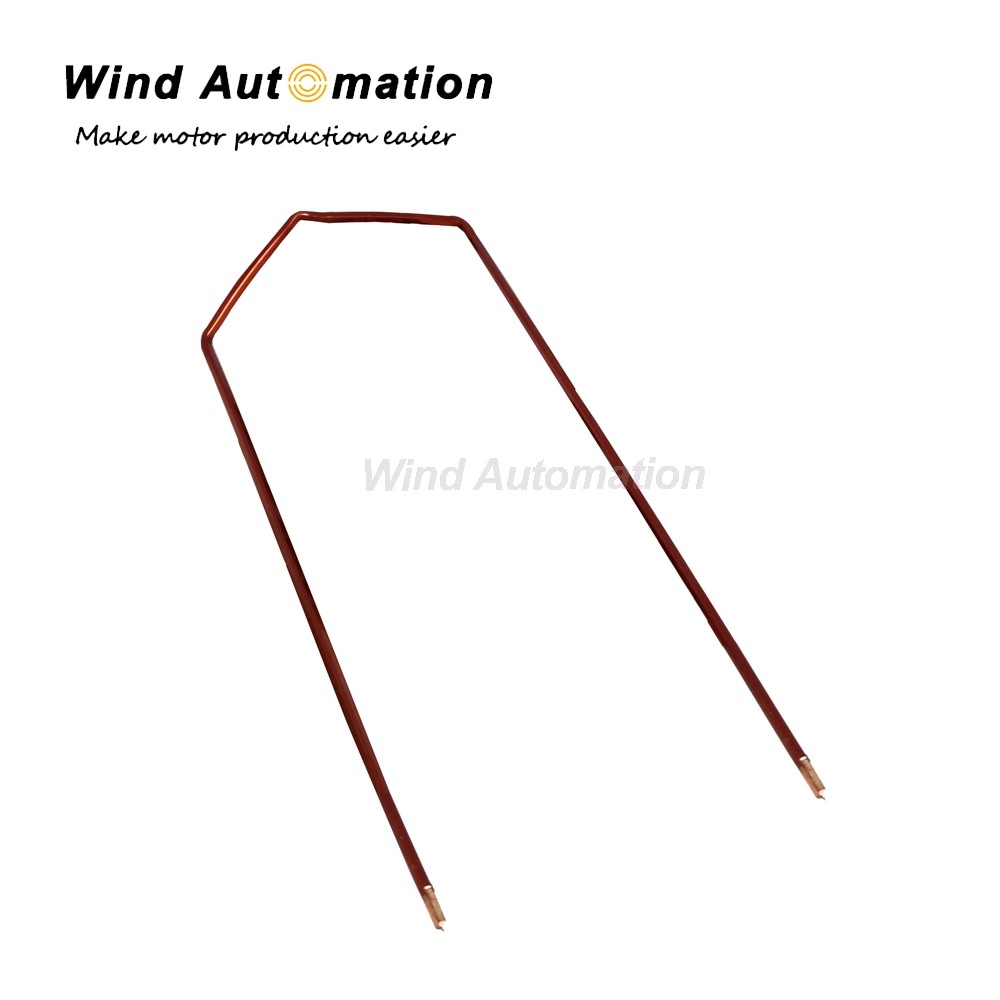

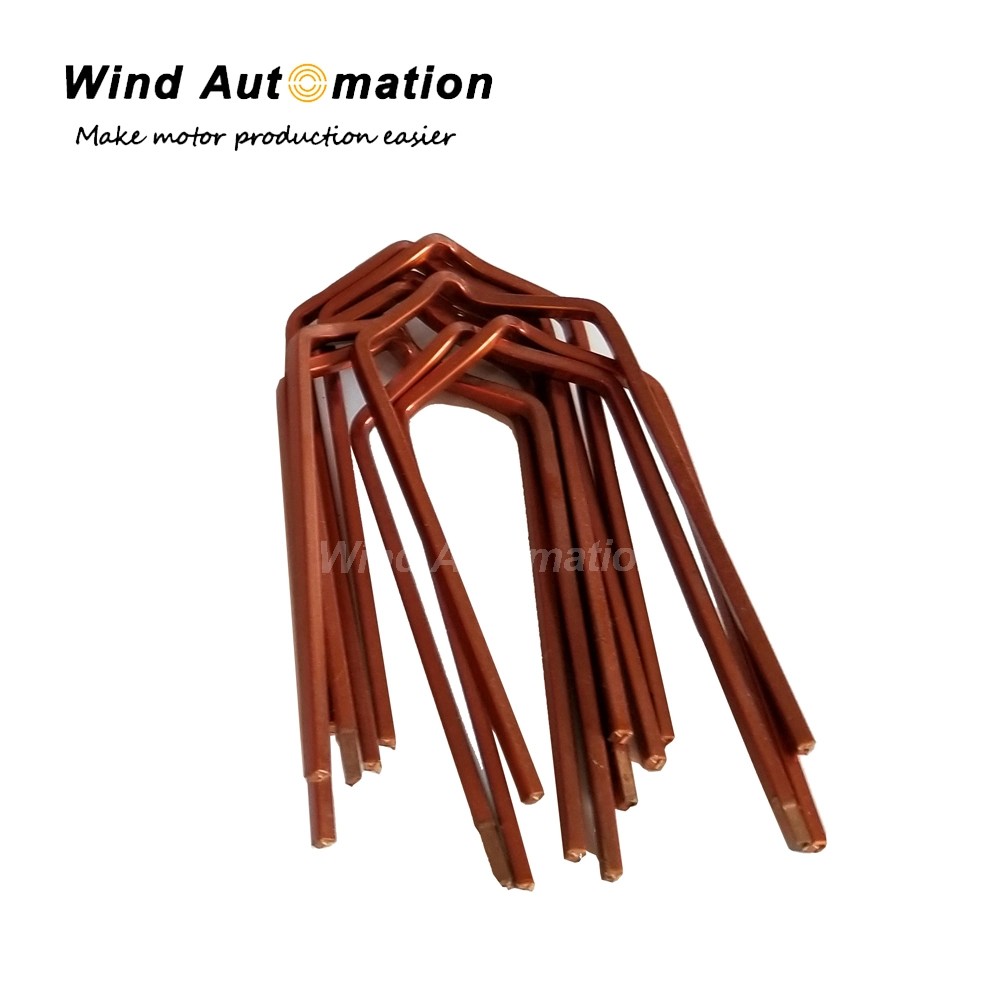

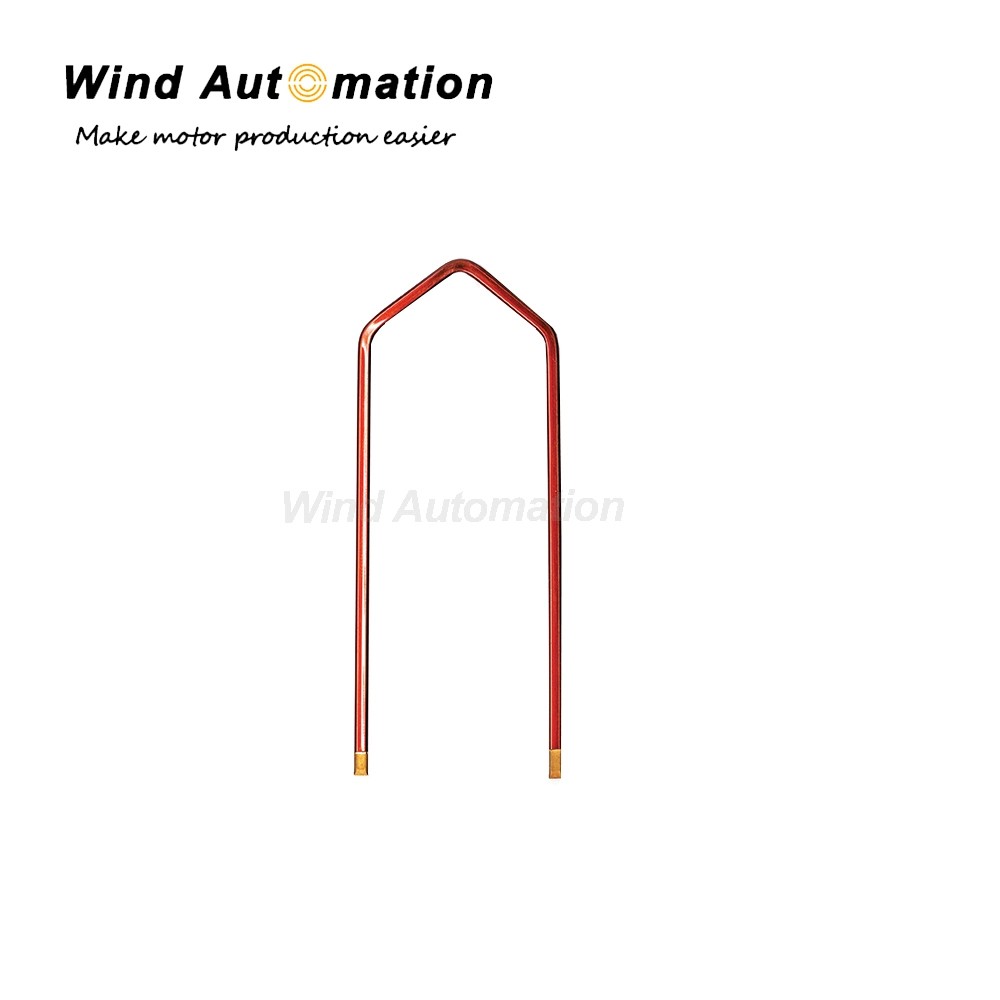

This wire forming machine is suitable for big power, large wire size coils to do hairpin forming. Tooling changeove is fast and easy.
(1) Specification
| Power Supply | AC220V±10% 50Hz |
| Air Pressure Supply | ≥0.5Mpa |
| Rated Capacity | 800W |
| Feeding Length | 0~350mm |
| Productivity | 3s/pc |
| Weight | 1000KG |
| Dimension | 2000x700x1600 |
(2) Application

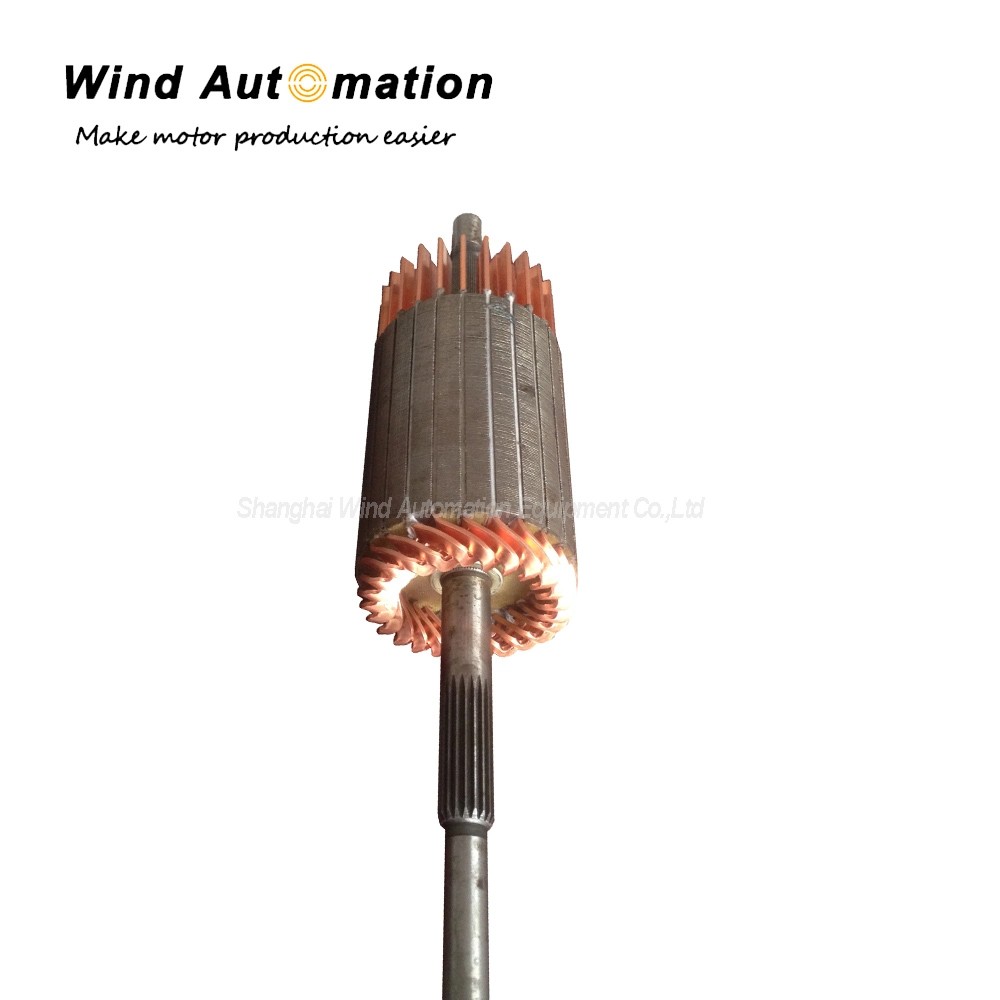

Suitable for starter motor, aerospace motor armature to do hairpin coil forming.
(3) Features
Suitable for flat wire
Mitsubishi PLC control, colorful touching screen
Capable of producing conductor with customized twisting angle
One operator is quite enough to operate this machine
