Flat-Wire-Conductor-Coil-Forming-Machine-for-Starter-Motor-Armature

Product Description

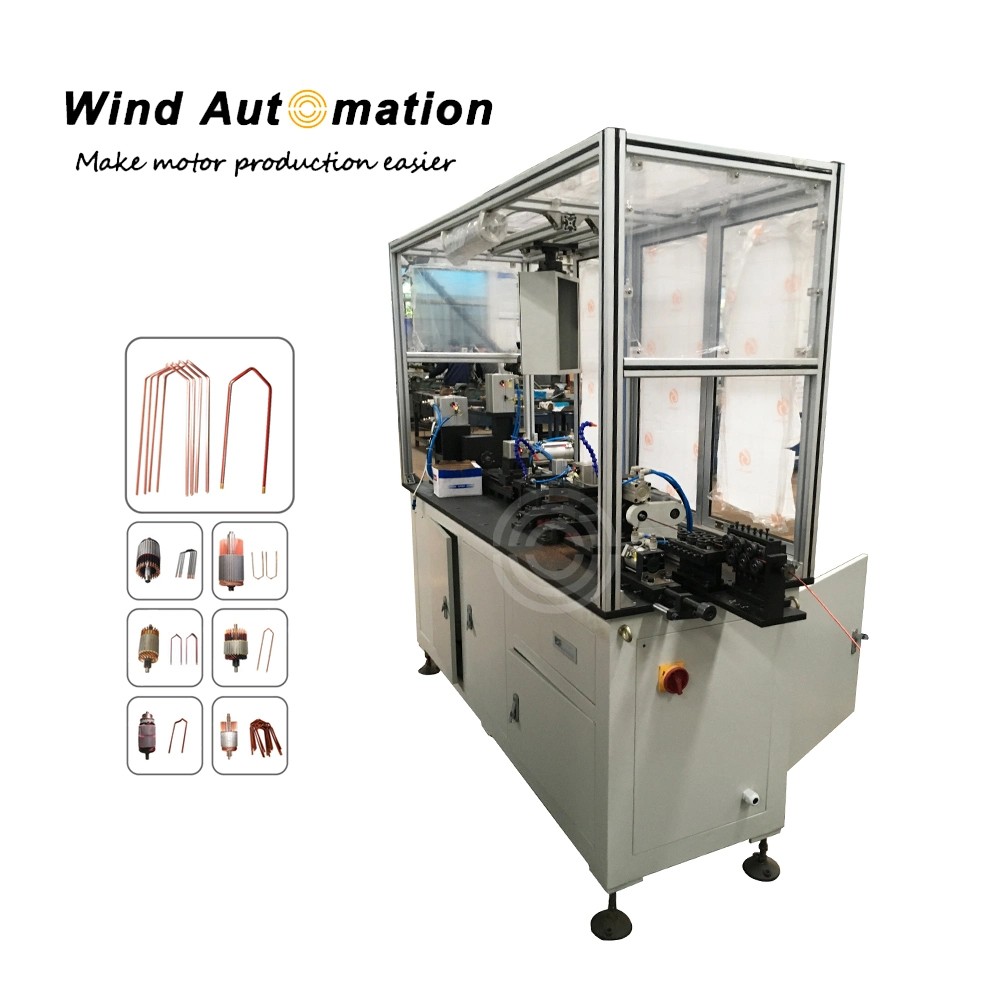

Flat Wire Forming Machine For Starter Motor Armature

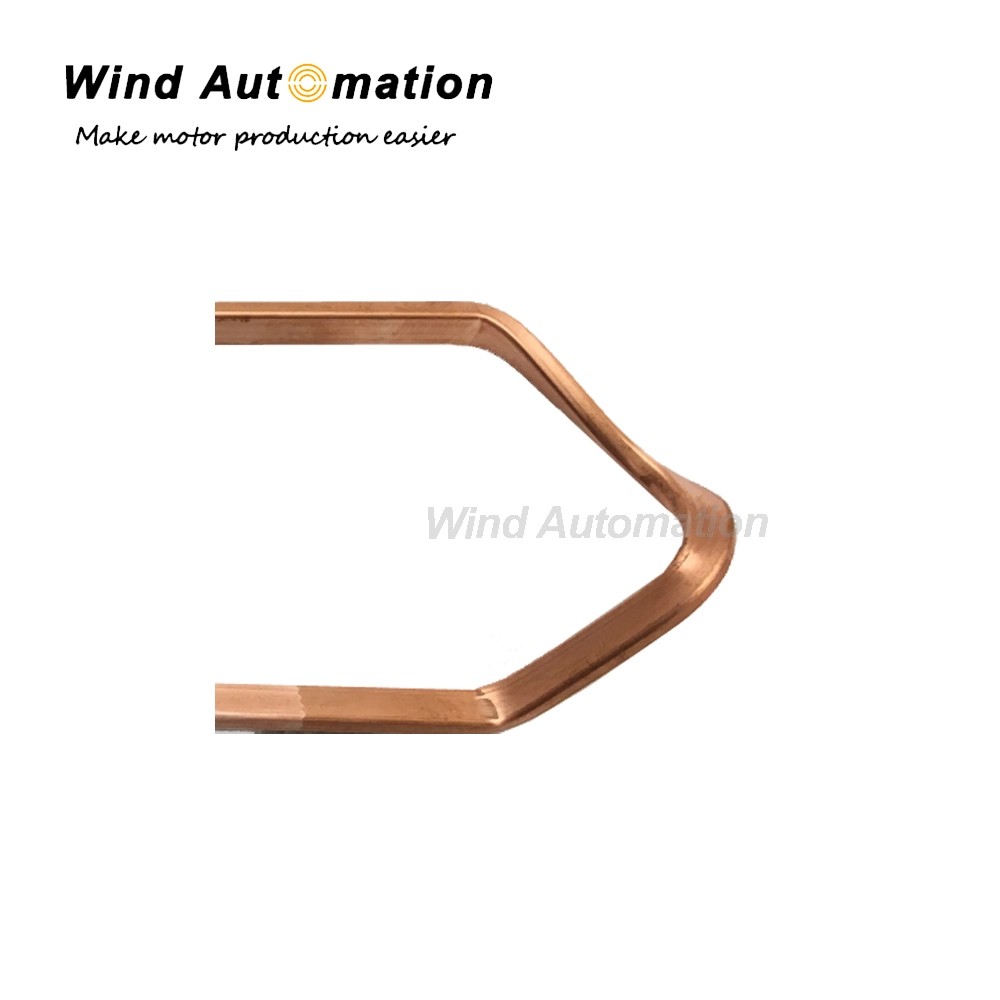

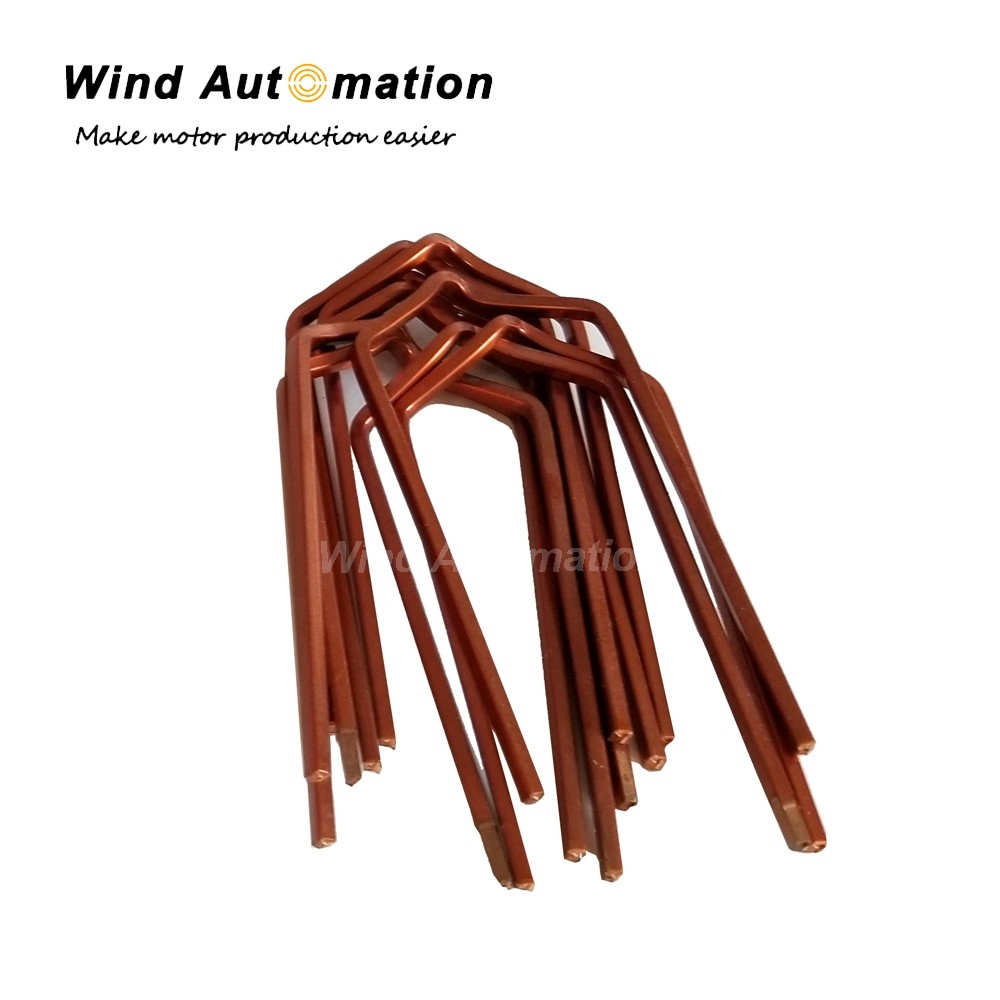

This forming machine  is used to shape flat wire into hairpin coil which can be ready to insert into armature body. During forming, one operator is quite enough to operate this machine.

(1) Competitive advantages
1. High efficiency, Cycle time Around 25pcs/ minutes
2. Four cutter cut the flat wire
3. Forming angle is adjustable.
4. Flat wire forming machine is comprised of  three major parts, wire feeder,straightening machine and feed forming
5. The feeding length can be set on screen, mechanical linkage automatic punch forming


(2)Specifications

(3) Application

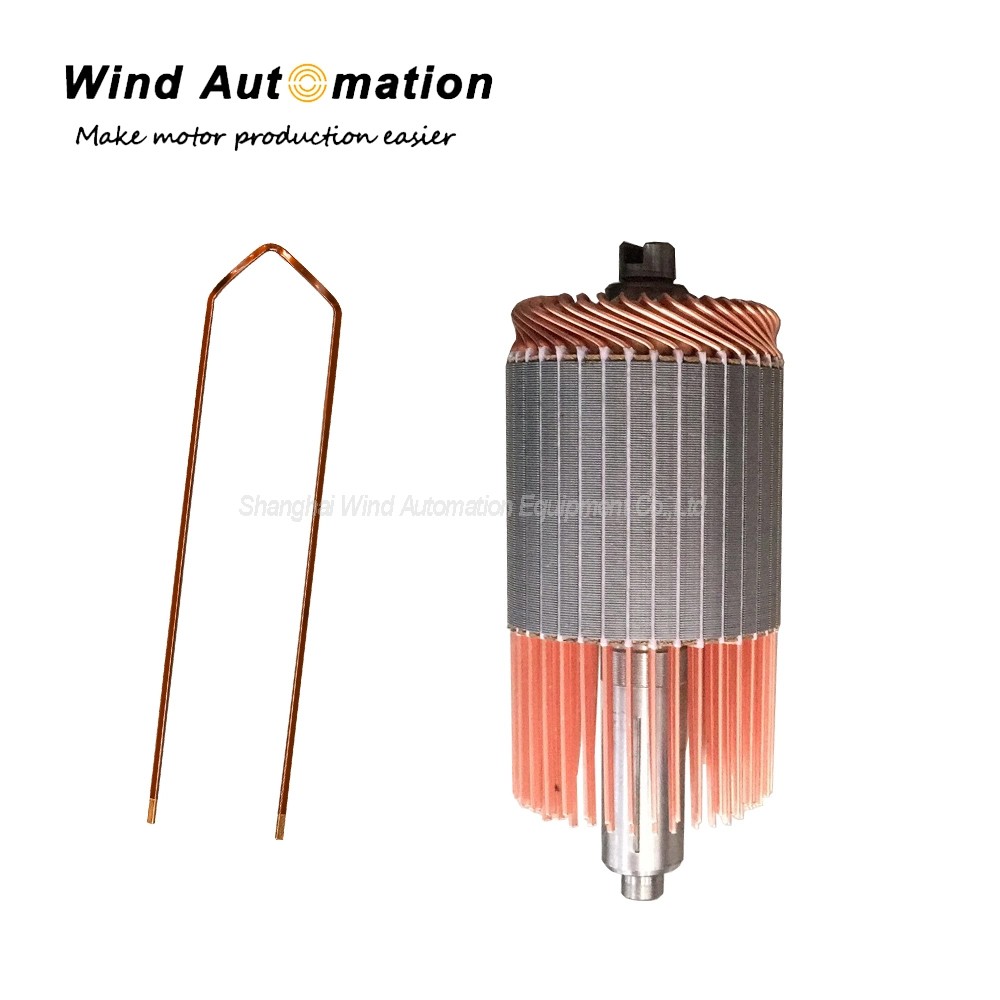

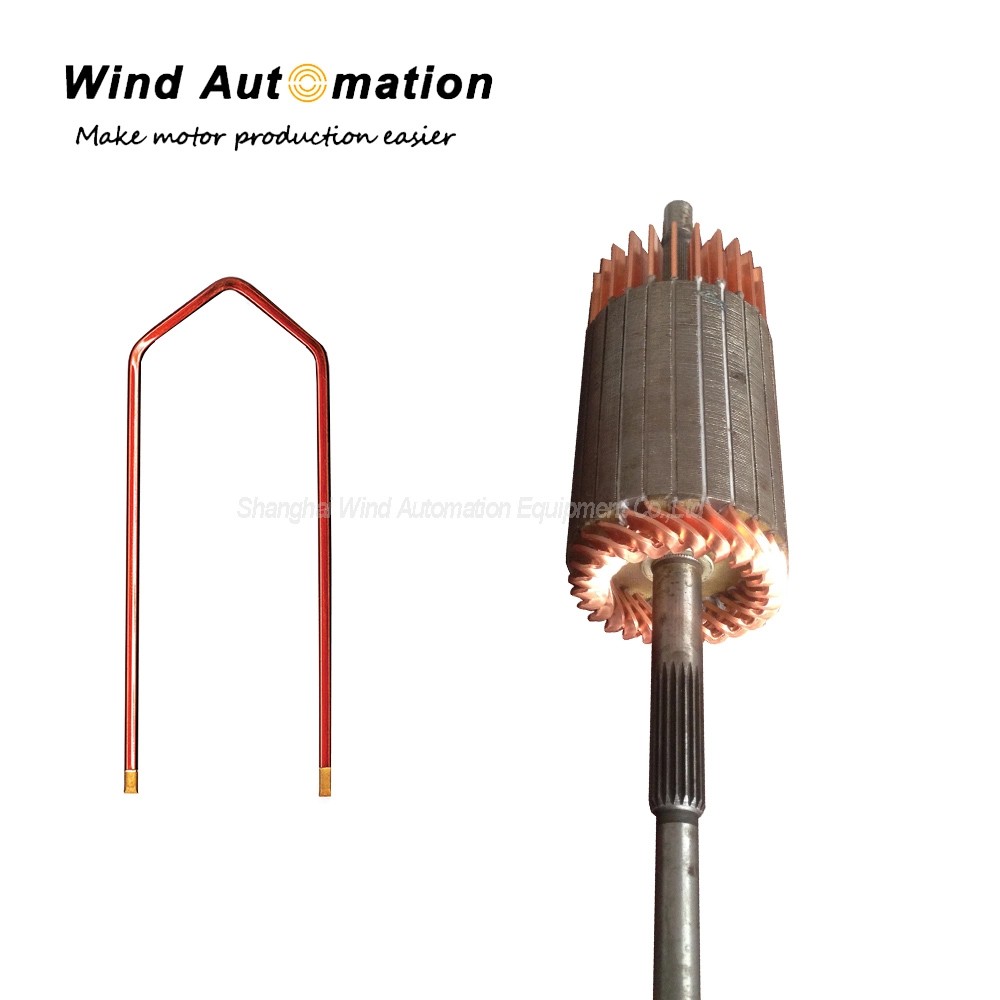

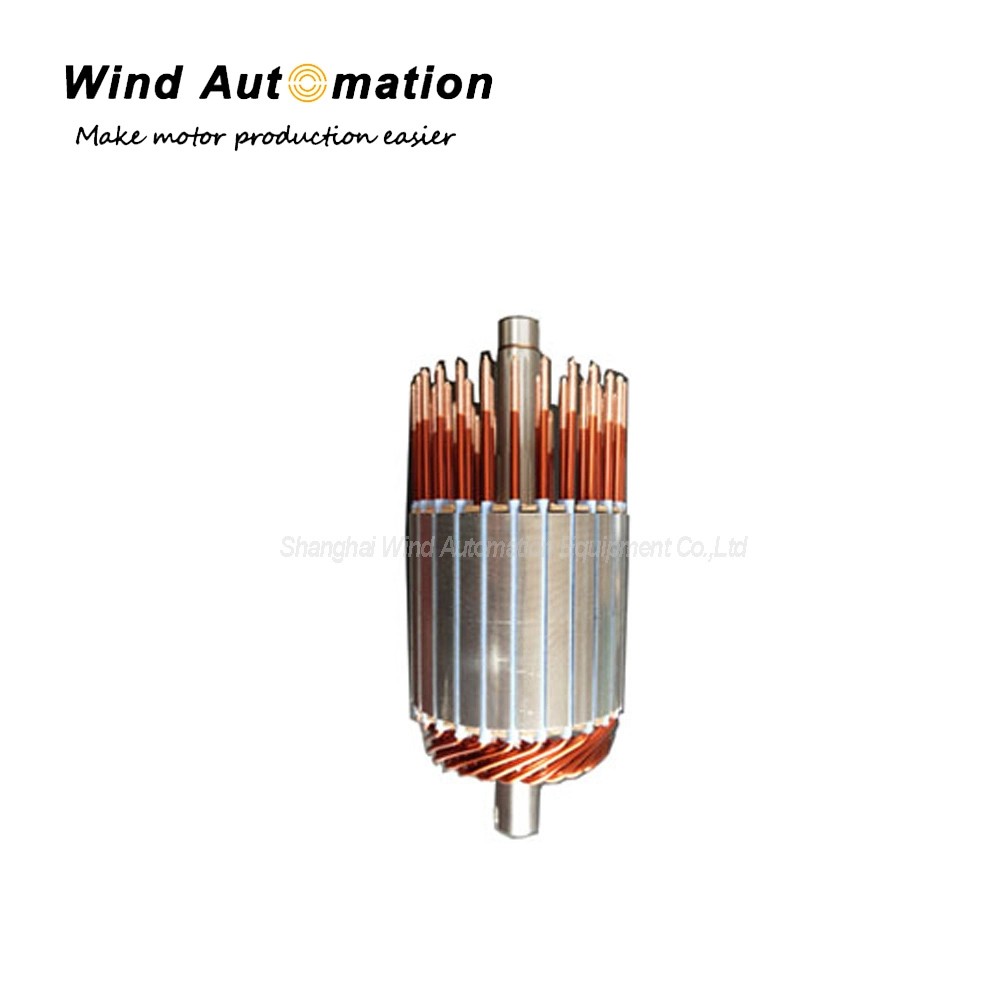

Suitable for starter motor, aerospace motor armature to do hairpin coil forming.

(4) Features
Suitable for flat wire
High efficiency, automation and productivity, 25pcs/min
Mitsubishi PLC control, colorful touching screen
Capable of producing conductor with customized twisting angle
One operator is quite enough to operate this machine
